1000/1300 high speed plastic automatic thermal paper slitting rewinding machine price
- Category: >>>
- Supplier: Wenzhou Yibo Trade Co. Ltd.
Share on (62019737745):
Product Overview
Description
Product Description
Performance and Features
1. The machine uses a DC motor to maintain a smooth operation during acceleration; (frequency control can also be used)
2. Automatic meter and alarm functions;
3. Rewinding using A, B air shaft structure, convenient loading and unloading operations;
4. Unwindingadopts photoelectric automatic error correction adjustment system so that the material can be properly cut irregular
5. Flat knife slitting scrap automatic discharge device
6. Manual feeding, with air shaft (3 inches).
7.Knife knife 8item
一、Technical Parameters
1.Slitting width：1100-1300mm
2. Slitting material thickness：：20g-300g/m2(Depending on the raw materials may be)
3. Unwinding Max diameter ：φ600mm
4. Rewinding Max diameter：φ450mm
5. Slitting Max width：1100mm-1300mm
6. Rewinding air shaft diameter ：φ74m 2 pcs
7. Rewinding air shaft quality：2pcs（can single rewinding）
8. Correction accuracy±0.5mm
9. Precision slitting±0.5mm
10.Speed：10-160m/min
11.Total power：5.5kw
12. Machine colors：white(Other colors optional)
13. Automatic optical correction (according to different raw materials and customer specific requirements)

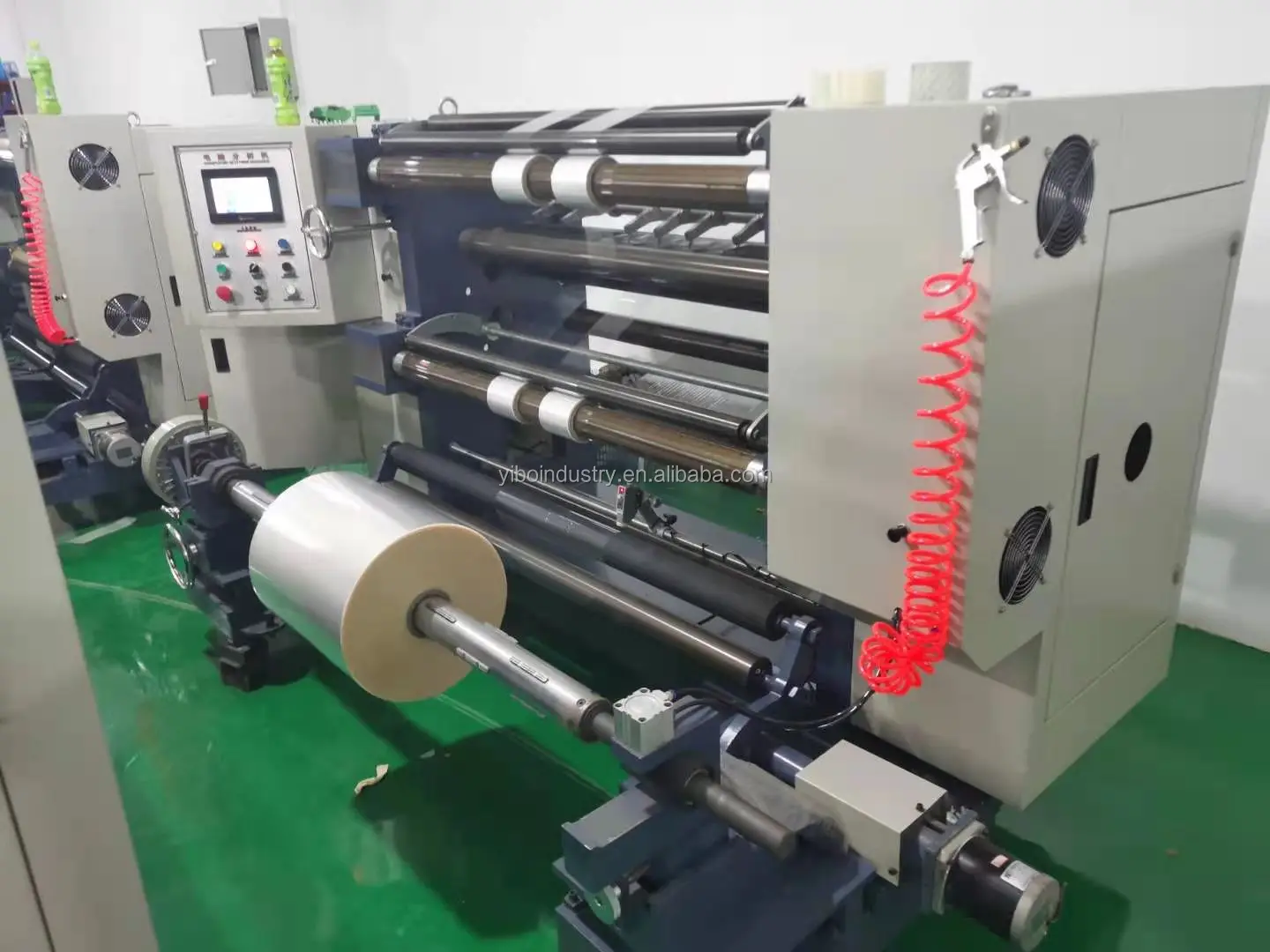

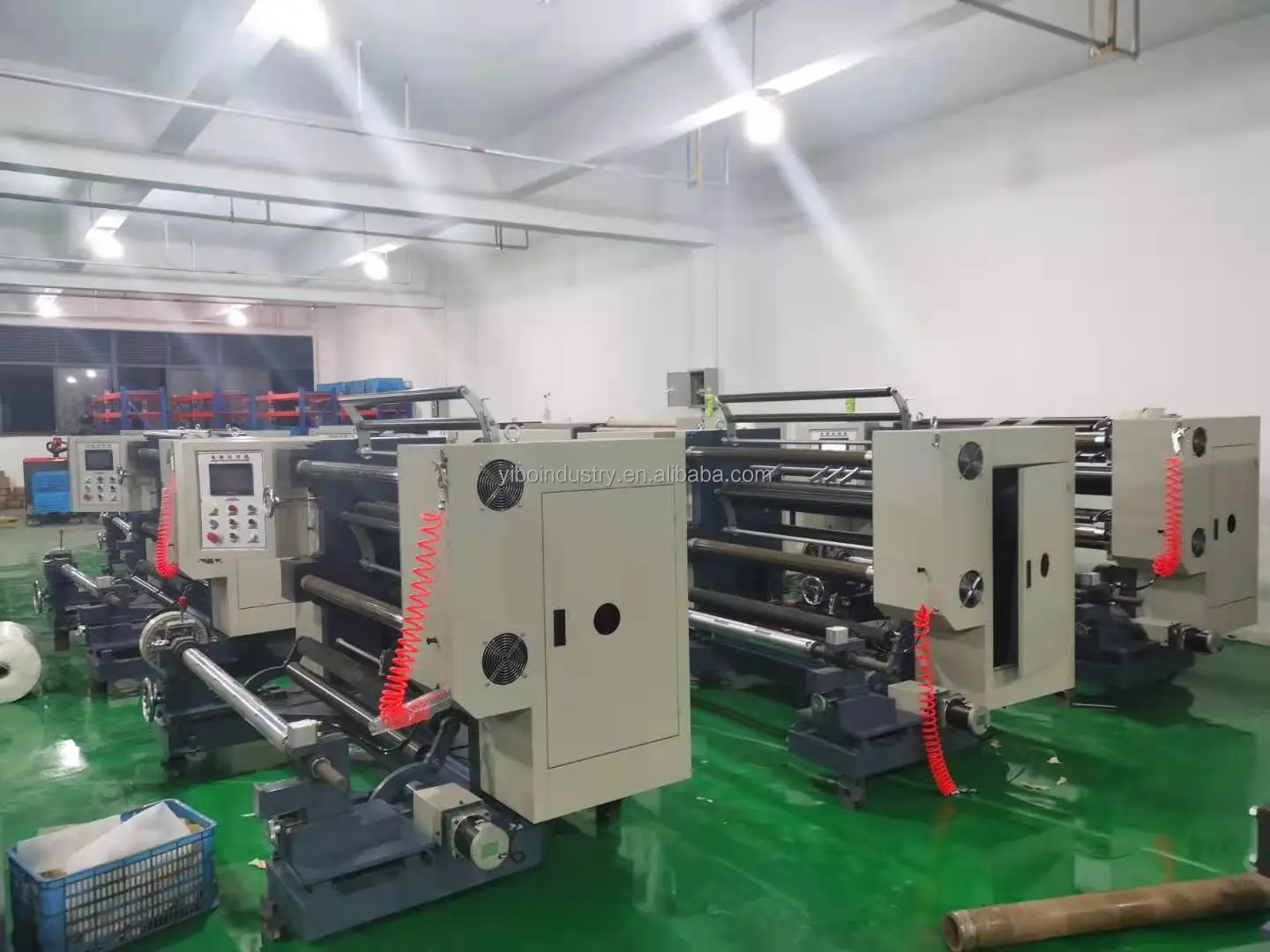

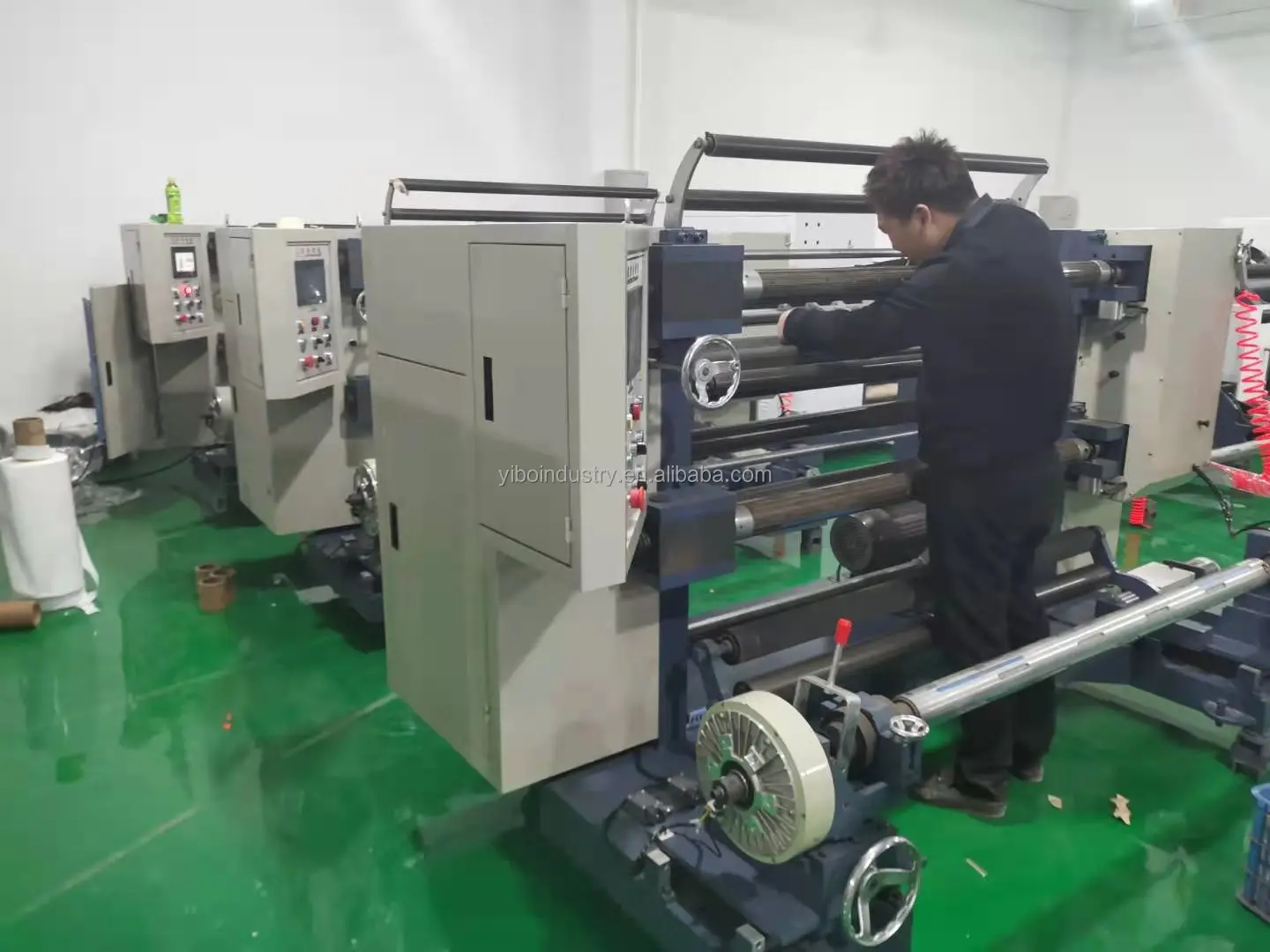

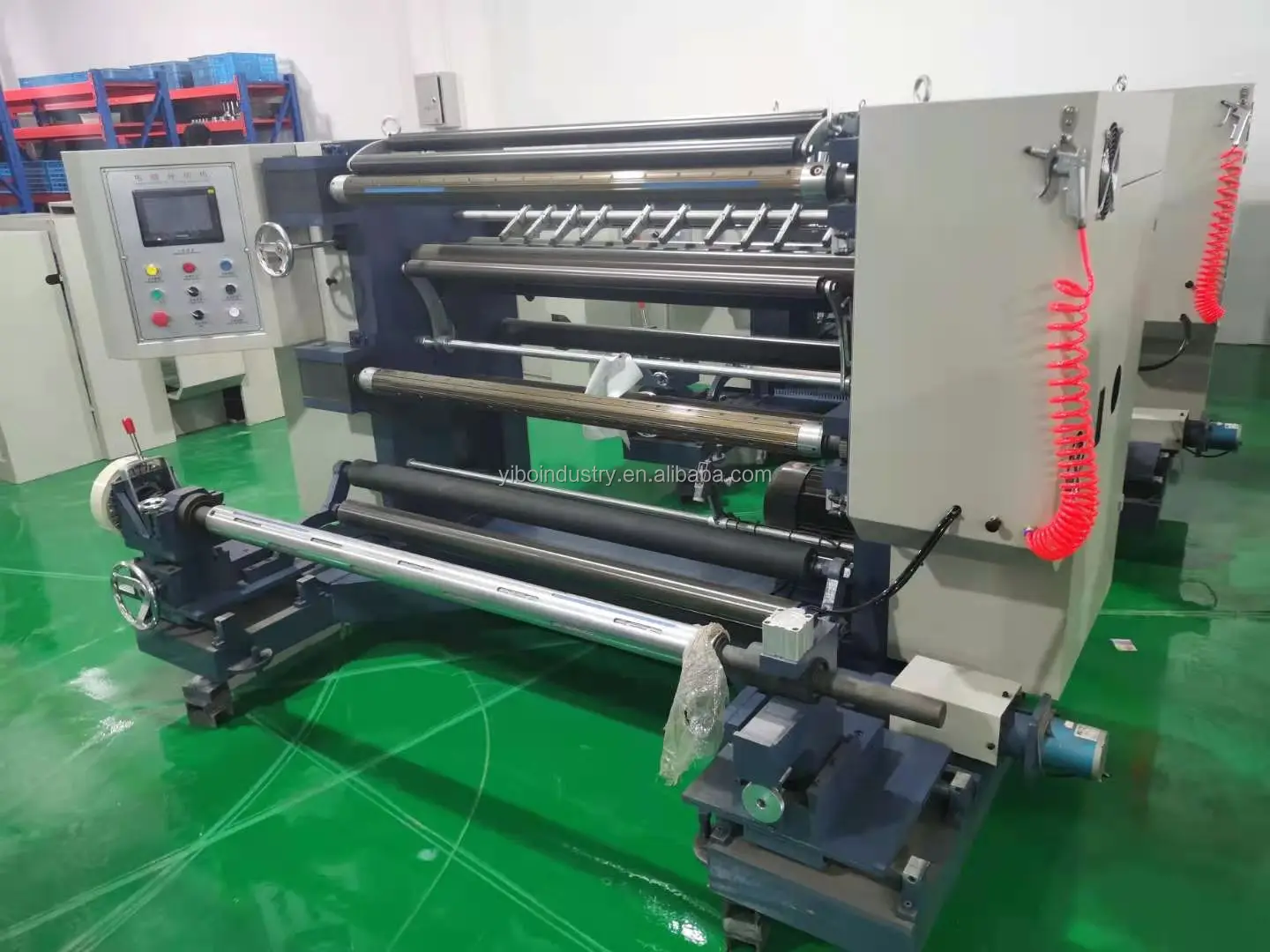

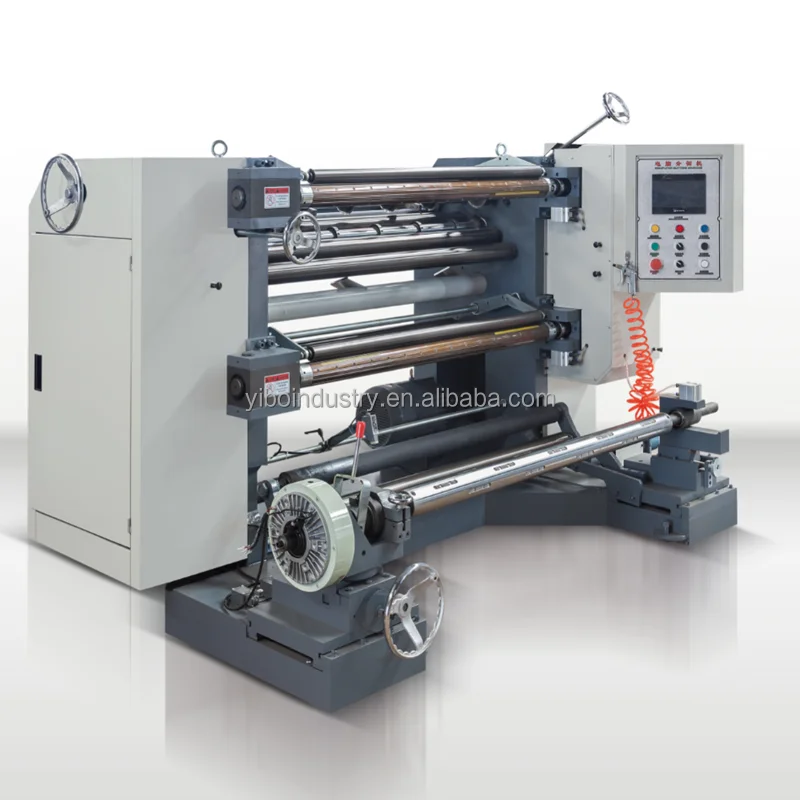

Machine show

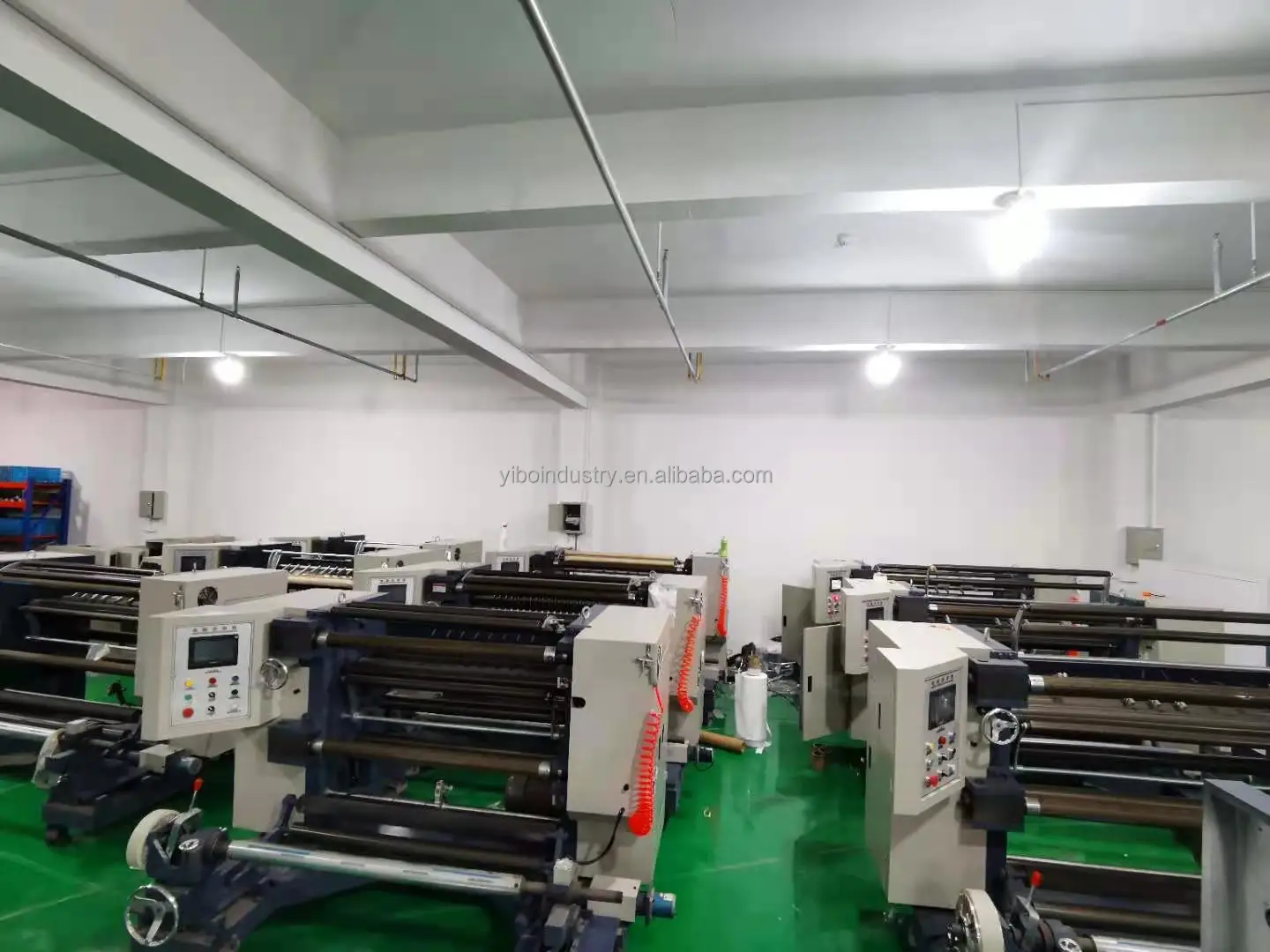

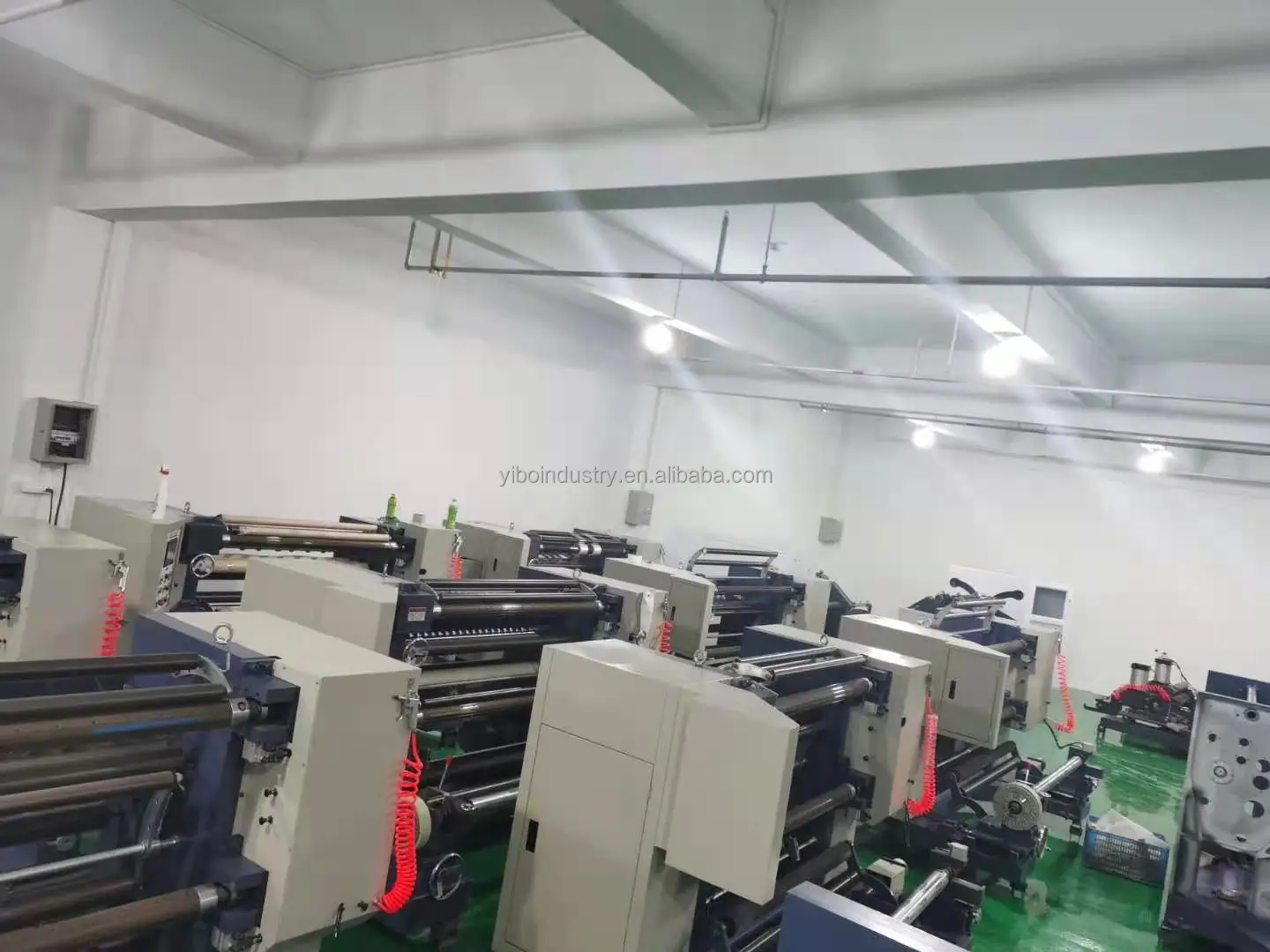

Company Profile

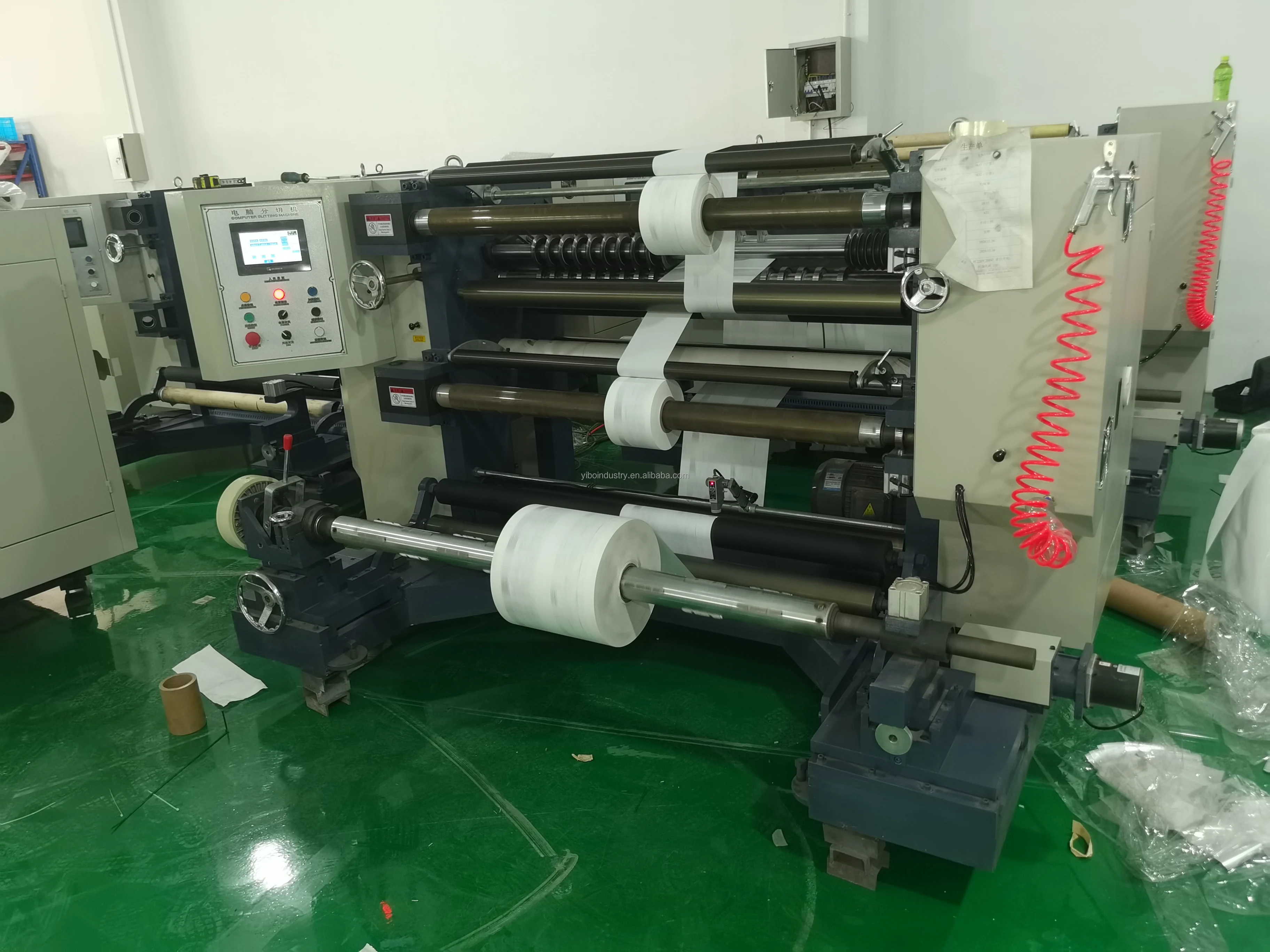

Customer Photos
