Analog to digital fiber optic coaxial Toslink audio converter

Product Overview

Description

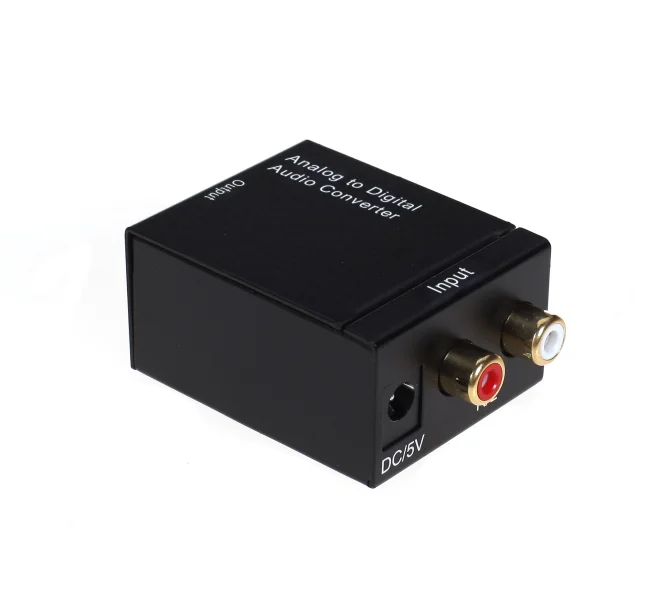

Analog to Digital Audio Converter



 1. Introduction

The Analog to Digital Audio Converter is designed to simultaneously convert analog audio signals from L/R input to Coaxial S/PDIF and Toslink Optical outputs. The digital audio output signal is a 2-channel uncompressed LPCM (Linear Pulse Code Modulation) with a sampling rate of 48 KHz. Both Optical Fiber and Coaxial cables can run up to 5 meters from the device while still providing a reliable and lossless audio signal. This gadget is both compact and easy to install, making it incredibly useful for the home or office.

2. Features

  Supports uncompressed 2-channel LPCM (Linear Pulse Code Modulation) digital audio signal output.

Has an output sampling rate of 48 KHz.

Provides electromagnetic-noise-free transmission. Easy to install and operate.

 3. Specifications

Input Ports 2x RCA (Stereo R/L) Output Ports 1 x TOSLink (Fiber Optic),

 1 x Coaxial Power Supply 5V/1A DC (US/EU standards,CE/FCC/UL certified)

 Dimensions (mm) 51(W) x 41(D) x 26(H) Chassis Material Aluminum

 Operating Temperature 0°C ~ 40°C
