Wholesale Factory Price High Quality 1080 Laser Cutting Machine And Engraving For Wood
- Category: >>>
- Supplier: Qingdao Mohui Laser Science And Technology Co. Ltd.
Share on (62019790353):
Product Overview
Description
Product Application
Laser engraving machine is used for engraving and cutting on non-metal material. It is widely used on engraving or cutting on acrylic wood rubber glass PVC MDF leather etc.
SPECIFICATIONS FOR 1390 laser engraving machine | ||||||
Basic performance parameters | working area | mm | 1000*800 | |||
laser power | W | 60/80/100/130/150 | ||||
laser type | / | sealed CO2 laser tube | ||||
Main performance parameters | cutting speed | mm/s | 0-300 | |||
engraving speed | mm/s | 0-1024 | ||||
cutting thickness | mm | 0-20 | ||||
Hydraulic system | engraving thickness | mm | 0-2 | |||
Location precision | mm | <=0.01 | ||||
lift range | mm | 0-270 | ||||
Main Features
1. Adjustable Speed and Power, Smooth and Precise Engraving and Cutting
2. USB Interface
3. Air Assist, Remove heat and combustible gases from the cutting surface.
18W Air pump, flow can be 38L/Min.
4. Embedded Exhaust Fan, Easier intall, Safer transport.
40W exhaust fan, flow can be 5.27m³\Min.
5. Rotary Axis, Engrave any cylindrical object.

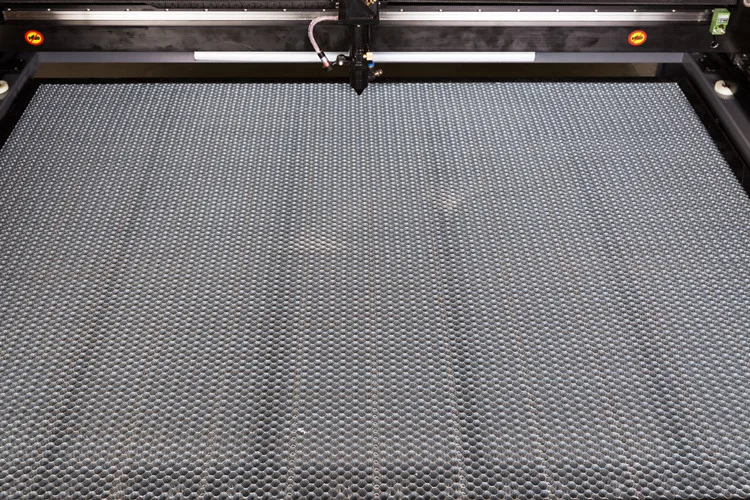

6. Cellular platform, Leave no chippings on working area.
7. Intuitive Control Panel, Set Speed, power and more controls directly from the laser.
8. Water Cooling and Protection System.
15W Water Pump, flow can be 7.5L/H.
Certifications
Detailed Images
Machine Parts
Name: sealed co2 laser tube
Brand:reci, EFR
World famous laser tube,
strong light beam,
long life span,
low fuel consumption.
Main Parts
Name: ruida panel
Brand: ruida
Original: China
Domestic and over sea famous panel,
stable performance,
low fuel consumption,
support coreldaw, Al and CAD software.
Machine Parts

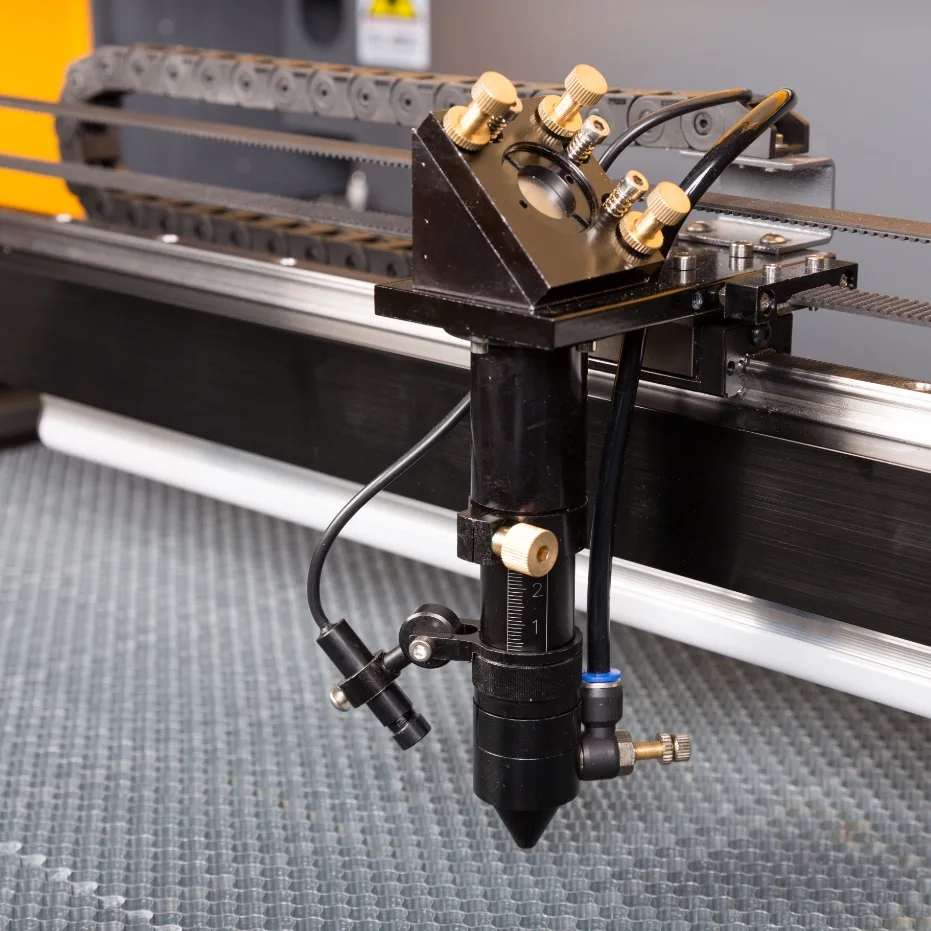

Name: industrial laser head
industrial laser head ,
long life span.
airblow protection system
red light positioning
Main Parts

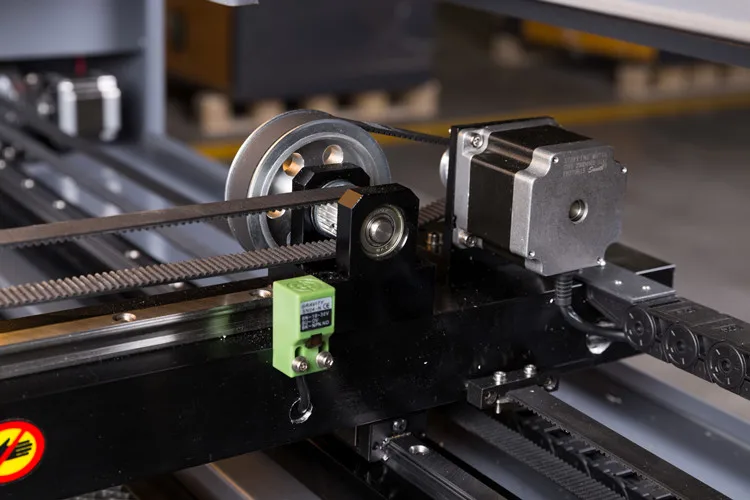

Name: 57 stepper motor
Brand: FEIHONG
Domestic famous motor, strong driving force,
high speed,low fuel consumption,
high economic benefits.
Our ServiceAfter-Sales Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* User manel provided,training how to instal and use the machine video provided, 24 hours online support.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 1530 (L) * 1220 (W) * 1060 (D) | |
Weight | 240kg | |
Packaging Details | The normal package is plywood box(Size: L*W*H). or according to customers special request. | |
