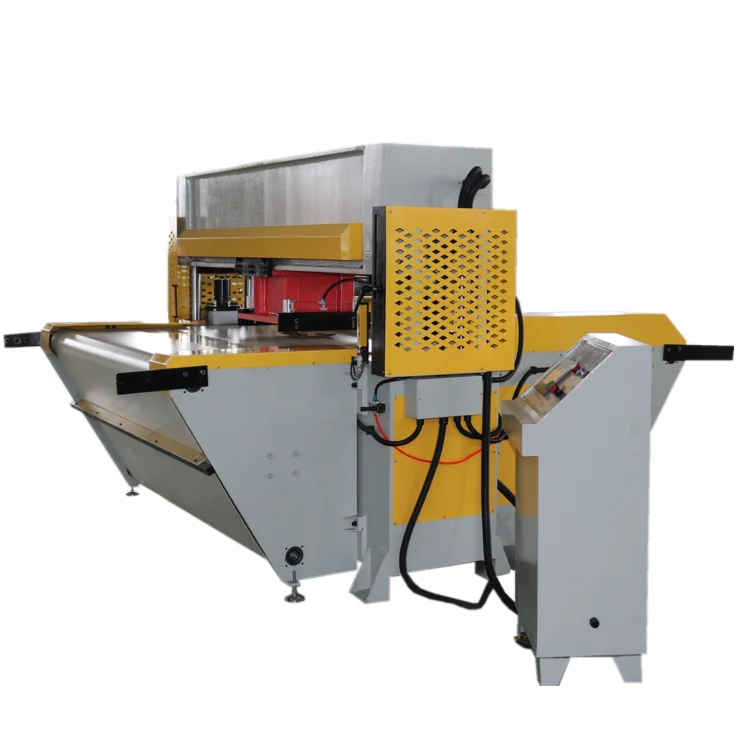

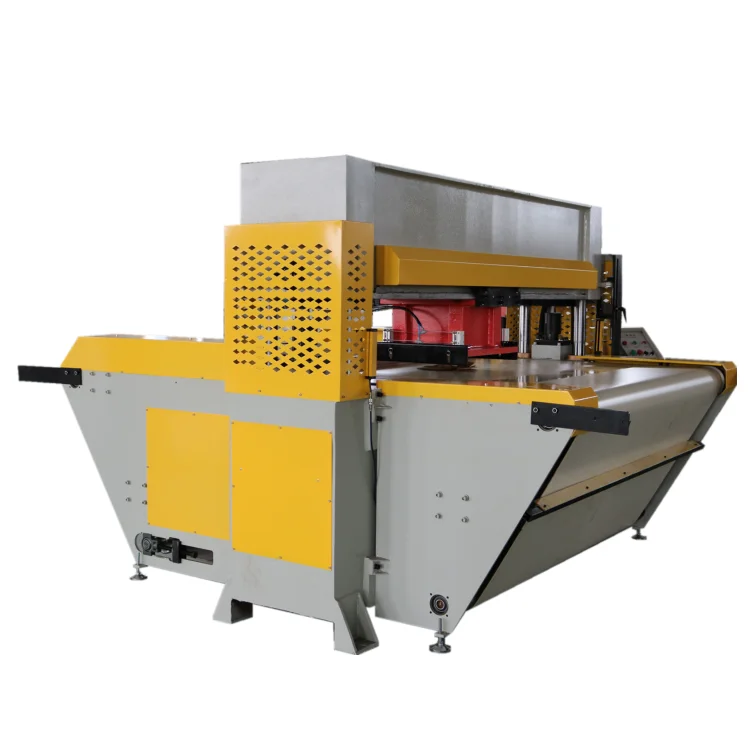

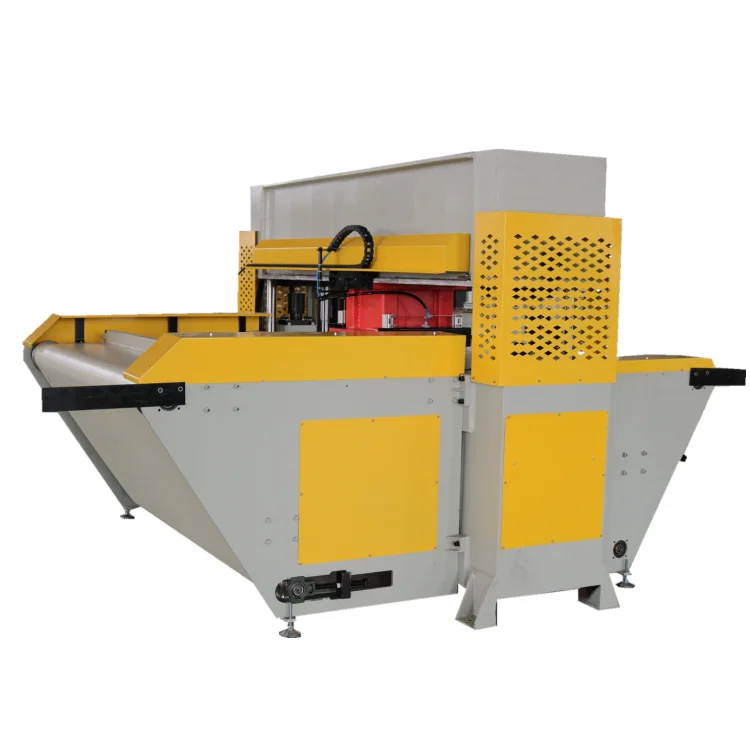

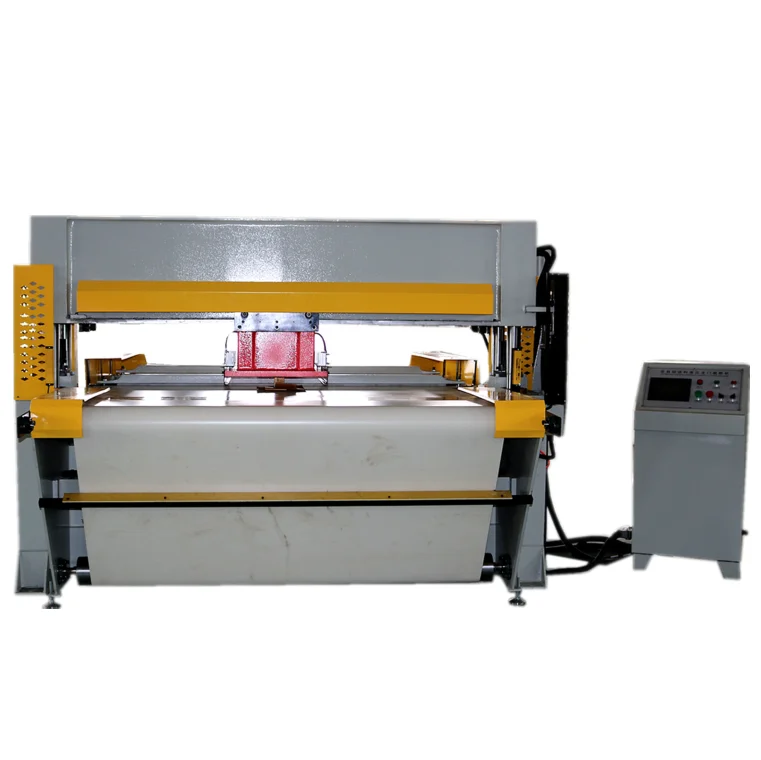

Automatic knitted fabric die cutting machine

Product Overview

Description

Automatic knitted fabric cutting machine







Traveling head cutting machine  is widely used for garment,shoemaking ,leather ,sponge ,luggage and baggage ,automobile decoration,hats ,woods ,plastic packing ,packing ,toys ,stationery ,plyurethane preocessing and air conditioner refrigeration etc

1.Automatic traveling head cutting machine is widely used in a variety of industry molding die for all kinds of non-metallic materials, cutting work.
2.Double cylinder, precision four-column double crank connecting rod balance structure, to ensure that each cutting position of the same depth of the cut.
3.Unique set structure, with the cutting knife and cut the depth of the set, so that stroke adjustment is simple and accurate.
4.Cut the pressure plate to contact the cutter when the slow cut, so that the cutting of the material between the top and bottom there is no size error.
5.All the sliding parts of the central oil supply automatic lubrication system to ensure that the machine's life and accuracy.
6.Punch automatically move, easy to operate.









Model No.	XCLL4-500	XCLL4-600	XCLL4-800	XCLL4-1000	XCLL4-1200
Cutting force (KN)	500	600	800	1000	1200
Range between the working tbales( MM)	50-200	50-200	50-200	50-230	50-230
Stroke adjustment (MM)	0-150	0-150	0-150	0-180	0-180
Upper pressing board size (MM)	1600×800	1600×900	1600×900	1600×900	1600×1000
Lower workable size (MM)	1600×800	1600×900	1600×900	1600×900	1600×1000
Motor pwer (KW)	4	5.5	7.5	7.5	11
Hydraulic oil capacity (L)	140	140	170	170	220
Dimension size (MM)	2320×800×1500	2680×900×1500	2680×900×1600	2780×900×1600	2780×1000×1680
Machine weight (KG)	3900	6000	7300	9000	10000
