2021 High Speed Hydraulic Steel bar,nut bolt,Booker rod making thread rolling machine price
Product Description

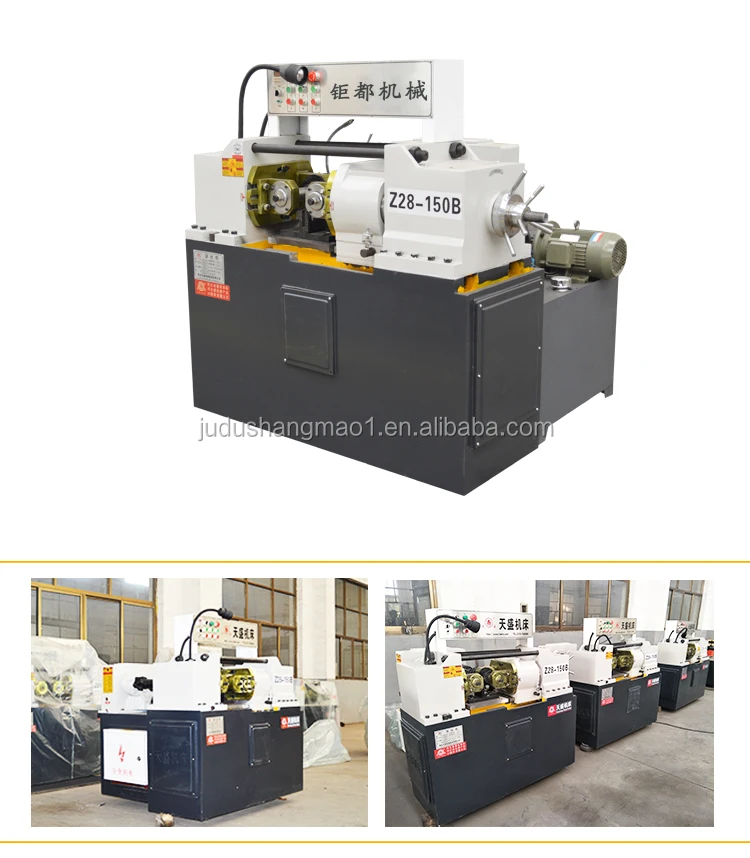

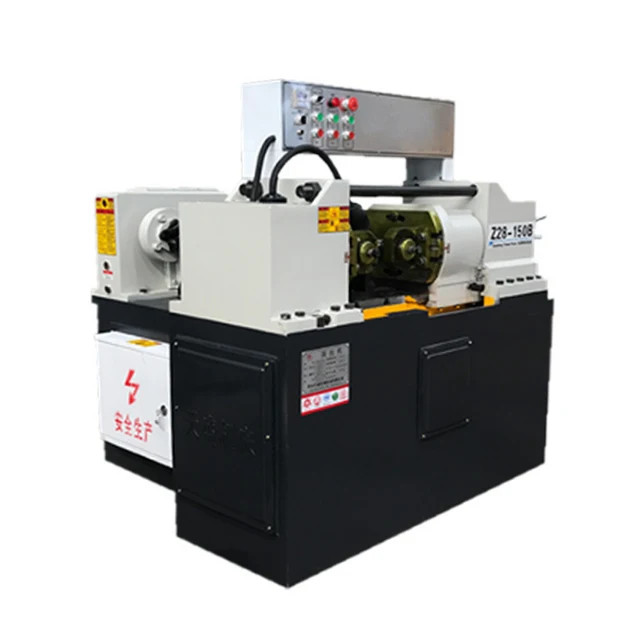

Z28-150 type thread rolling machine
The machine is compact,solid,reasonable design,easy maintenance and other characteristics by the majority of customers.This product is better than other similar models,suitable for ordinary thread,shaped bolts,thread thread processing,free transfer disorder.
Product parameters of thread rolling machine
Name | Parameter | ||
Object part for rolling | Max Diameter | Radial direction feeding | Φ56mm |
Axix direction feeding | Φ30mm | ||
Thread pitch range | Max thread range | Radial direction feeding | 5.5mm |
Axix direction feeding | 3.5mm | ||
Inner dia of both roller wheels | Φ54mm | ||
Dia of two roller wheels | Φ120-170mm | ||
Core distance ranges of both roller wheels | 125-225mm | ||
Thickness ranges of both roller wheels | 30-100mm | ||
Maximum hydraulic feedling power | 160kn | ||
Two main axis obliquity | ±5°c | ||
Both main axle rotation speed(YPM)(exchange gear) | (exchange gear)37/46/63/79rpm | ||
Hydraulic auto-feeding time regulation scope | Hydraulic rolling | 0.1-99.9s | |
Hydraulic cease | 0.1-99.9s | ||
Mechanical transmission motor | 7.5kw | ||
Hydraulic transmission motor | 2.2kw/1450r/min | ||
Cooling electric pump | 120w | ||
Outer sizes(L*W*H) | 1550×1550×1450mm (Excluding external hydraulic station) | ||
Machine weight | 2000kg | ||

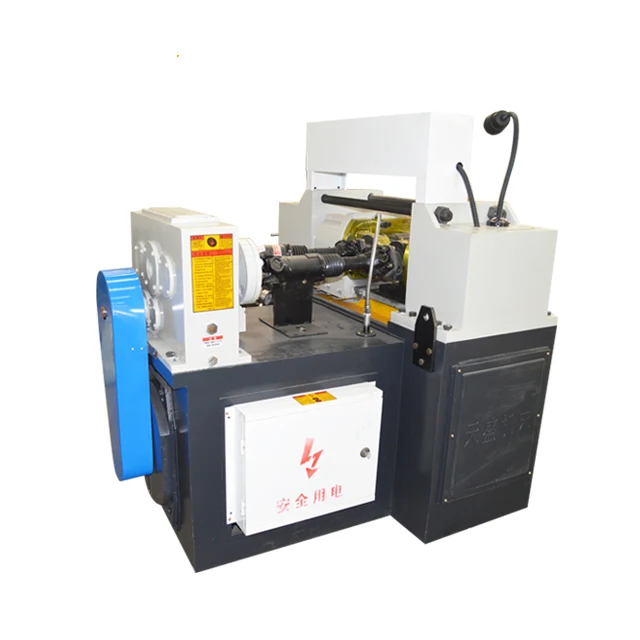

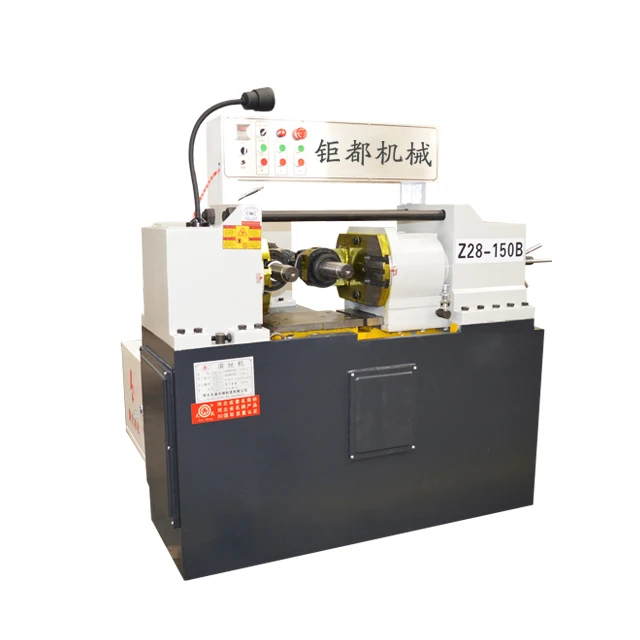

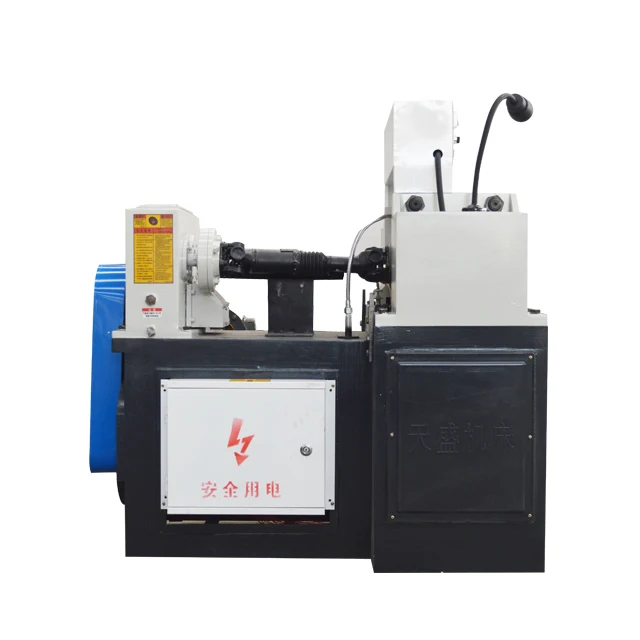

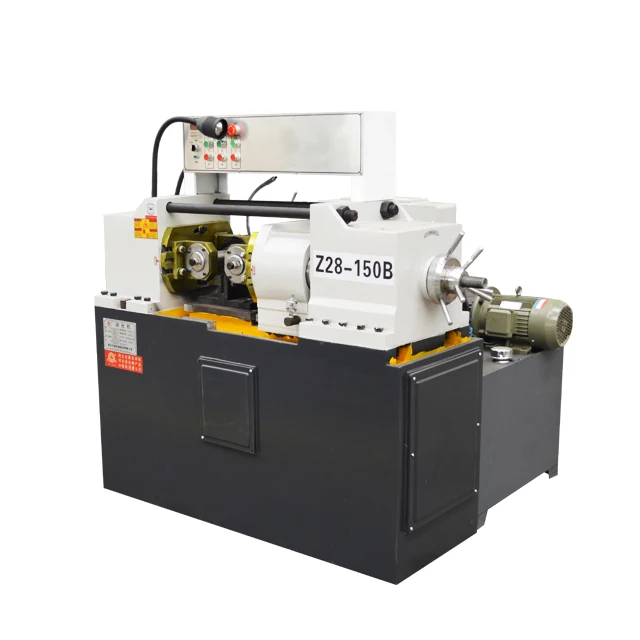

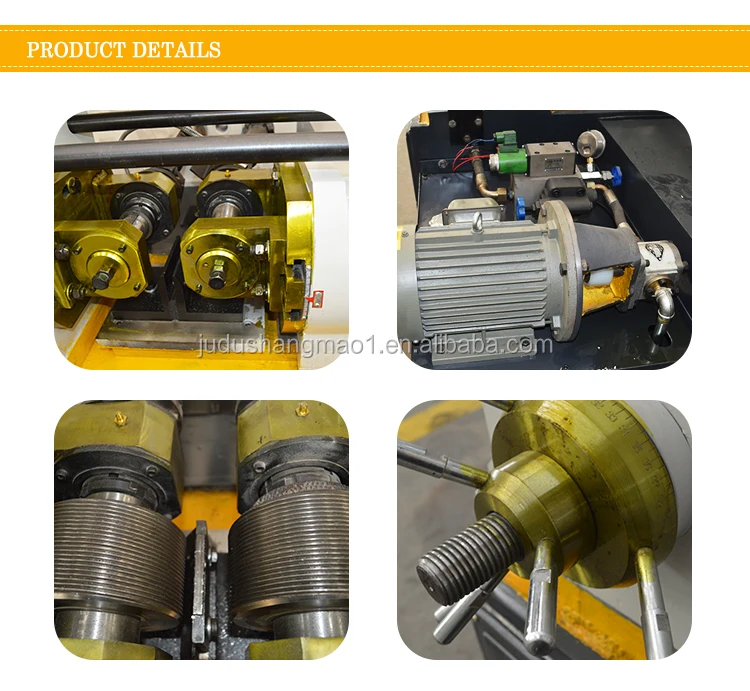

Detailed Images
Related Products
We have Many models thread rolling machine and different pitch and diameter,Z28-215,Z28-315,Z28-200,,Z28-40C,and so on.
All the diameter we can thread rolling,pls provice us the diameter and the type of your raw material,then i will recommed you the best model fit for you.
Packaging & Shipping
Thread rolling machine'packaging is professional EXPORT WOODEN CASE.
Shipping is by sea,by train or delivery to the address in china
Delivery time:within 3 days
Our Services
- All inquiries replied after 12 hours by email or phone call
- For more details about thread rolling machine,some expert can provide information in different language (Chinese,French,Spanish,Arabic, English)
- Available for any contact in different social net work.
- Any visit to our factory authorized.
- Service at customer request.
Company Information

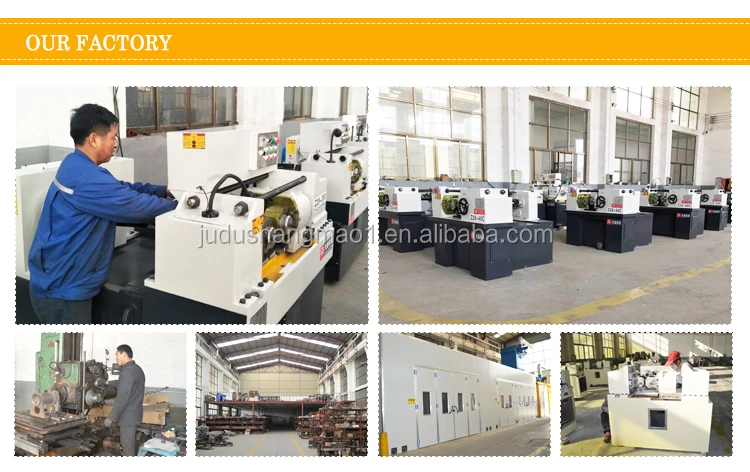

Xingtai Judu Technology Co., Ltd. is located in Xingwan Town, Xingtai City, Xingtai City,Hebei Province,a long history of machinery manufacturing.It specializes in manufacturing and selling thread rolling machine.Twenty years of development,the company always credit greatcity,greatcity quality,greatcity service philosophy,pioneering and innovative, self-improvement,adhere to independent intellectual property rights as the core of science and technology innovation,the current thread rolling machine.
Our factory's main products are exported to all regions of the country,exported to Asia,Africa and Europe and other countries and regions,we are honest and innovative spirit of enterprise,relying on the leading research and development capabilities,efficient production,stable quality and thoughtful After-sales service to meet the needs of customers at home and abroad.The company now passed the CE,ISO9001: 2000 international quality management system certification,greatcity more than 20 years of development history,after ups and downs,to glory.
