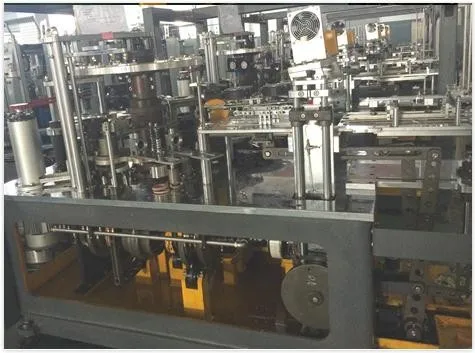

DEBAO 118C High Speed Intelligent Paper Cup forming Machine 2 12oz PE coated with ultrasonic sealing unit
- Category: >>>
- Supplier: Wenzhou Xinguang International Trade Co. Ltd.
Share on (62019930144):
Product Overview
Description
Our Services
As distributor, our most advantage is competitive price and effective aftersale service.
we offer on-the-spot serivice within 24 hours worldwide
Your one stop solution for Printing&Packaging
paper cup forming machine
Product Description
Description:
Mechanical Behavior

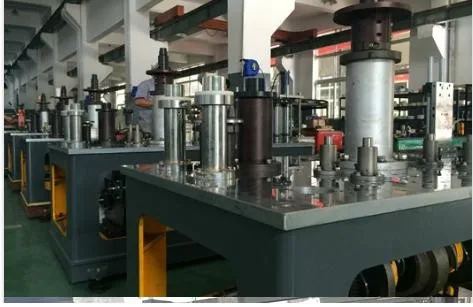

The DEBAO-118S-ZY type intelligent paper cup machine is using desktop layout, which isolates the transmission parts and molds. The transmission parts are under the desk, molds are on the desk, this layout is convenient for cleaning and maintenance. The machine adopts automatic spray lubrication, longitudinal axis transmission structure, barrel type cylindrical indexing mechanism and the gear drive, ensuring the stability and quality of the whole machine. For electrical parts, PLC, photoelectric tracking and servo feeding are used to control the running. This type machine’s capacity is up to 120/min, suitable for the production of 5-16 ounces of cold/hot cups.
| Transmission Agency Patent No .: ZL 2012 2 0181311.9 Vertical shaft gear drive, cylindrical barrel indexing cam, optimize the internal layout, to ensure the accuracy of the machine transmission, high synchronization performance, so as to achieve coordination between the travel to avoid collision damage parts, make up the chain drive jitter and transmission is not smooth Congenitally deficient. |
| The overall case structure The machine enclosure structure design, pouring oil spray lubrication, reduce wear and tear, effective heat dissipation, the machine to run fast. The machine warranty for three years. |
| Two curling institutions The first curling with internal expansion of the rotary molding, is conducive to improving the paper forming strength; second curling heating stereotypes, beautiful volume, dimensional stability. |
| CCD image system patent number: ZL 2012 2 0181311.9 Detection of the cup (bowl) front of the volume and the internal area of the stain, mosquitoes, pinholes, roll mouth burst, wrinkle. 2, the detection cup (bowl) on the back of the bottom and knurled areas of the stain, mosquitoes, pinholes, knurled flanging, the end of paper burning yellow, crescent bottom, at the end of paper joints. |
Main technical Parameter
Model | DEBAO-118S-ZY |
Weight | 3500kg |
Packing specifications | 3100x1600x2350mm |
Cup counting holder packing specifications | 1230x610x1900mm |
Rated power | Three-phase 380V, 26KW |
Air supply requirement | 0.5-0.8MPa, 0.5cube/min |
Capacity | 100-120pcs/min |
Paper specification | Single PE/double PE/PLA |
Paper grams | 210-330g/m2 |
Paper cups specifications | (D1)φ60-95mm (H)50-135mm (D2)φ40-75mm (h)5-12mm |
Packaging & Shipping
Company Information
FAQ
Sansin is dedicated to provide a One-Stop Service for our customers in the printing and packaging industry which includemachineries, installations, trainning, maintenance, accessories, trade-in service, and others.
Consulting: Our expertise would like to provide the best suitbable solutions and advise to meet your needs based on your situations.
supplier: Sanxin's cooperative suppliers are among the best supplier in the printing and packaging industry, and we promise to provide the high quality machine and reliable delivery.
Installation and Training: Our experienced team will ensure the machine to be deliveried on time and installed properly. We also provide training programs and maintenance.
Accessories: We look for all kinds of accessories for your machine as you needed.
Trade-In Service: We provide trade-in service for any machines purchased from us.
24 Hours Service Hotline: All our team of service are fully conversant with our extensive range of products and can quickly and expertly talk you through any question you may ask. Sansin is committed to provide a 24 hours customer service/breakdown hotline in local office.
Note: some services are only available in certain countries.
