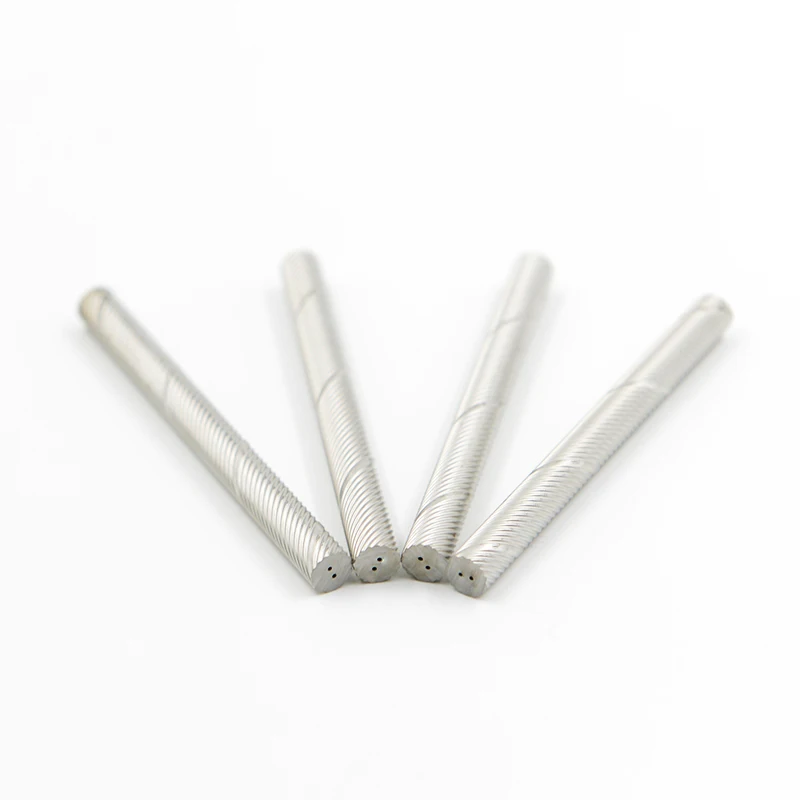

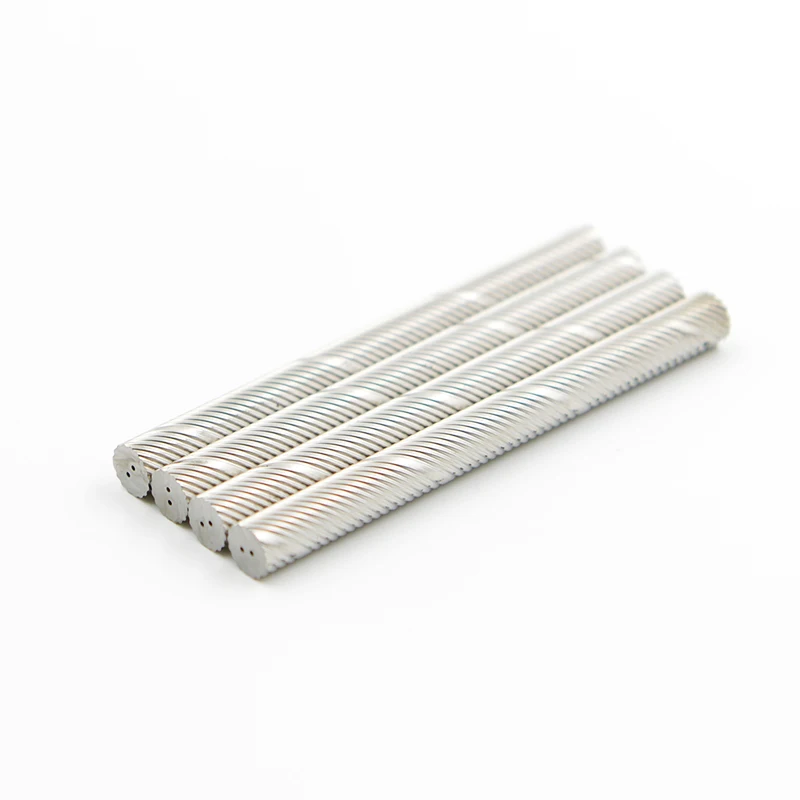

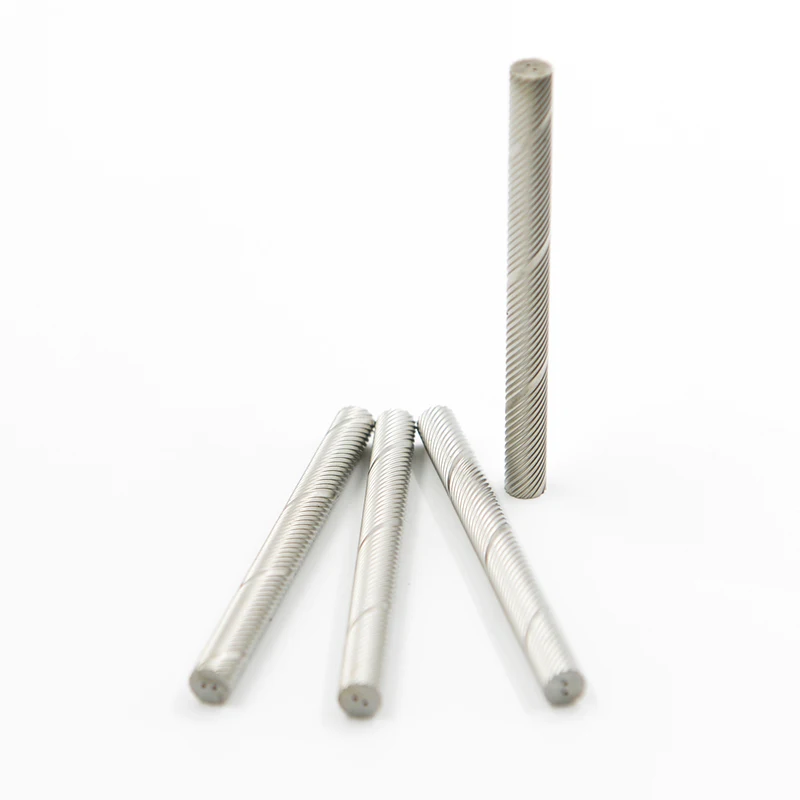

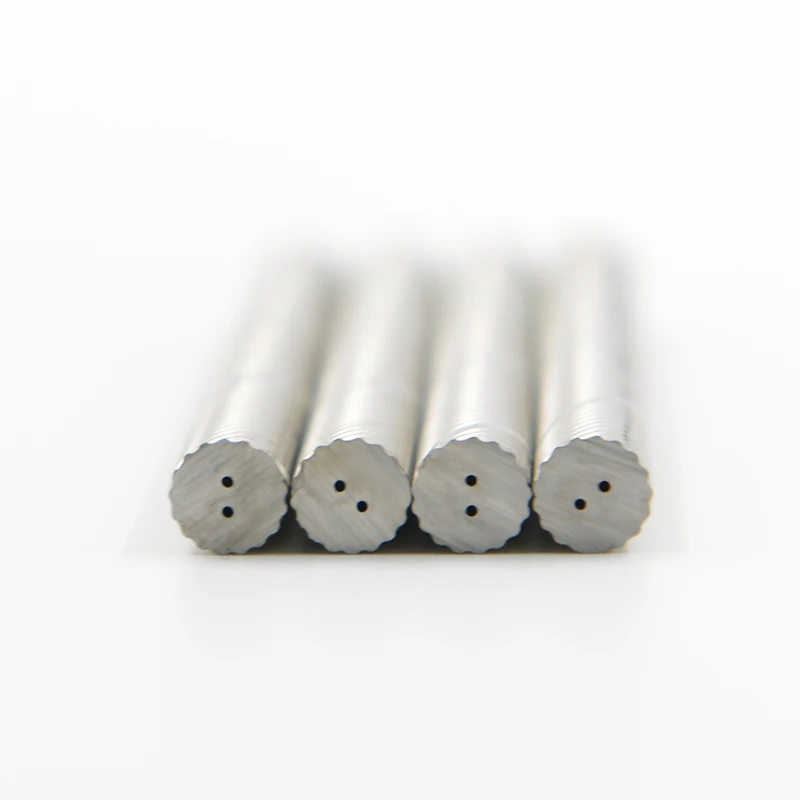

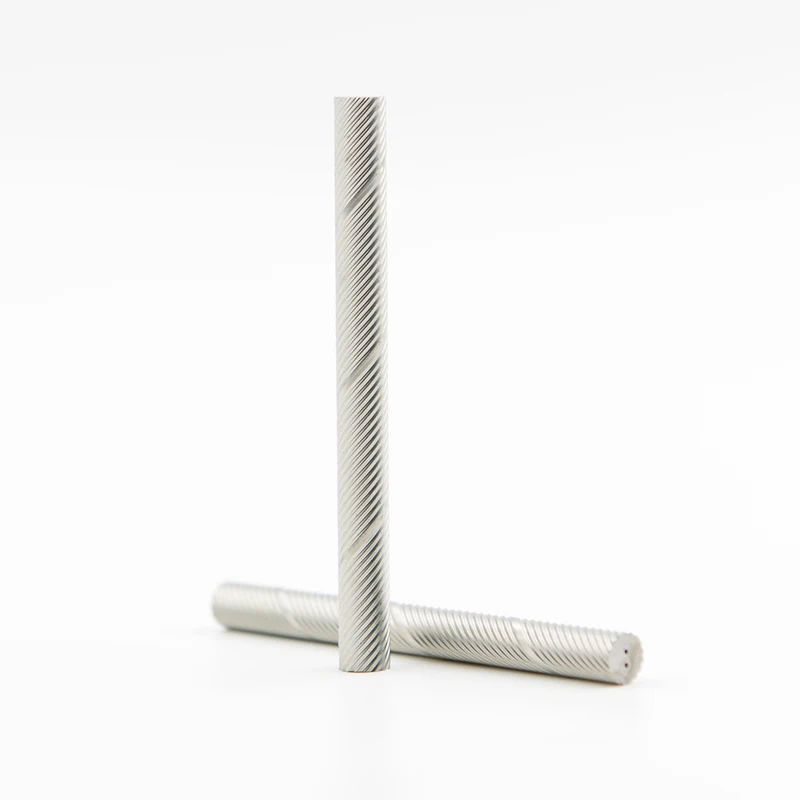

wholesale tungsten carbide rod tungsten carbide customized cemented carbide with two coolant hole YL10A for cutting tools search buyers who demand large
- Category: >>>
- Supplier: Zhuzhou Cemented Carbide Works Import & Export Co. Ltd.
Share on (62019974736):
Product Overview
Description
Product Description
Application of Carbide rods and bars
Used for making different milling cutter, drill, punch and wear resistant parts. At present, its main application field is in machining and electronics industry.
Specification of Carbide rods and bars
| GRADE | YL06C | YL10.2 | YL10A | YF06 | XF20S | XF30S | XT30S | XU30 | XU09S | XU10W | |
| Drilling | * | * | * | * | * | ||||||
| Milling | * | * | * | * | * | * | * | * | * | ||
| Reaming | * | ||||||||||
| P | General carbon steel | ^ | # | ^ | ^ | # | |||||
| M | Stainless steel | # | ^ | ||||||||
| K | Cast Iron | ^ | # | ^ | ^ | # | |||||
| S | Ti | # | ^ | ||||||||
| HRSA | # | ||||||||||
| N | Al-Mg | ^ | # | ^ | ^ | ^ | # | ||||
| H | Hard steel | ^ | |||||||||
| Others | Plastic | # | # | ||||||||
| CFRP | ^(coated) | ||||||||||
| Wood | ^ | # | ^ | ||||||||
| Ceramic | ^(coated) | ||||||||||
| Cemented carbide rods blanks with one central coolant hole | |||||||
| Type | D(mm) | Tolerance | d(mm) | Tolerance | Deviation of holes position≤(mm) | L(mm) | Tolerance |
| BΦ4.0×Φ1.0×330 | 4.0 | +0.2/+0.6 | 1.0 | ±0.15 | 0.2 | 330 | 0/+5 |
| BΦ5.0×Φ1.0×330 | 5.0 | +0.2/+0.6 | 1.0 | ±0.15 | 0.2 | 330 | 0/+5 |
| BΦ5.0×Φ1.5×330 | 5.0 | +0.2/+0.6 | 1.5 | ±0.15 | 0.2 | 330 | 0/+5 |
| BΦ6.0×Φ1.0×330 | 6.0 | +0.2/+0.6 | 1.0 | ±0.15 | 0.2 | 330 | 0/+5 |
| BΦ6.0×Φ1.5×330 | 6.0 | +0.2/+0.6 | 1.5 | ±0.15 | 0.2 | 330 | 0/+5 |
| BΦ8.0×Φ1.0×330 | 8.0 | +0.2/+0.6 | 1.0 | ±0.15 | 0.25 | 330 | 0/+5 |
| BΦ8.0×Φ1.5×330 | 8.0 | +0.2/+0.6 | 1.5 | ±0.15 | 0.25 | 330 | 0/+5 |
| BΦ9.0×Φ1.0×330 | 9.0 | +0.3/+0.7 | 1.0 | ±0.15 | 0.25 | 330 | 0/+5 |
| BΦ10.0×Φ1.0×330 | 10.0 | +0.3/+0.7 | 1.0 | ±0.15 | 0.25 | 330 | 0/+5 |
| BΦ10.0×Φ2.0×330 | 10.0 | +0.3/+0.7 | 2.0 | ±0.2 | 0.25 | 330 | 0/+5 |
| BΦ11.0×Φ1.0×330 | 11.0 | +0.3/+0.7 | 1.0 | ±0.15 | 0.25 | 330 | 0/+5 |
| BΦ12.0×Φ1.0×330 | 12.0 | +0.3/+0.7 | 1.0 | ±0.15 | 0.25 | 330 | 0/+5 |
| BΦ12.0×Φ2.0×330 | 12.0 | +0.3/+0.7 | 2.0 | ±0.2 | 0.25 | 330 | 0/+5 |
| BΦ14.0×Φ2.0×330 | 14.0 | +0.3/+0.7 | 2.0 | ±0.2 | 0.25 | 330 | 0/+5 |
| BΦ16.0×Φ2.0×330 | 16.0 | +0.4/+0.8 | 2.0 | ±0.2 | 0.25 | 330 | 0/+5 |
| BΦ16.0×Φ3.0×330 | 16.0 | +0.4/+0.8 | 3.0 | ±0.25 | 0.25 | 330 | 0/+5 |
| BΦ18.0×Φ3.0×330 | 18.0 | +0.4/+0.8 | 3.0 | ±0.25 | 0.3 | 330 | 0/+5 |
| BΦ20.0×Φ3.0×330 | 20.0 | +0.4/+0.8 | 3.0 | ±0.25 | 0.3 | 330 | 0/+5 |
| 20.0≤Dia ≤40.0 are available on request | |||||||
