800 TON Hydraulic plywood filming hot press machine
- Category: >>>
- Supplier: WEIHAI BAISHENGYUAN INDUSTRY CO. LTD.
Share on (62020027599):
Product Overview
Description
Product Description

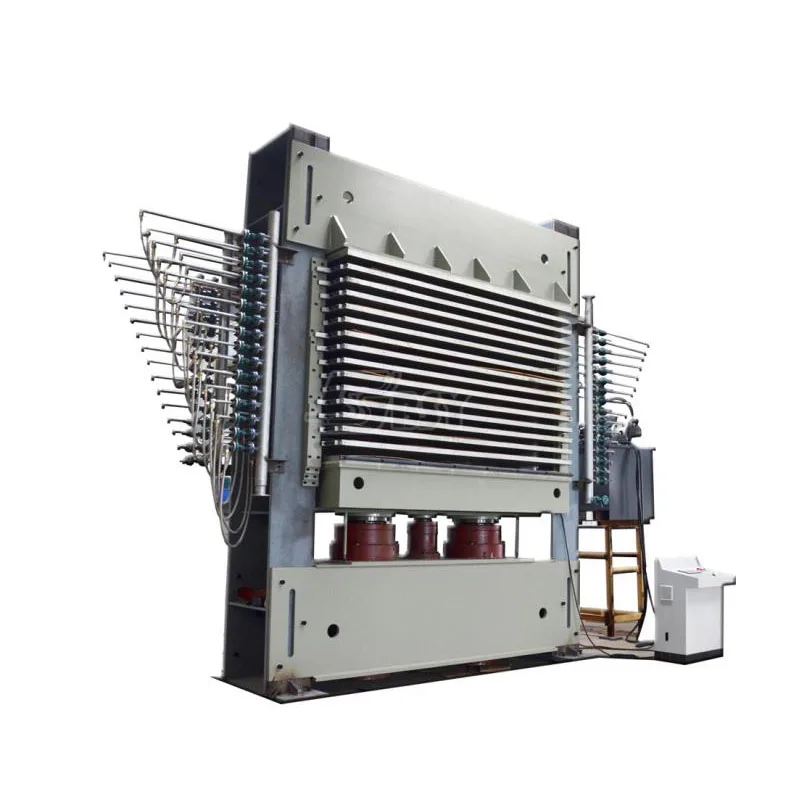

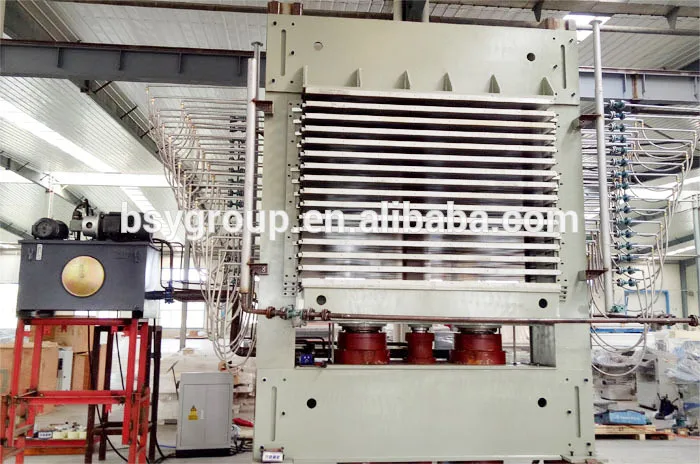

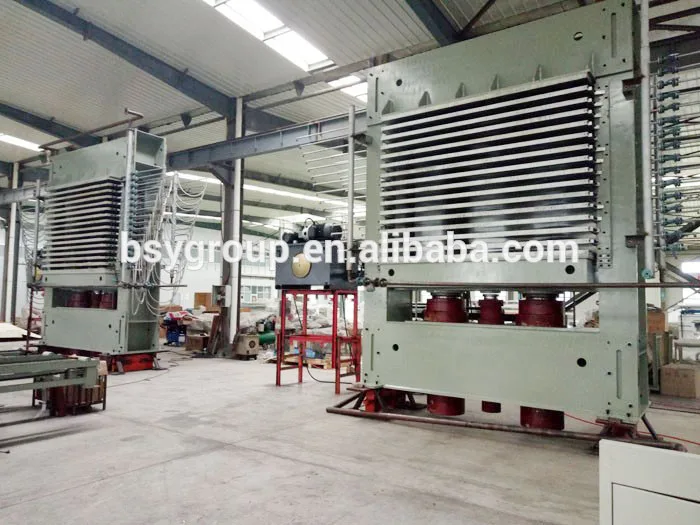

800 TON Hydraulic plywood filming hot press machine
BSY Brand 800 TON Hydraulic plywood filming hot press machine is specially designed for plywood lamination industry.
It commonly works with Red copper cushion & One side mirror stainless steel plate to hot press the plywood laminated with Phenolic resin.
Advantages of BSY Brand 800 TON Hydraulic plywood filming hot press machine:

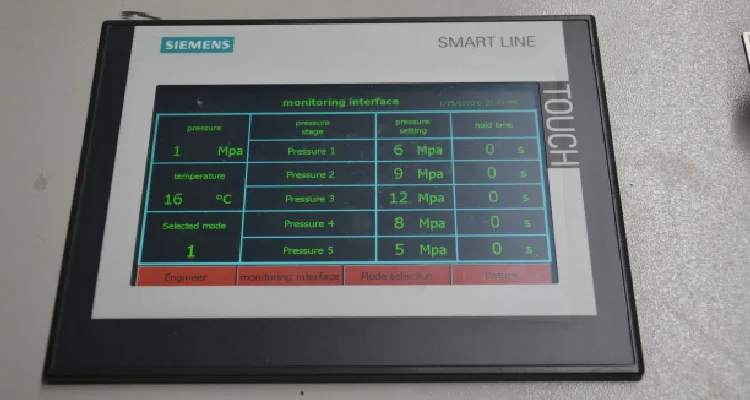

1. High Tech: Machine use SIEMENS operation system for working control, easy operation and high working efficiency;
2. High quality: cylinder and platen supplied by professional supplier in China;

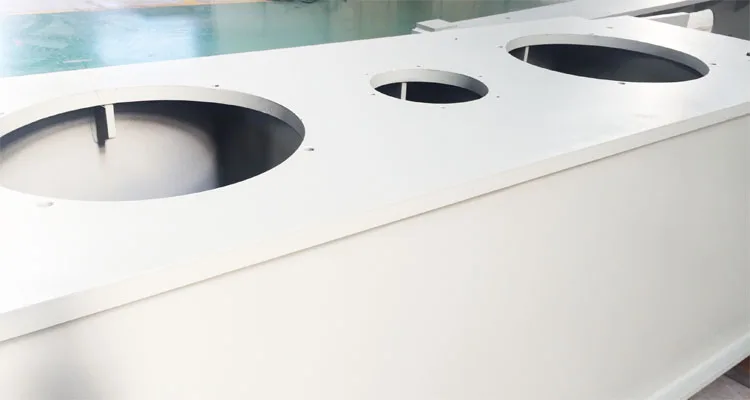

3. Heavy duty: high quality steel plate used for frame building, whole machine wrights 38 ton;
4. High working efficiency: the use of high quality spare part and high tech operation system, greatly increase the success of board press;
5. Long working life
Specification
Model | BY214x8/6A-15 | BY214x8/8B-10 |
Pressure: | 600ton | 800ton |
Platen size: | 2700*1370*42mm | 2700*1370*52mm |
Opening: | 70mm | 100mm |
Daylights: | 15 | 10 |
Cylinder: | 380mm*2pcs/180mm*1pc | 300mm*4pcs/190mm*1pc |
Working stroke: | 1050mm | 1000mm |
Max working pressure: | 25Mpa | 25Mpa |
Power: | 26kw | 33kw |
Closing speed: | 4m/min | 4m/min |
Weight: | 38000kg | 38000kg |
Dimension: | 5000*1446*5400mm | 5450*1850*4415mm |
Packing & Delivery

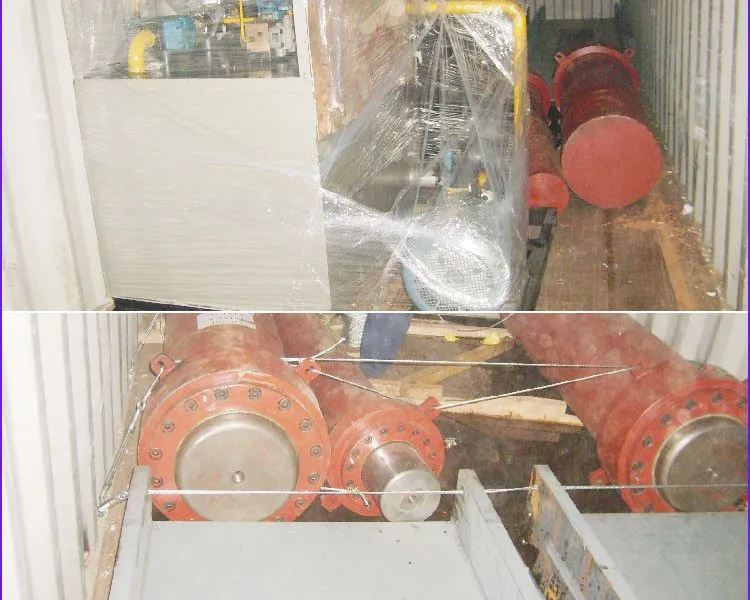

Packing & Shipment of 800 TON Hydraulic plywood filming hot press machine
1. Machine will be dismantled for container loading, spare parts are fixed by cable inside container or packed by wood box
2. Delivery time: commonly about 40 working days. Be subject to production schedule.
More products links
3 Deck Wood Veneer Roller Dryer
Heavy duty veneer peeling line
8 Feet 4 Roller plywood glue spreader
Our Company
Weihai Baishengyuan Industry Co.,Ltd
Professional Plywood Machine Manufacturer
Found in 1956;
Factory cover: more than 100,000 square meter;
Factory Stuff: more than 200 people;
Production facilities: more than 80 sets;
Main Products:
Log debarking machine, Single-spindle veneer rotary lathe, CNC Spindle less veneer peeling machine, Veneer Rotary Clipper, Veneer dryer;
Glue spreader, Pre-press machine, Hydraulic hot press machine, plywood filming hot press machine, plywood Sizer, plywood Sander etc.
Service and stuff training is provided through the fully trained staff of BSY dealers, or directly via the BSY Industry’s own
service technicians.
Welcome visit us for win-win cooperation.
Factory cover: more than 100,000 square meter;
Factory Stuff: more than 200 people;
Production facilities: more than 80 sets;
Main Products:
Log debarking machine, Single-spindle veneer rotary lathe, CNC Spindle less veneer peeling machine, Veneer Rotary Clipper, Veneer dryer;
Glue spreader, Pre-press machine, Hydraulic hot press machine, plywood filming hot press machine, plywood Sizer, plywood Sander etc.
Service and stuff training is provided through the fully trained staff of BSY dealers, or directly via the BSY Industry’s own
service technicians.
Welcome visit us for win-win cooperation.
FAQ
Who are we?
We are Leader manufacturer for plywood & wood veneer machine located in Shandong, China. Start sell abroad from 2006, has our own technical team, sales teams, and after-sales service teams.
What can you buy from us?
The whole wood veneer & plywood production line, from log conveyor, log charger, log debarking machine, Single or Spindle less Veneer Peeling machine, veneer rotary clipper, auto veneer stacker, veneer drying machine, glue spreader, Pre-press machine, Hydraulic Hot Press, Plywood Sizer, Plywood sanding machine. Veneer Splicer, Knife Grinder, Hydraulic lift platform etc.
How can we guarantee quality?
The machine will have test running before put into warehouse and ready for shipment.
Why should you buy from us not from other suppliers?
BSY Veneer & Plywood Machine Manufacturing since 1956. High quality, high auto level, high working performance, long working life and good after-sales service
What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW；
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, Irrevocable L/C at sight.
We are Leader manufacturer for plywood & wood veneer machine located in Shandong, China. Start sell abroad from 2006, has our own technical team, sales teams, and after-sales service teams.
What can you buy from us?
The whole wood veneer & plywood production line, from log conveyor, log charger, log debarking machine, Single or Spindle less Veneer Peeling machine, veneer rotary clipper, auto veneer stacker, veneer drying machine, glue spreader, Pre-press machine, Hydraulic Hot Press, Plywood Sizer, Plywood sanding machine. Veneer Splicer, Knife Grinder, Hydraulic lift platform etc.
How can we guarantee quality?
The machine will have test running before put into warehouse and ready for shipment.
Why should you buy from us not from other suppliers?
BSY Veneer & Plywood Machine Manufacturing since 1956. High quality, high auto level, high working performance, long working life and good after-sales service
What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW；
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, Irrevocable L/C at sight.
