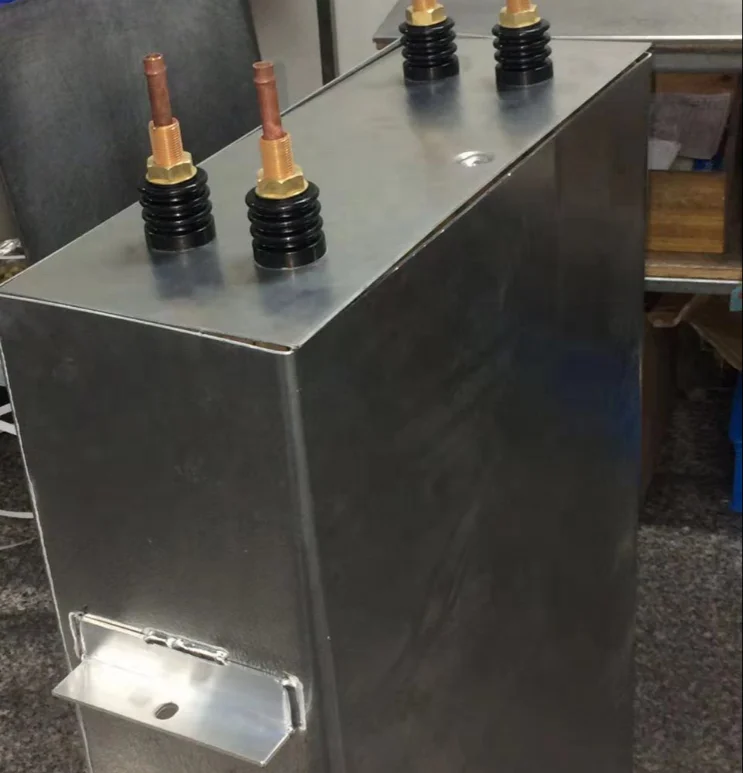

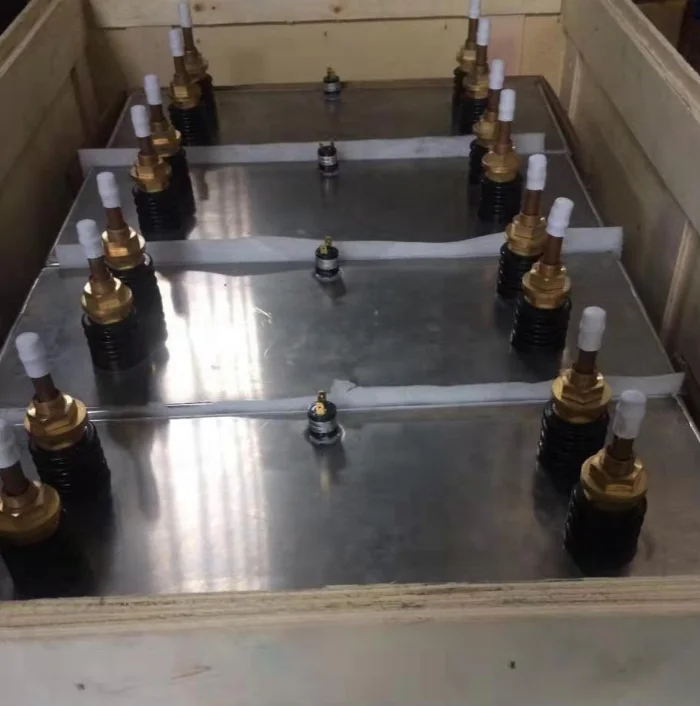

The Capacitor is suitable for a controlled or adjustable AC voltage system , and specifically dedicated to improve power factor and circuit property in applications such as induction heating, melting, agitating, casting, thermal treatment etc .
Standard : IEC60110
altitude
less than 1000m
ambient temperature
-20~+50℃
capacitance tolerance
-5~+10%
Max voltage allowable
rated voltage *1.05
max current allowable
rated current*1.15
Dielectric material
Polypropylene film
insulating oil
PEPE or M/DBT (NON-pcb)
cooling mode
water cooled or air cooled
body material
Aluminium alloy sheet with 3mm thickness
installation mode
normally vertically installed
production line
