40KHZ/500W piezoelectric Ultrasonic Transducer
- Category: >>>
- Supplier: Shanghai Hongjin Ultrasonic Electronic Equipment Factory
Share on (62020066220):
Product Overview
Description

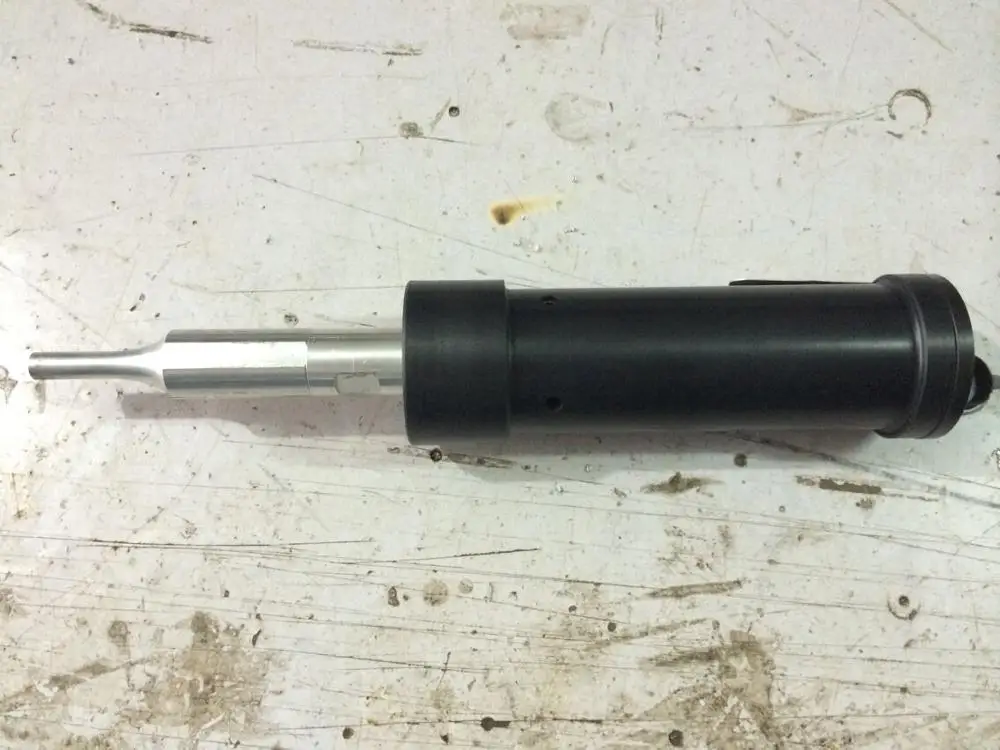

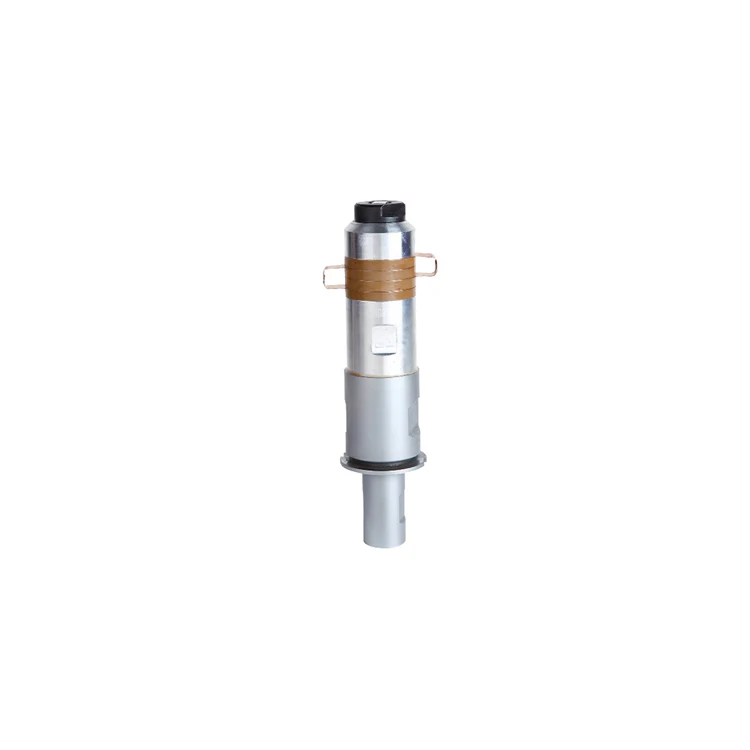

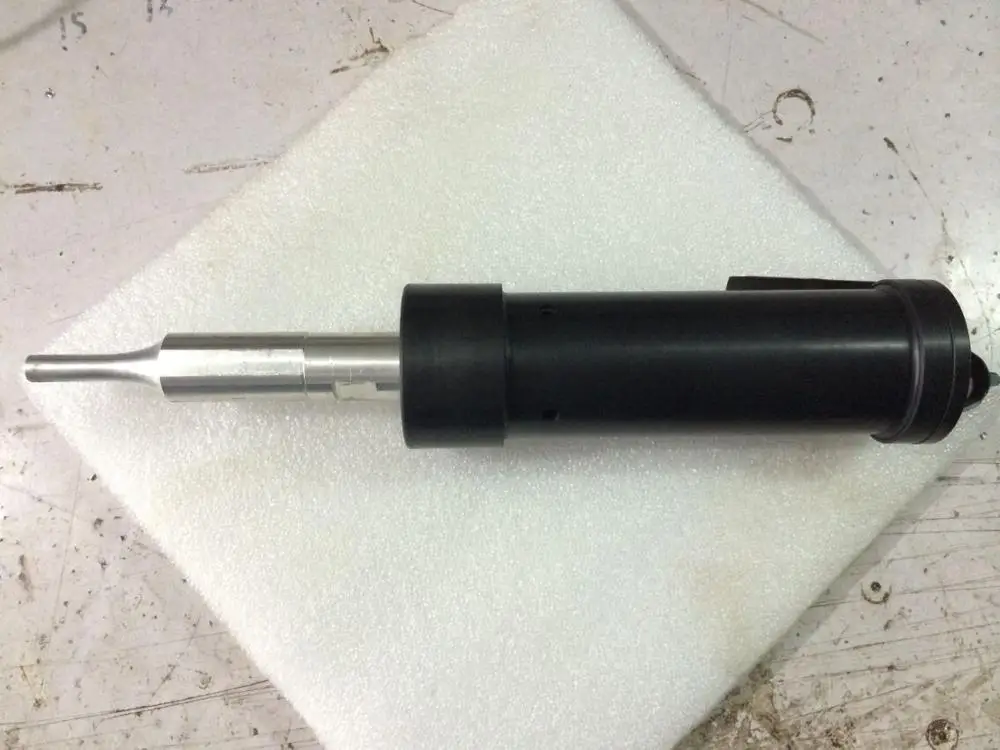

40KHZ 500W Ultrasonic Transducer / Pizeoelectroic transducer
What Is It?
In the ultrasonic industry, the whole of the transducer connected to the horn is called a vibrator.

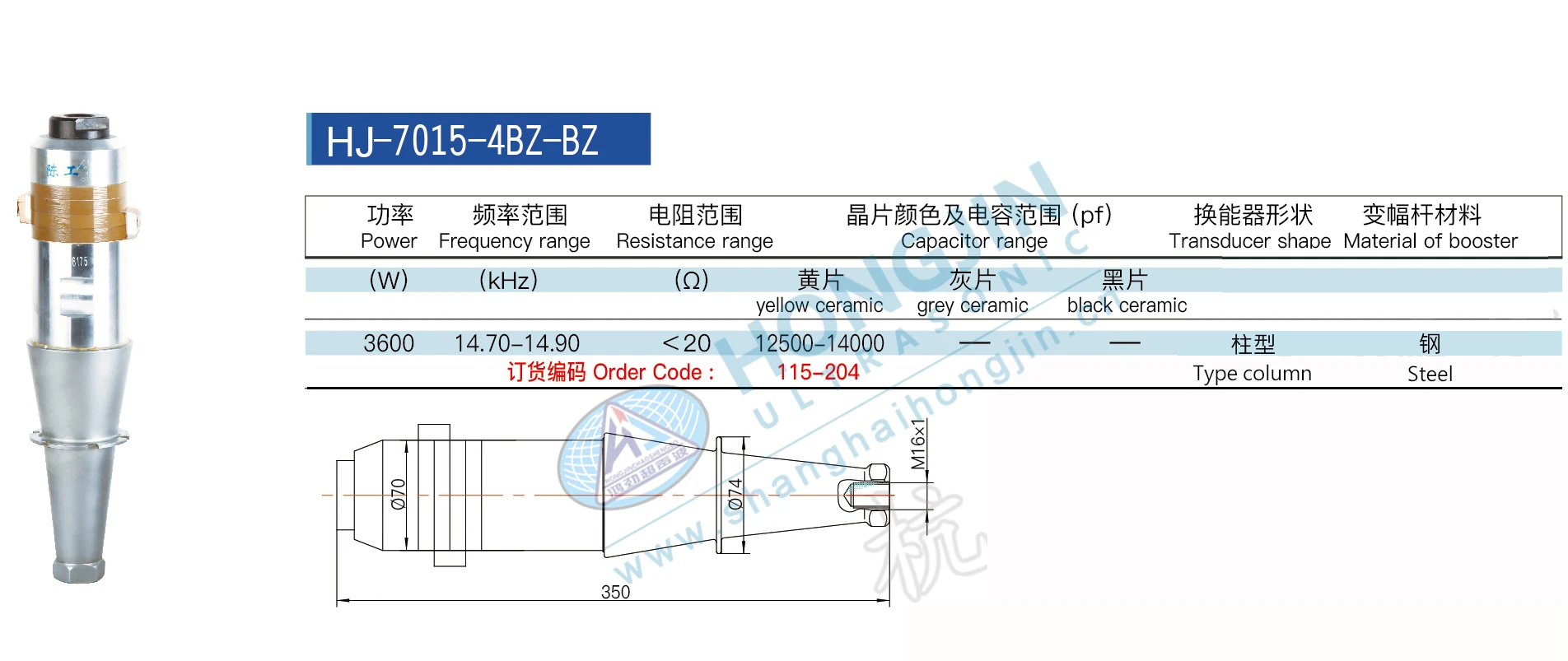

15KHZ 3200W
Other Ultrasonic Vibrators Are Also Provided
----------------------------------------------------------------------------------------------------------------------------------------------

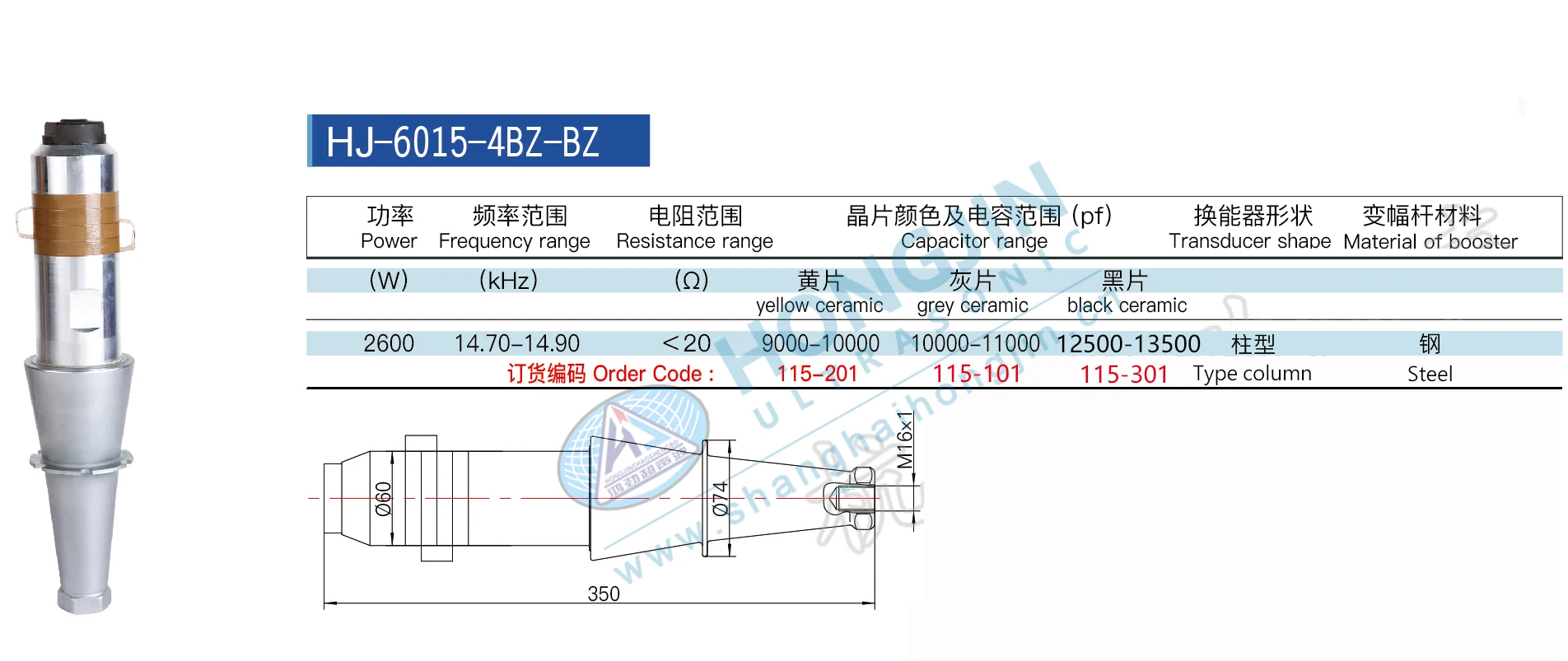

15KHZ 2600W

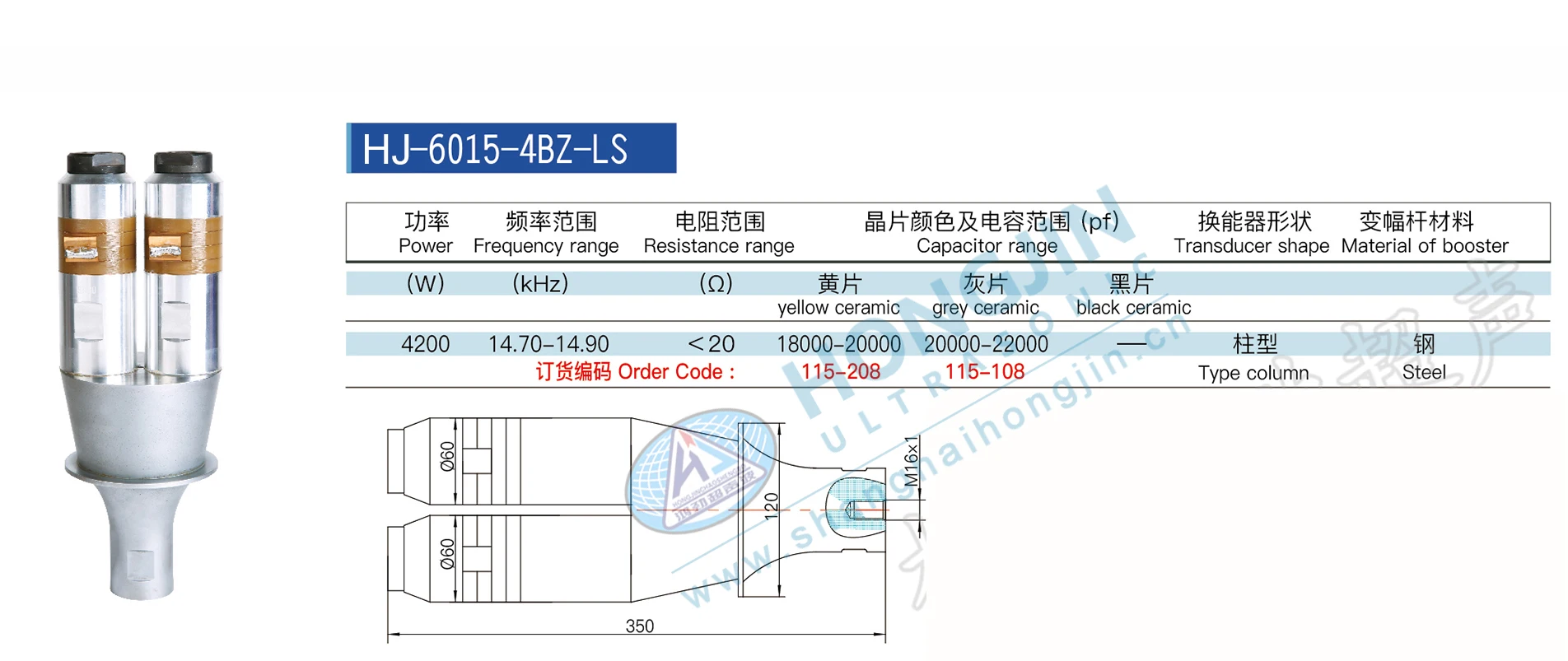

15KHZ 4200W
(High Power Ultrasonic Welding Vibrator)
(High Power Ultrasonic Welding Vibrator)

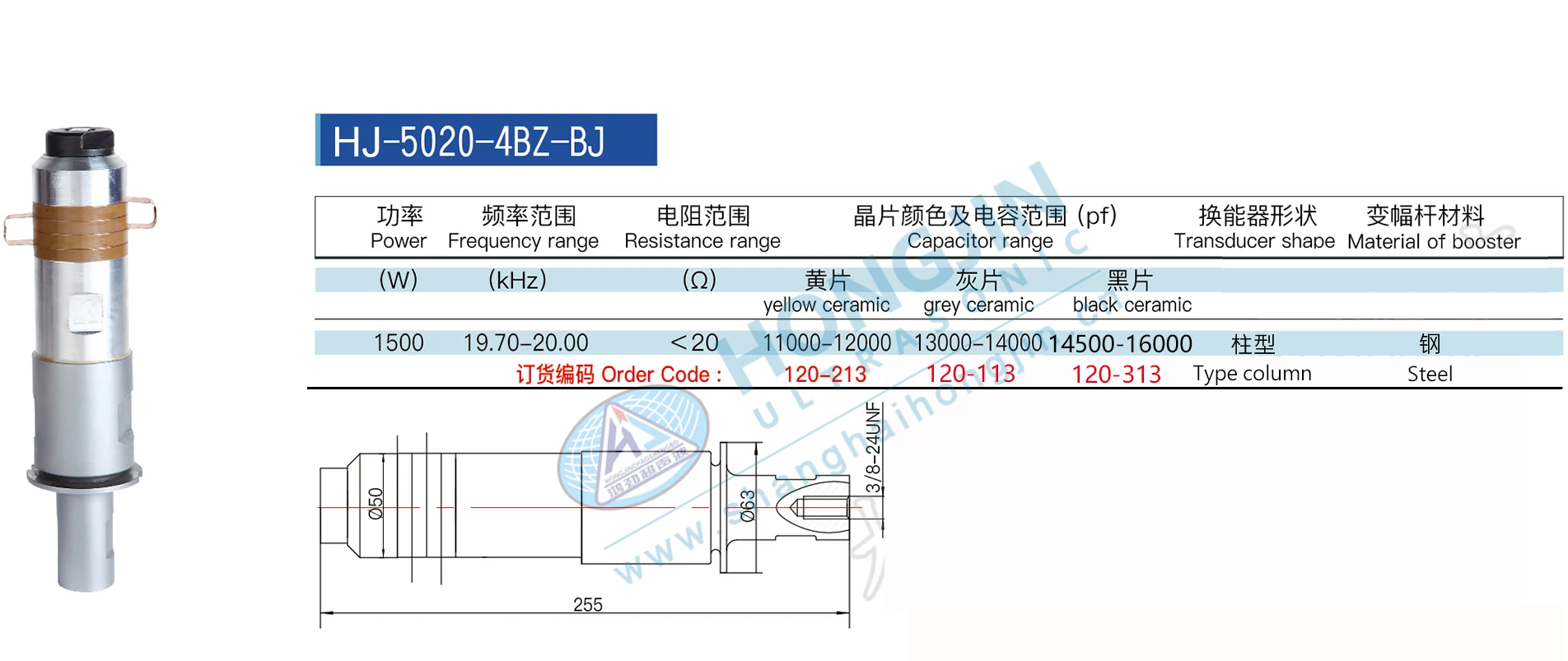

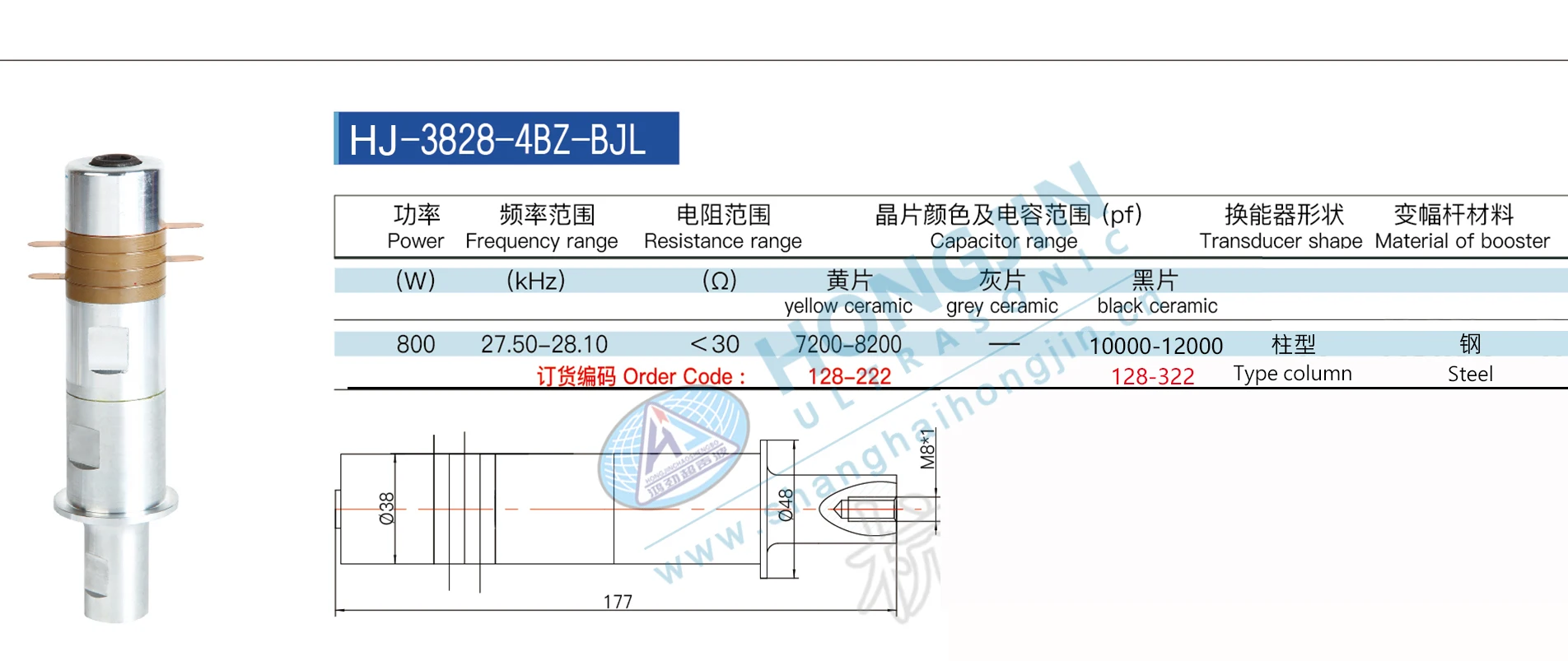

20KHZ
28KHZ

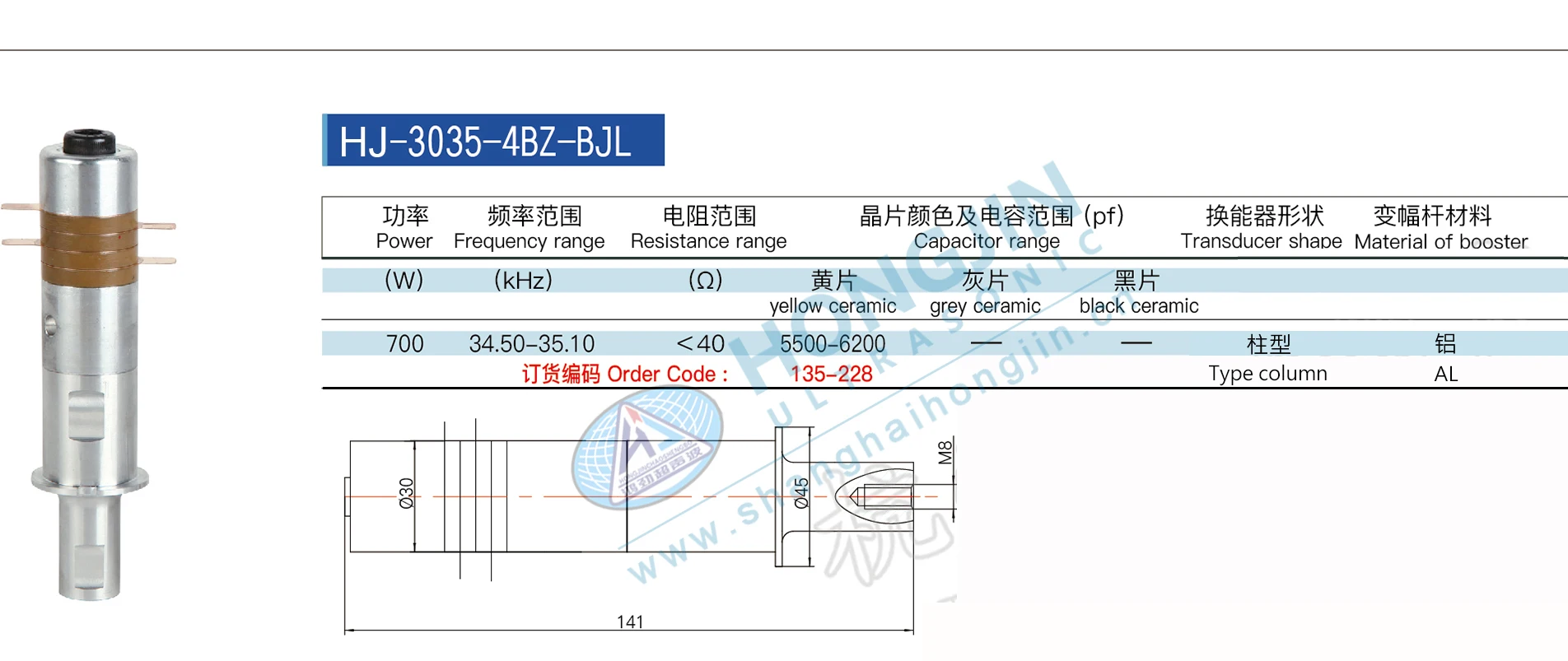

35KHZ

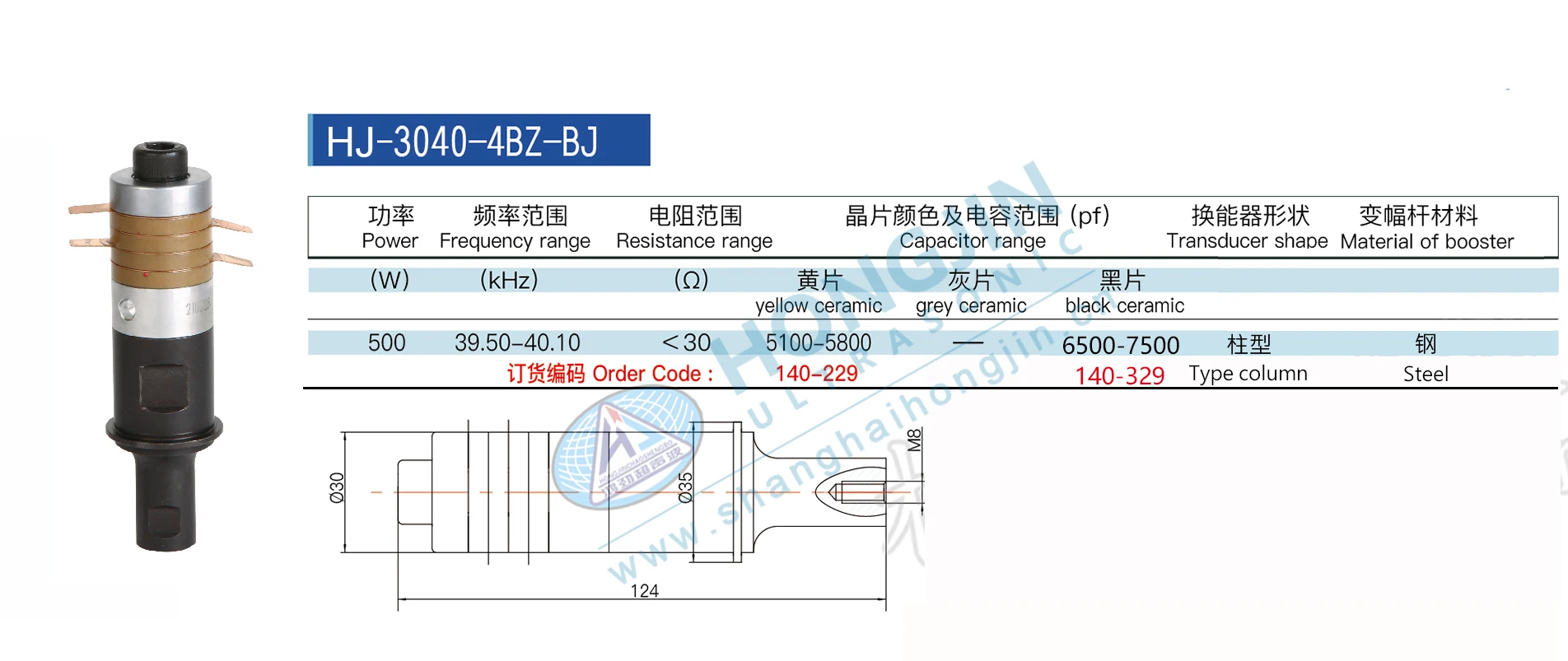

40KHZ
Knowledge About Ultrasonic Vibrator
----------------------------------------------------------------------------------------------------------------------------------------------

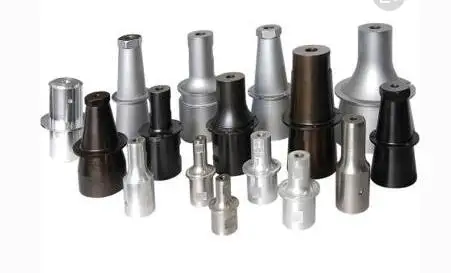

Ultrasonic booster can change the amplitude of transducer. Booster is a passive device and cannot produce vibration itself. It is only to output after the input vibration is changed into amplitude, and finishing the impedance conversion at the same time. Under the stimulus of electric field, ultrasonic transducer can produce regular vibration and the amplitude is about 10μmm commonly. That is not enough to finish the welding and processing step directly.
Through with the suitable booster, the amplitude of ultrasonic can be changed in a large range. If the material is enough intensive, the amplitude can exceed 100μmm. We named oscillator after connecting ultrasonic transducer with booster. On the other hand, when the booster works vibration through longitudinal and extension, on the both sides of the particle direction of motion is the opposite, which is equal to a rest section. This section is named nodal point, which is the best-fixed point of the oscillator. To departure from the fixed point, it will reduce the work efficiency of the oscillator.
In the general, the transform efficiency of aluminum booster is high but the intension of material is low and easy to cracking and easy to slipping from the hole of screw; the intension of the steel booster is high but the sound impedance is large comparatively; the all round properties of the titanium alloy booster is good but the price is high and the processing is difficult.
Applications
----------------------------------------------------------------------------------------------------------------------------------------------
Widely used in ultrasonic industry including ultrasonic welding machine, ultrasonic plastic welder, ultrasonic metal welding machine, ultrasonic sewing machine, ultrasonic spot welder, ultrasonic embossing machine, geogrid welding equipment, geogcell production line, etc.
Company Information
Located in Shanghai, HONGJIN ULTRASONIC is a professional ultrasonic welding machines manufacturer with more than 10 -year experience, offering ultrasonic plastic welding machine, ultrasonic sewing machine, Ultrasonic spot welding machine, spot welder, ultrasonic metal welding machine, automatic sponge scrubber making machine, geocell production line, geogrid production line, non woven bag making machine, etc.
Our products have won praise from customers worldwide. And our products have been exported to US. Euro Countries, such as Germany, Portugal, Romania, Bulgaria, South America such as Chile, Peru, Bolivia, Africa such as Angola, South Africa.
As a professional manufacturer of ultrasonic machines, HONGJIN is integrated by R&D, manufacturing, distribution and relative service as well. we insist the principle of 'quality the first, customers the highest' and ensure high quality, excellent service and sincere cooperation with customers all over the world. In order to serve our customers much better, our overseas after-sales department can provide fast after sale service all over the world after machines arrive customers' factory. In the past 10 years, we have exported over 5,000 sets ultrasonic machines to different customers around the world, and got great reputation from them. In the face of honor and achievement, HONGJIN people will Keep clear mind and work much harder, we hope HONGJIN can grow up with our customers, welcome to visit and cooperate with us.
