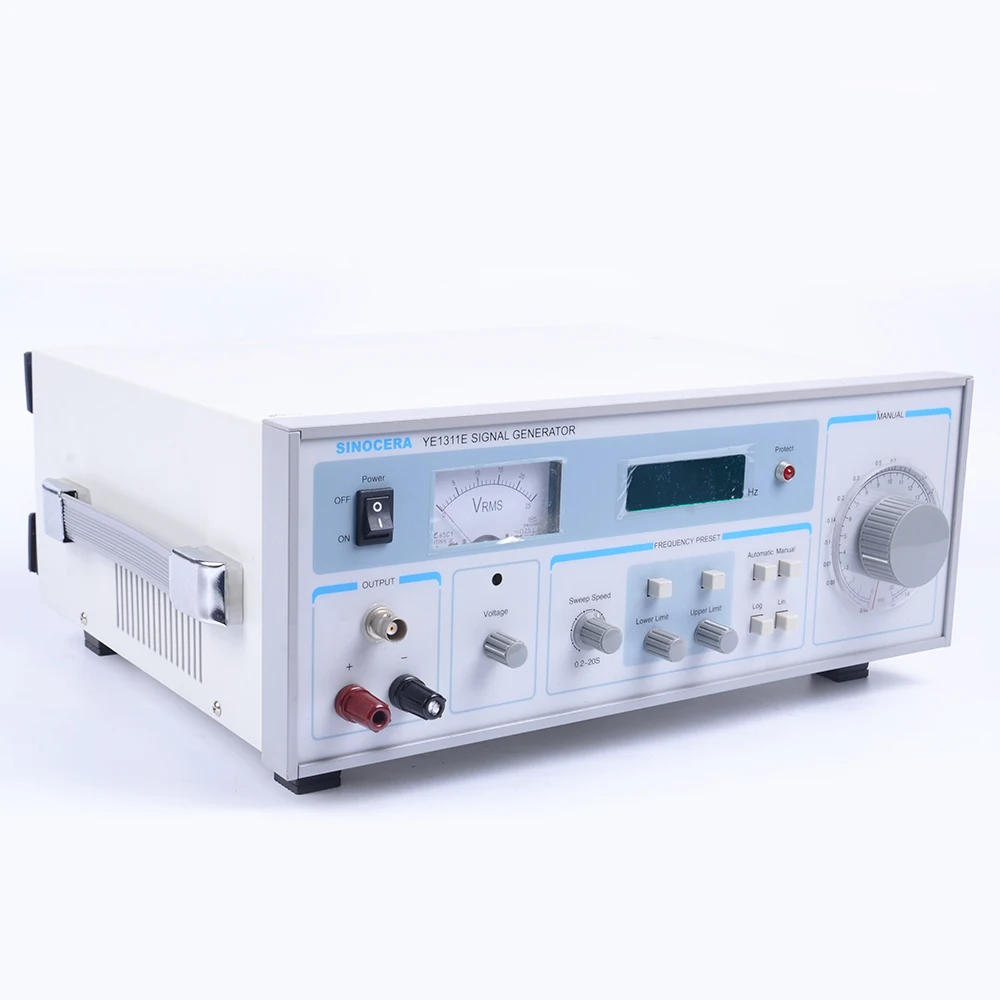

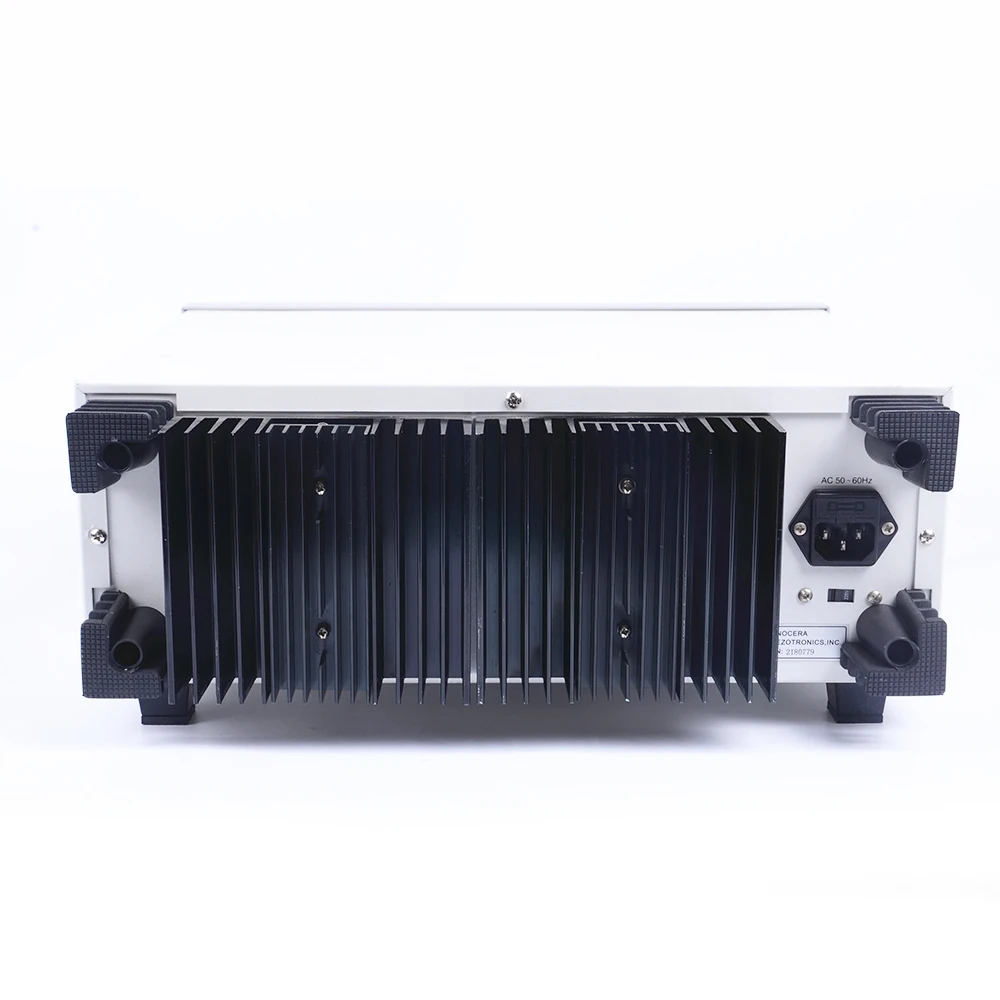

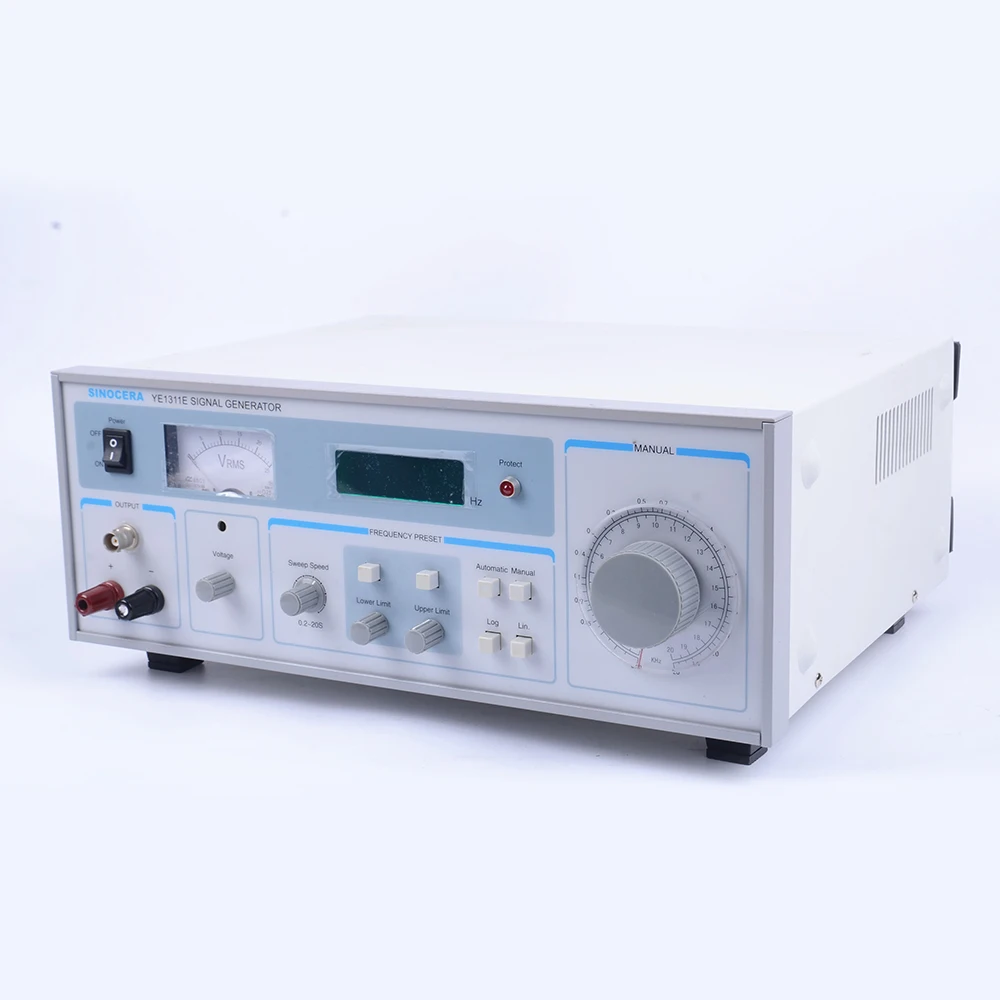

good quantity sweep Frequency Signal Generator function generator signal for sale
Features
Power/Signal Output;
Frequency and Power value indication;
Manual/Auto sweeping frequency; upper/Low Limit Frequency and sweeping speed can be preset(the ratio of sweeping frequency is 1000:1);
Log/Linear Mode; Apply for acoustics, vibration testing and driving JZK-5 and more small modal shakers.
Specifications
Model: YE1311E
Output | Output Waveform | Sine wave |
Frequency Range | 20Hz to 20kHz | |
Signal Output | 1Vrms | |
Power Output | 100W(4Ω Load) | |
Frequency Response | ≤±1dB( 4Ω Load, full power) | |
Frequency Display | Frequency Display | 0 to 99999Hz |
Resolution | ±1 Hz | |
Error | 0.01%±1Hz | |
Refresh Rate | 10 times/second | |
Voltage Indication | Voltage | 25Vrms±8%(≤20V,10Hz to 20kHz) |
Detection Mode | True RMS | |
Sweeping | Sweeping Period | 0.1S to 20S adjustable |
Sweeping Mode | Linear, Logarithm | |
Distortion (20Hz to 20kHz) | Signal Output | ≤±0.6% |
Power Output | ≤±1%(4Ω Load) | |
Operating Circumstance | Temperature | Operating:0 ℃ to +40 ℃; Storage:-55 ℃ to +85 ℃ |
Humidity | 95%R.H.Max. | |
Power Supply | AC220V50Hz/110V60Hz | |
External Characteristic | Dimensions | 360mm (W) 207mm (H) 120mm(D) |
Weight | About 4Kg | |
Output Type | Power | JS3-2 Terminal |
Signal | BNC Socket | |
Accessories | Output Cable | Signal Output Cable: one ; Power Output Cable: one |
AC Power Cable | One | |
