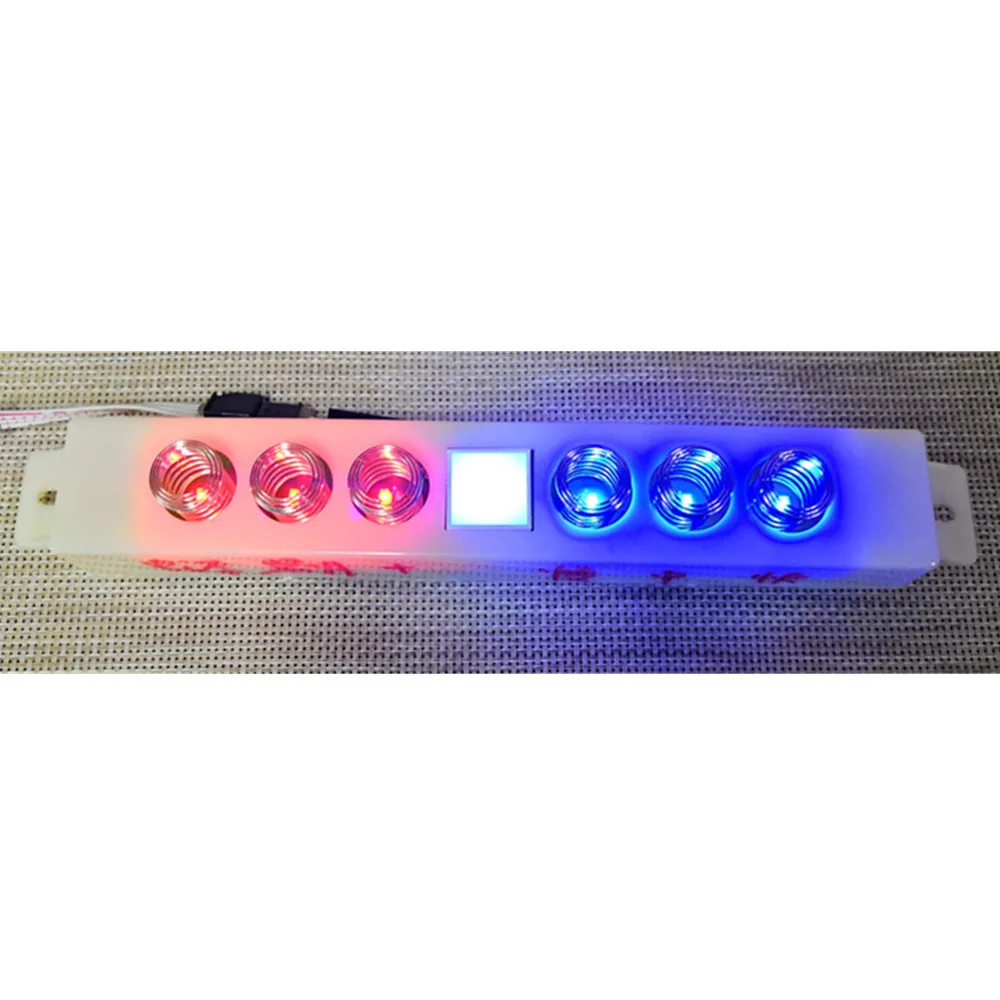

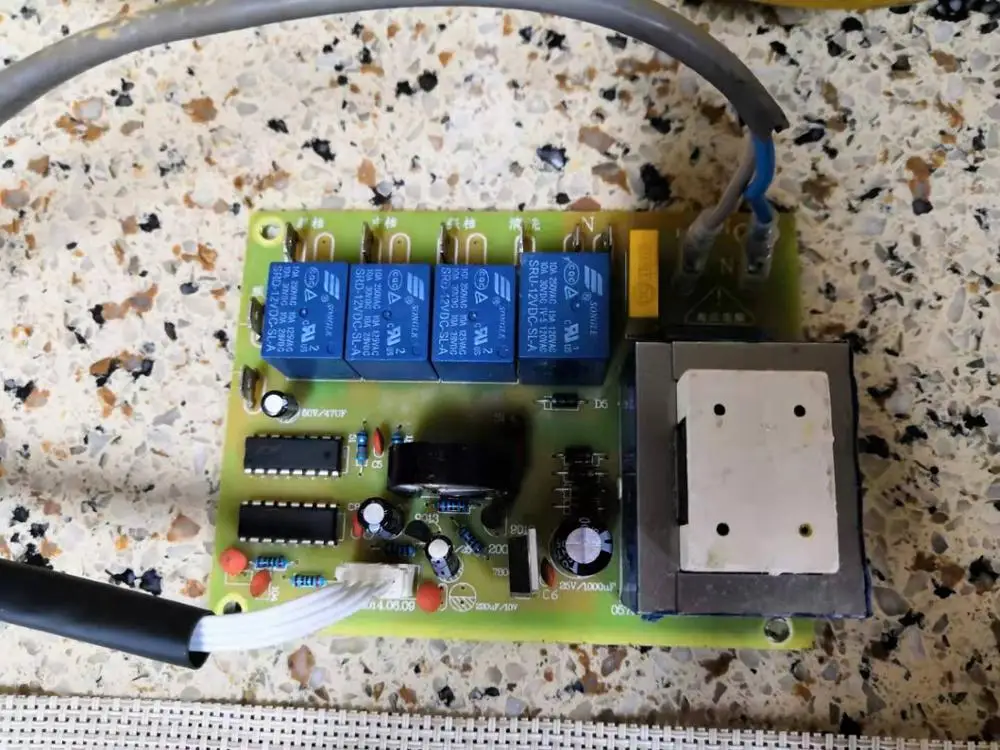

High quality sensor range hood switch with PCB board

It's a sensor touch switch, mostly used for the range hoods at 220-240V/50-60Hz.

( Its also ok to customized the switches with the different functions or Voltages you needed)

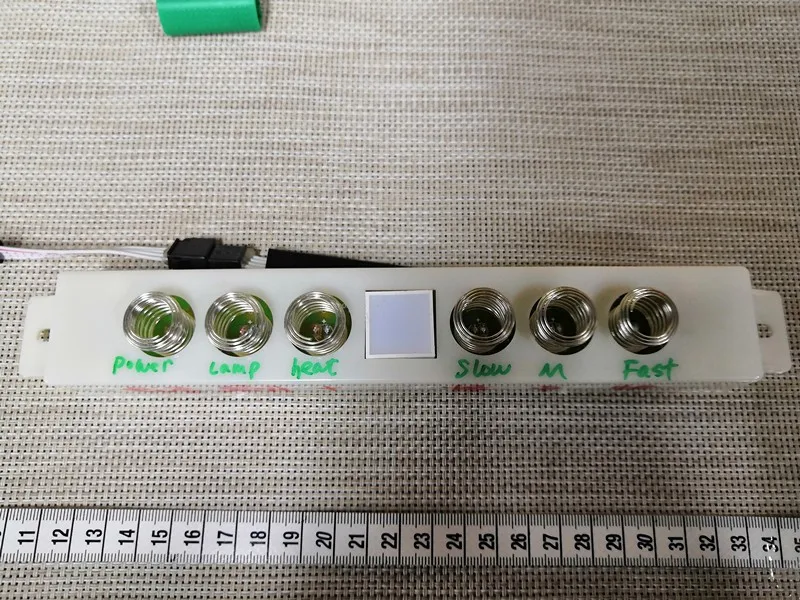

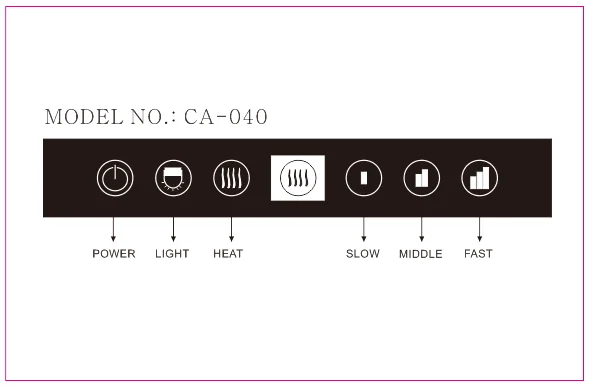

Switch operation steps:

1.press the POWER/TIMER to let the switch with electric/power

2.press the SLOW, then the range hood will work at the Low speed;

3.press the MIDDLE, then the range hood will work at the Medium speed;

4.press the FAST, then the range hood will work at the High speed;

5.press the LIGHT, then the range hood lamps will come;

6.press the POWER with 3 seconds, the power signal will sparkle, then the fan will work at the delay/timer mode. The fan will stop work after 1 mins., you can change it to different speed in the timer mode.

7.the light can work at any fan speeds, the range hood can just work at one speed.

8.press the POWER 2 times continuously, the fan stops working.

9.Press the HEAT,the range hood will be the heat mode for the fan channels for better clean of oil. (this function is subject to the range hood function setting )

Packing & Delivery
