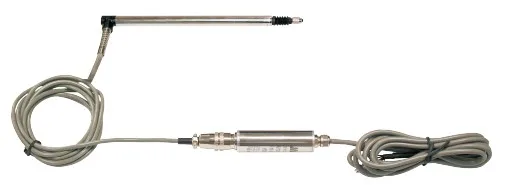

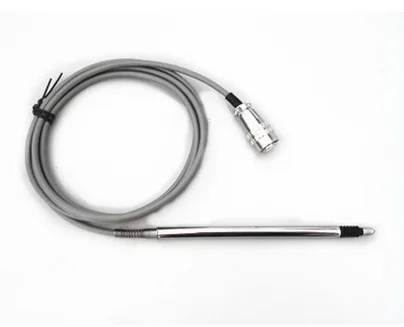

Working stroke 2 10mm displacement sefl return linear position sensor LVDT
- Category: >>>
- Supplier: HT Sensor Technology Co. Ltd.
Share on (62020164596):
Product Overview
Description
\t\t\t\t\t\t\t\t\tWelcome to HT Sensor \t\t\t\t\t\t\t
Introduction:
T-PTS8 is self-return with spring datasheet.
Stroke length: 2,5,10mm
It is a variable-reluctance device, widely used in machine tools position, hydraulic cylinder position, cement industry, aerospace, machinery, building, textile, railway, plastic, tunnels protection etc. Used to measure the elongation, vibration, the thickness of the object, inflation and other high-tech products.

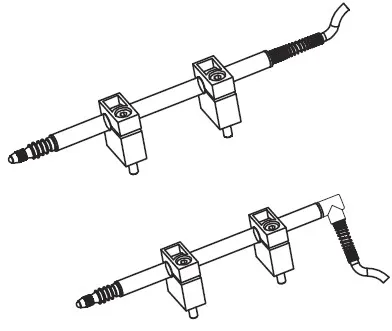

Dimension and Instal

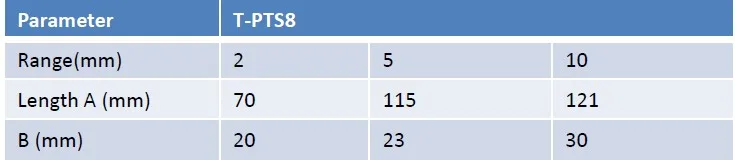

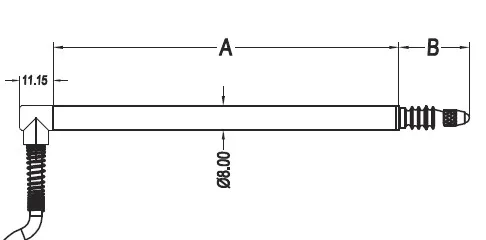

Dimension and Installation Size(mm):
Specifications

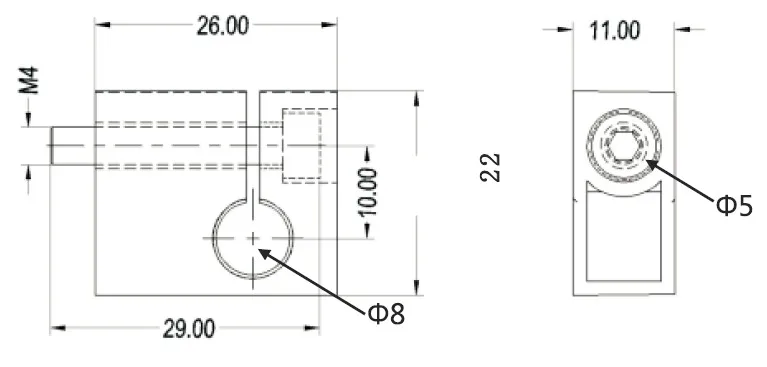

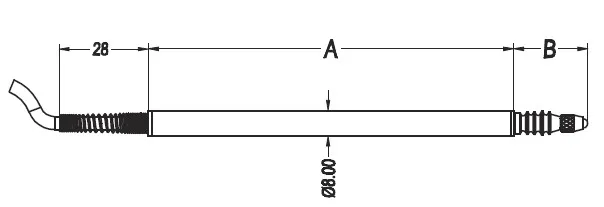

Accessories dimension

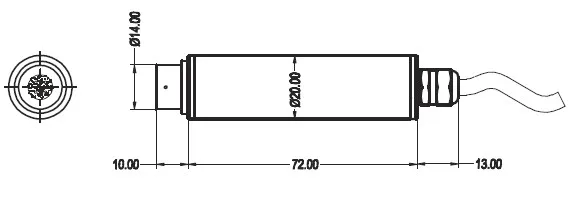

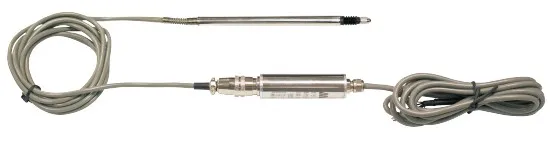

Amplifier dimension

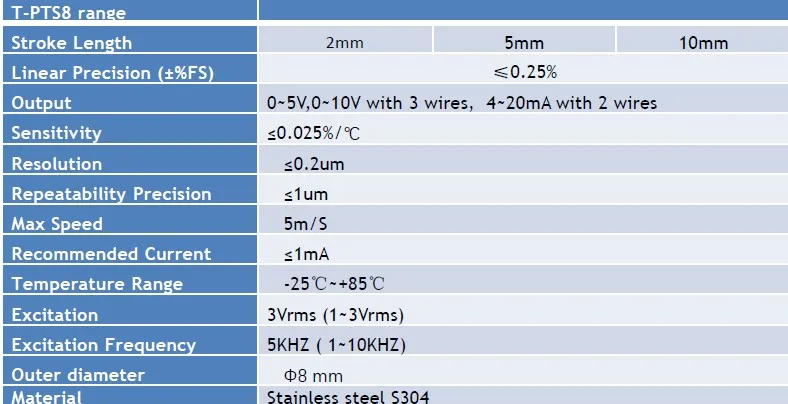

Technical specification (mm) :

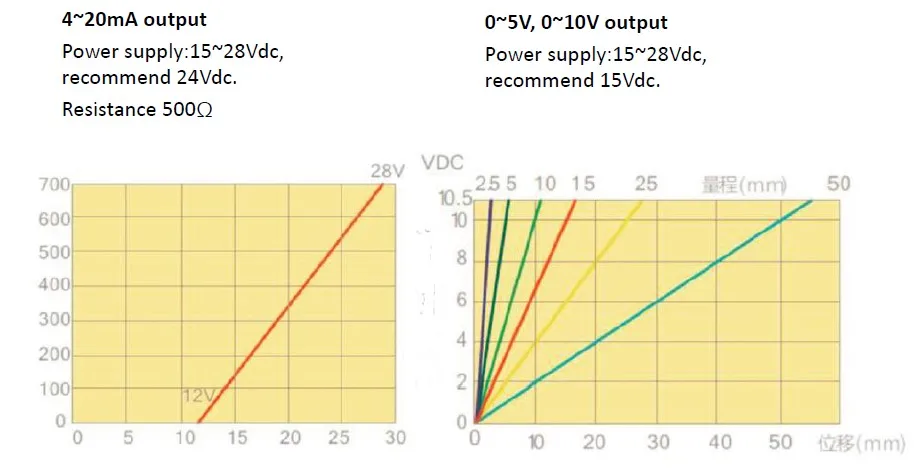

Electrical connection:
Current signal:
Brown: Power +, signal +, Blue: Power -, signal –
Voltage signal:
Brown: Power +, Blue: signal +, Black: Power -, Signal-
Packing & Delivery
Packing
Inner packing: 1pcs /plastic bag/ box
Outer packing : standard exporting carton
As the customer's requirments
Delivery
Normal products: 7-10 days
OEM products: 30days
DHL/UPS/TNT/FedEx/SF/EMS by Air/Sea etc
