stabilizer price plastic geogrid for road and railway construction
- Category: >>>
- Supplier: Yixing Shenzhou Earth Working Material Co. Ltd.
Share on (62020208186):
Product Overview
Description
Product Description
Description

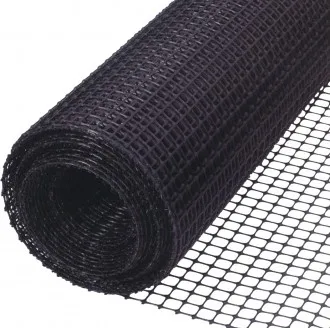

stabilizer price plastic geo grid for for road construction

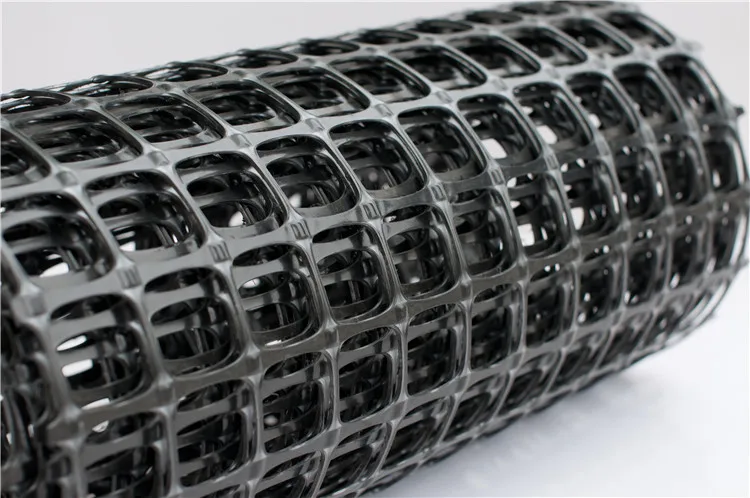

Biaxial Geogrid is made by polypropylene (PP) as the raw material, through special extruded & biaxial.

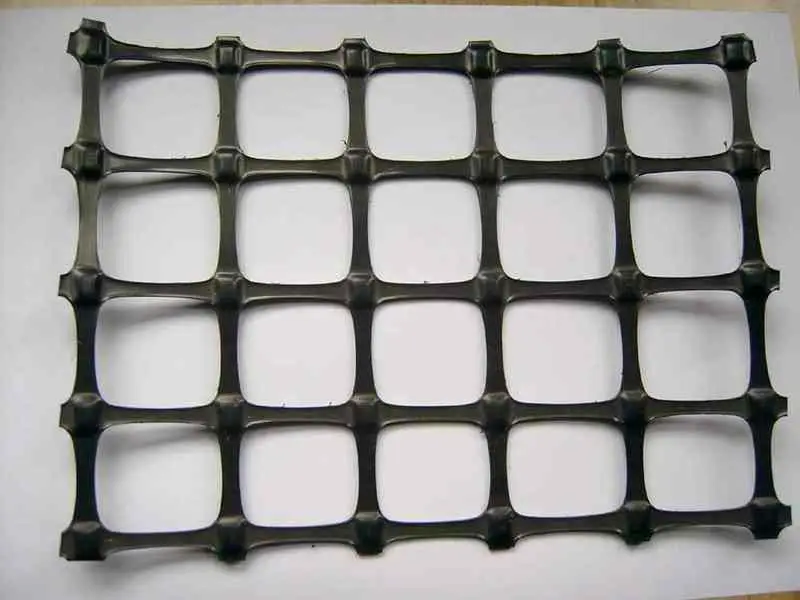

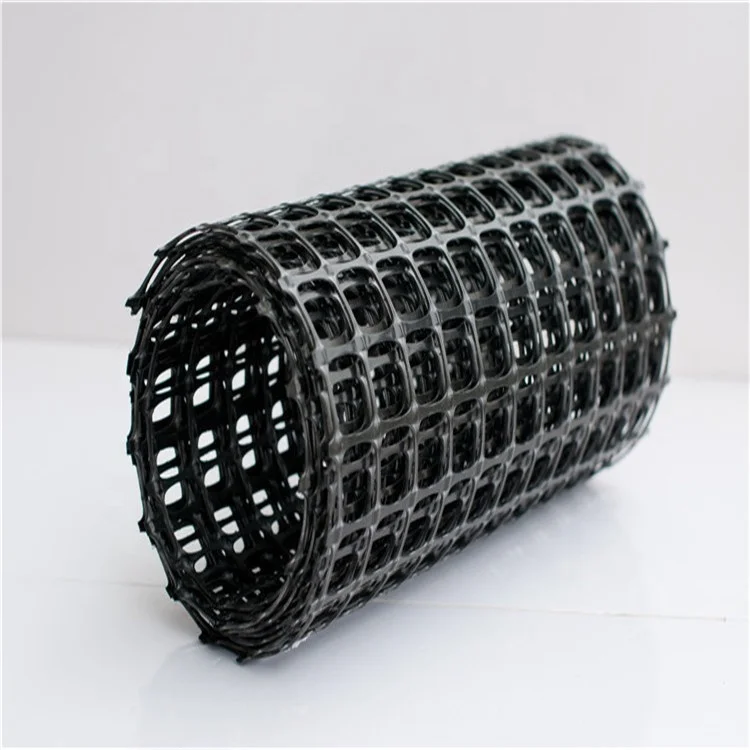

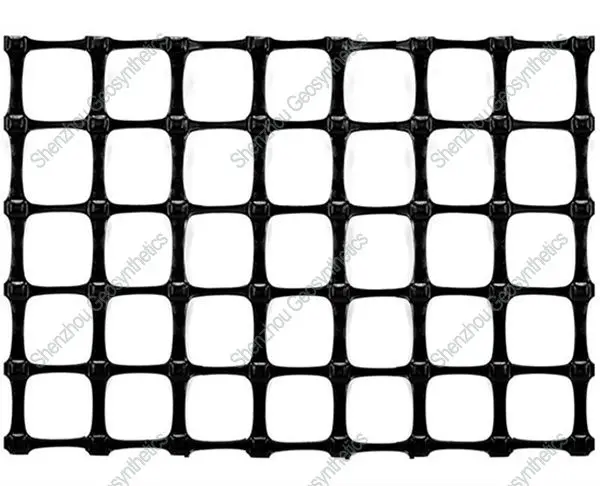

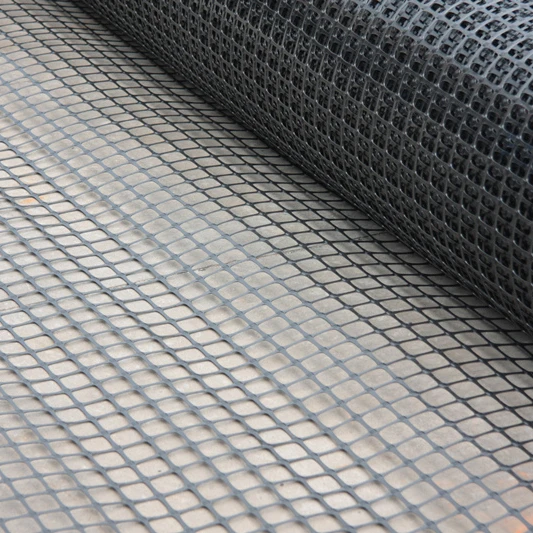

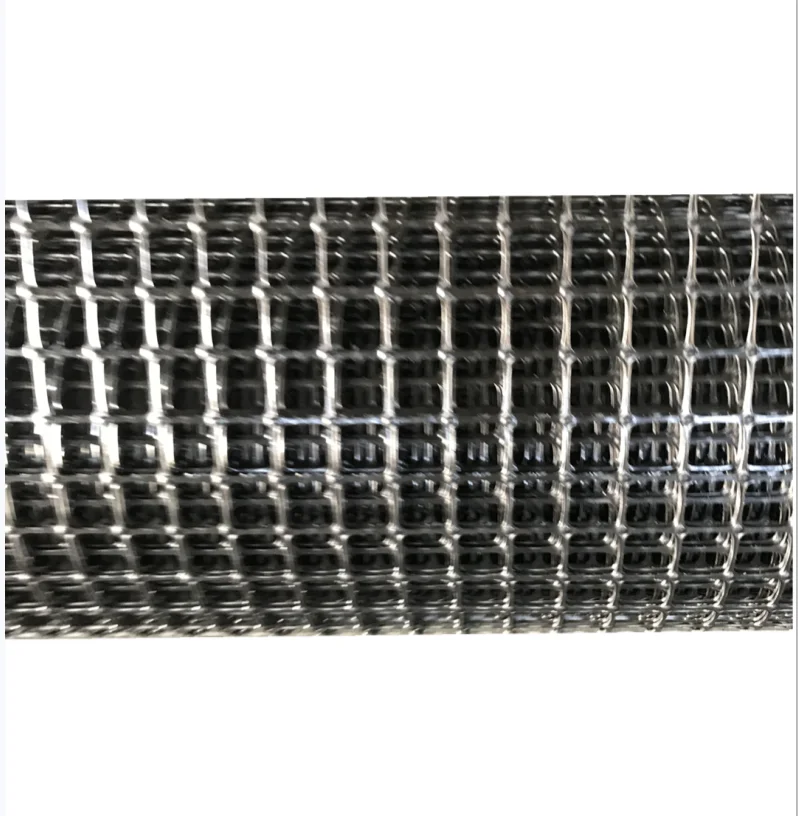

Detailed Images
Index | Unit | TGSG15-15 | TGSG 20-20 | TGSG 25-25 | TGSG 30-30 |
Specification | MD CMD | MD CMD | MD CMD | MD CMD | |
True initial modulus in use | kN/m | 15 15 | 20 20 | 25 25 | 30 30 |
Tensile strength @2% strain | kN/m | 5 5 | 7 7 | 9 9 | 11 11 |
Tensile strength @5% strain | kN/m | 7 7 | 14 14 | 17 17 | 21 21 |
Junction efficiency | % | 100 | 100 | 100 | 100 |
Flexural stiffness | mg-cm | 280,000 | 780,000 | 840,000 | 900,000 |
Aperture stability | kg-cm/deg | 3.1 | 4.8 | 4.5 | 4.3 |
Resistance to installation damage | %SC/%SW/%GP | 95/93/90 | 95/93/90 | 95/93/90 | 95/93/90 |
Resistance to long term degradation | % | 100 | 100 | 100 | 100 |
Unit weight | g/m2 | 250-310 | 270-330 | 310-370 | 340-420 |
Roll dimension | m | 50*3.9 | 50*3.9 | 50*3.9 | 50*3.9 |
Loading capacity | Rolls/40HC | 205 | 185 | 140 | 122 |
Application:
civil engineering equipment geogrid can be used to enhancement of permanent bearable soft including highway and railways embankment, slopes, tunnel, airport, parking lots, loaded pier and ground and their main usage are as follows:
1. enhance the bearing capacity fo road foundation and extend the duration of highway.
2. prevent highway surface from collapse, crack and being dirty.
3. be convenient for construction timesaving and cut
down the cost of maintenance.
4. prevent tunel from crack occuring
5. further solidity slopes to proof water and soil from losses
6. reduce the surface thickness of the ground.
7. consolidate the net for growing grass on the slopes
so as to stabilization surrounding virescence.
8. be used for artificial top net of mines instead of metal ones.
It is of flame retardant and antistatics.

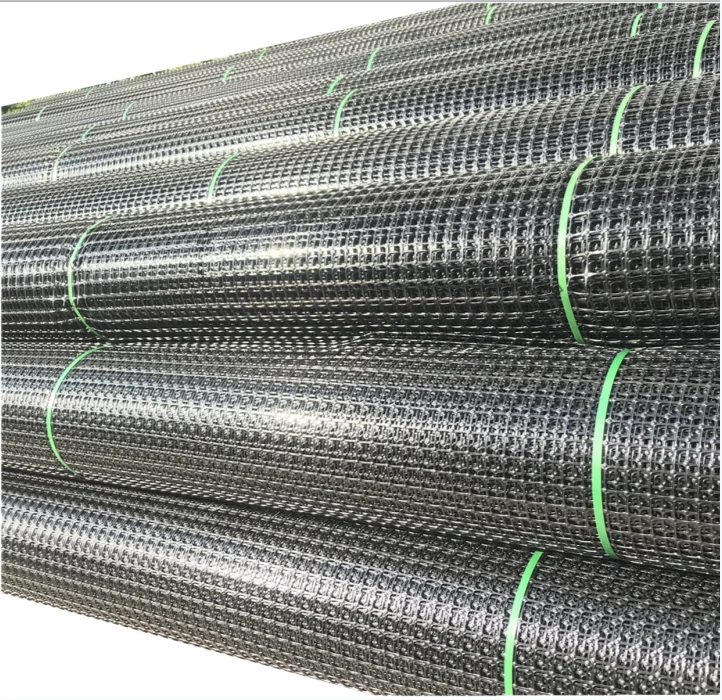

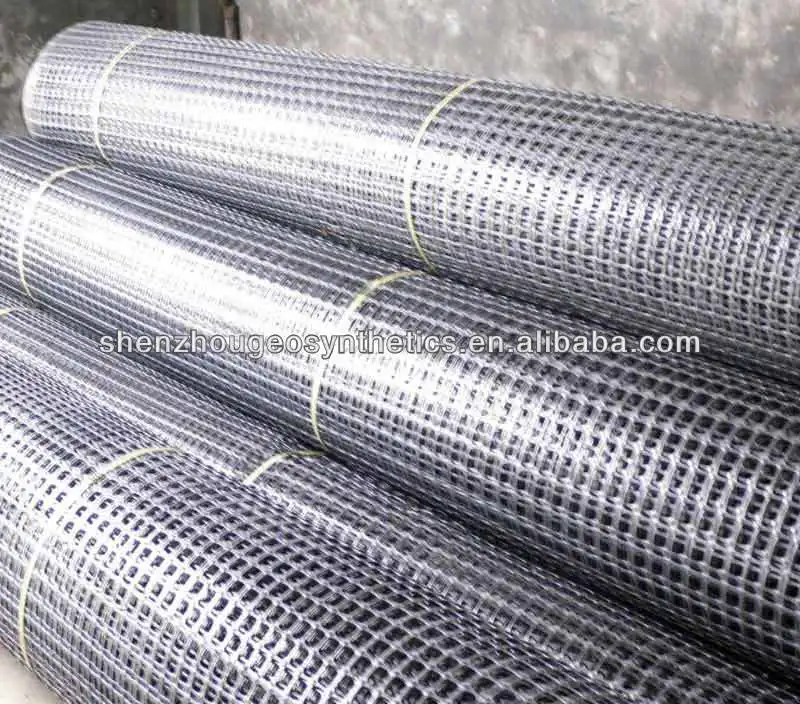

Packing & Delivery
stabilizer price plastic geo grid for for road construction
50m or 100m per roll.
By roll,plastic pipe + black PE shrinkage membrane + woven bag

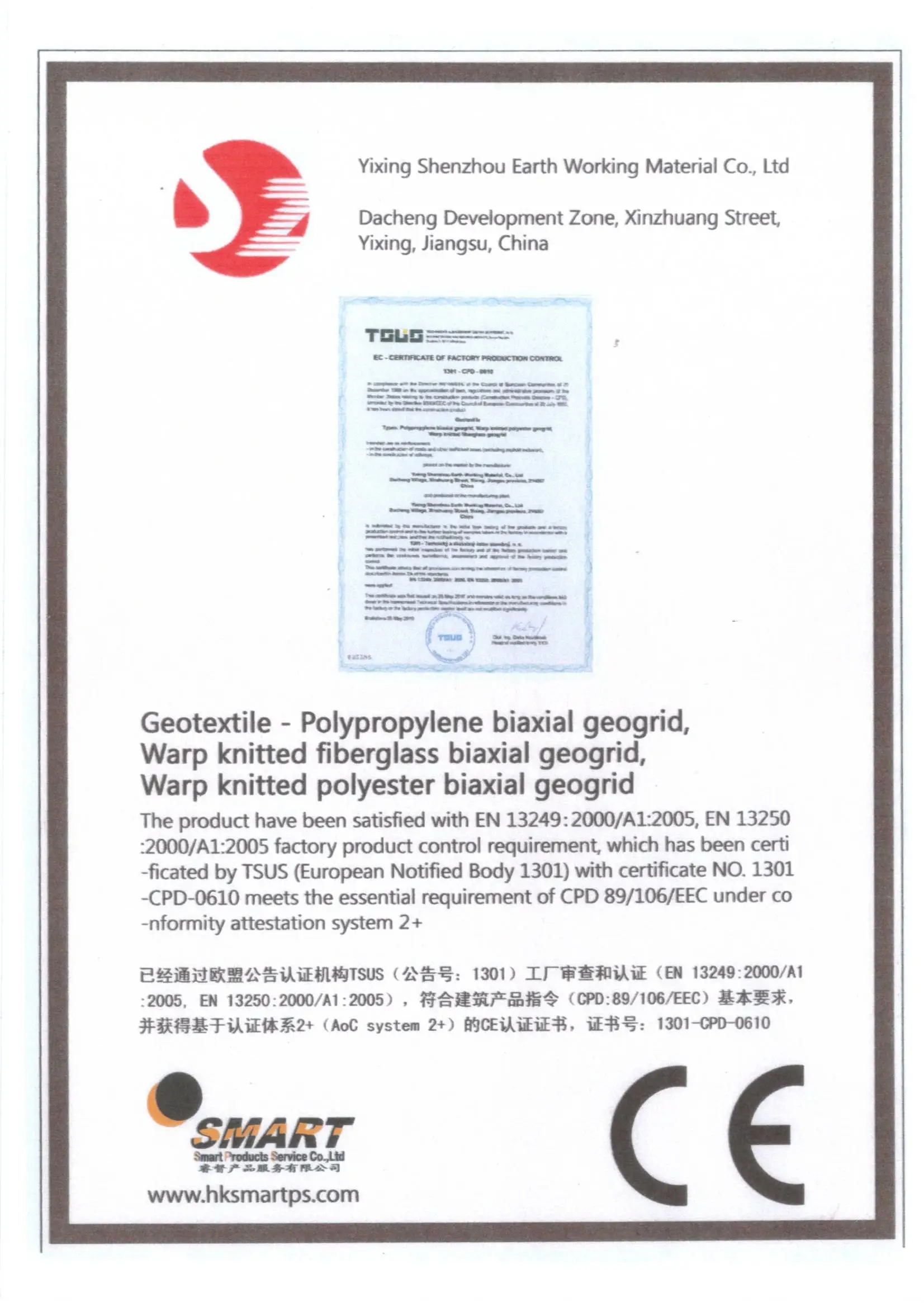

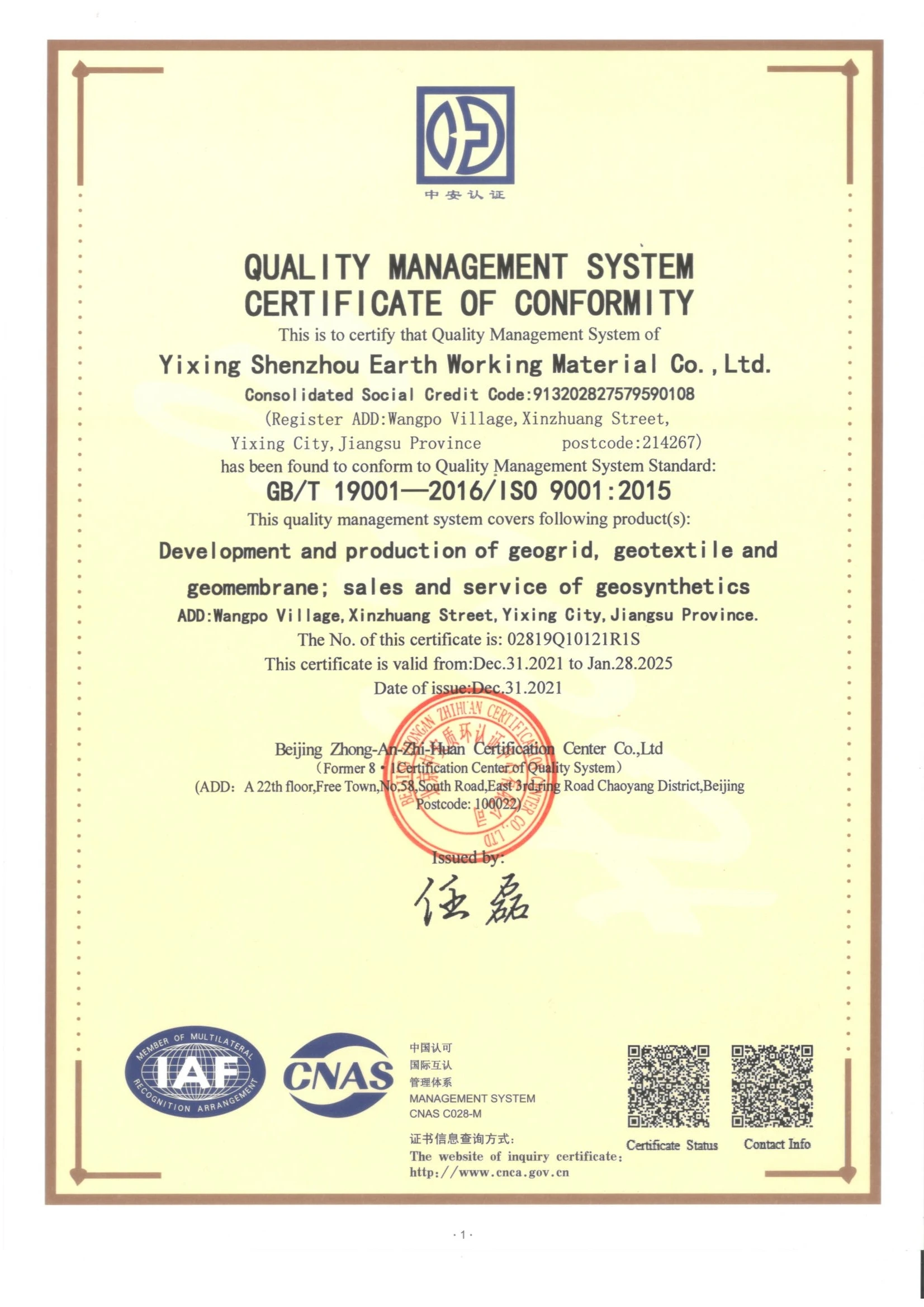

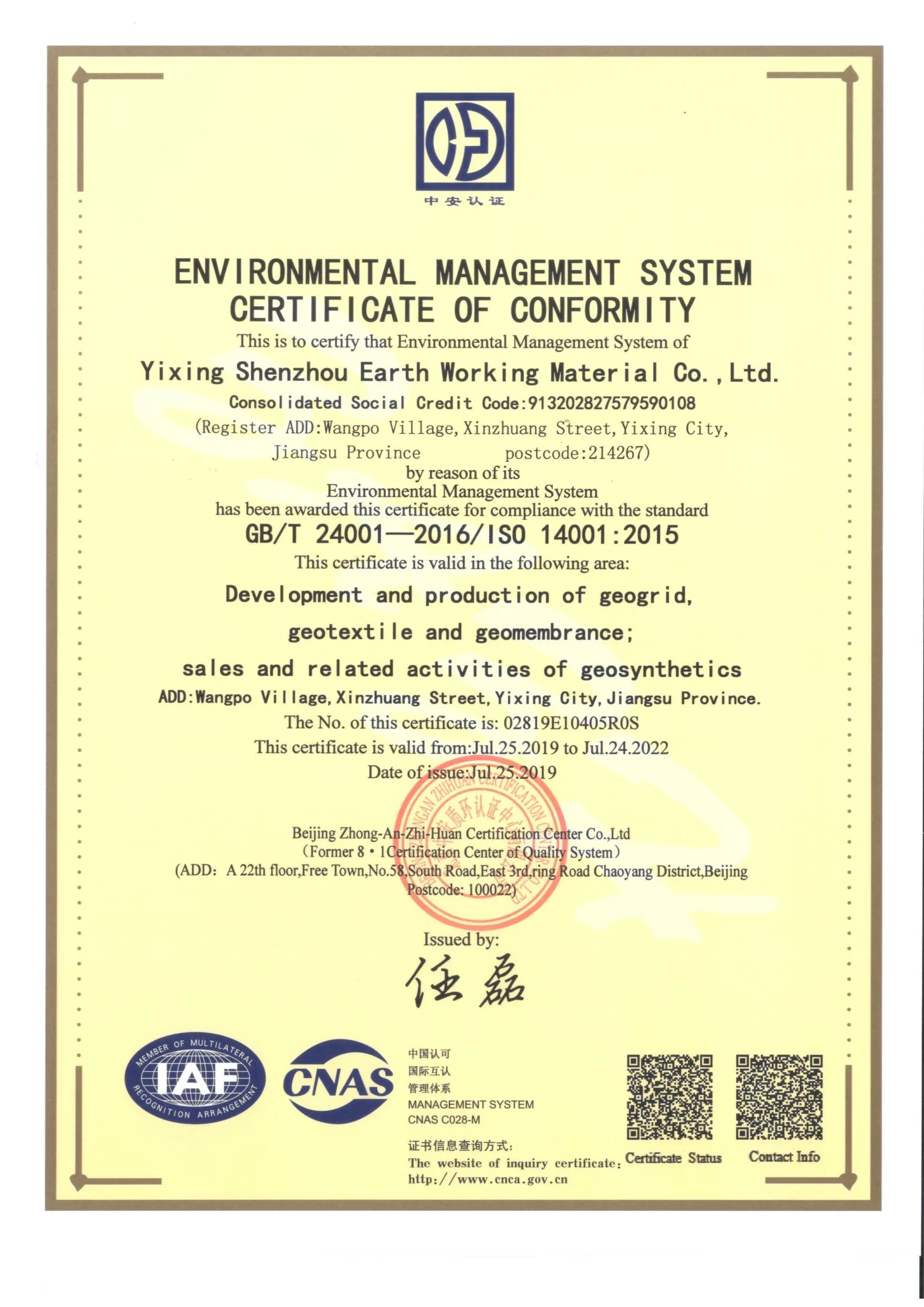

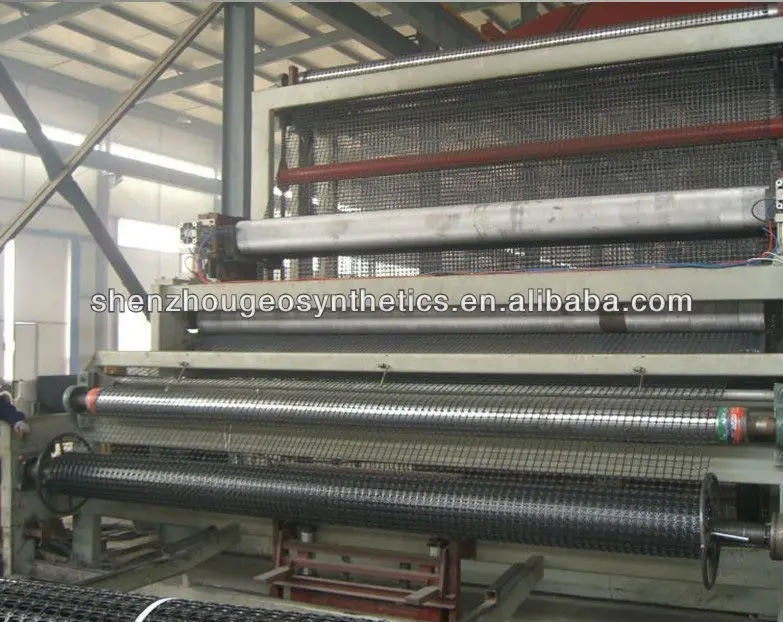

Certificate &Factory
FAQ
1. How about the delivery time?
Lead time since receipt of 30% T/T deposit payment: 3 weeks.
(Samples will be prepared within 3 days.)
2. What kind of payments does jenor support?
T/T, L/C, Cash are accepted.
3. What's are the MOQ?
Generally speaking, the MOQ is one container, but we can provide you samples for quality inspection.
4. Do you charge for the samples?
Accordeing to our company policy, the samples are freee, we only charge the freight fee. And we will return the freight fee during the next order.
5. Can you produce according to customers' design?
Sure, we are professional manufacturer, OEM and ODM are both welcome.
6. Can you tell me your main customers?
That's our customers' privacy, we should protect their information.
At the same time, please rest assured that your information is also safe here.
