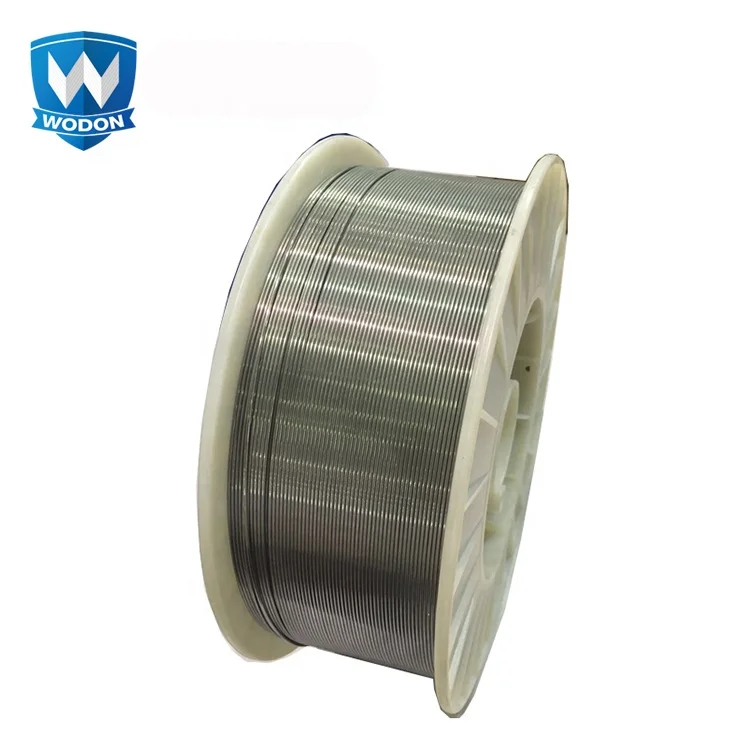

Wodon chromium carbide flux cored welding wire for hardfacing
- Category: >>>
- Supplier: Tianjin Wodon Wear Resistant Material Co. Ltd.
Share on (62020234586):
Product Overview
Description
Product Description
Wodon chromium carbide hardfacing flux core wire
1. Type: flux cored welding wire for hardfacing/surface welding/cladding
2. Diameter: 1.2 mm, 1.6 mm, 4.0 mm, customized.
3. Standard: GB
4. Certification: ISO9001:2008, ISO14001:2004, OHSAA 18001-2007
Model | Diameter [mm] | Hardness [HRC] | Main Ingredient [%] | Main application and characteristics |
D688 | 1,2;1,6 | 50-58 | C: 2.5-5.0 Cr: 22.5-27.5 | Apply to a serious part of grinding wear surfacing, multi-layer welding. Surfacing layer thickness can be up 50 mm |
D788 | 50-60 | C: 3.0-4.5 Cr: 24-30 | Apply to a serious part of grinding wear surfacing welding, welding layer thickness control under 20 mm | |
D888 | 58-65 | C: 3.5-4.5 Cr: 24-27.5 | Apply to a serious parts of abrasive wear surfacing welding, welding layer thickness control under 10 mm | |
D788A | 50-60 | C: 3.0-4.5 Cr: 20-25 | Apply to a serious parts of abrasive wear surfacing, limited to single layer welding. | |
D788M | 60-66 | C: 3.0-4.5 Cr: 24-30 | Apply to a serious parts of abrasive wear surfacing | |
D688 Welding Rod | 4.0 | 50-58 | C: 2.5-5.0 Cr: 22.5-27.5 | Suitable for severe abrasive wear parts hardfacing welding, surfacing layer thickness control under 20 mm |
Products Show

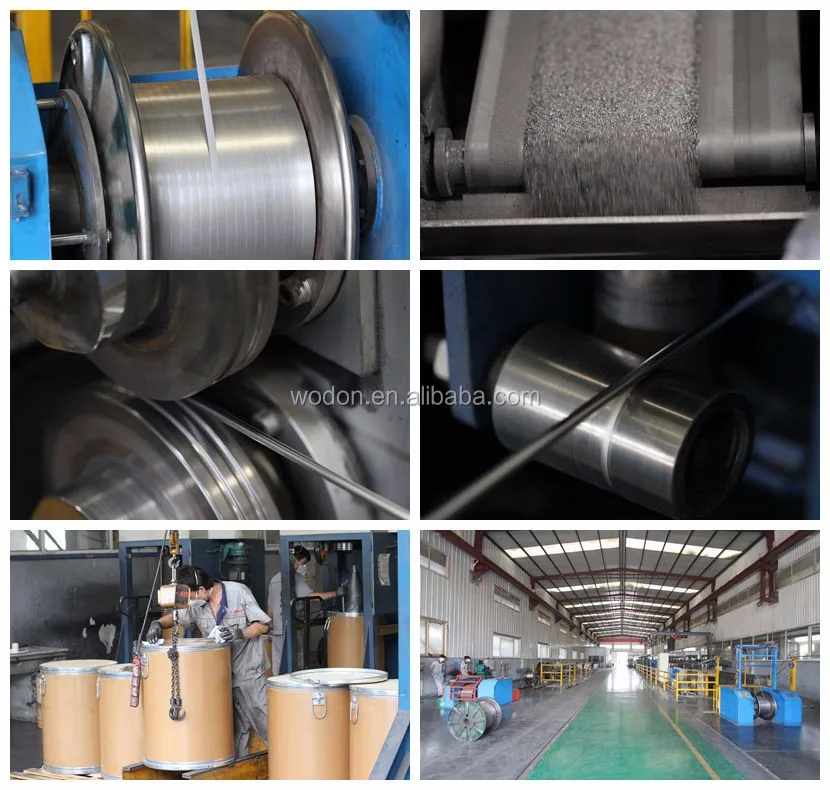

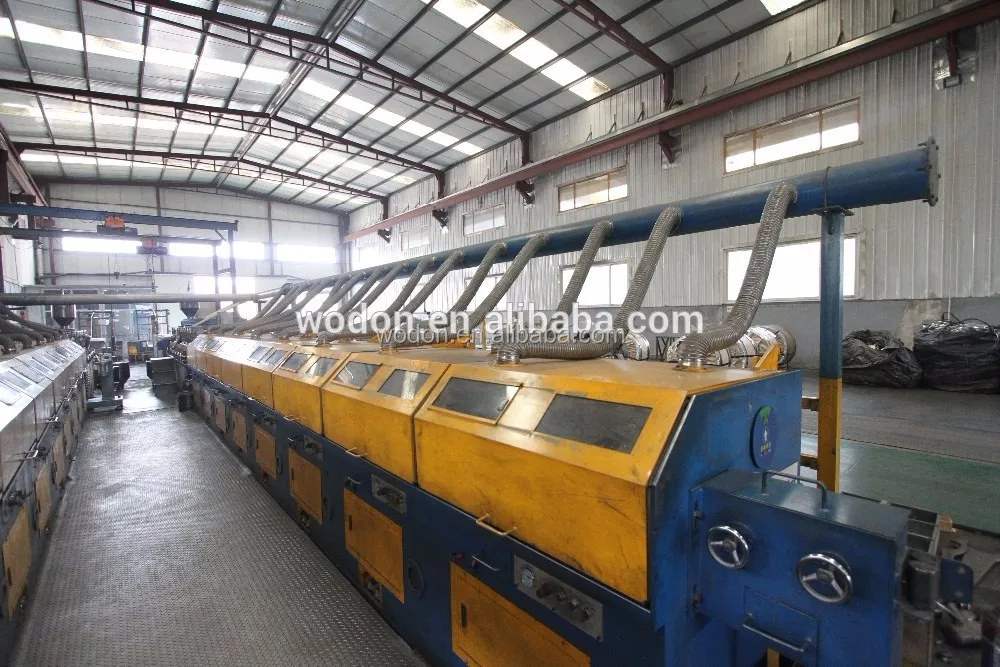

Flux cored welding wire production line
FLux cored welding wire Flux cored solder wire
Flux cored welding wire
We develop our wear resistant flux cored welding wires always according to working condition. This guarantee good performance regarding no cleaning slag, low welding spatter, smooth surface, high welding efficiency.
The Filling rate of flux cored welding wire are about 50% with tolerance 1%, so that the chemical composition after welding are uniform and stable. We use advanced CNC system and regular test during the production, so guarantee the good welding result.
Our Service
Portable Spectrum
We run regular test on our products according to company's policy based on ISO9001:2008
Rockwell Hardness tester
We are welding the welding wire on our experiment table, and cutting into small samples, so we can test the hardness and chemical composition.
Welding wire experiment table
In our labor can those small samples be tested seriously like Hardness, chemical composition, welding performance etc.
Our Company
Factory
Our Factory have 2000 square meters for Office and total 4300 square meters for office, workshop and warehouse.
Now we are building a new branch factory in Tianjin to improve our production capacity.
Now we are building a new branch factory in Tianjin to improve our production capacity.
Workshop
We have 3 workshops and total 36000 square meters, after the new branch finished will be one more big workshop to production. In June 2017 operation the new factory all function to production.
Tianjin Wodon Wear Resistant Material Co., Ltd is located in Tianjin city, China's northern international shipping center. We are specialized in researching, developing and producing wear resistant products with many years experience in this field. We have more than 200 employees, with an annual output of 90000 square meters of wear plates and 9000 tons of welding consumables.
Warehouse
We have two warehouses and totally area 5000 square meters. Our logistic department are in charge of the distribution our products, so that our client can have the goods in shot time.
Warehouse
In our Warehouse are strictly managed, so our raw material and our products always good protected and are able to transport quickly and efficient.
With solid technical knowledge and R&D capacity, we have many experienced surface engineering professionals and often invite experts as advisers to provide solutions related to industrial abrasion. Our products have been widely applied in different industries like: power, cement, iron and steel, mining, port, coal, petroleum, chemical industry, railway, valves, sugar and shipbuilding industry. In addition, our company can offer professional solutions for the abrasion in different working conditions in order to reduce costs, increase lifetime of the work piece and extend equipment overhaul period, therefore building a very good reputation among our customers.
Packing & Delivery

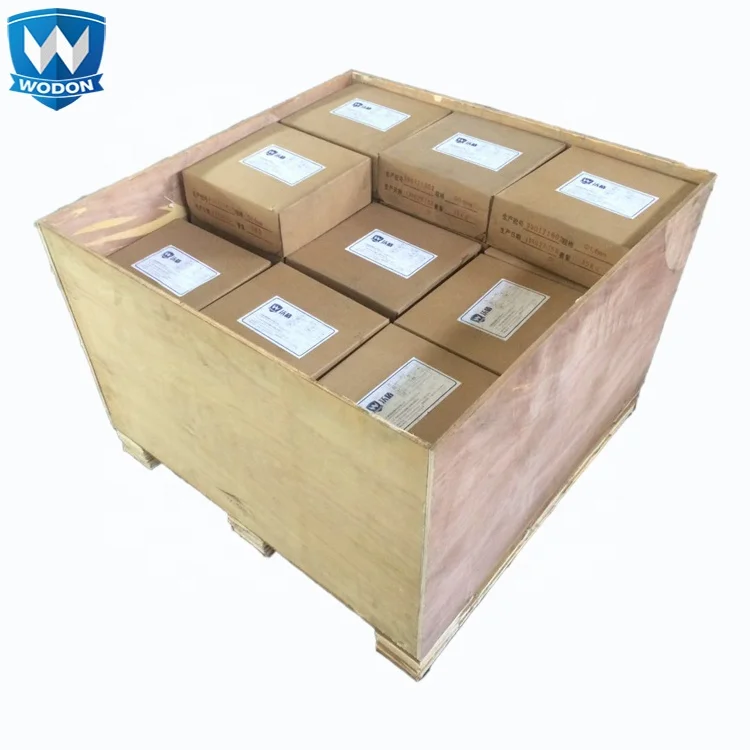

Packaging: 15 kg/spool, vacuum packing into carton, Steel Pallet, Plastic film, Customized
Packing Size: 1.15 m*0.58 m*0.88 m, 1.15 m*1.15 m*0.88 m, customized
Delivery Detail: Generally 7 days, if the goods are in stock. or it is 10~15 days if the goods are not in stock, it is according to quantity.
Shipment: Loading into 20 ft or 40 ft Container.

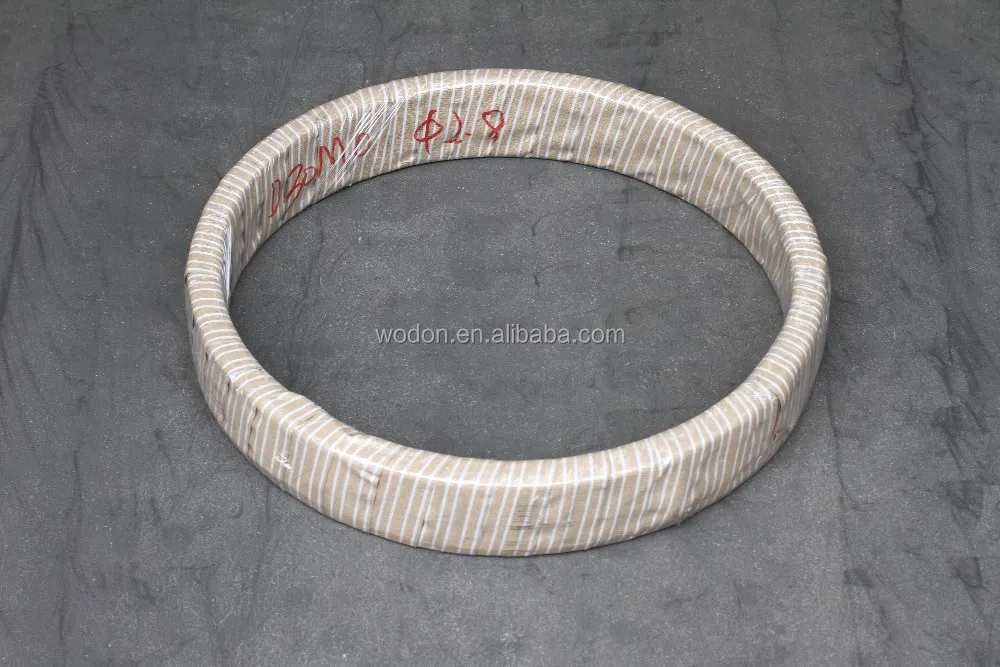

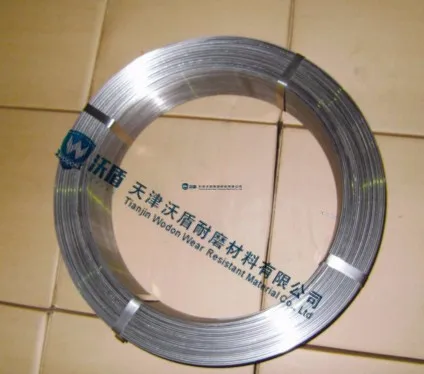

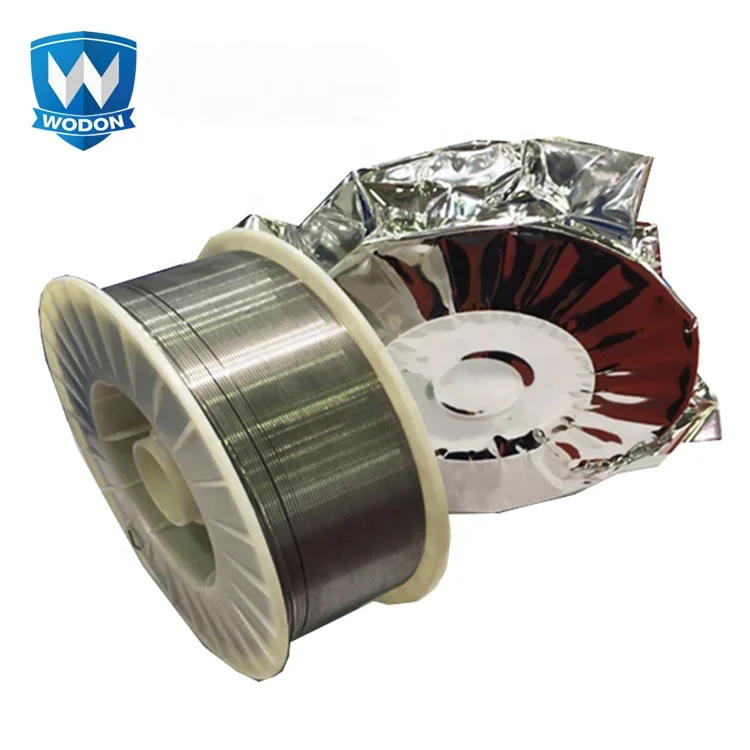

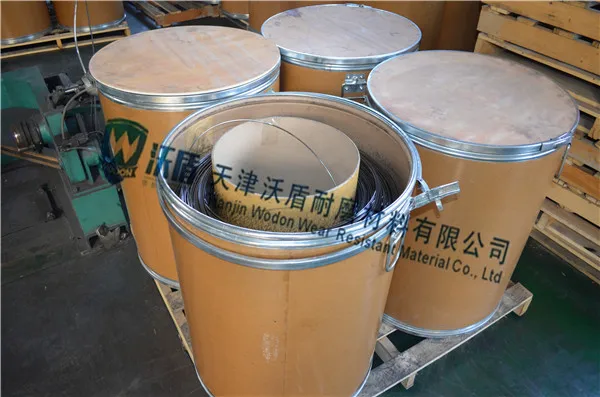

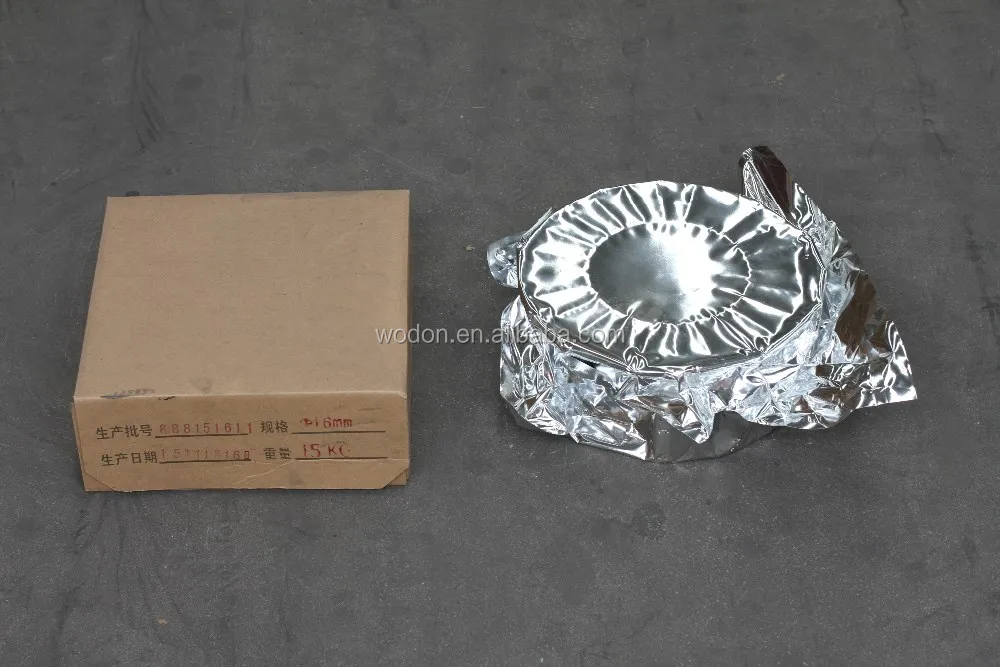

We packet our flux cored welding wire in different weight according to the Diameter. Welding wires of the Diameter 1.2 mm and 1.6 mm are 15 kg/spool, without joint vacuum packed into carton. Welding wire of the Diameter 2.8 mm, 3.2 mm and 4.0 mm are 50 kg/spool or 150~250 kg/drum without joint with Desiccant waterproof packed. So our flux cored welding wire can stand effect with in 6~12 mouth, if the goods are stored properly.

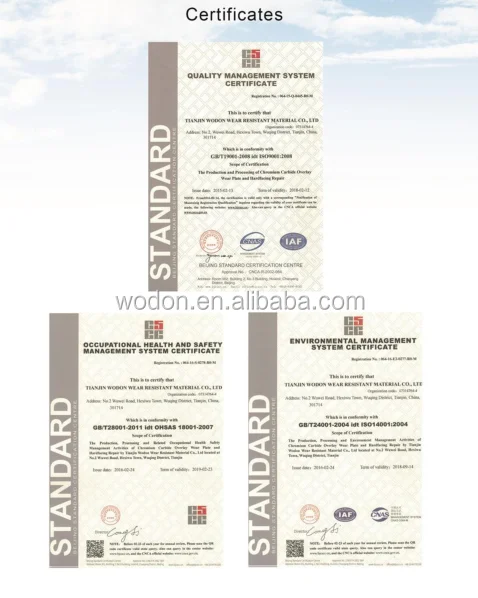

Our Certifications
Quality certification
We are certified with the ISO9001:2008 and keep continuously improving our quality management system. We have strict procedures for raw materials, products inspection, production process, storage management and after sales service.
We are certified with the ISO1400:2004 and keep continuously improving our environmental management system. We use the electric boiler not the coal fired boiler to protect the environmental. We use the advanced dust removal and ventilation equipment to keep the air clean.
We are certified with the OHSAS18001-2007 and keep continuously improving our occupational health and safety management system. Our every technical staff wears filter mask, protective clothing and gloves and welding goggles.
Our advantages
1. Good Performance: no clearing slag, low welding spatter, smooth surface, high welding efficiency, stable filling rate, etc.
2. welding wire without any joints, vacuum packing into carton,Quality warranty period longer than one year.
3. Production Capacity: 9000 tons per year
4. Short Delivery Time: Generally 7 days
5. We have many experienced professionals to research and develop welding wires according to customers' specified chemical compositions.
6. We can recommend proper welding wires and provide technical solutions based on working conditions.
7. on site inspection and third party inspection are available.
8. As an ISO9001:2008 approved manufacture, our mission is to improve our management system and provide high quality products continuously.
After-sales commitment
Our company has a professional after-sales service team, with many years of experience not only on hardfacing products and applications, but also on the operation of application equipment. We are able to quickly solve customer's problems. If there are any quality problems, the responsible person will provide reasonable solutions within 12 hours after being notified.
Quality Control
We have our own inspection technology department. The team are made of many experienced technical with material science bachelor degree and the team leader are with master degree. They are very professional to inspect and run test on the products. According to our company's policy each our product have a special number, so we can trace back to anywhere, if there are quality problems.
We have our own Quality Inspection Technology Department and the team are made of many experience exports with material science bachelor-degree and the leaders with material science master-degree. In the pictures you can also see our equipment in our laboratory. Our inspection team make regular testing on raw material, production process and our products according our company's strict policy.
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer with more than 3 factory, our own sales department and Inspection technology department.
Q: How long is your delivery time?
A: Generally it is 7 days if the goods are in stock. or it is 10~15 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance against copy of BL.
