Customized TN Positive Segment LCD Display with blue silk printing For Consumer Electronics / Home Appliances

Product Overview

Description

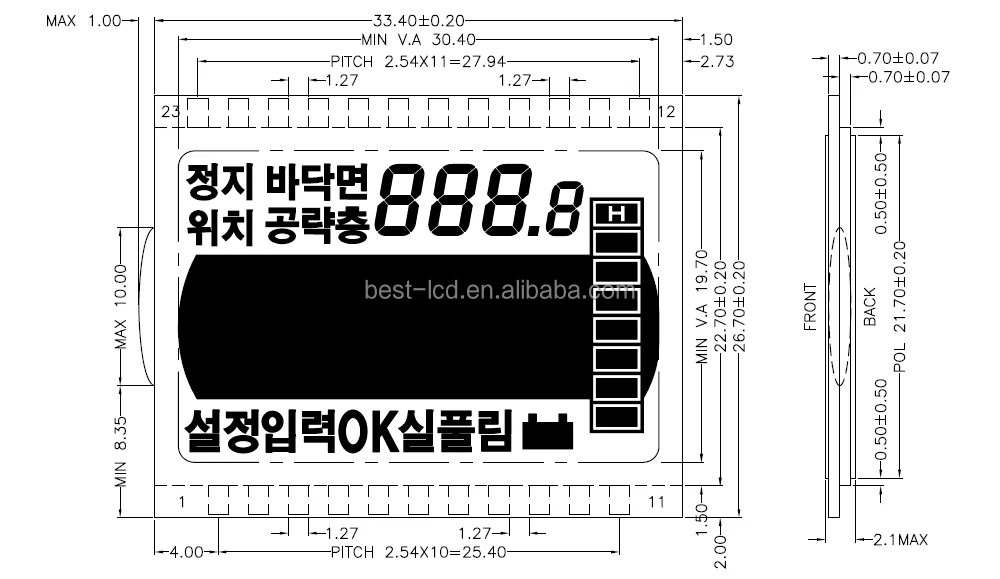

1. Professional Mechanical Drawing:









2. Precisely Technical&Mechanical Parameters FYI:



Usage	For Home Appliances/ Consumer Electronics etc.
Display type	TN/Positive/Transflective
Outline size	33.40*22.70/26.70*1.1mm
Viewing size	30.40*19.70mm
Viewing Angle	6 O'clock
Driving Method	1/4duty, 1/3bias
Connect type	Zebra
Pitch	2.54mm
Operate temp	-20~70 deg.
Storage temp	-30~80 deg.
Power supply vol.	3.0V

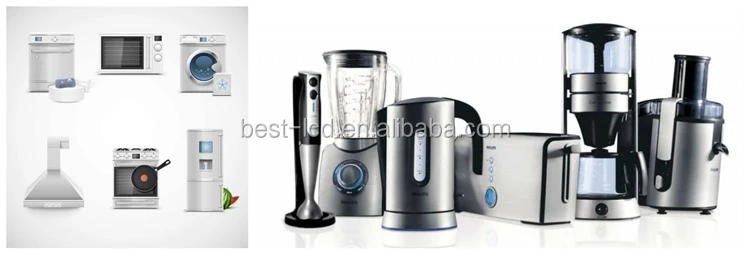

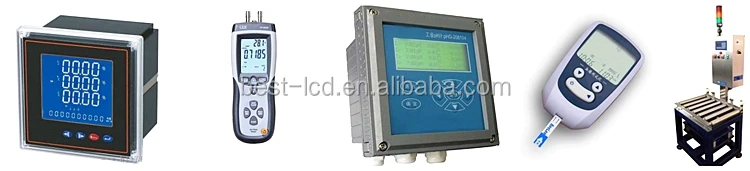

3. Appropriate Application:  Customized TN Positive segment TN LCD Display With Blue silk-printing For Consumer Electronics &Home Applicances.











4. Qualified Packaging:











5. Trusted Shipping:











6. Outstanding Capabilities&Services:

Customizing & designing segment, character, graphic LCD Display and LCD Module(Including LED Backlight, IC) with different sizes, shapes, display icons for clients.



Product Type:

1. LCD Type:  TN, HTN, STN, FSTN, VA, COB, COG etc.....

2.  Any digitals, Icons, graphic can be customized and designed according to customers' requirements.

3. Polarizer type: Transmissive, Transflective, Reflective

4. Connector Type: Metal Pins, Zebra, Heat-seal, FPC...

5. ITO Glass thickness: 1.1mm, 0.7mm, 0.55mm

6. The range of operating Temperature: -40~90°C





Our products are widely and well accepted in North America such as USA,Canada; European countries such as UK, Germany, France, Netherlands, Greece, Russia, Sweden, Ireland, Swiss, Austria, Luxembourg, Belgium, Italy, Spain, etc. ; Asia countries such India, Singapore, Malaysia etc..
