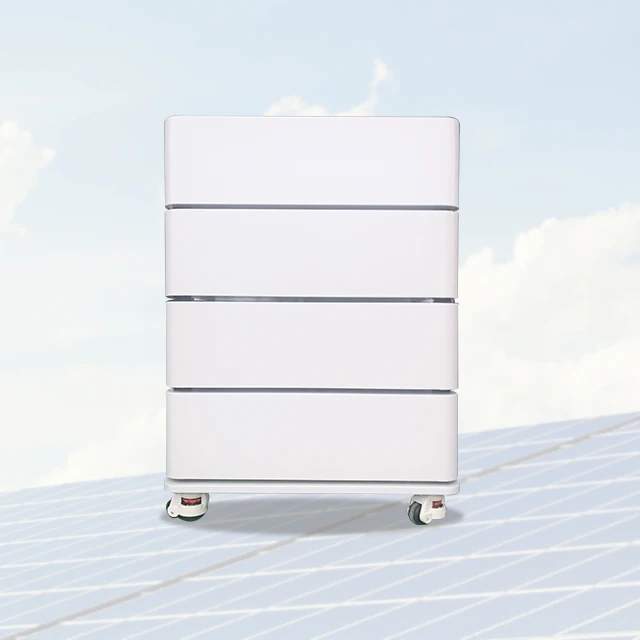

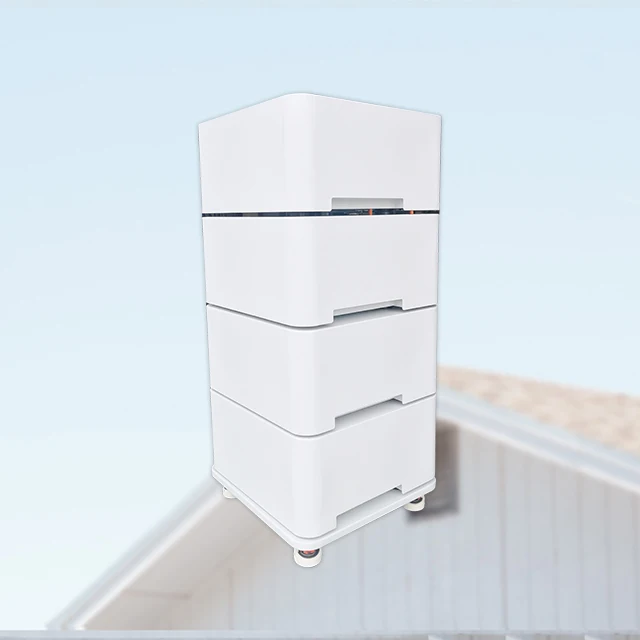

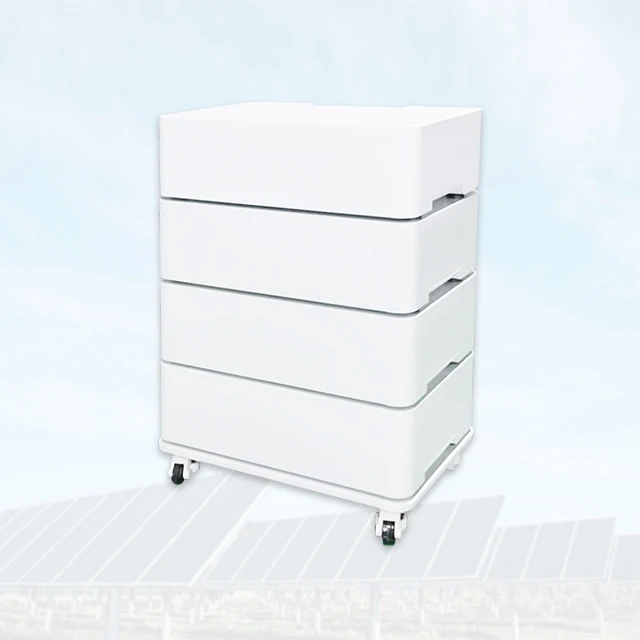

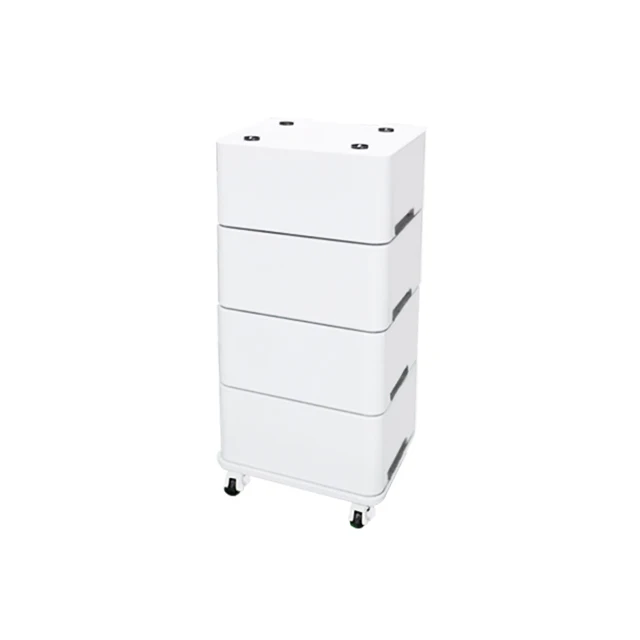

power wall inverter battery lithium phosphate LFP solar batteries
- Category: >>>
- Supplier: Batterlution Ltd.
Share on (62020268645):
Product Overview
Description
Home Battery Packs
Battery SPEC

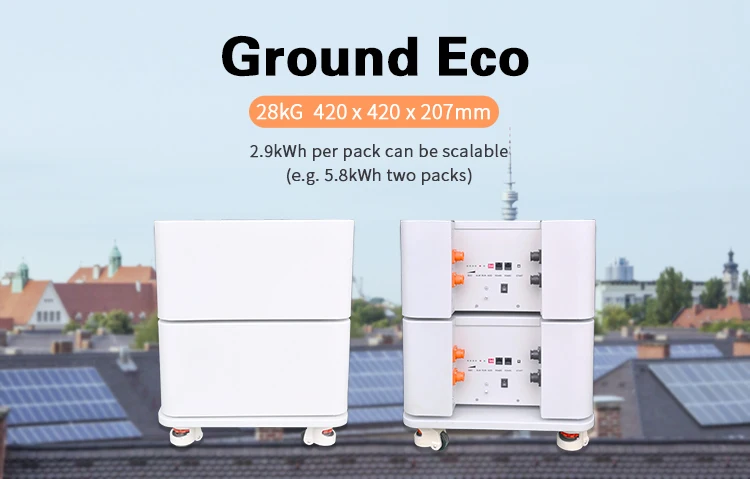

Model Capacity | Ground Eco 5.8kWh | Ground Eco 11.6kWh | Ground Station 17.5kWh | ||
Capacity Energy | 5.8kWh | 11.6kWh | 17.5kWh | ||
Capacity Ah | Capacity Ah | Capacity Ah | Capacity Ah | ||
Suggested SOC | 10%-100% | 10%-100% | 10%-100% | ||
Usable Capacity | 5.3kWh | 10.4kWh | 15.7kWh | ||
Nominal Voltage | 51.2V | 51.2V | 51.2V | ||
Operation Voltage | 46.4V – 57.6V | 46.4V – 57.6V | 46.4V – 57.6V | ||
Maximum Charging/Discharging Current | 70A/70A | 100A/100A | 100A/100A | ||
BMS | Robust Multi point monitoring BMS pre installed | ||||
Life Cycling (0.5C 25℃) | Life Cycling (0.5C 25℃) | ||||
Warranty BTT | 10MWh per kWh | ||||
5 years， whichever comes sooner | |||||
Operation Temperature | 0℃ ~ 45℃ | ||||
Storage Temperature | -20℃ ~ 35℃ | ||||
Weight | 28kG per pack | 28kG per pack | 72kG per pack | ||
Dimensions | 420x420x 600 mm | 420x420x 920 mm | 620x420x600 mm | ||
Scalable | Yes, maximum 15 packs can be parallel connected | ||||
Certifications | MSDS, UN38.3, RoHS, IEC62619, UL | ||||
Communication | RS485 | ||||

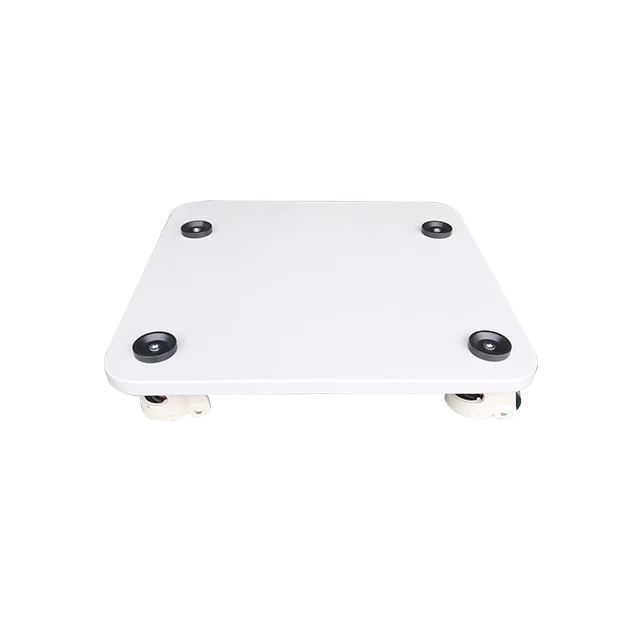

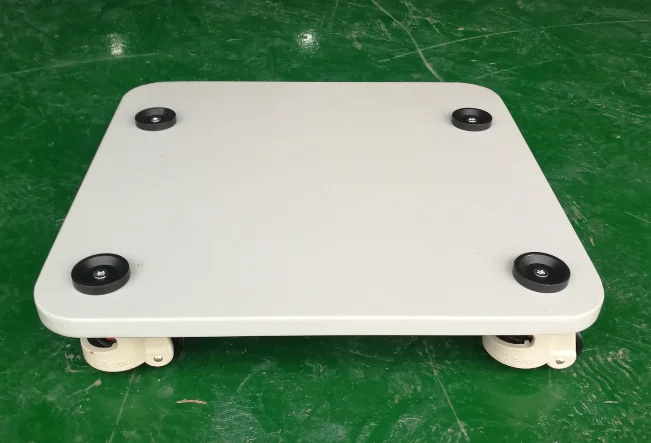

Accessories | One pair short parallel power cables and comm cable as the standard accessories Botton bearing plate and 2 meter length inverter canbles need to be brought | ||||

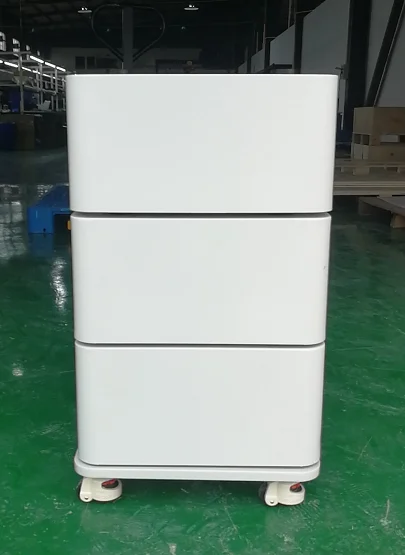

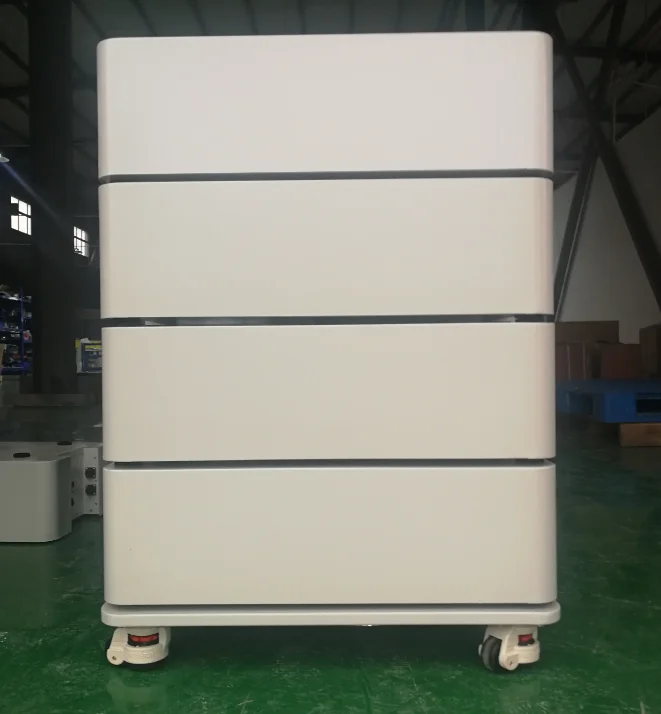

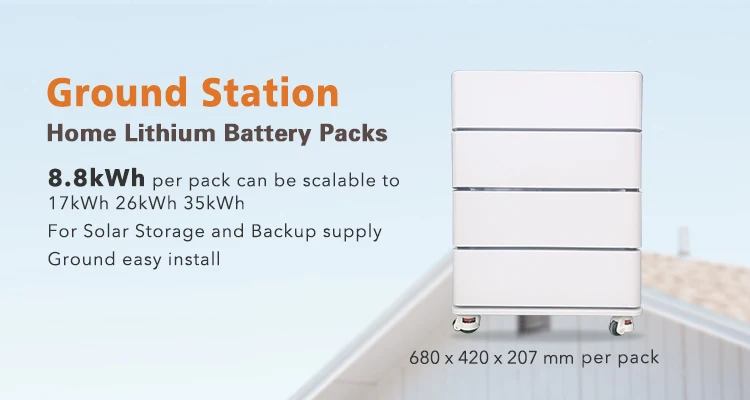

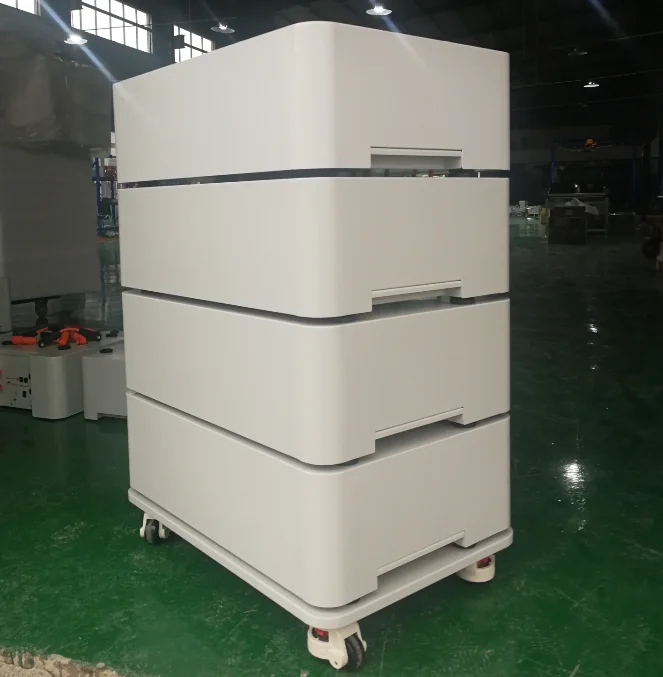

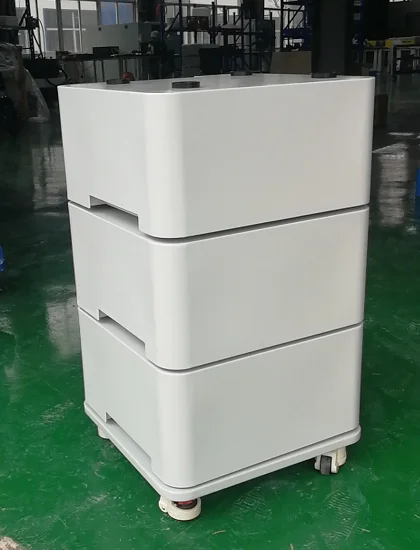

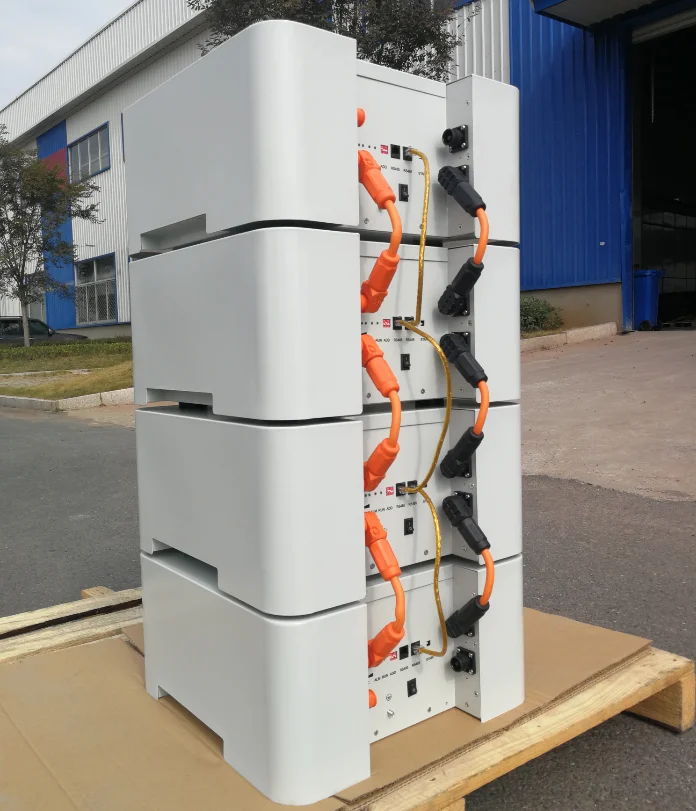

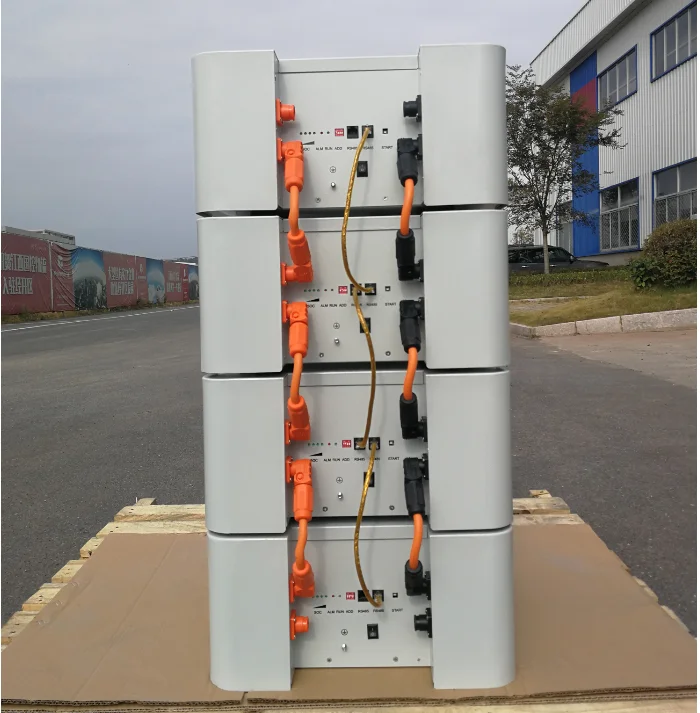

Pictures
Ivy Battery was funded by wealthy knowledge about LiFePO4 battery, EV pack, energy storage and smart control solutions. Safe EV pack solutions are at the heart of our product range and have been supplied successfully for many famous EV brands. For energy storage solutions, we developed intelligent EMS and BMS for optimizing energy utilization and maximizing electricity cost savings by peak shifting or solar generation self-consumption. Ivy Battery is aiming for providing safe and high efficiency energy solutions to our global customers on the strength of strong R&D capabilities, outstanding technologies and advanced manufacture management.
