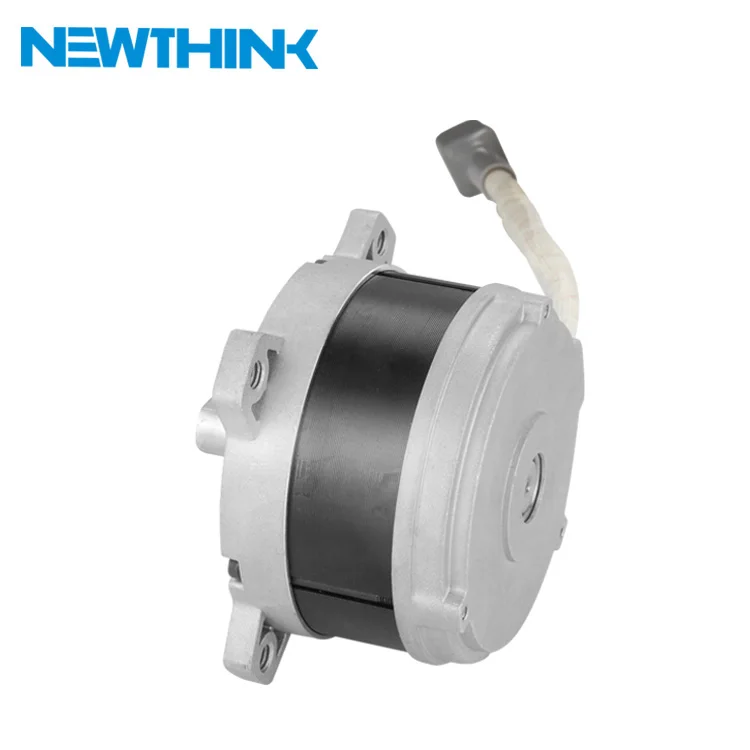

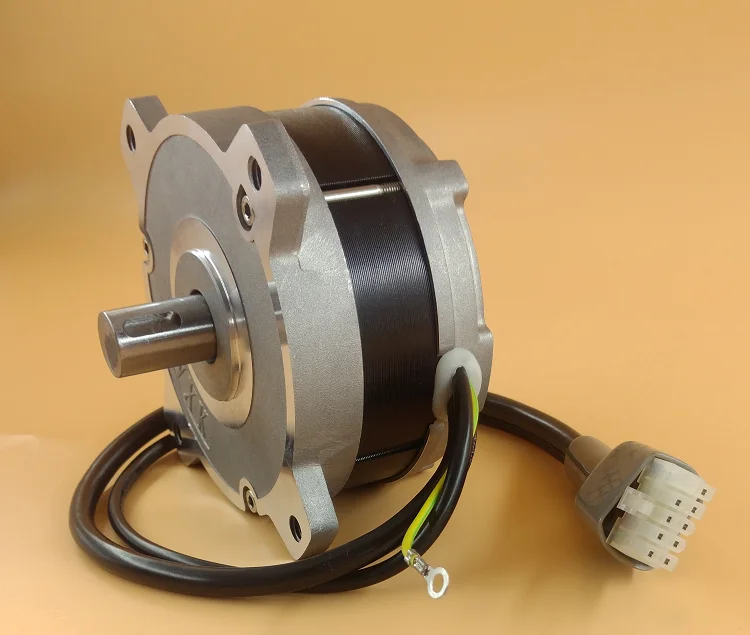

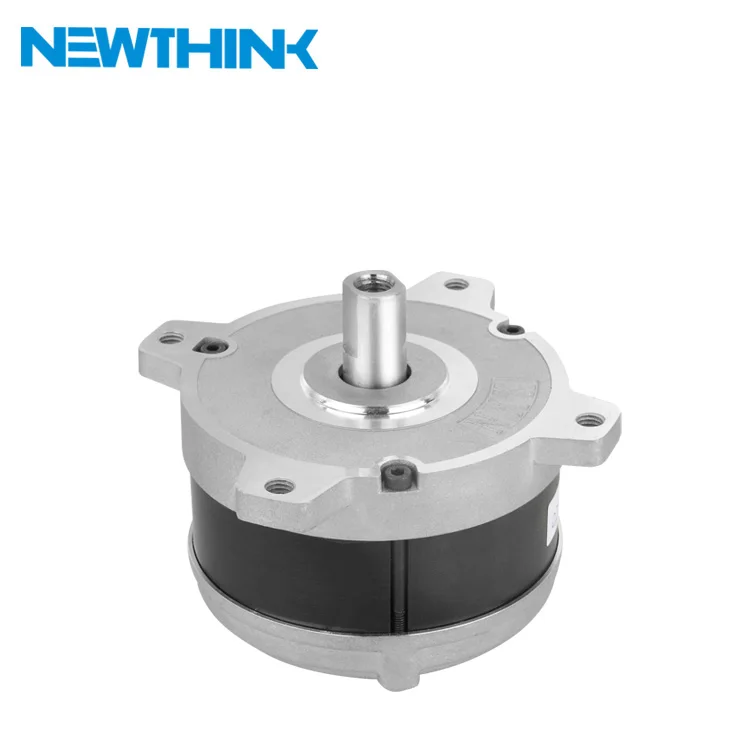

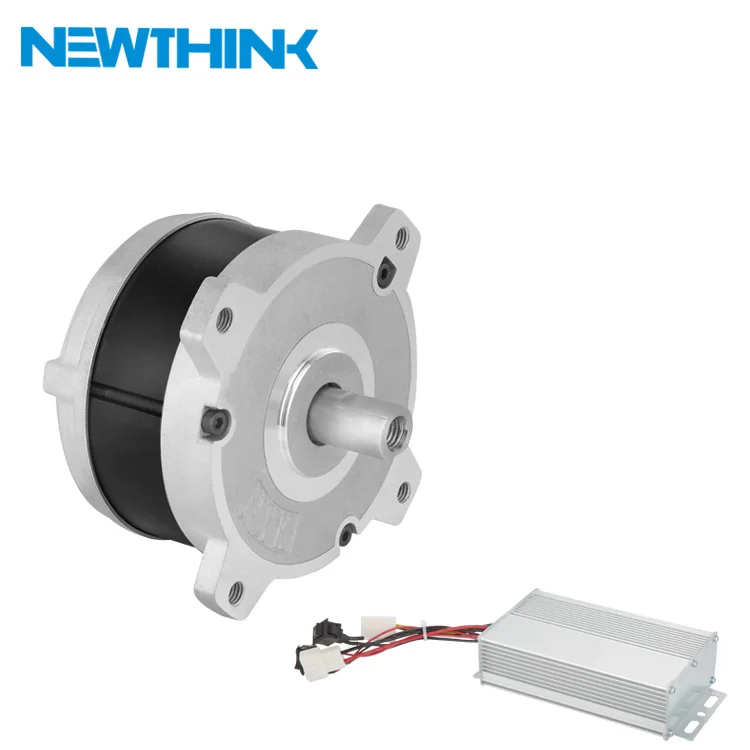

36V 48V 500W low voltage brushless bldc motor

Product Overview

Description

















Motor Code	NXK100L350.300.001	NXK100L550.270.001	NXK100L750.280.001	NOTE
Max.Power	350W	550W	750	Customization
Voltage	36 V	36 V	36 V	Customization
Frequency	/	/	/	Customization
Torque	1.1 Nm	1.9 Nm	2.5 Nm	Customization
Rated Speed	3000 rpm	2700rpm	2800rpm	Customization
Current	11.5 A	18 A	24 A	Customization
Efficiency	85%	85%	85%
Operatoin Temperature	-15℃~45℃	-15℃~45℃	-15℃~45℃
Weight	1.5kg	1.7kg	2.1kg







             Ningbo Newthink Motor Co., Ltd. established in 2011, is a professional manufacturer engaged in the research, development, sale and service of  brushless motor, brushless blower and drive system.  we have obtained  ISO9001:2015  certificates  Our products are exported to clients in such countries and regions as Europe, America, Japan, Korea and other countries. We also welcome OEM and ODM orders.





1. Professional: The company was founded in 2011, it has focused on different motor manufacture.
2. Reasonable price: We are professional motor manufacturers, so there is a great advantage in terms of price
3. Quality products and good reputation: Good quality with CE/IFA/ROHS certification
4. Technology: This Micro DC brushless vacuum motor with high rotate speed, high vacuum degree, high flow and high efficiency
5. Wide application: special for handle vacuum cleaner, wireless vacuum cleaner, home vacuum cleaner, hand dryer machine,  air  renewal  system.
6. Superior performance: small size and high power





*  What's your  MOQ?

--------Personally, I want to offer the need you wanted, but Automatic prodcution need to start in one thousand set. Whatever, I'll try my best to arrange it.
*  Could you offer oversea after-service?

--------Engineers in NEWTHINK MOTOR has been and still are ready to supply the best sulotion for your problems.
*  May I ask for the technical inforamtion?

--------Dear sir or madam, What I'm able to offer is the former product test performance, showing in the EFFECT DATA. More inforamtion please send me your enquire in detail. I'll check it from engineers in electric and mechanical. BTW, secret data are unable to offer. Thanks for your consideration.
