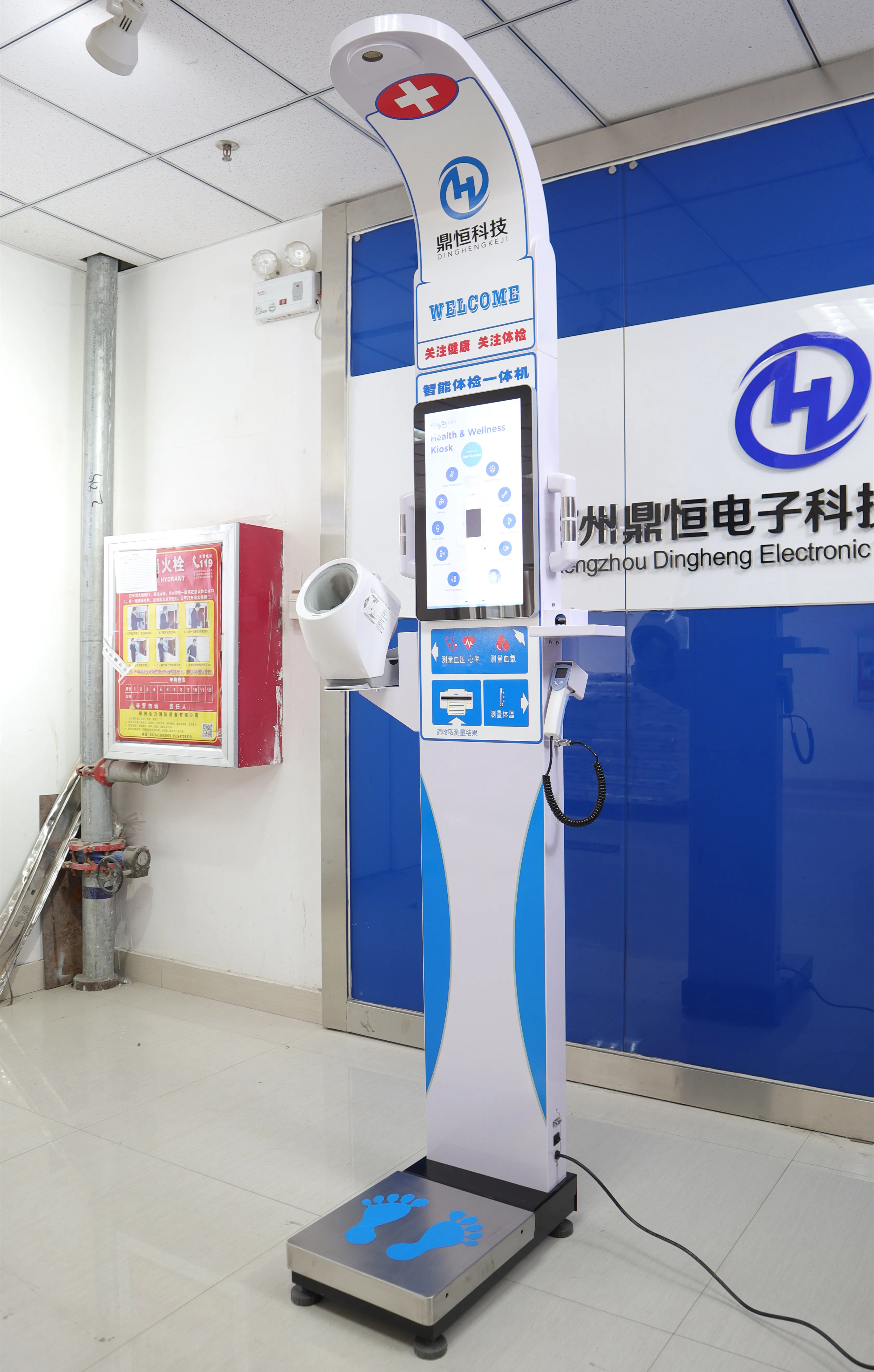

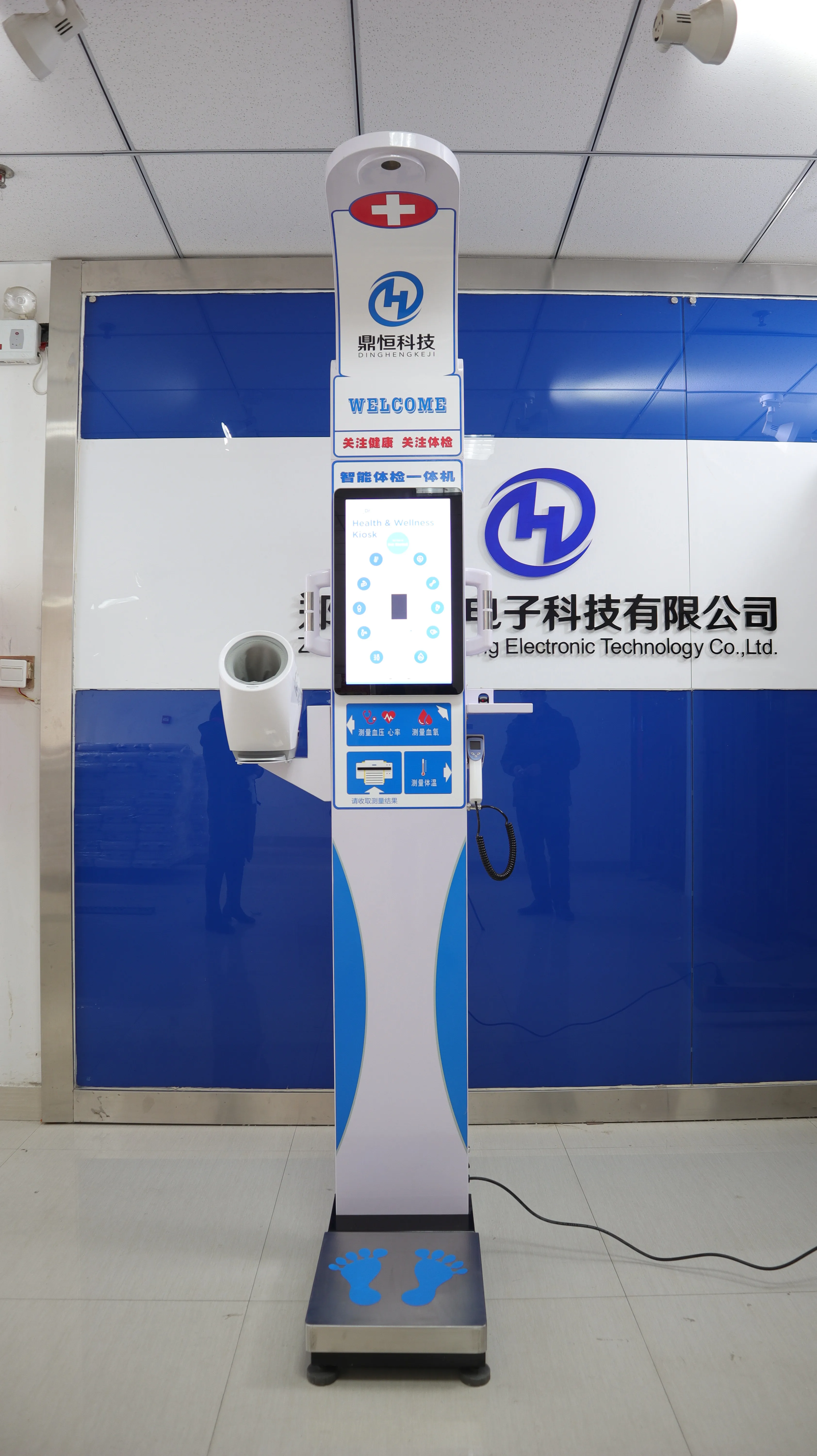

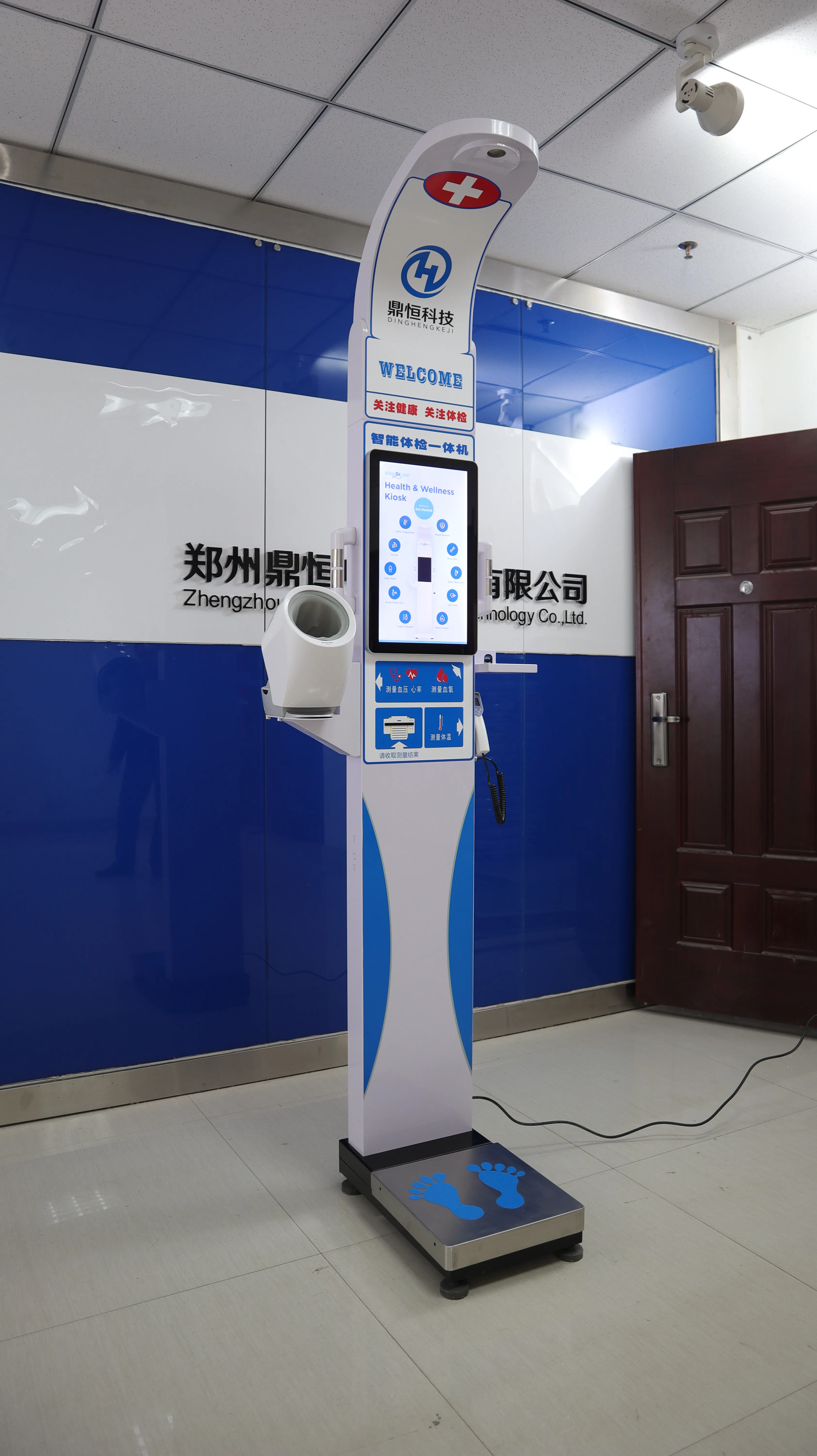

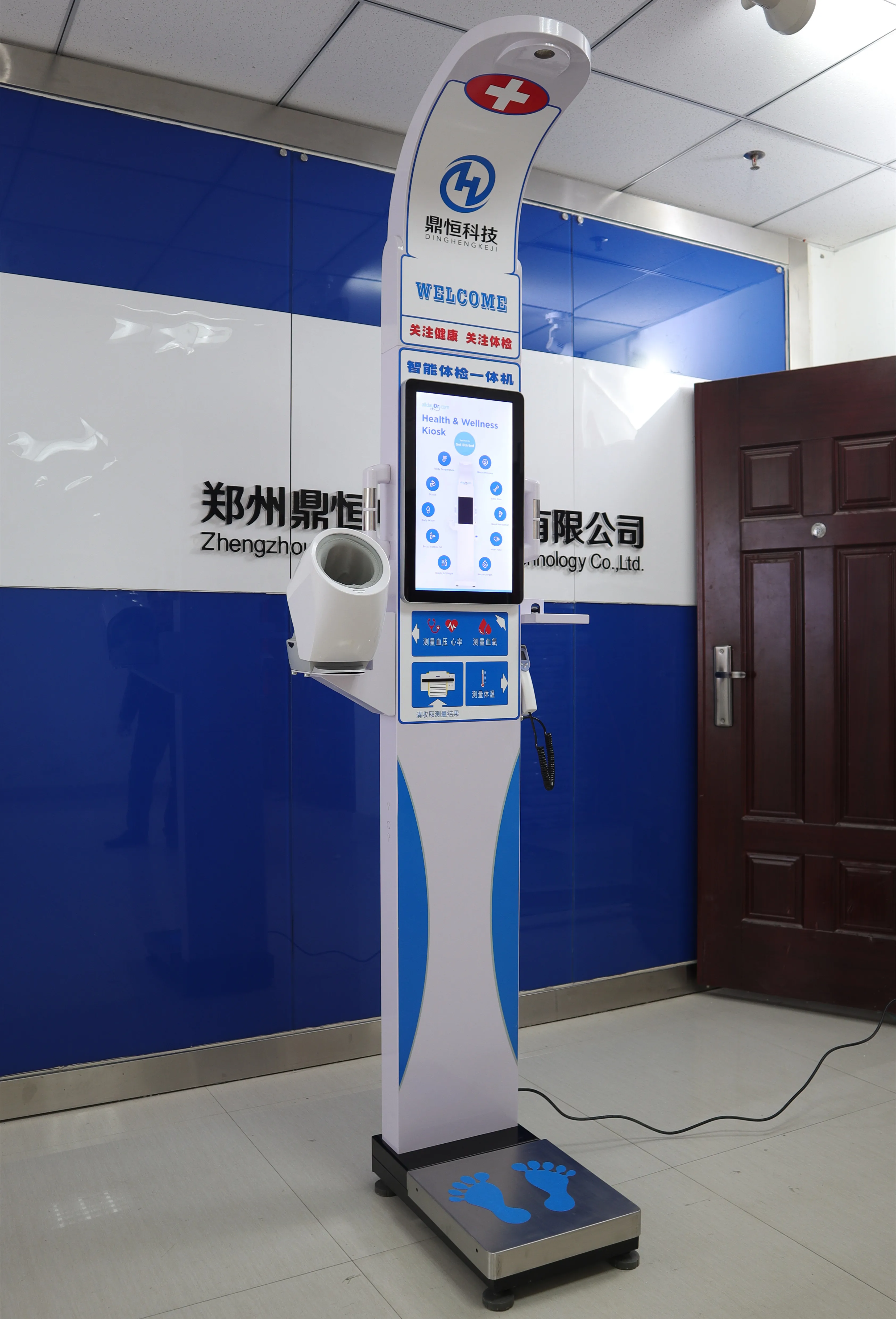

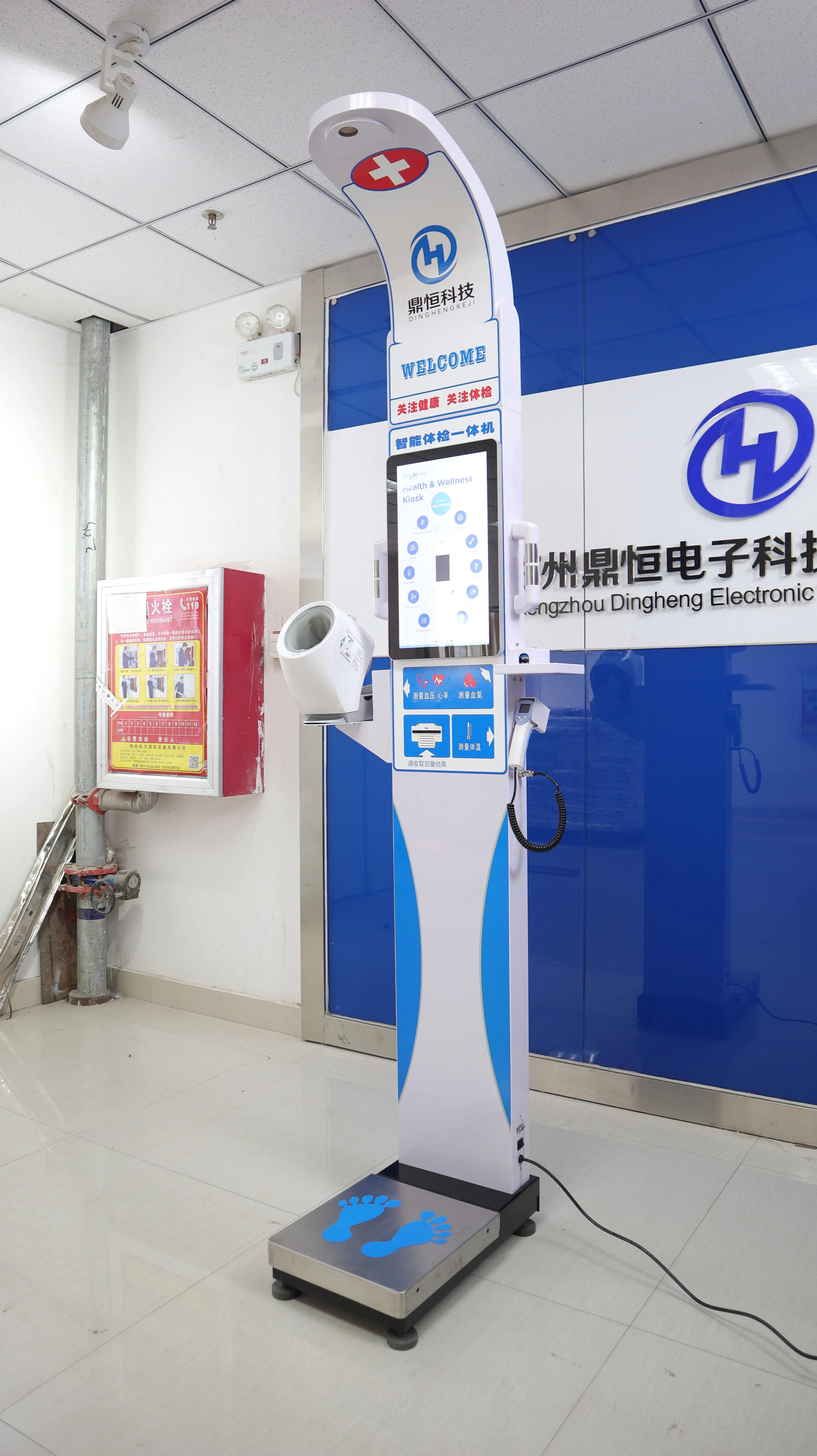

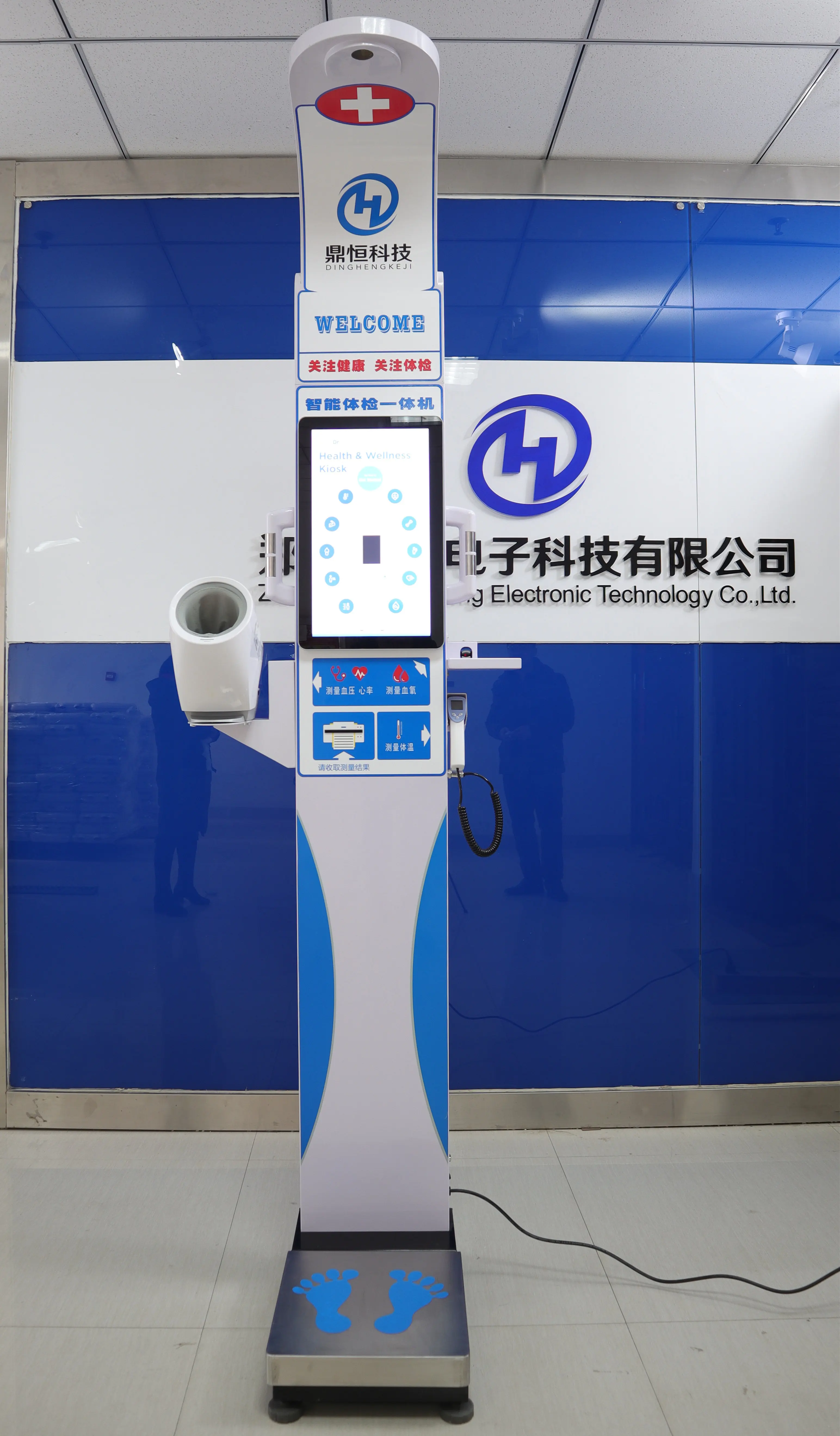

DHM 800c ultrasonic probe for height measurement adjust the height of blood pressure monitor health checkup station

Product Overview

Description

1. Specification

Type	DHM-800C
	Body fat measurement		Bioelectrical Impedance analysis
	Measurement range: Height:70-200cm Weight: 5-500kg Gender:male /Female
	Testing range: Body fat:5-50.0% BMI:2.5-90.0 Basal metabolism:385-5000kcal
	Electrode material		Electroplating material
	Testing part		All body ,right leg,left leg,right arm,left arm
	Temperature: 10-40℃ Humidity: 30-85%RH		GW:230g

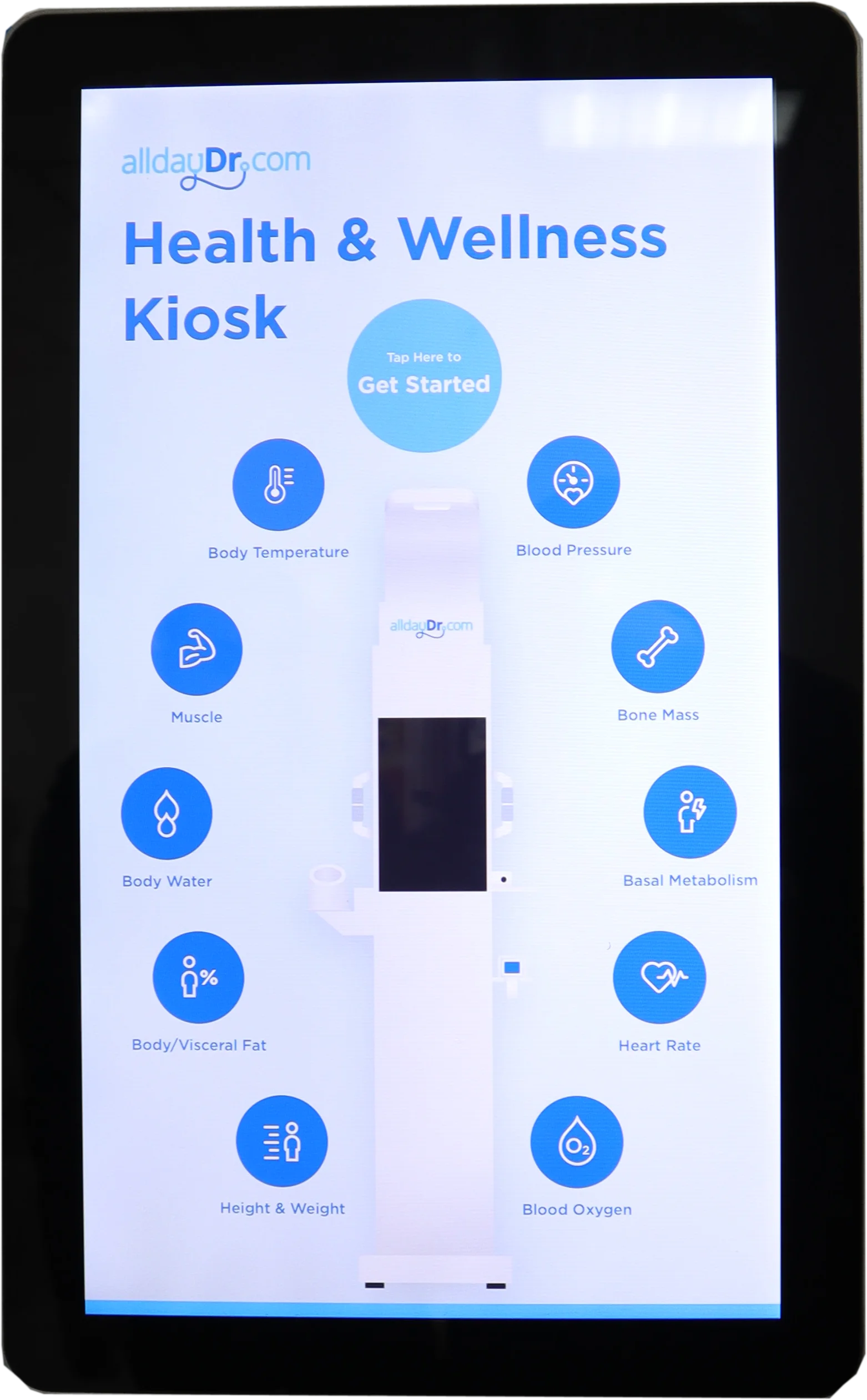

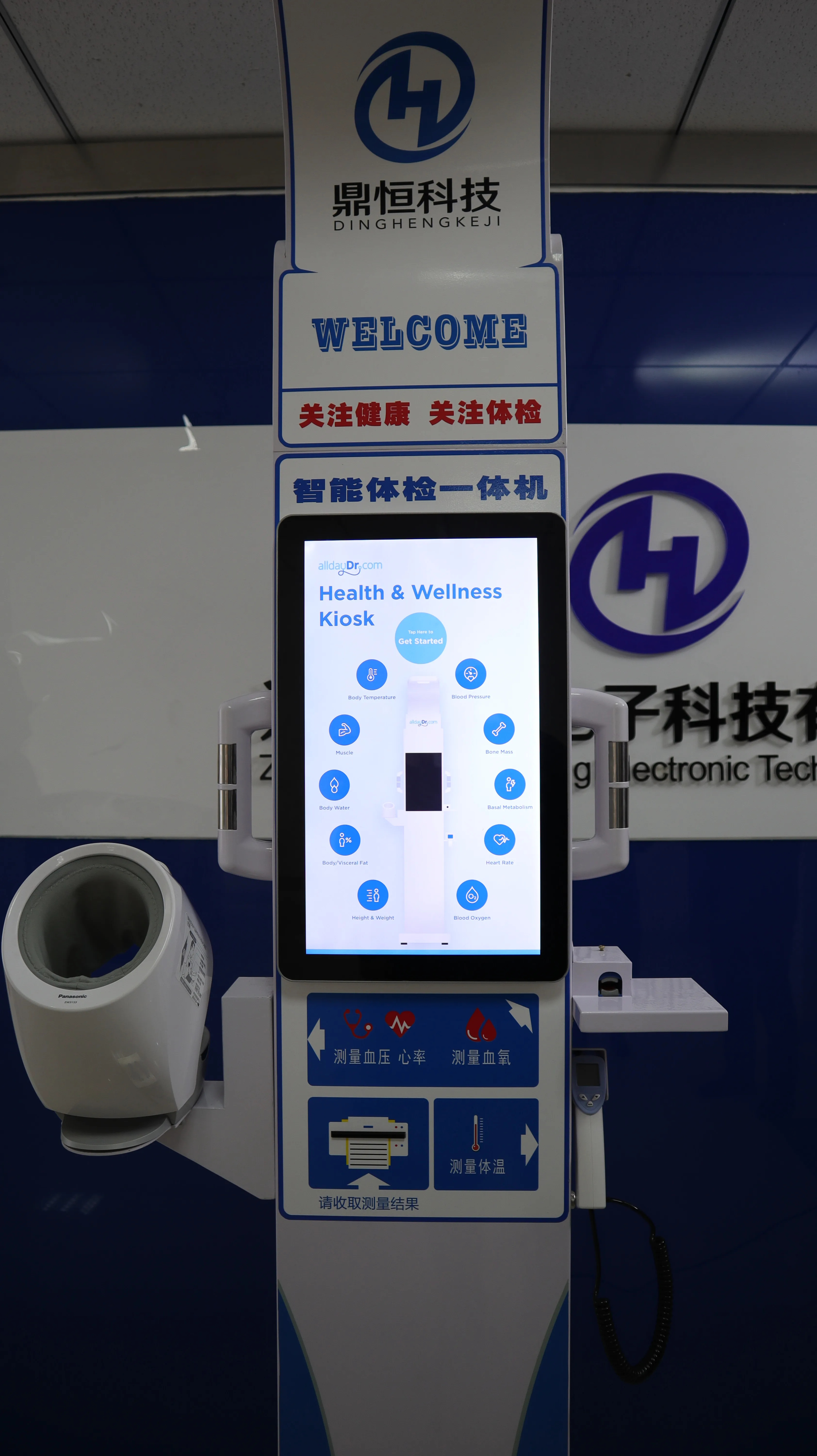

Touch screen			19.5 inch LCD screen Windows 10 system
Height	Probe		Ultrasonic sensor
	Testing range		70~200cm
	Accurate		±1cm
Weight	Sensor		High accuracy sensor
	Testing range		5-500kg(±100g)
Body temperature	Body temperature		Forehead
	Testing way		Infrared sensor
	Testing range		32.5℃-42.5℃
	Working temperature		10℃-40℃
	Humidity		<85%
	Testing range		5~250kg
	Platform		31x32x6”(H)CM
	Accurate		±0.1kg
Blood oxygen testing	>95%(SPO)
Blood pressure	Blood pressure		Arm belt blood pressure
	Blood pressure testing way		Oscillography
	Arm range		17cm--34cm   42cm(customized)
	Testing system		Oscillography
	Testing range		0~299mmHg,40pluse/min~240pluse/min
	Accurate		Pressure:±3mmHg(±0.4kpa),pulse reading:±2%
Ticket print	Result	BMI	BMI:Weight(KG)/Height squared
		Height	70cm-200cm(Unit: 1cm)
		Body Fat	1-9
		Body Water	1-99%
		Muscle	KG
		Basal metabolism	Unit: kcal
Data Output Interface			RS-232
API			Provided
OEM/ODM			Yes
Voltage			110-240V
Rated Power			50-60HZ
Operating humidity range			5℃~45℃
Net Weight/Package weight			50KG/75kg



2. Technical Parameters

• Height ,weight ,BMI


• Blood pressure , heart rate


• Fat mass, basal metabolism


• Coin or paper money operated(optional)


• Voice broadcast and Printing the measuring result by thermal printer


• Temperature(Optional and custom-made)


• Body Composition (Optional and custom-made)


• blood oxygen (Optional and custom-made)


• 19 inch LCD Advertisement Screen(Optional and custom-made) and 8 inch Touch Screen


• Land wheel (Optional and custom-made)


• Connected with computer by wired Rs232 interface(Standard) or wireless WIFI and Bluetooth (Optional and custom-made)
