Heavy duty diesel engine tricycle with 1 3 tons loading capacity
- Category: Other Tricycles >>>
- Supplier: Zhengzhou Huahong Machinery Equipment Co. Ltd.
Share on (62020373542):
Product Overview
Description
Product Description

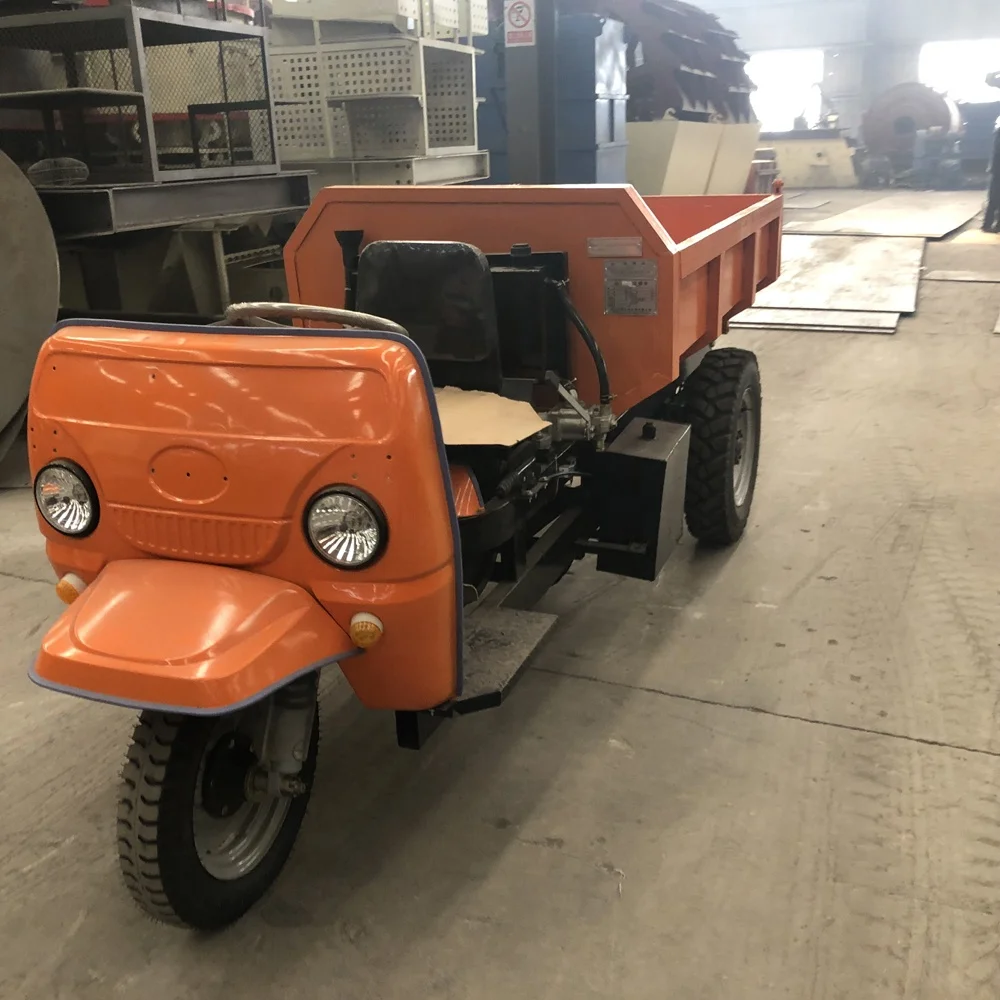

Heavy duty diesel engine tricycle with 1-3ton loading carrage capacity.
Most electro-tricycle/tip lorry for export is our main product,using electric or diesel engine as power source in mining, brickyard, sanitation and cleaning. It has been improved many times with the advantage of large power,long work hours, heavy load and suitable for any road.
Our products are loved and received very well in current market, we shall always provide you the best services. The following is the detail information of our diesel tricycle/tip lorry for export.
We have three types of diesel cargo tricycles, ZY155, ZY165 and ZY180 for you to choose.
ZY-155 | ZY-165 | ZY-180 |
Diesel engine : 190/195 Loading Capacity: 1tonPower : 10/12 HP Overall Sizes: 2600*900*1200mm Box Sizes : 1500*900*400mm Weight: 520kg Front Tire: 4.00-12 Rear Tire: 4.50-14 Work platform height : 600 mm Brake system : oil brake Operating Speed: 40-60km/h Max Gradeability : 35 degrees Maximum Tilt angle of car bucket : 45 degrees | Diesel engine : ZS1110 Loading Capacity: 1.5ton Power : 15 HP Overall Sizes: 3000*1100*1200mm Box Sizes : 1700*1100*500mm Weight: 850kg Front Tire: 4.50-14 Rear Tire: 5.00-14 Work platform height : 700 mm Brake system : oil brake Operating Speed: 40-60km/h Max Gradeability : 35 degrees Maximum Tilt angle of car bucket : 45 degrees | Diesel engine : ZS1115 Loading Capacity: 2ton Power : 18HP Overall Sizes: 3600*1200*1400mm Box Sizes : 2000*1200*500mm Weight: 1000kg Front Tire: 5.00-14 Rear Tire: 6.50-16 Work platform height : 720 mm Brake system : oil brake Operating Speed: 40-60km/h Max Gradeability : 35 degrees Maximum Tilt angle of car bucket : 45 degrees |
Advantages of tricycle dumper
1. High-quality ; Strong power; Fuel-efficient and durable ;
2. Car frame technology, double beam welding, no deformation, strong carrying capacity.3. Cargo box adopts once- shaping roll welding sides which is elegant & durable.
4. Clutch lock is used for Rear axle and no resistance gear makes it easy to operate.
5. Large capacity is put to use for fuel tank, driving mileage is long.
6. Electrophoretic coating process is used for the vehicle cover panel. Corrosion and aging resistance, non-fading.
2. Car frame technology, double beam welding, no deformation, strong carrying capacity.3. Cargo box adopts once- shaping roll welding sides which is elegant & durable.
4. Clutch lock is used for Rear axle and no resistance gear makes it easy to operate.
5. Large capacity is put to use for fuel tank, driving mileage is long.
6. Electrophoretic coating process is used for the vehicle cover panel. Corrosion and aging resistance, non-fading.
Detailed Images
Main Parts 1

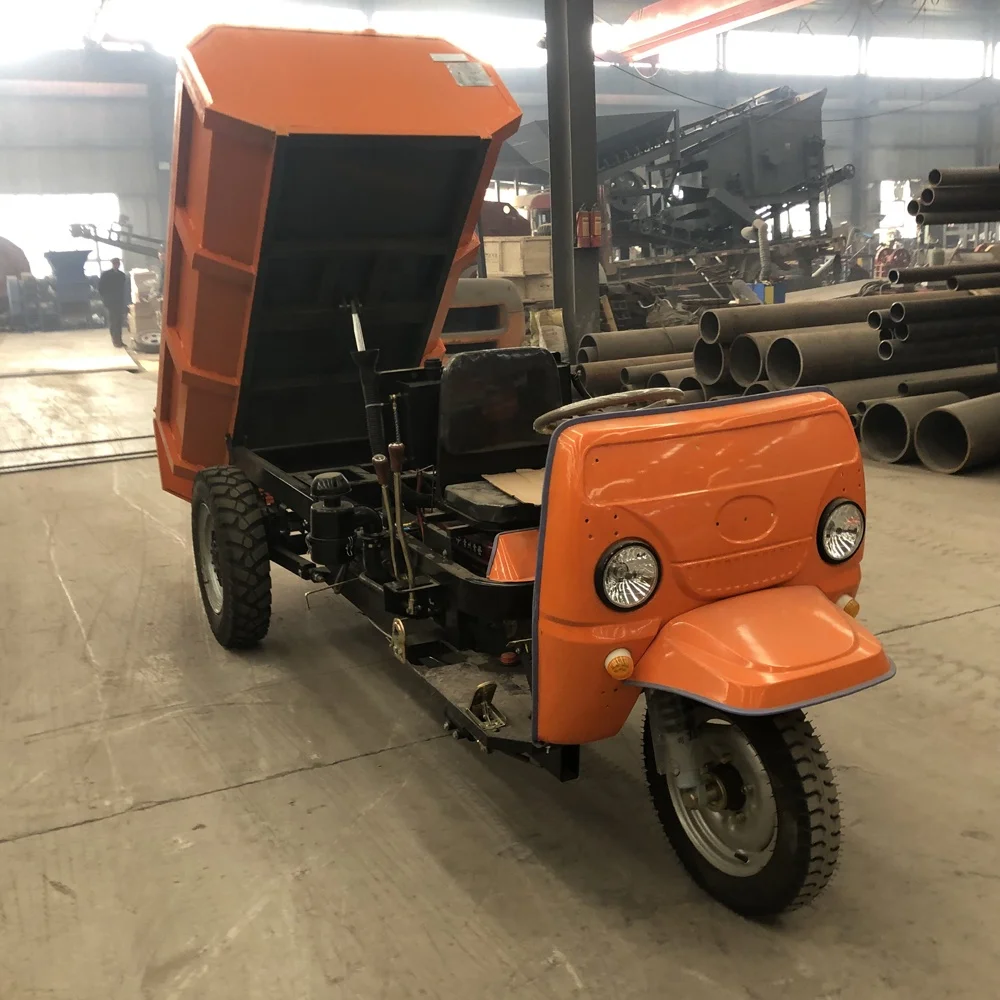

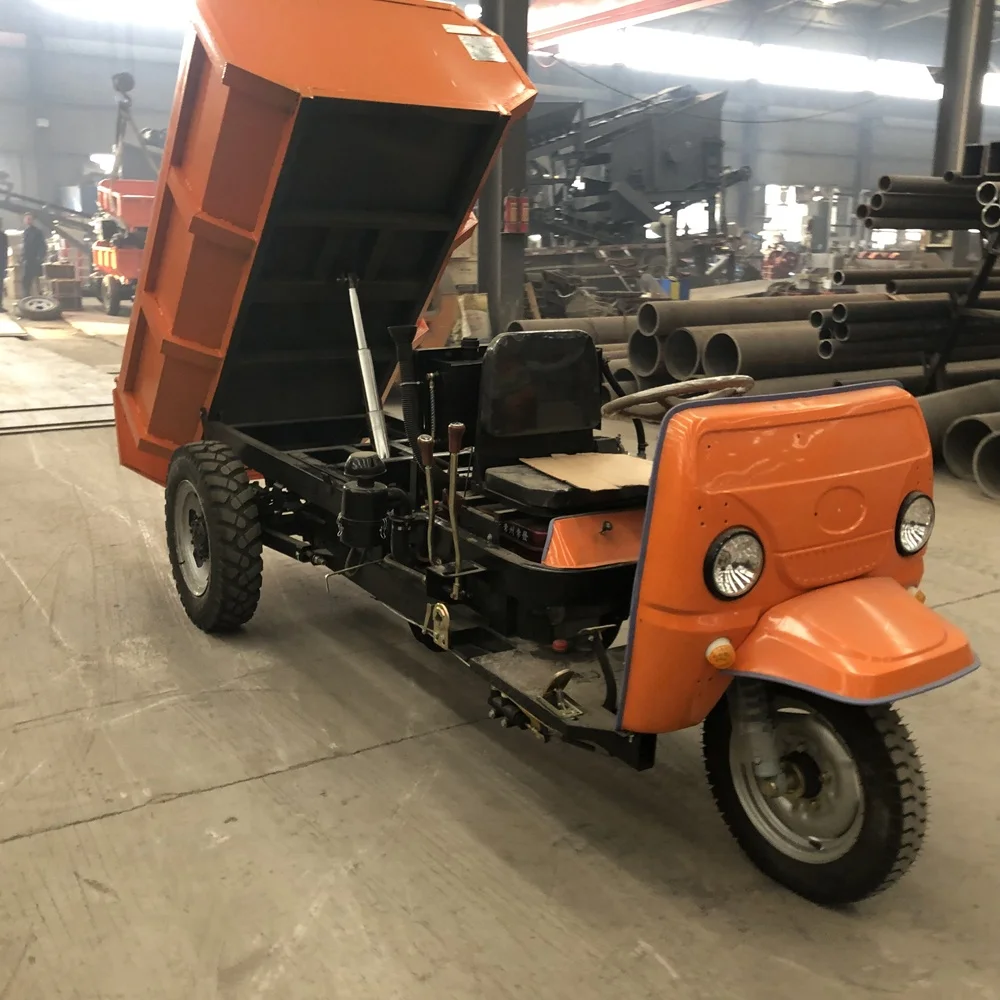

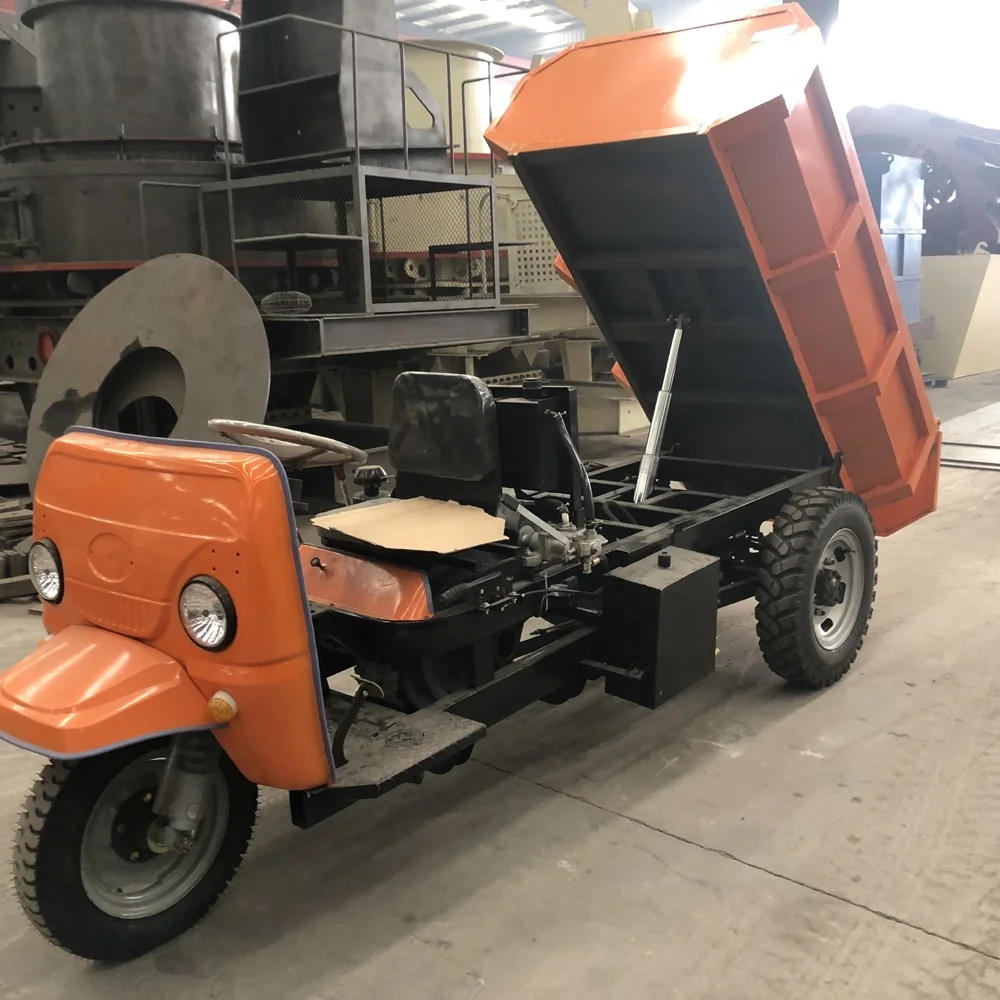

Name: Hydraulic lift system
Work quickly and efficiently
The hydraulic lift system can achieve the freedom of dumping cargo, so that it can save time, manpower and material resources for improving work efficiency.
The hydraulic lift system can achieve the freedom of dumping cargo, so that it can save time, manpower and material resources for improving work efficiency.
Main Parts 2
Name: Rear axle
As shown in the figure, our machines's load capacity is very strong, so the rear axle use a very strong material. It including the main axle; both sides of the gearbox; two brake drums.
Main Parts 3
Name: Tire
As to tire, our factory adopts the high quality tire of chaoyang brand, which is heavy-duty and durable. So it can apply to any road condition.
It can support body, buffer external shocks, deformation under various load force and the function of the high and low temperature, ensure the security and stability of vehicle.
It can support body, buffer external shocks, deformation under various load force and the function of the high and low temperature, ensure the security and stability of vehicle.
Packing & Delivery
FCL ( full container load ).
8 units electric dumper ZY155 was loading in 20ft container.
LCL ( Less than container load ).
1 unit dumper was loading in wood box.
Package dimensions:2700*1500*600mm
Our Company
Customer Visiting:
Our products are loved and received very well in current market.
Our dumpers have been deliveried to United States, Chile, Peru, Canada, Tanzania, United Arab Emirates and etc.
