Industrial hemp processing extracting equipment with ethanol 500L
Industrial hemp processing extracting equipment with ethanol 500L

Industrial hemp processing extracting equipment with ethanol 500L

Share on (62020434161):


Price:$220,000.00

Quantity:


Product Overview

Description


Products Description
Ethanol extraction systems are believed to be the best way to extract CBD for commercial purpose. Ethanol extracts both water and oil-soluble compounds. When used at freezing temperatures, ethanol can selectively extract specific terpenes and cannabinoids from cannabis, while leaving other undesirable molecules like waxes and lipids behind. Our line of extraction systems includes a series of extraction and distillation equipment. It is also an extremely safe method of cannabis hemp oil extraction technology, both for the operator and end consumer and will provide years of service to grow your business.
Juyuan Auto-Tech offers complete turnkey extraction systems from 100L (the size of Extraction Tank) and up. These turnkey systems includes the following main items:
Chiller
Primary & Secondary Chilled Ethanol Tanks
Extraction Tank
Ultrasonic System
Double Filter
Buffer Tank for Extracted Liquid
Ethanol Recovery System ( Condenser + Evaporator )
Storage Tank for Concentrated Liquid
Recycling Ethanol Storage Tank
Explosive Proof Pumps
Explosive Proof Vacuum Pump
PLC Control Cabinet
Specification
Model
JY-100L
JY-300L
JY-500L
JY-800L
JY-1000L
JY-1500L
JY-2000L
JY-3000L
Copecity(L)
100
300
500
800
1000
1500
2000
3000
Solvent
Ethanol (95%-100%)







Extracting Method
Ultrasonic low-temperature countercurrent circulation extraction







Heating Method
Electric


Steam boiler




Control System
PLC control system







Operator
1
1
1
2
2
2
3
3
Dimension        (m)
7.5*1.5*3.8
12*5*4.5
15*5.5*4.6
17*5.8*4.8
19*6.2*5.5
21*6.5*5.5
26*7.2*5.5
30*7.8*5.8
Process Data
Model
JY-100L
JY-300L
JY-500L
JY-800L
JY-1000L
JY-1500L
JY-2000L
JY-3000L
Biomass/Batch(kg)
10
30
50
80
100
150
200
300
Extracting Time
45-60min
Concentrating + Ethanol Recovery Time (Min)
120-180






Biomass/Day
(10hr shift)--kg
50
150
250
400
500
750
1000
1500
Crude Oil (15% of biomass)--kg
7.5
22.5
37.5
60
75
110
150
225
Distillate Oil (10% of biomass)--kg
5
15
25
40
50
75
100
150
Ethanol Revovery Rate
85%-90%







Material:Ethanol
1:6-1:8

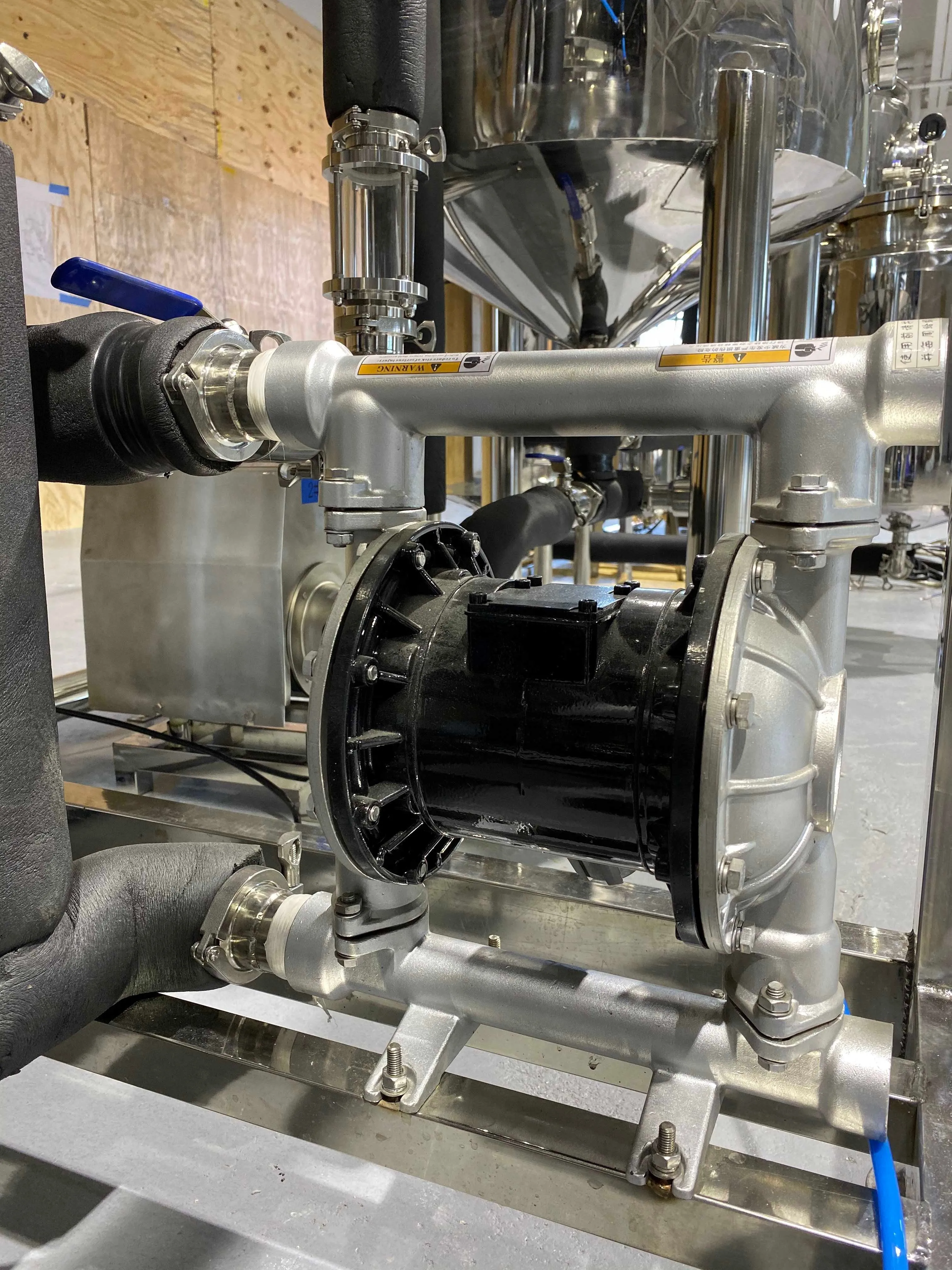

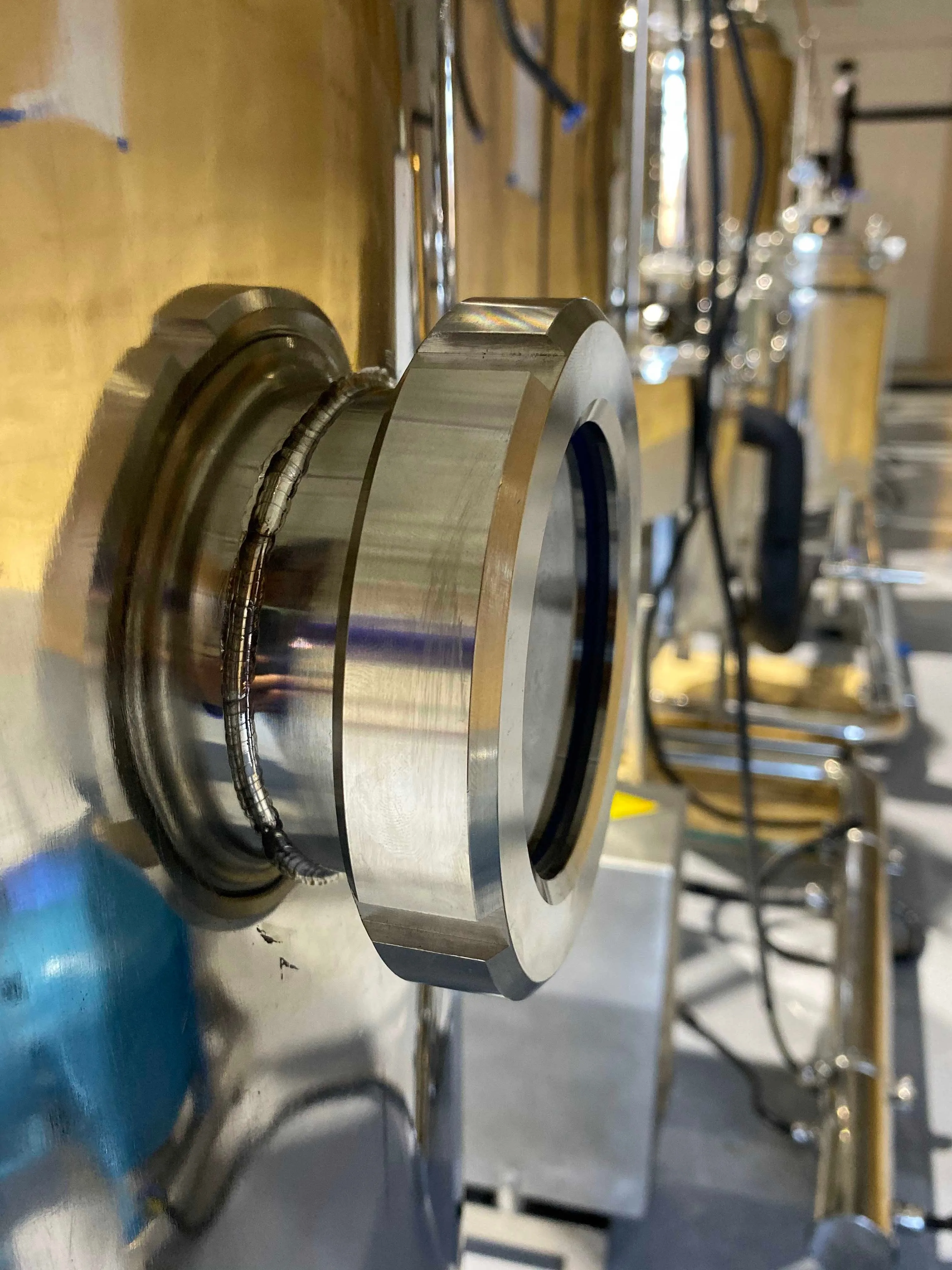

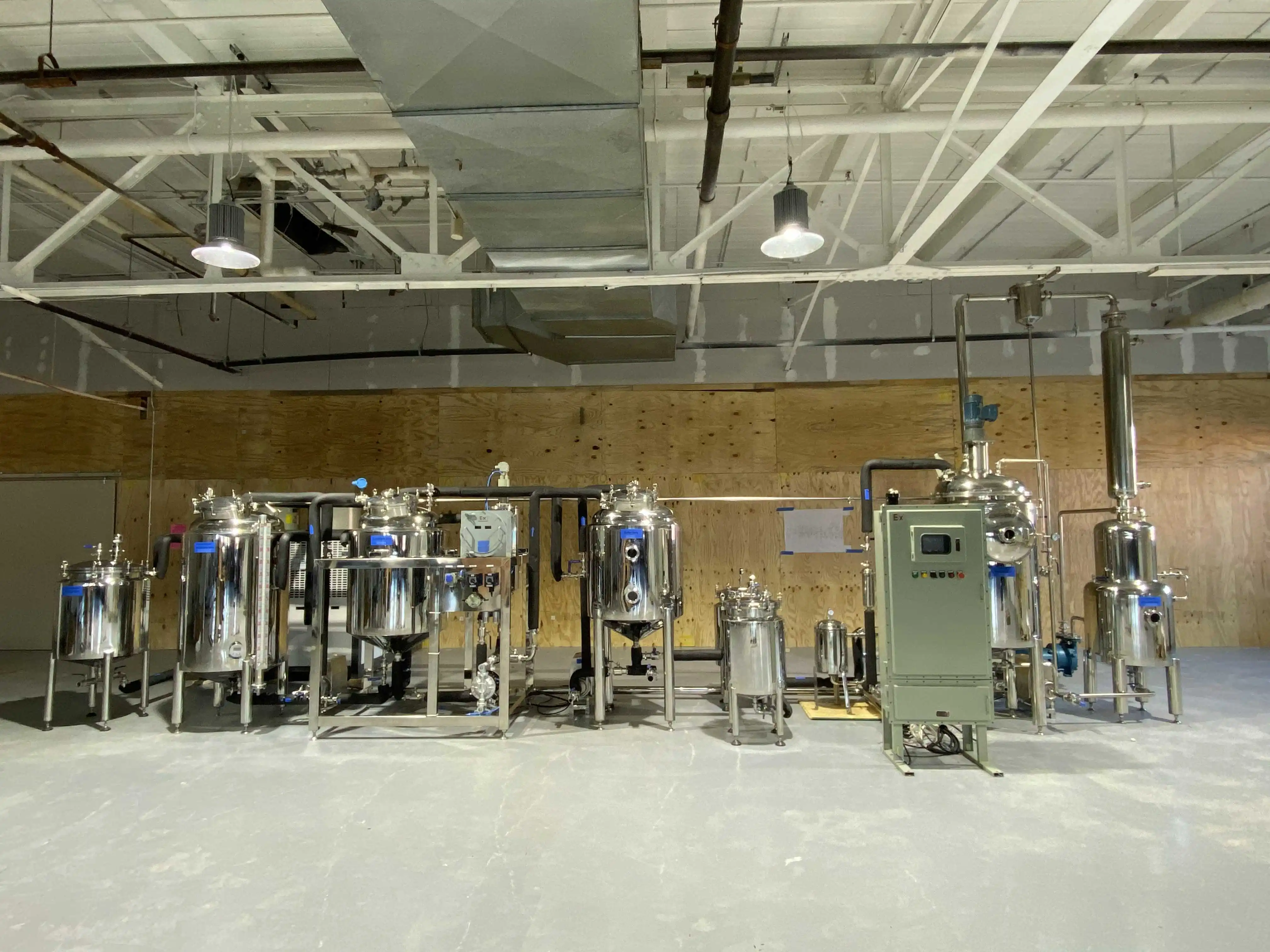

Details Images
Packaging & Shipping
Our Advantages
1. Continuous Feeding Process
2. Ultrasonic circulation extracting
3. Automated Capabilities with PLC Control System
4. Explosion-Proof Pipes and Pumps
5. Double Filtering System
