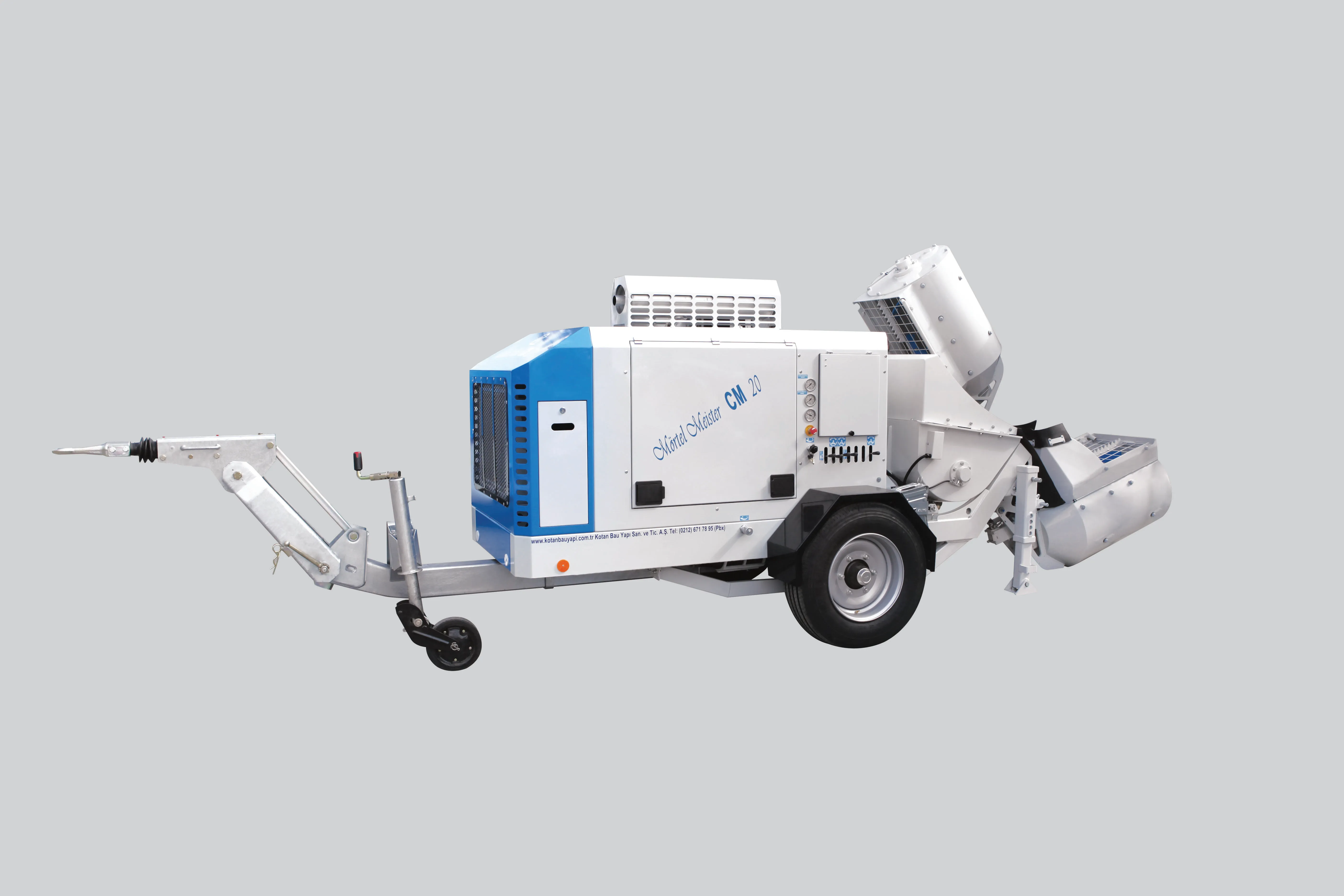

Motor : Deutz D2011 L03i Diesel Engine 36 KW/46 KW Hydro Motor : Linde HPR-75 Manuel Flow Adjustment : Min 4m3/h Max 20m3/h Max. Theoretical Pressure of the Concrete : 71,1 Bar Diameter of the Discharge Cylinder : 150 mm Piston Stroke : 800 mm Concrete Valve System : S-Valve Max. Hydraulic Pressure : 250 Bars Max. Aggregate Size : 32 mm Hydraulic Tank Capacity : 150 Liters Fuel Tank : 55 Liters Concrete Discharge Diameter : 125 mm Concrete Tub Volume : 320 Liters Mixing Tank Volume : 250 Lt. x 2 Dimension L/W/H : 5800 / 1750 / 2350 mm Total Weight : 3400 Kg Drawbar : Build on AL-KO Trailer Chassis on Braked Torsion Axle. Suitable for Towing on Road.
Packaging & Shipping
We currently export our machines to 40 countries all over the world.
Our Services

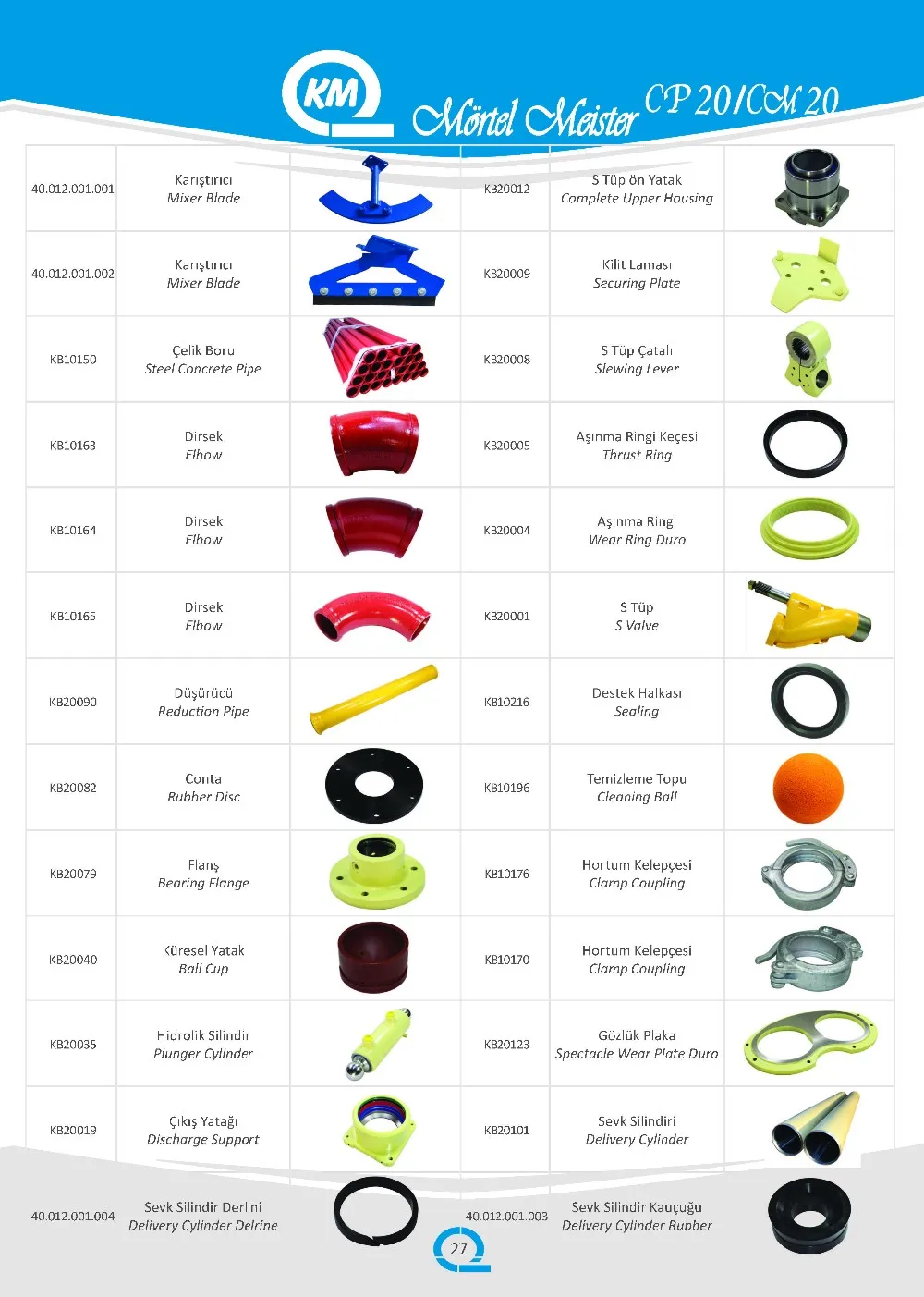

We also have all the spare parts of our machines on stock.
Company Information
Kotan Bau has achieved to be one of the leading companies in the construction equipment industry with its successful operations since 2005 by manufacturing various of “Mörtel Meister” branded machines as follows;
· Mortar Mixer and Screed Floor Trailers
· Concrete Mixer and Pump Trailers
· Concrete Pump Trailers
· Gypsum and Cement-Based Spray Plastering Machines
· Light Concrete Pumps ( Foam Insulation)
· Concrete and Screed Flat Machines
The “Mörtel Meister” machines produced by “Kotan Bau” are currently used in more than 40 countries all around Europe, Africa, and Asia.
Kotan Bau’s Head Office and Factory based in Istanbul/Turkey and also our branch offices are located in Germany, France, Spain, Russia and with our regional business partners too.
If you like to be our regional partner please check with us for availability for the region you request and discuss for more to develop a successful business.
FAQ
Mertel Meister has a strong knowledge of concrete machinery industry as well as on side experience.
