1000 ton horizontal automatic aluminum die cast injection machine

Product Overview

Description

1000 ton horizontal automatic aluminum die cast injection machine,  with Siemens PLC and Japanese valves , well known brand " EAGLE "  machine with steady performance  and competitive price , professional export staff ensures the prompt sea shipping and customs affairs , professional engineer ensures prompt after-sales service !



please click each picture below for more details





 Why choose us ?

1. More than 24 years history
2. Competitive price with high quality
3. Overseas service available
4. Self owned estate guranteed long development
5. Own patent techinics and CE
6. Normal models of  machines in stock
7. Leading enterprise of die casting machine in China

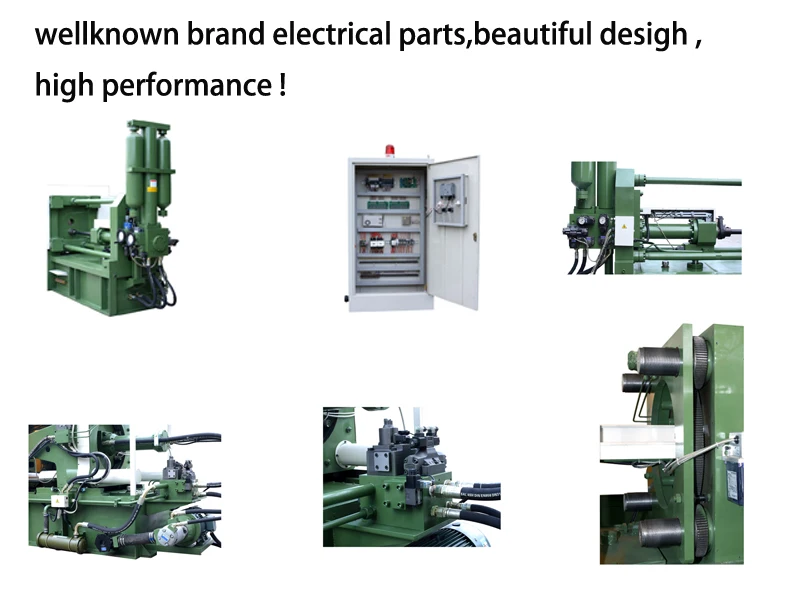

8. Wellknown brand of valves,electronics and Simens PLC

9. many models from 12 ton to 4000 ton for choose



Please click the picture below,  you can watch the video of our factory profile , or the video on "homepage of our website" .  Thank you!!



1000 ton horizontal automatic aluminum die cast injection machine
Project	clamping force	clamping stroke	die height(MIN-MAX)	platen size (HXV)	inner space between tie bar	tiebar diameter	intensifier injection force(with intensification )	injection stroke
Parameter	10000	880	450-1150	1620*1620	1030*1030	200	870	820
Unit	kN	mm	mm	mm	mm	mm	Kn	mm
Project	plunger diameter	shot weight	casting pressure (with intensification )	casting area	maximum foundry acreage	shot injection postion (below center line )	plunger penetration	diameter of pressure chamber flange
Parameter	100 110 120	9.8 11.7 14.2	13.8 9.8 7.7	730-1300	2500	0,-300	300	240
Unit	mm	kgs	Mpa	cm2	cm2	mm	mm	mm
Project	height of pressure chamber flange	ejector force	ejector stroke	hydraulic working pressure	driving motor	hydraulic oil tank capacity	machine weight	machine dimensions(L*W*H)
Parameter	20	500	210	16	45	2200	60000	10500*2850*3650
Unit	mm	kN	mm	Mpa	KW	L	Kg	mm



Eagle die casting machine most advantagement :

1. Strong locking force and injection force

2. High efficiency, saving power

3. Low oil temperature contorl

4. Auto computer control , easy operation

5. Correspondingly fast, high and stable quality

6. Automatic lubrication system, improve machine life.

7. Fast and steady gear mould adjustment , guarantee machine long life.

8. Professional service for all customers

9. CE standard ,  many patents

10. More than 23 years experiences

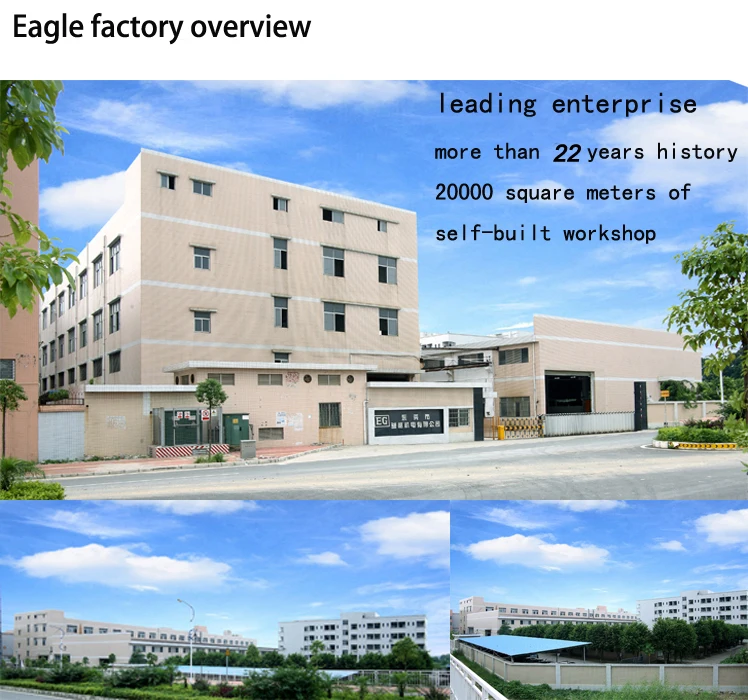

 Dong Guan Eagle factory was founded in 1997,  covering an area of more than 20,000 square meters, ALL THE LANDS AND  WORKSHOPs ,EQUIPMENTS ,OFFICES AND BUILDINGS ARE BELONGS TO EAGLE ITSELF , IT IS NOT RENT FROM OTHERS , this special advantage builds a hard basis for our long development , it is also a guarantee for long co-operation with overseas friends !

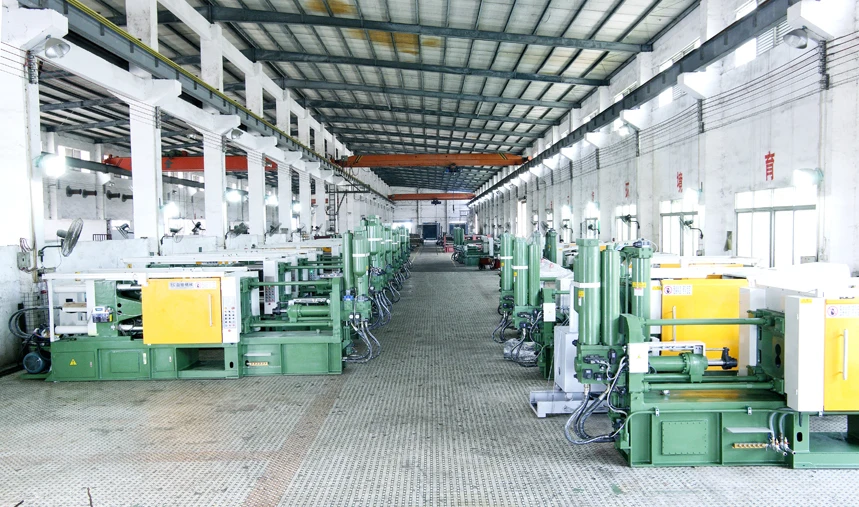

Eagle  specializes in manufacturing a wide range of hot chamber & cold chamber die casting machines . Hot chamber machines include the models of 12--400 ton , cold chamber machines include the models of 160--3500 ton . Eagle  machines adopt outstanding hydraulic components from well-known suppliers worldwide , such as Siemens PLC,Vickers and Tokimec valves , they take the advantages of quick speed, short production period ,stable function, safety and reliability.



Eagle die casting machines  are welcomed by many customers from all over the countries ,such as USA , Brazil , Mexico , Bulgium,Turkey ,Ukraine ,Pakistan , India ,Egypt ,Venezuela, Vietnam , Columbia , Nigeria etc.   They perfectly fulfill the customers requirements and satisfactory !
