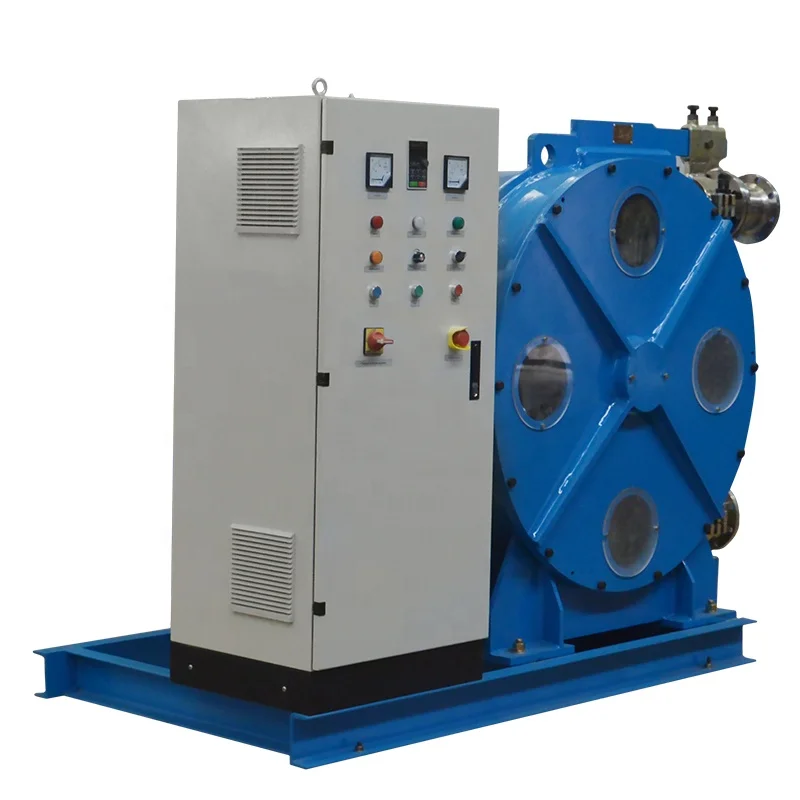

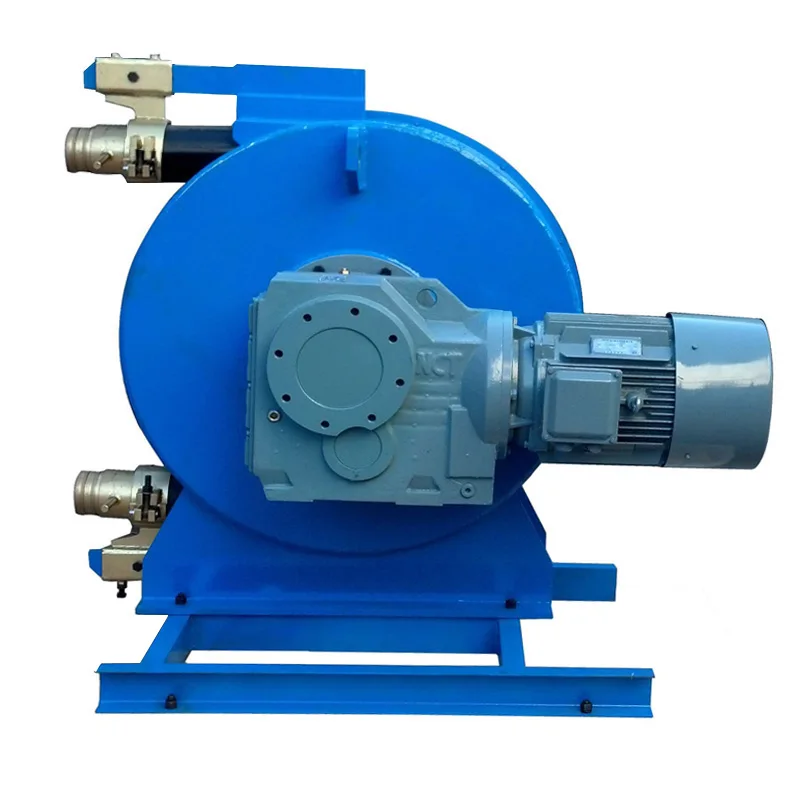

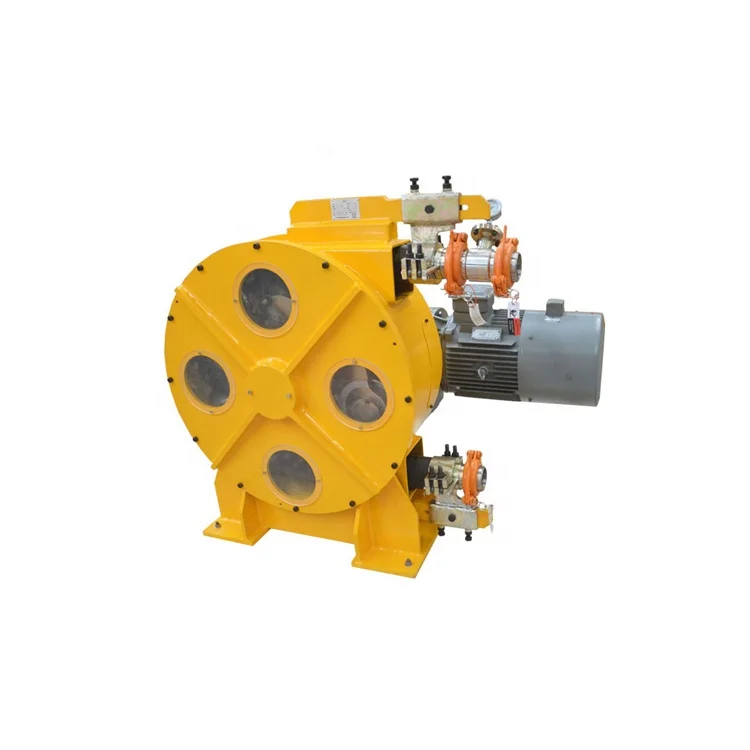

Corrosion resistant chemical peristaltic pump industrial hose squeeze peristaltic pump for foam concrete and concrete
- Category: >>>
- Supplier: Zhengzhou Wode Heavy Industry Co. Ltd.
Share on (62020810157):
Product Overview
Description
Product Description
Description of WH series industrial hose pump
WH series industrial hose pump is suitable for handling aggressive, high viscosity, high-density products, such as abrasive slurries, corrosive acids, gaseous liquids, sand/cement mortar, liquid accelerator, etc., and it is also widely used for dosing pumps with 1% repeat precision.
WH series industrial hose pump working pressure from 0.6-3 Mpa, output from 0.3-55 m3/h. And we can provide customized service to design the suitable hose pump according to the requirements of the customer.
Technical Data
Model | Output capacity | Pressure | Rotate Speed | Squeeze Hose ID | Motor Power | |||||
WH15-200 | 0.3m3/h | 1.5Mpa | 60rpm | 15mm | 0.75Kw | |||||
WH25-265 | 0.6m3/h | 1.5Mpa | 36rpm | 25mm | 1.5Kw | |||||
WH32-330 | 1.3m3/h | 1.5Mpa | 36rpm | 32mm | 2.2Kw | |||||
WH38-430B | 2.2m3/h | 1.5Mpa | 32rpm | 38mm | 3Kw | |||||
WH50-445B | 4.6m3/h | 1.5Mpa | 38rpm | 50mm | 4Kw | |||||
WH50-558B | 6m3/h | 1.5Mpa | 40rpm | 50mm | 5.5Kw | |||||
WH50-680B | 6.4m3/h | 1.5Mpa | 34rpm | 50mm | 7.5Kw | |||||
WH65-600B | 8m3/h | 1.5Mpa | 34rpm | 65mm | 7.5Kw | |||||
WH65-680B | 13m3/h | 1.5Mpa | 41rpm | 65mm | 11Kw | |||||
WH76-770B | 18m3/h | 1.5Mpa | 38rpm | 76mm | 18.5Kw | |||||
WH100-915B | 32m3/h | 2.5Mpa | 32rpm | 100mm | 45Kw | |||||
WH125-915B | 55m3/h | 0.6Mpa | 35rpm | 125mm | 22Kw | |||||
WCP15H-E | 15m3/h | 2.5Mpa | 37rpm | 75mm | 22Kw | |||||
WCP40H-E | 45m3/h | 2.5Mpa | 39rpm | 100mm | 45Kw | |||||
We can customize the squeeze hose materials, output capacity and working pressure of the hose pump, etc. | ||||||||||
Features of WH series industrial hose pump
1. Adopts 2 or 3 squeeze rollers according to the requirements;
2. Pump house adopt steel plate welded;
3. Squeeze roller and pump core adopt galvanized process, avoid rust;
4. Bearings adopts China Famous Brand Harbin full sealed bearings;
5. The joint adopts carbon steel safety joints, and the clamp adopts concrete pump special high pressure and quick clamp.
2. Pump house adopt steel plate welded;
3. Squeeze roller and pump core adopt galvanized process, avoid rust;
4. Bearings adopts China Famous Brand Harbin full sealed bearings;
5. The joint adopts carbon steel safety joints, and the clamp adopts concrete pump special high pressure and quick clamp.

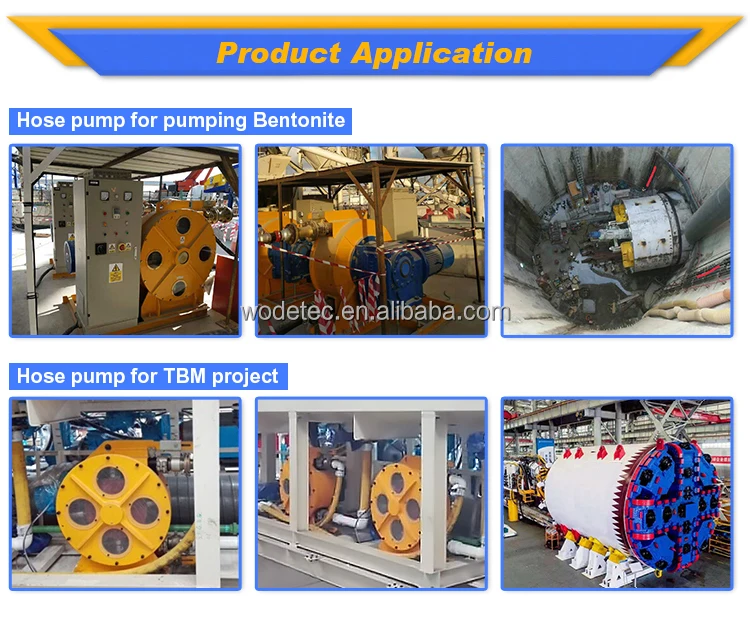

Product Application
Application of WH series industrial hose pump
WH series industrial hose pumps (squeeze pumps) are mainly applied in distant conveying, grouting, and dosing of viscous slurries in construction, mining, food, papermaking, ceramic, etc.

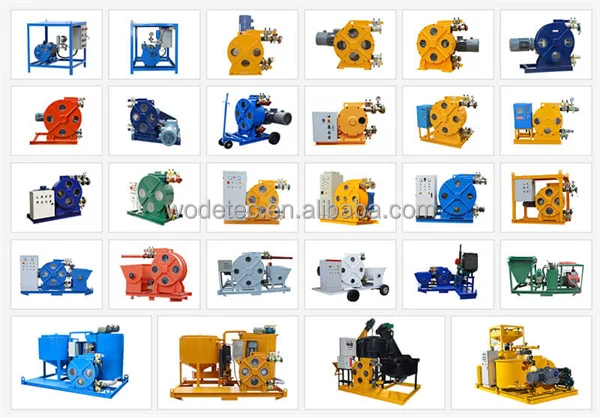

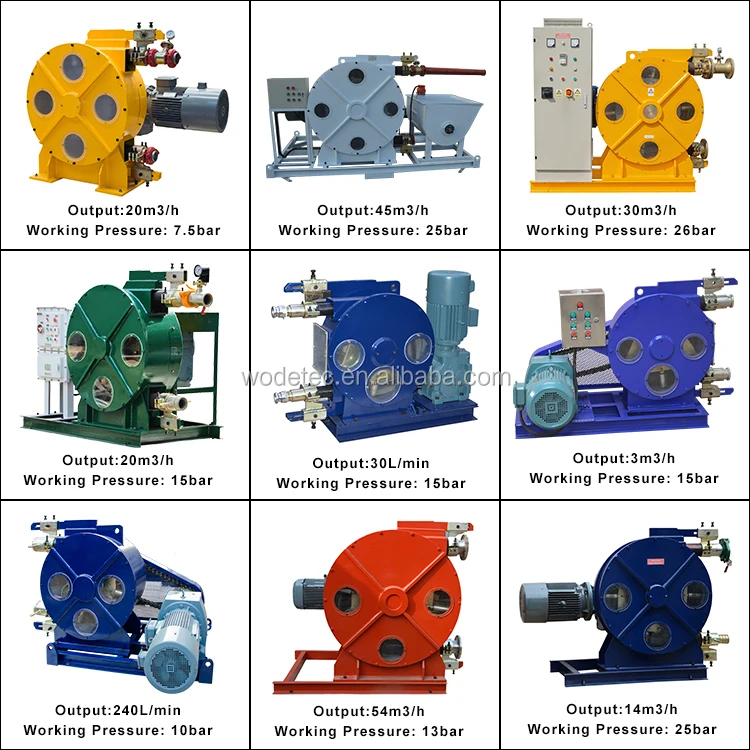

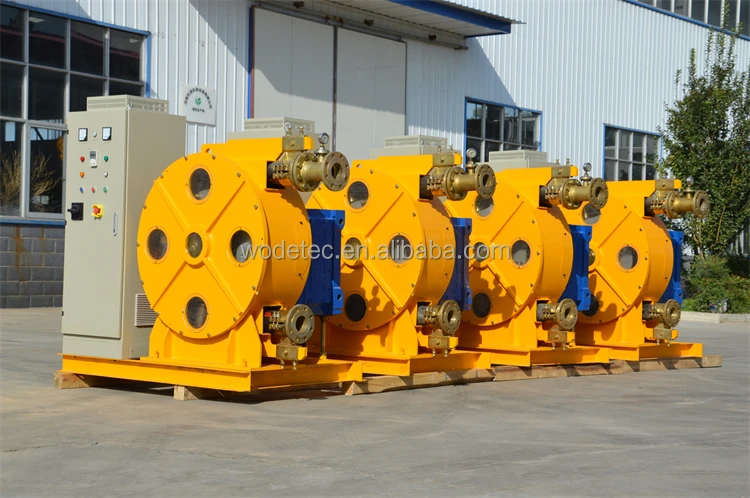

Product Display

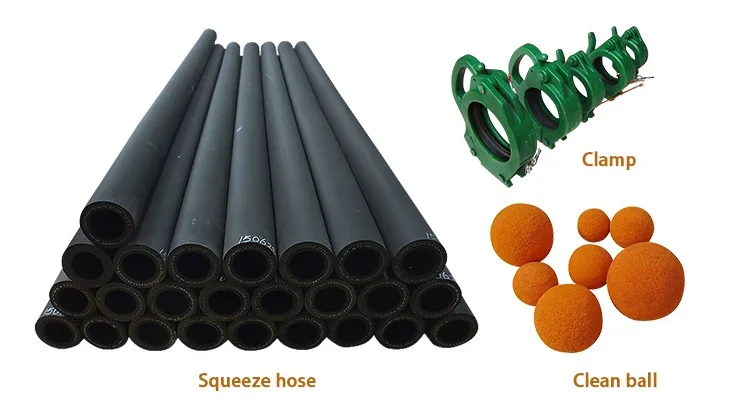

Product accessories
Different materials squeeze hose for option
1. Natural Rubber: Outstanding abrasion resistance. Generally resistant to diluted acids and alcohols
2. NBR: Resistant to oils, greases, alkalis and detergents
3. EPDM: Outstanding abrasion resistance. Generally resistant to diluted acids and alcohols
4. Food Grade
5. France Import Trelleborg Squeeze Hose
2. NBR: Resistant to oils, greases, alkalis and detergents
3. EPDM: Outstanding abrasion resistance. Generally resistant to diluted acids and alcohols
4. Food Grade
5. France Import Trelleborg Squeeze Hose
Working Principle
Working principle of WH series industrial hose pump

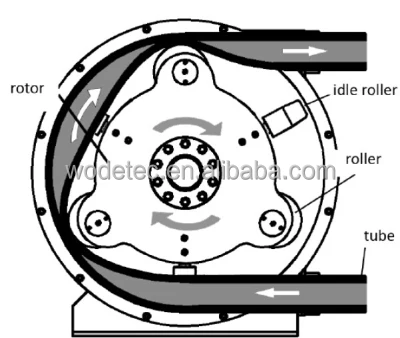

WH series industrial hose pump(squeeze pump)consists mainly of a pump house, rotor, idle, squeeze tube, and driving unit.
The squeeze hose is a U-shape in the pump house when the rotor drives the roller to rotate, the hose is deformed. After the roller rotates, the deformed hose recovers its elasticity. Thus the negative pressure in this hose is generated, sucking slurries, and discharging through the outlet under the roller's push, finally forming pressure conveying slurries.
Packaging&Shipping

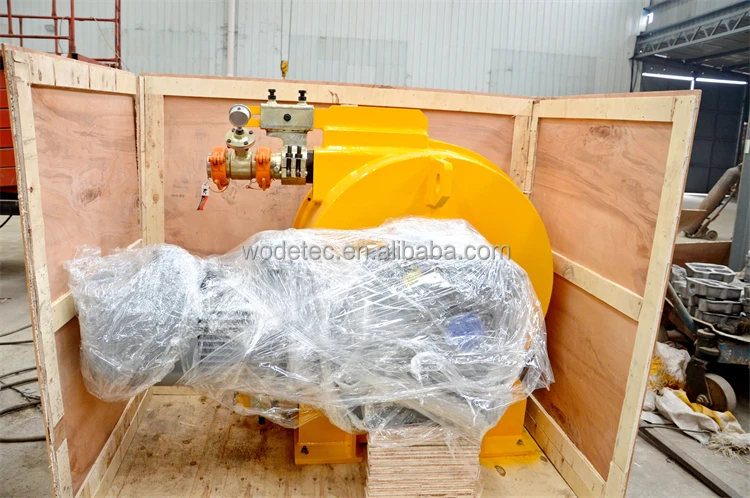

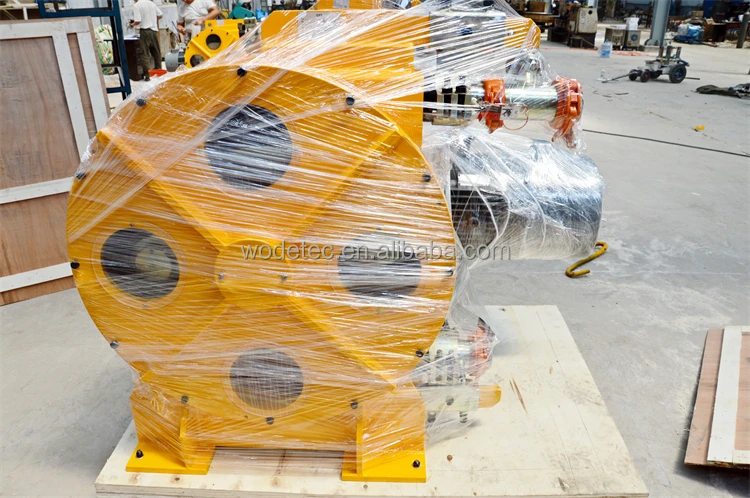

In order to protect our squeeze peristaltic pump and avoid damage during transport, our hose pump adopts plywood box packaging. And we also provide customized packages as your requirement.
Related Product
Company Information
Zhengzhou Wode Heavy Industry Co., Ltd. (short: "Wodetec") owns the advanced imported production equipment and complete production technology.
Wodetec is a manufacturer specialized in R&D, manufacture, and sale of industrial hose pumps.
Wodetec is a manufacturer specialized in R&D, manufacture, and sale of industrial hose pumps.
Now, we have developed full series of products with tens of models, working pressure from 0.6-3 Mpa, output from 0.01-50m3/h, NR, NBR, and EPDM squeeze hoses are available options for customization.
Contact Us
The list price is for reference only, please contact us for specific product prices and indicate the specific product type required.
2. What is the pressure and output you require?
3. What is the local voltage you require? here the voltage 380V, 50HZ, 3phase, is it ok for you?
4. What is Max. aggregate size in the slurry?
Contact us for hose peristaltic pump price
Before we send quotation, please let me know the following question:
1. What is the project with our peristaltic pump, is it for pumping concrete or others? 2. What is the pressure and output you require?
3. What is the local voltage you require? here the voltage 380V, 50HZ, 3phase, is it ok for you?
4. What is Max. aggregate size in the slurry?
