12v large gimbal motor 43mm brushless dc motor for quadcopter
- Category: >>>
- Supplier: Constar Micromotor Co. Ltd.
Share on (62020870223):
Product Overview
Description
12v large gimbal motor 43mm brushless dc motor for quadcopter
| CONSTAR MICROMOTOR | ||
 |  |  |
| PRECISION DC CORELESS MOTOR | BRUSHLESS DC MOTOR | SERVO MOTOR |
 |  |  |
| GEARMOTOR | STEP MOTOR | MINI CORELESS MOTOR |
1. Applications:Medical equipment, industrial equipment, navigation models, electricaltools and mini household appliances
2. Operating Environment:-40~+100°C
3. Characteristics :
The following are our standard products, we also provide customized products and service.
| 05-38-24.0 | 10-36-12.0 | |||
| 1 | Voltage | V | 24 | 12 |
| 2 | Terminal resistance | Ω | 3.8 | 1.4 |
| 3 | Terminal inductance | mH | 2.8 | 0.74 |
| 4 | No-load speed | rpm | 3800 | 3600 |
| 5 | No-load current | A | 0.08 | 0.14 |
| 6 | Stall torque | mNm | 371 | 264 |
| 7 | Stall current | A | 6.3 | 8.6 |
| 8 | Nominal torque | mNm | 79.7 | 69.5 |
| 9 | Nominal speed | rpm | 2640 | 2250 |
| 10 | Nominal current | A | 1.43 | 2.37 |
| 11 | Max. output power | W | 37 | 25 |
| 12 | Max. efficiency | % | 78.7 | 76.0 |
| 13 | Back-EMF constant | mV/rpm | 6.24 | 3.28 |
| 14 | Torque constant | mNm/A | 59.5 | 31.3 |
| 15 | Speed/torque gradient | rpm/mNm | 10.2 | 13.6 |
4. Options:Lead wires length, shaft length, special coils, gearheads,bearing type, driver,encoder

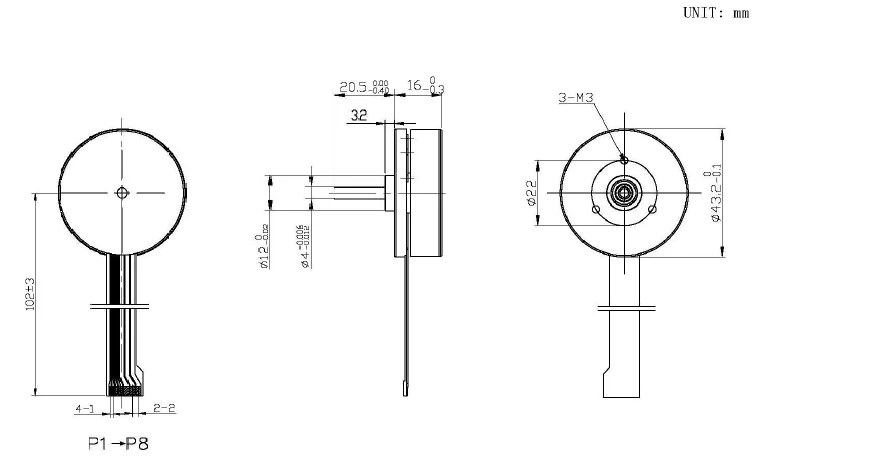

5,Outline Drawing:

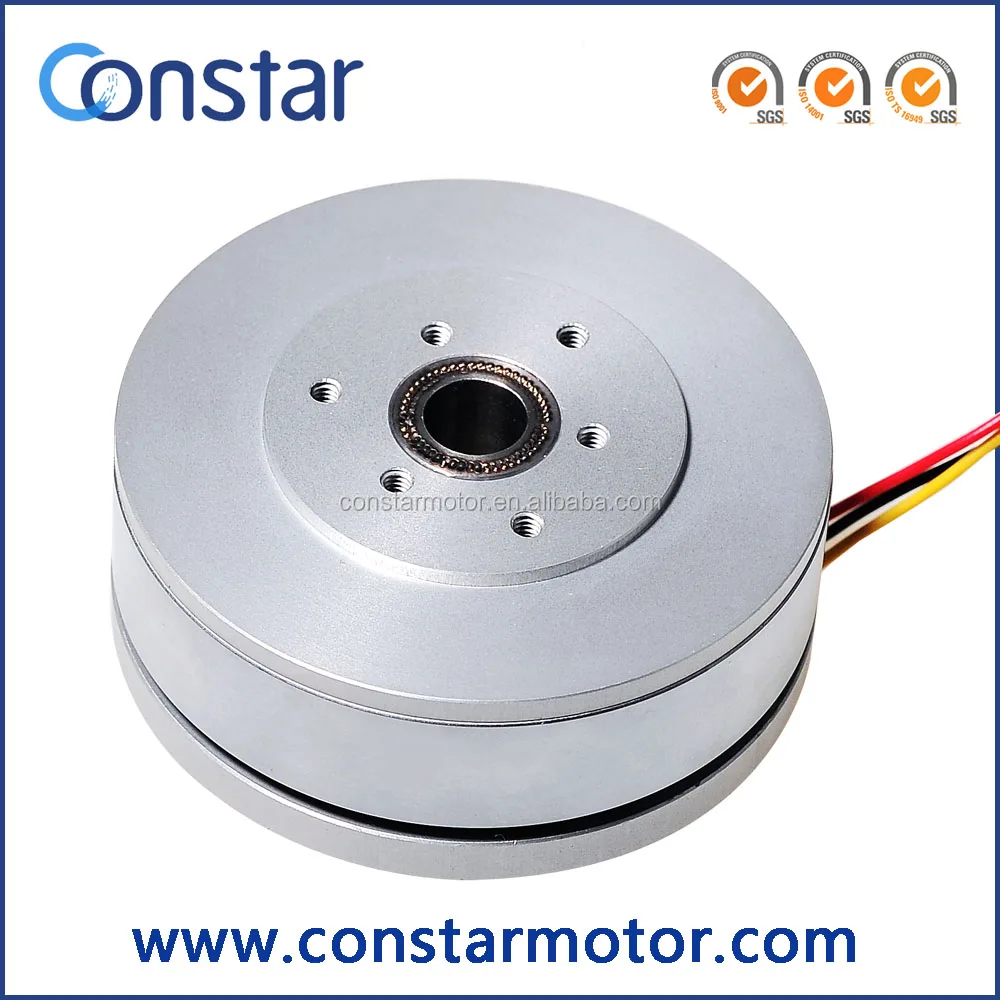

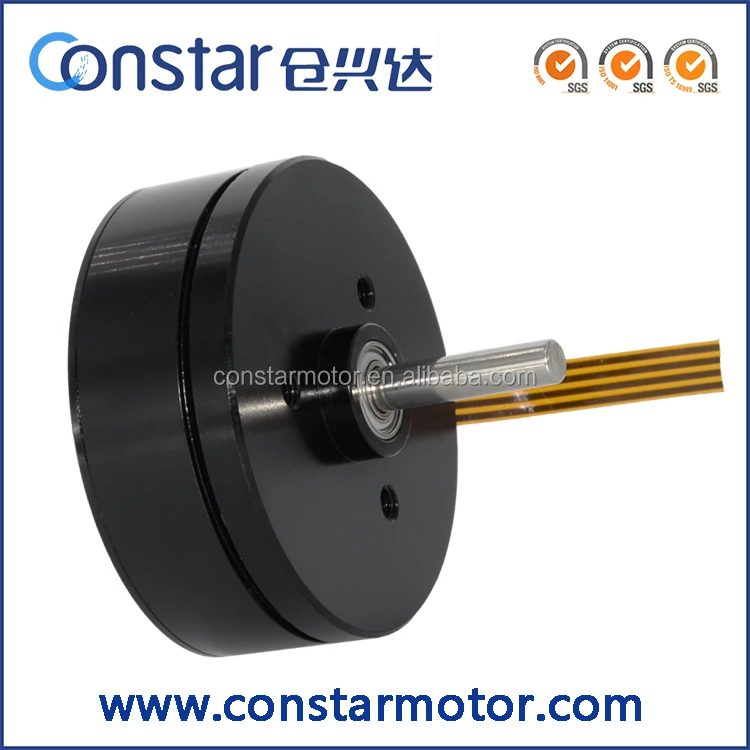

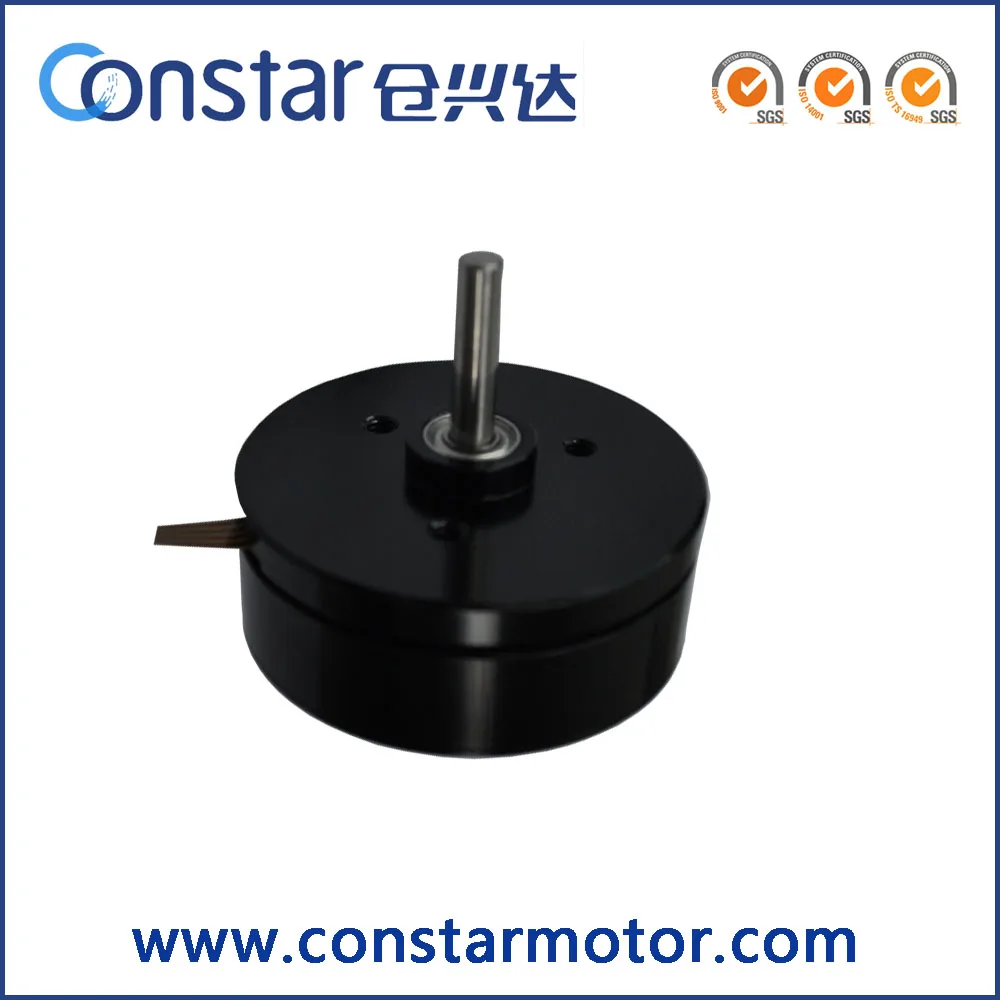

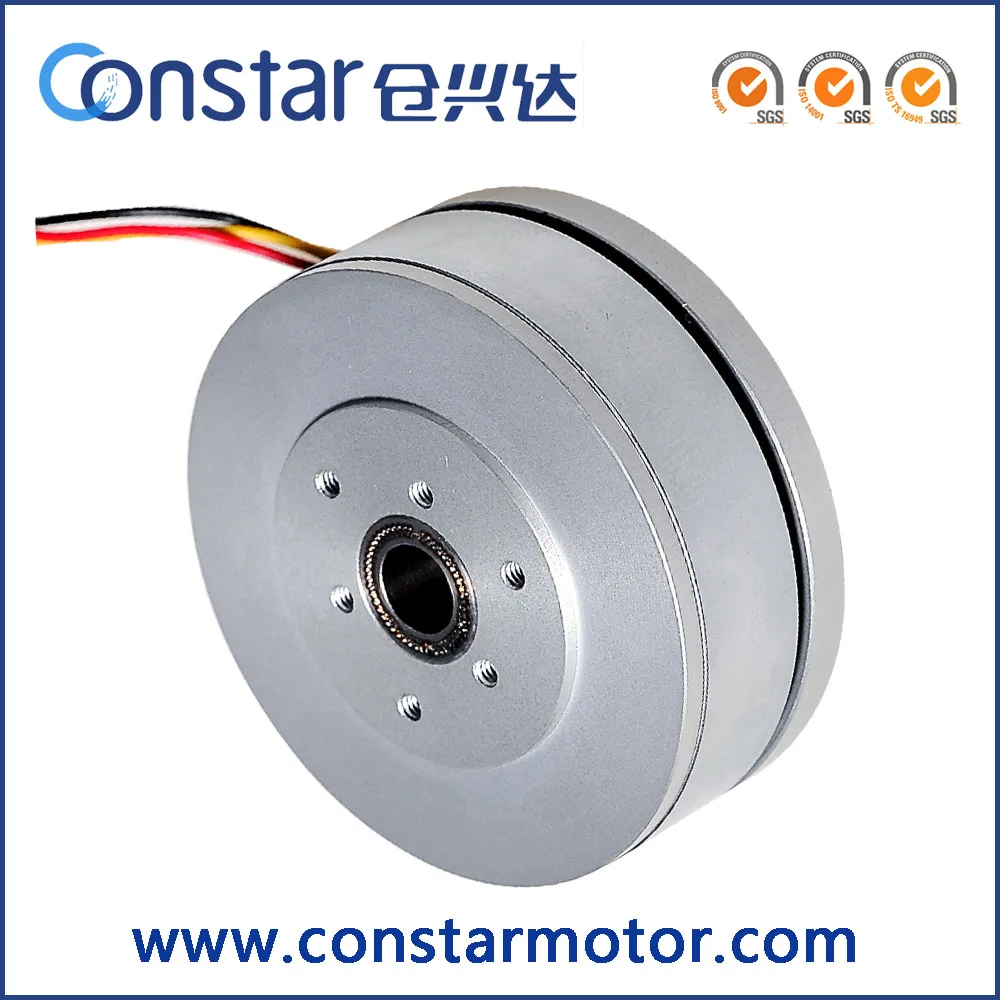

6,Photo:

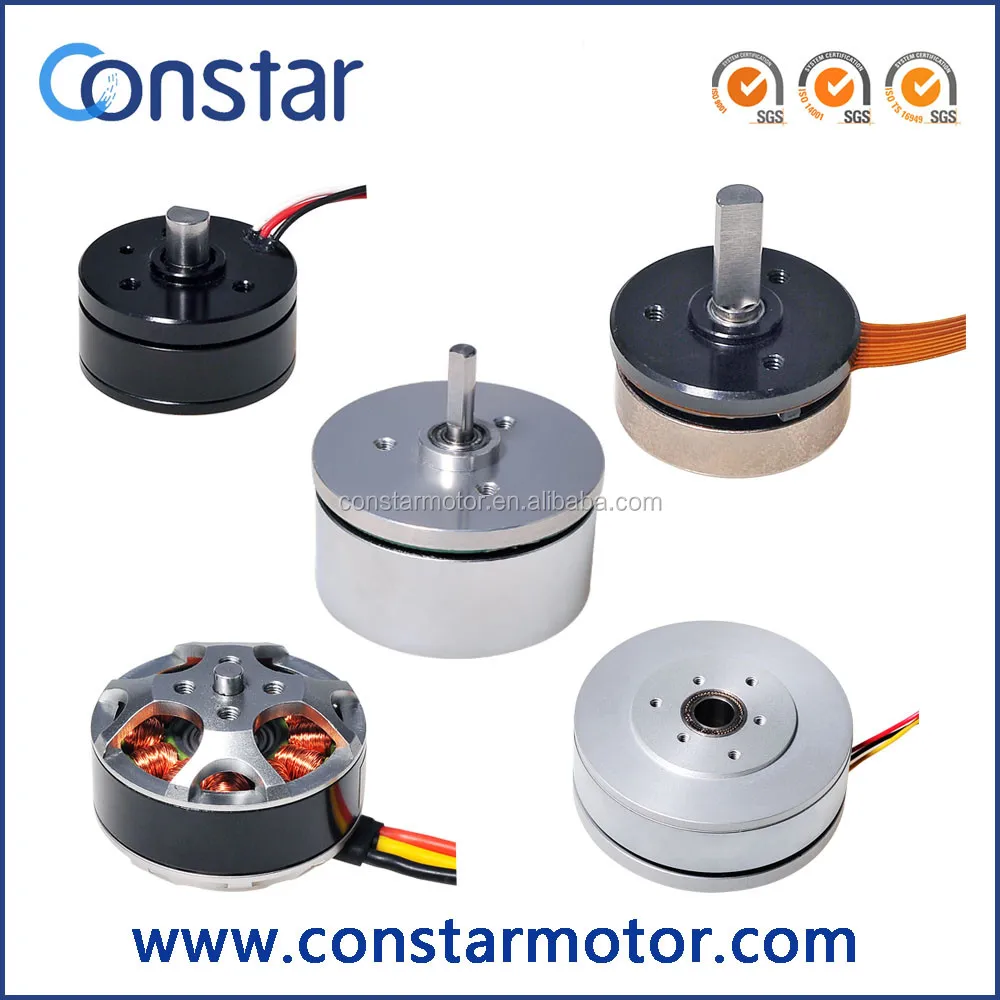

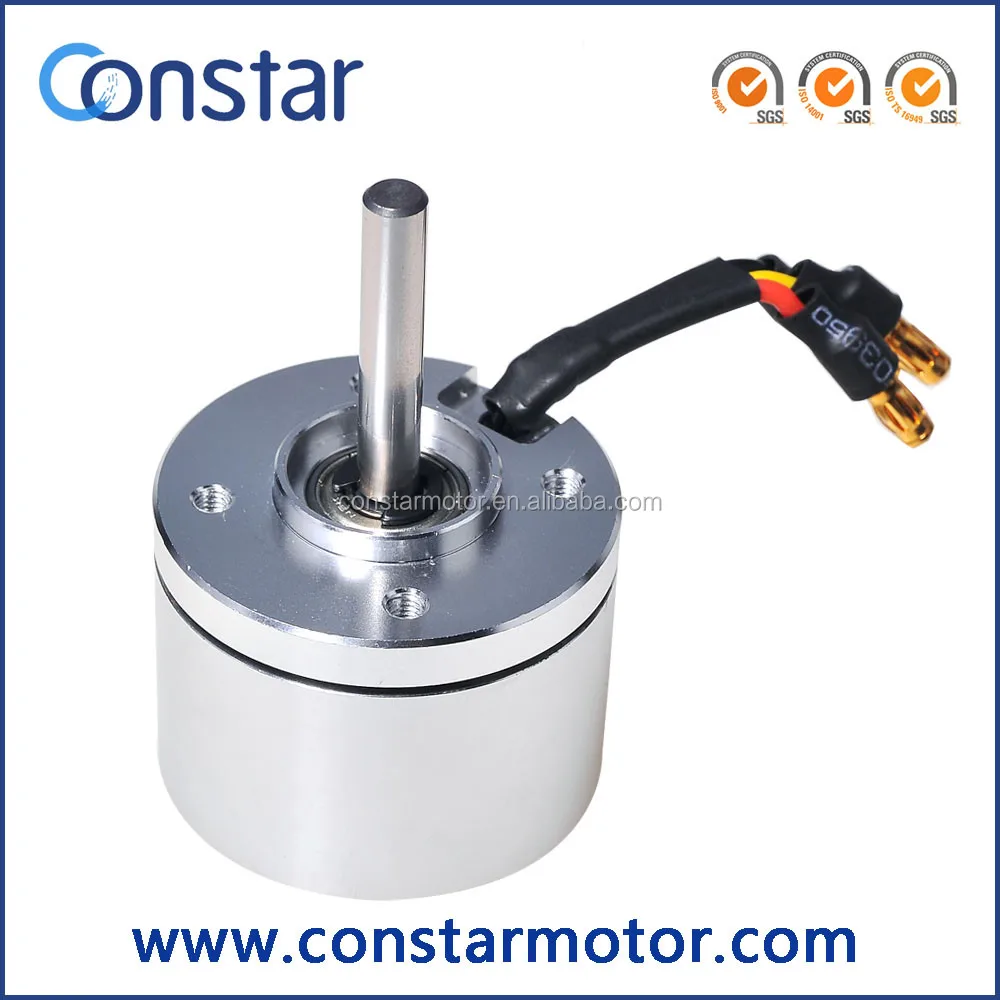

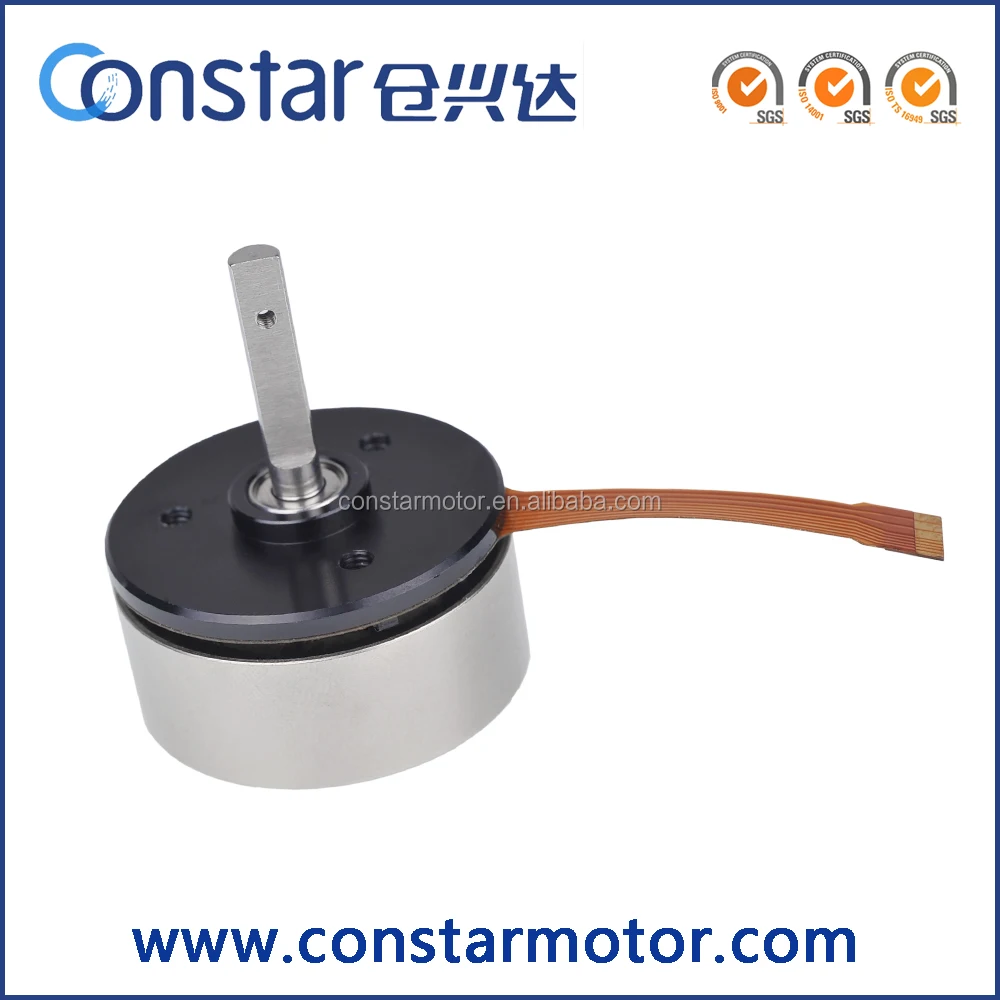

7,Other Item:
| Series | Dimension | Voltage | Terminal resistance | Speed | Current | Load Current |
| (mm) | (V) | (Ω) | (rpm) | (mA) | (mA) | |
| 1308ZWW | Φ13*08 | 3.7 | 39000 | 700 | 10500 | 0.85 |
| 1511ZWW | Φ15*11 | 7.4 | 35000 | 400 | 4700 | 1.97 |
| 1709ZWW | Φ17*9 | 10 | 26000 | 110 | 2600 | 3.5 |
| 1814ZWW | Φ18*14 | 6.4 | 18500 | 270 | 2900 | 3.3 |
| Φ18*14 | 6.4 | 22000 | 350 | 3440 | 2.7 | |
| 1816ZWW | Φ18*16 | 7.4 | 12000 | 160 | 1620 | 5.8 |
| 2010ZWW | Φ20*10 | 10 | 24000 | 110 | 2400 | 3.9 |
| 2015ZWW | Φ20*15 | 12 | 11300 | 80 | 940 | 9.9 |
| 2316ZWW | Φ23*16 | 12 | 19500 | 450 | 1625 | 5.8 |
| 2414ZWW | Φ24*14 | 12 | 6400 | 40 | 530 | 16.7 |
| 2814ZWW | Φ28*14 | 11.1 | 22000 | 650 | 2000 | 4.8 |
| 2820ZWW | Φ28*20 | 10.5 | 13500 | 450 | 1290 | 7.4 |
| 2824ZWW | Φ28*24 | 11.1 | 10200 | 400 | 920 | 10.3 |
| 2826ZWW | Φ28*26 | 14.8 | 13500 | 550 | 910 | 10.4 |
| 2828ZWW | Φ28*28 | 14.8 | 13000 | 650 | 880 | 10.8 |
| 2830ZWW | Φ28*30 | 14.8 | 13300 | 750 | 900 | 10.6 |
| 2914ZWW | Φ29*14 | 24 | 5500 | 100 | 230 | 40 |
| 3212ZWW | Φ32*12 | 12 | 22000 | 500 | 1833 | 5 |
| 3216ZWW | Φ32*16 | 12 | 3200 | 500 | 270 | 35 |
| 3517ZWW | Φ35*17 | 24 | 4450 | 60 | 185 | 50 |
| 3518ZWW | Φ35*18 | 12 | 10000 | 500 | 830 | 11.3 |
| 3825ZWW | Φ38*25 | 14.8 | 10400 | 560 | 700 | 13.5 |
| 3828ZWW | Φ38*28 | 24 | 29000 | 700 | 1200 | 7.8 |
| 4316ZWW | Φ43*16 | 12 | 4350 | 180 | 360 | 26 |
| 4321ZWW | Φ43*21 | 24 | 6700 | 200 | 280 | 34 |
| 4326ZWW | Φ43*26 | 24 | 6100 | 300 | 260 | 37 |
| 4834ZWW | Φ48*34 | 22.2 | 10400 | 1300 | 470 | 20 |
| 6133ZWW | Φ61*33 | 22.2 | 6400 | 930 | 290 | 33 |
| 8724ZWW | Φ87*24 | 36 | 3600 | 200 | 100 | 95 |
