New PM6100 Hospital Portable parameter Monitoring instrument CE approved
- Category: >>>
- Supplier: Shanghai Berry Electronic Tech Co. Ltd.
Share on (62020882373):
Product Overview
Description

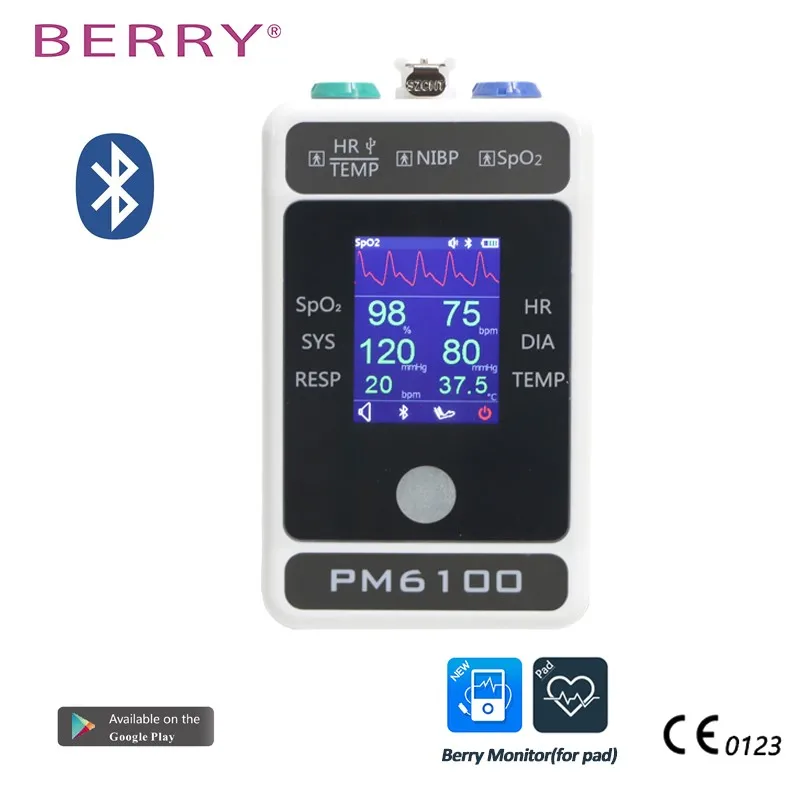

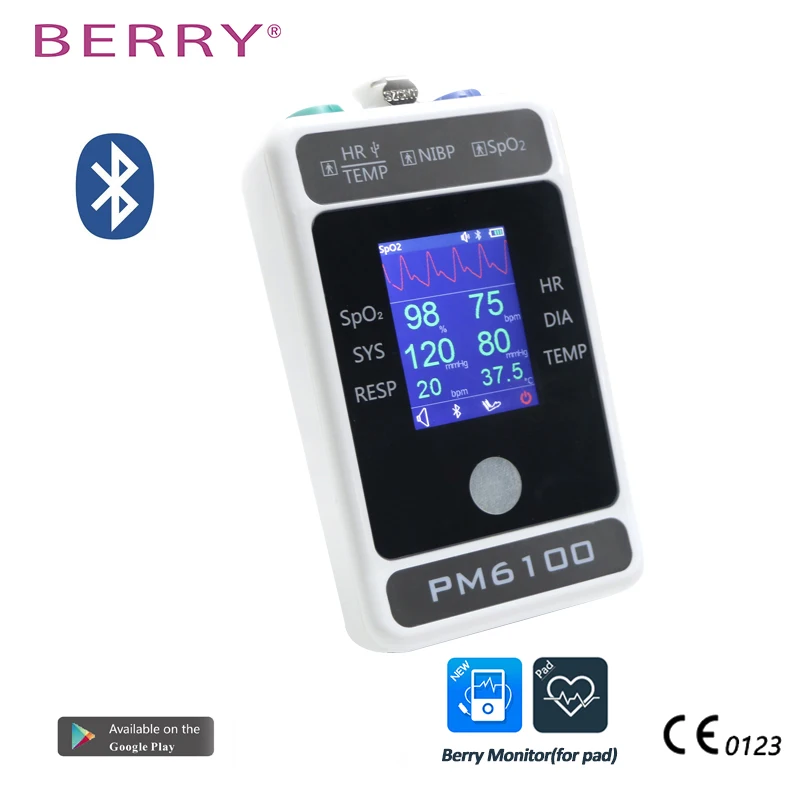

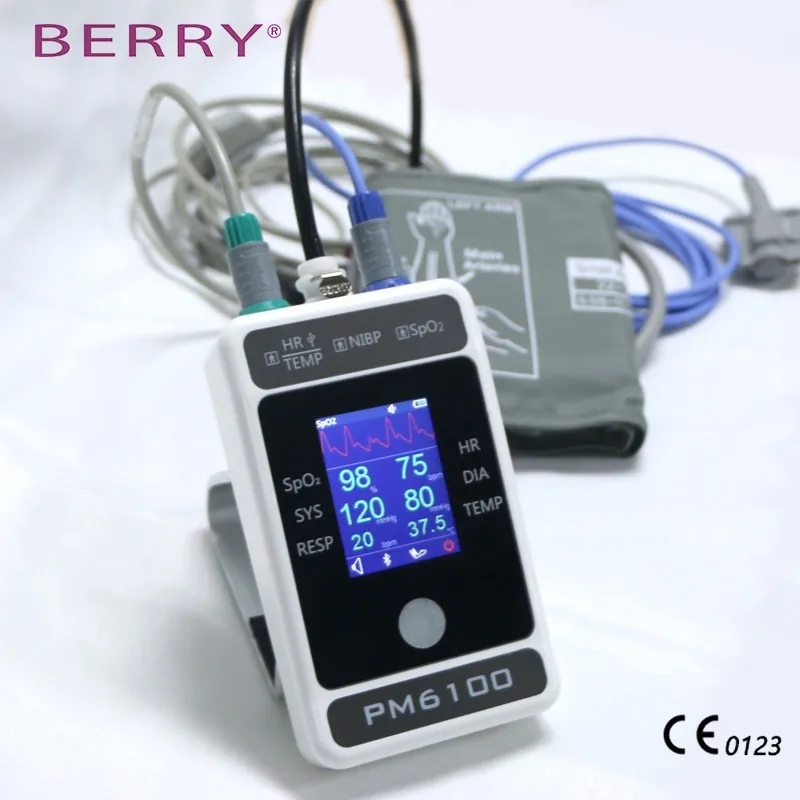

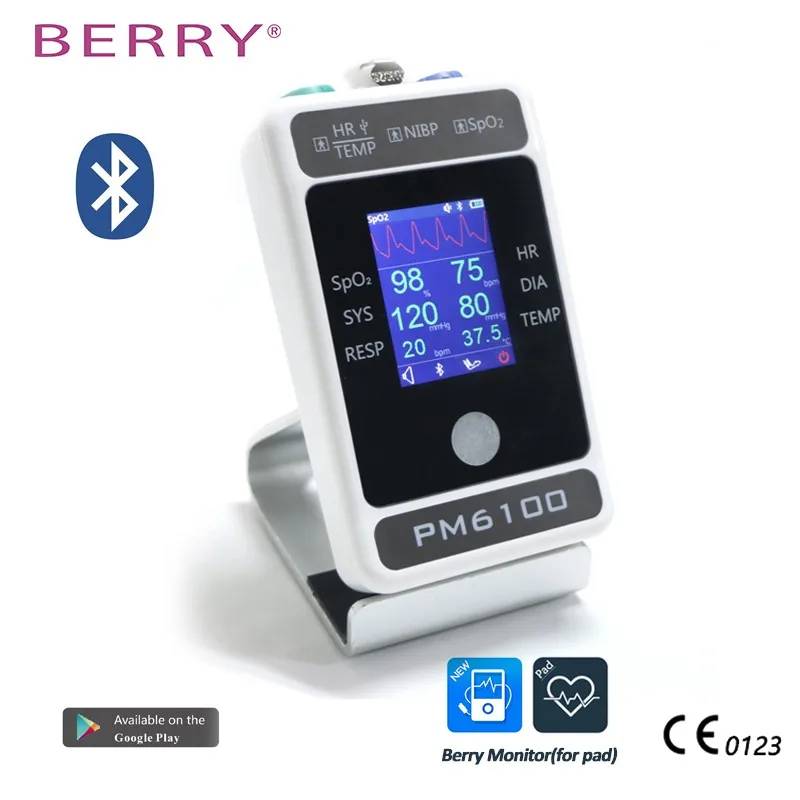

Patient Monitor 6100
Feature
- This monitor integrates the functions of parameter measurement,waveform monitoring, etc.Its color TFT liquid crystal display is able to show patient parameters and waveform clearly. The monitor also features compact size,lightweight,easy-to-carry handle and built-in battery,which make it portable in clinic,ward,even at home.

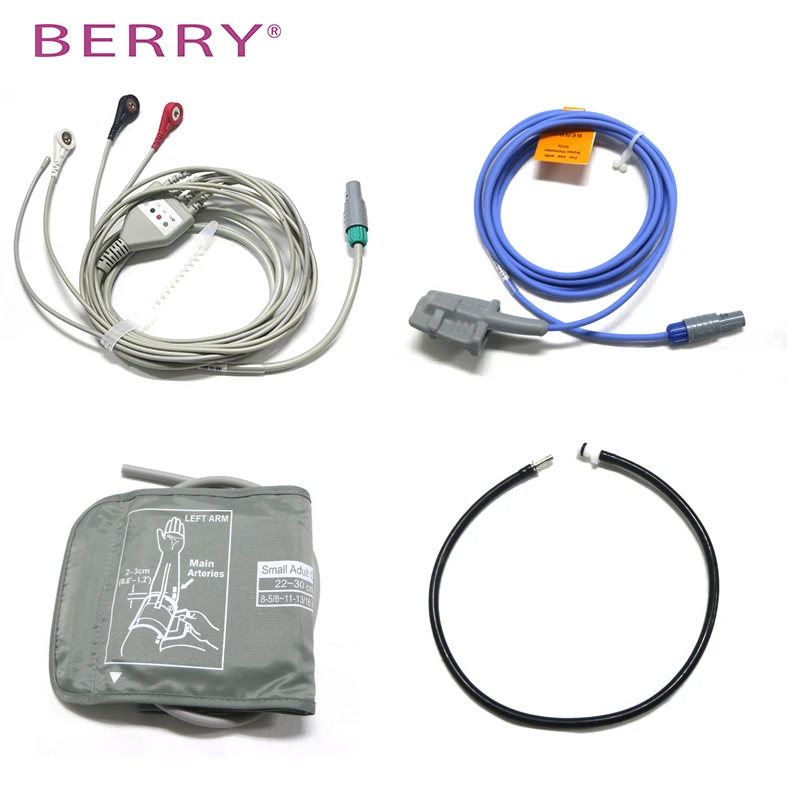

- This monitor is capable of monitoring parameters: ECG(Eletrocardiograph), HR(heart rate), NIBP(noninvasive blood pressure), Spo2, Resp(Respration), TEMP(body temperature).
- The One-Button-Design make the monitor to be a easy-to-use system,so you can perform the operations conveniently.Besides,this monitor can be connected with the other smart terminals such as PC,iphone and Android phones.
SPECIFICATION
Operation system | Android |
ECG | Waveform: Lead I Band width 0.05Hz-100Hz(3dB) diagnose mode 1-40Hz monitor mode 0.1-25Hz operation mode |
Resp | Chest impedance method Scope: 0 bpm to 100bpm Accuracy: ±1bmp |
Temp | Type: Vascular/surface temperature Scope: 20℃-50℃ Accuracy: ±0.2℃ |
NIBP | Detection scope: Systolic blood pressure: 4kPa-34kPa(30-255mmHg) Diastolic pressure: 2kPa-29.3kPa(15-220mmHg) Mean pressure: 2.7kPa-31.3kPa(20-235mmHg) Detection accuracy: Static pressure:±4mmHg |
SpO2 | Detection scope: 35%-100% Accuracy: ±2% 80%-100% ±3% 70%-79% |
Heart rate | Scope: 15bpm to 300bpm Accuracy: ±1bpm |
AC adapter | Input:AC100-240v-200mA Output:DC 5V 1A |
Bluetooth | Support both Bluetooth 3.0 and BLE 4.0 |
Built-in-Battery | 3.7V,1800mAh lithium battery |
Service life | Over 10000 times |
Size | 145mm*85mm*37mm |
Weight | 240g |
Display | 2.4 inch color TFT LCD |
Key | Power on and perform functions |
Delivery time | Samples: about 2 days |
Mass production: about 15 days (2000pieces) | |
OEM: about 25 days |
