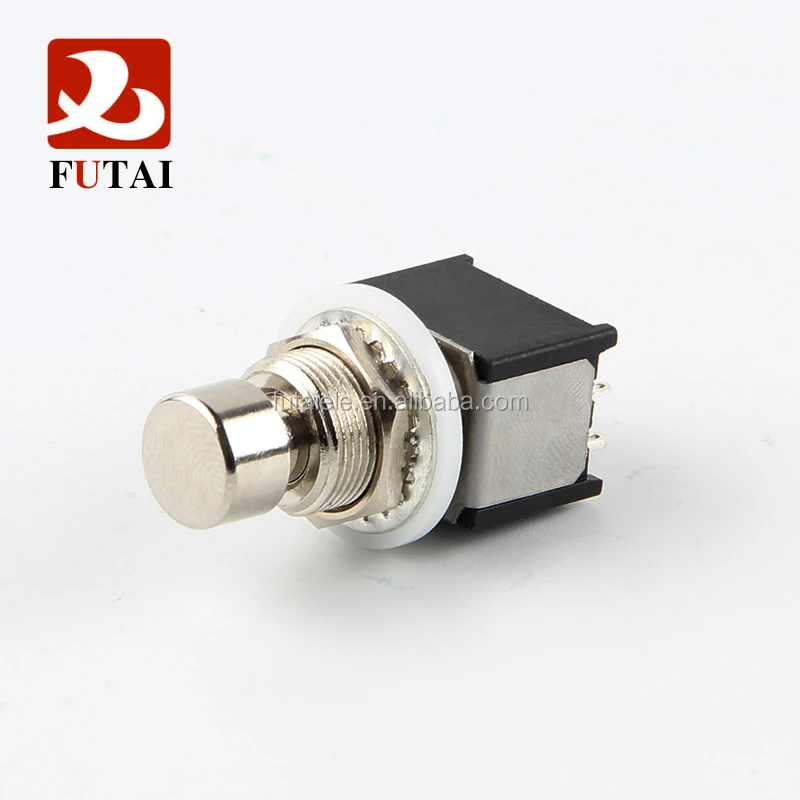

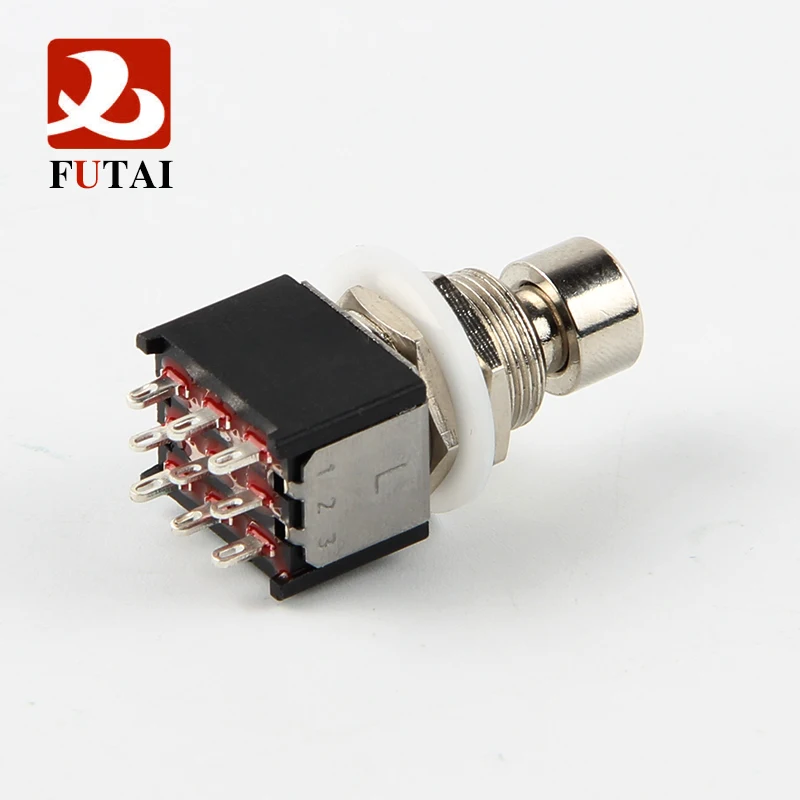

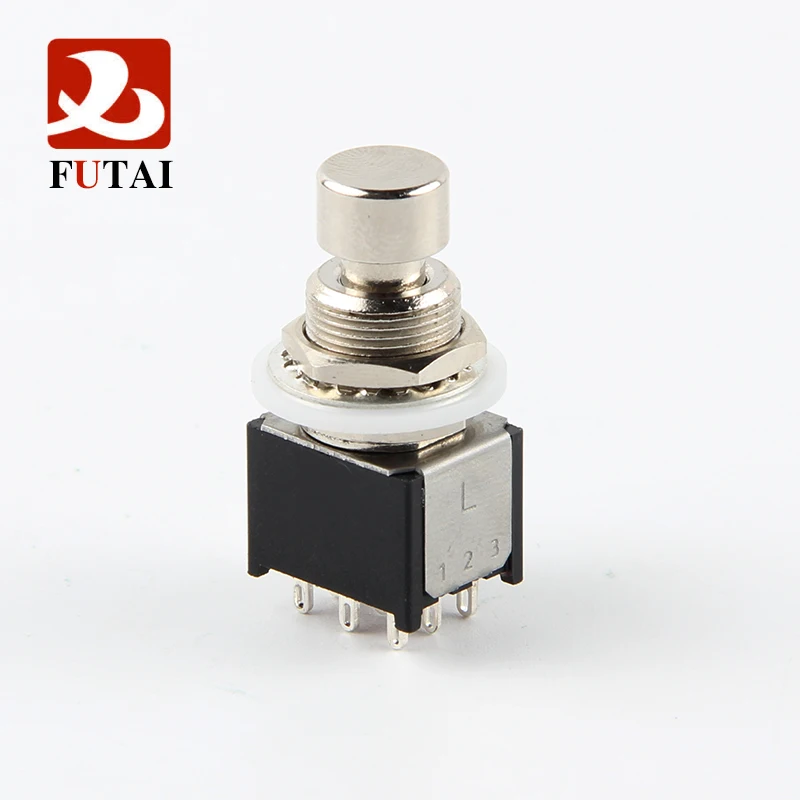

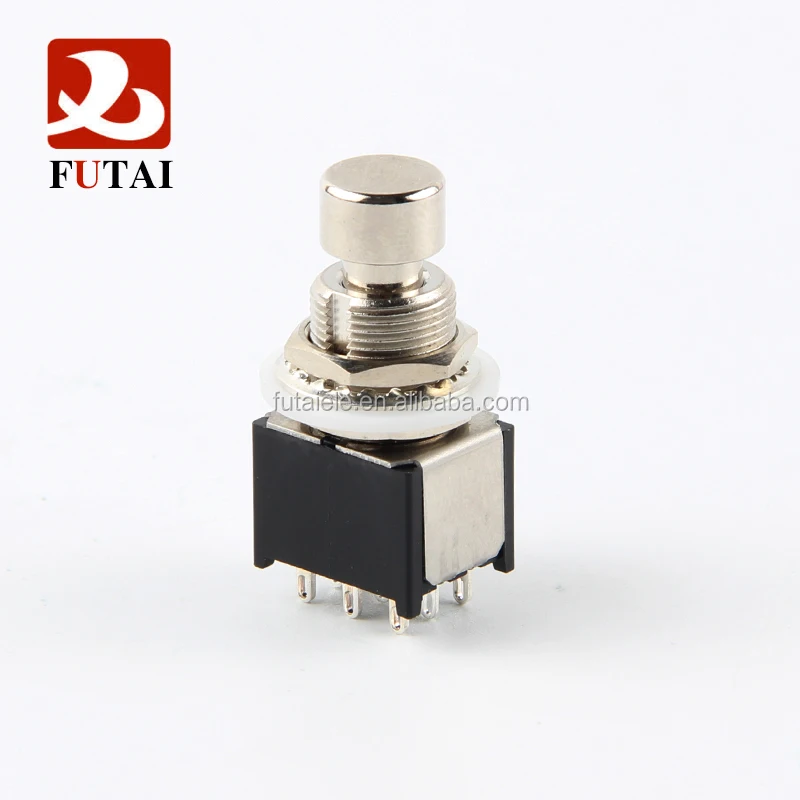

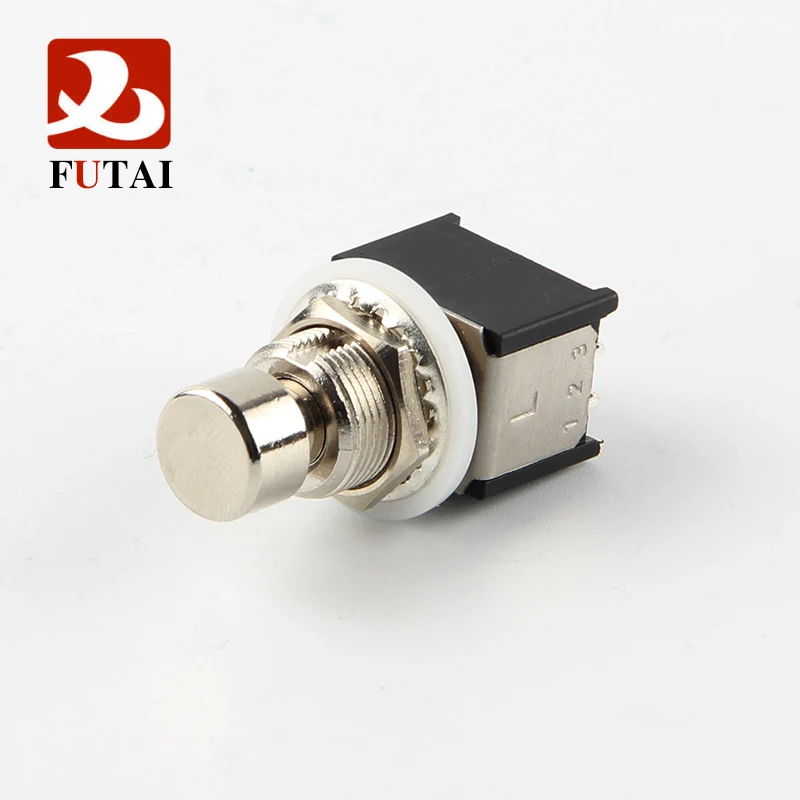

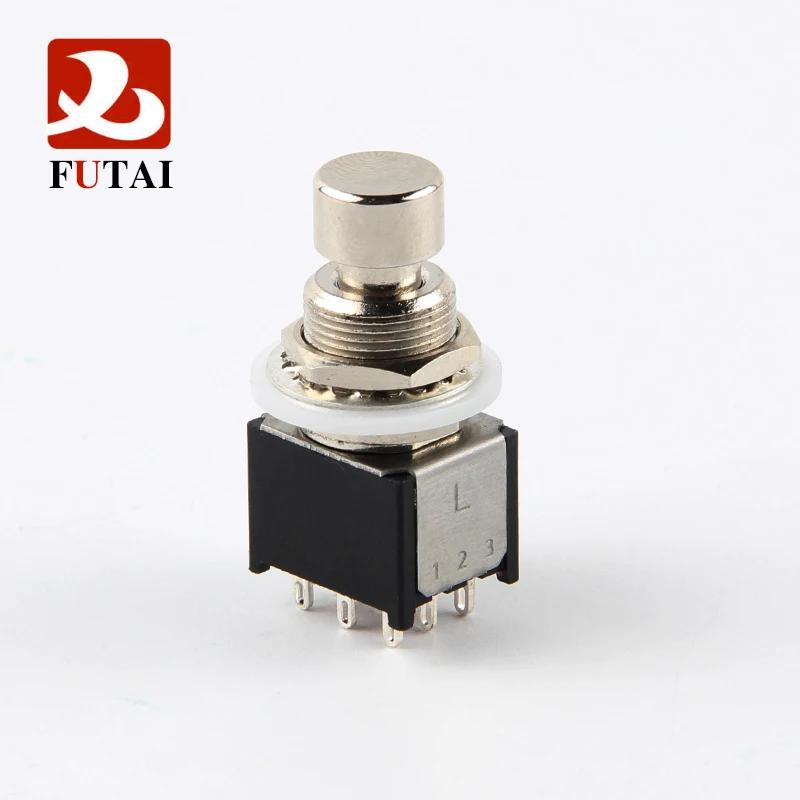

Guitar Effects 3PDT Pushbutton 250VAC Pedal Footswitch ON ON Switch

Product Overview

Description

Guitar Effects enclosure 3PDT Small Foot Switch





High temperature plastic casing, Case material:Nylon

dipping in soldering≤206℃±5°(wave-soldering),within 3S ;

solder by hand:≤300℃±5°,within 3S

High quality internal components

These switches require an 11/16" mounting hole for the plastic washer, nuts and washer included.

Rating	250V AC 2A; 125V AC 4A; 30V DC 4A
Withstand Voltage	1000V AC/min
Life	≥10000cycles
Panel Mounting Hole	12 mm
Contact Resistance	≤50mΩ
Insolation Resistance	≥500MΩ 500V DC
Operating Force	latching:2.5±0.8kgf/momentary:3.5±0.8kgf
Terminal	Solder







100% brand new and unused

For rewiring vintage pedals or effect boxes

For ,Electro-Harmonix, T Rex,Retro FX,Radial Bigshot,ect effects pedals

For unbuffered bypassing/true bypass of the effect circuit without coloring the tone of the instrument or other components in the signal chain.

The third pole can be wired to control an LED status light or other custom function.

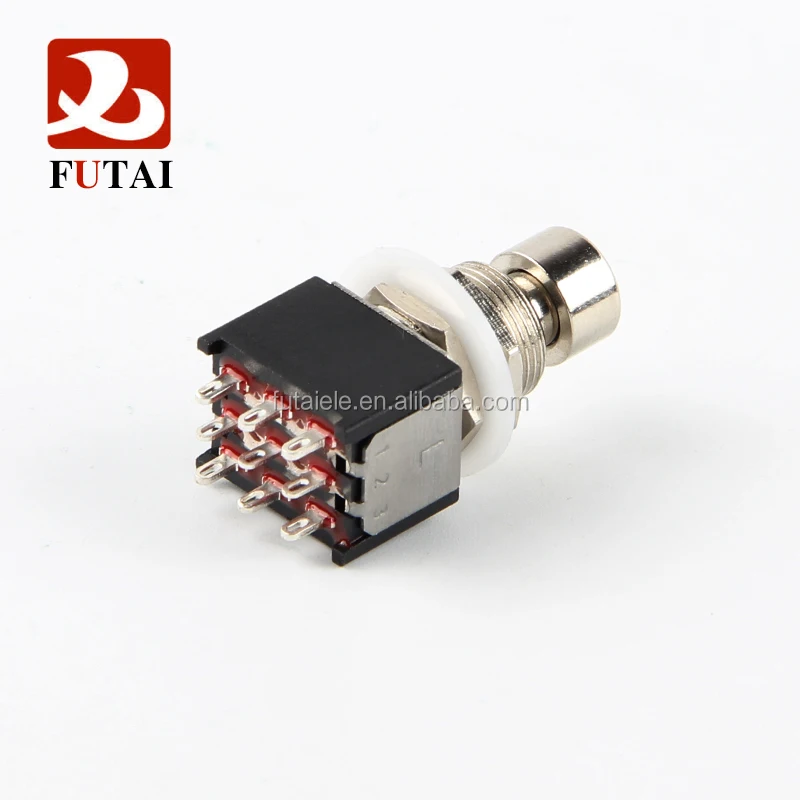

There are a total of nine lugs on each switch,three per pole.





Specs and features:



Switch operation:Latching

Rating: 4A 125VAC / 2A 250VAC; 4A 30V DC

Metal and plastic construction

Mounting hole: 12mm (1/2")

pin lug terminals, nickle plated

Electrical life: Over 10,000 cycles at full load!

High temp. & high quality epoxy
