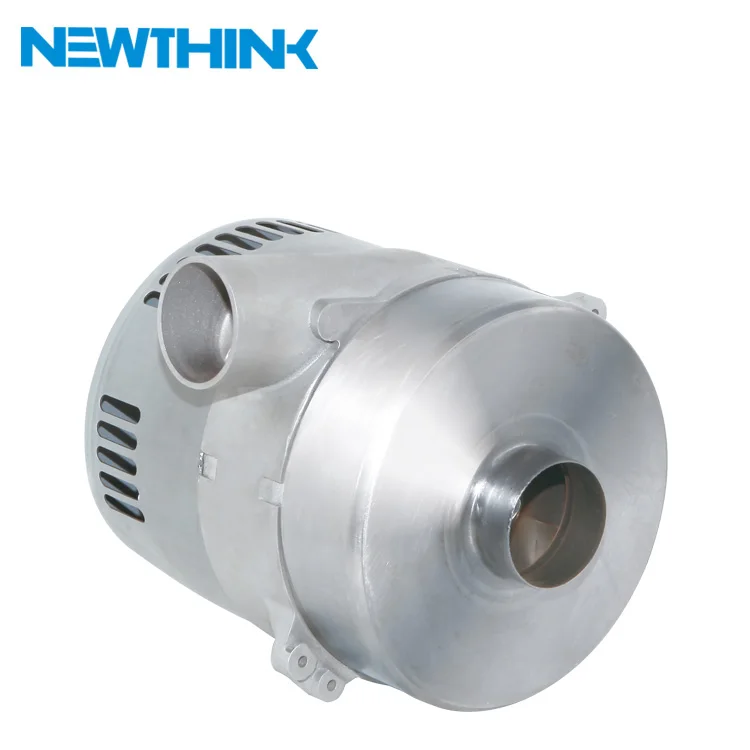

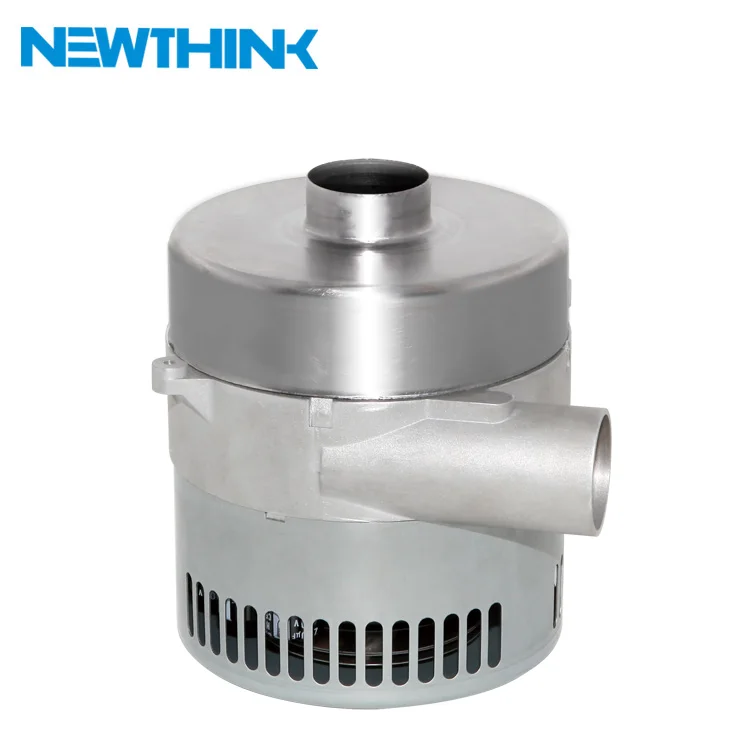

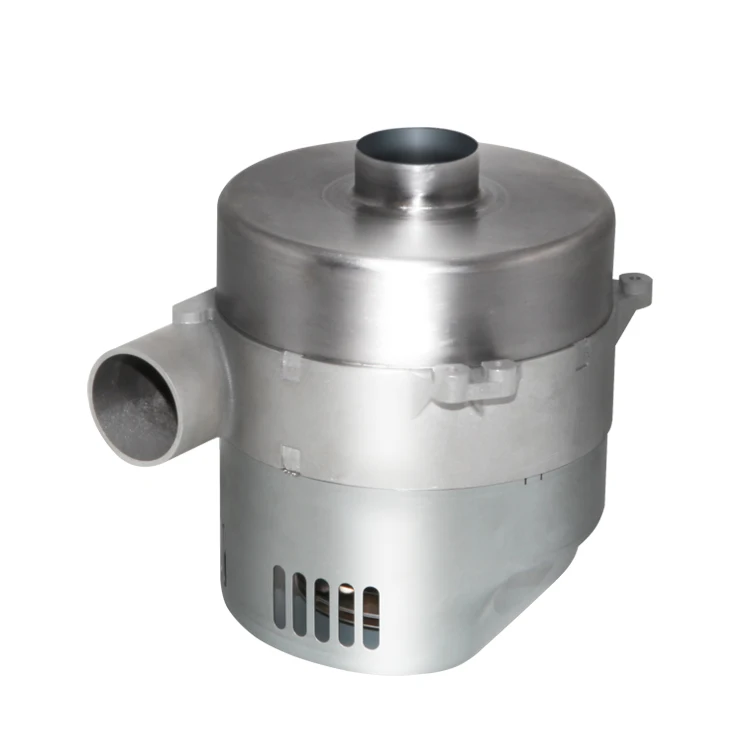

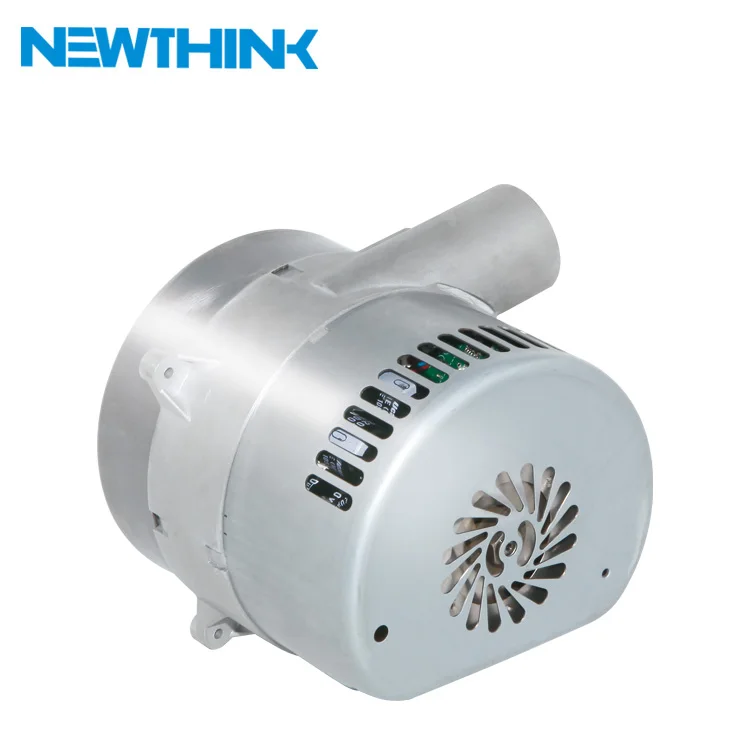

Two stages tangential by pass brushless dc blower for medical machine

Product Overview

Description





Motor Code	NXK57Z600B21	NXK57Z1200B21	NOTE
Max.Power	600W	1200W	Can be customized
Voltage	100~240V	100~240V
Frequency	50/60Hz	50/60Hz
Max.Air flow	167.1 m3/h	238 m3/h	Can be customized
	98.4 CFM	140.6 CFM	Can be customized
Max.Vacuum	12 kPa	24 kPa	Can be customized
	48.2 inH2O	96.4 inH2O	Can be customized
Max.Speed	14000 rpm	20000 rpm
Speed Control	0~10VDC/PWM	0~10VDC/PWM
Weight	2.5kg	2.5kg







             Ningbo Newthink Motor Co., Ltd. established in 2011, is a professional manufacturer engaged in the research, development, sale and service of  brushless motor, brushless blower and drive system.  we have obtained  ISO9001:2015  certificates  Our products are exported to clients in such countries and regions as Europe, America, Japan, Korea and other countries. We also welcome OEM and ODM orders.





1. Professional: The company was founded in 2011, it has focused on different motor manufacture.
2. Reasonable price: We are professional motor manufacturers, so there is a great advantage in terms of price
3. Quality products and good reputation: Good quality with CE/IFA/ROHS certification
4. Technology: This Micro DC brushless vacuum motor with high rotate speed, high vacuum degree, high flow and high efficiency
5. Wide application: special for handle vacuum cleaner, wireless vacuum cleaner, home vacuum cleaner, hand dryer machine,  air  renewal  system.
6. Superior performance: small size and high power





*  What's your  MOQ?

--------Personally, I want to offer the need you wanted, but Automatic prodcution need to start in one thousand set. Whatever, I'll try my best to arrange it.
*  Could you offer oversea after-service?

--------Engineers in NEWTHINK MOTOR has been and still are ready to supply the best sulotion for your problems.
*  May I ask for the technical inforamtion?

--------Dear sir or madam, What I'm able to offer is the former product test performance, showing in the EFFECT DATA. More inforamtion please send me your enquire in detail. I'll check it from engineers in electric and mechanical. BTW, secret data are unable to offer. Thanks for your consideration.
