Glass Shower Door Decorative Film Self Tinting Electric Glass Foil Self Adhesive Foil

Share on (62020958688):


Price:$80.00 - $95.00

Quantity:


Product Overview

Description


Glass Shower Door Decorative Film Self Tinting Electric Glass Foil Self Adhesive Foil

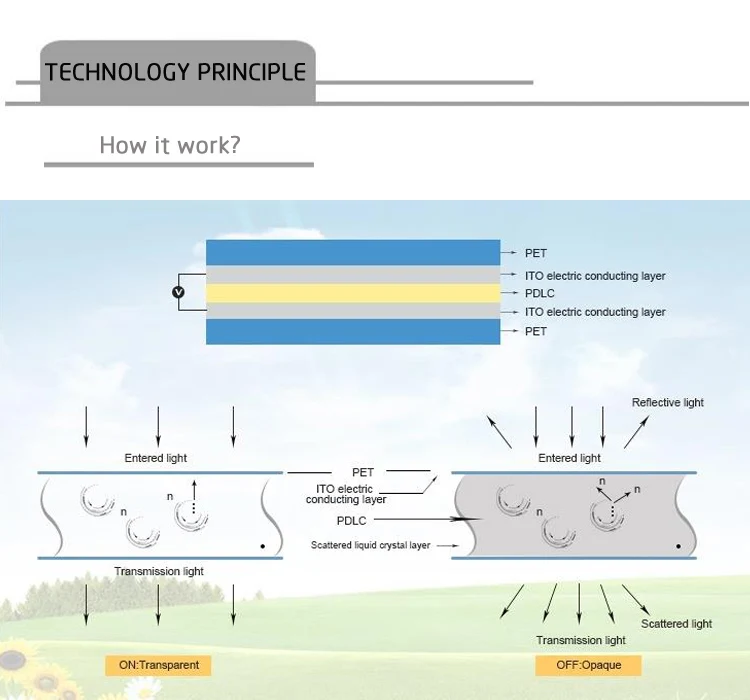

Technology Principle

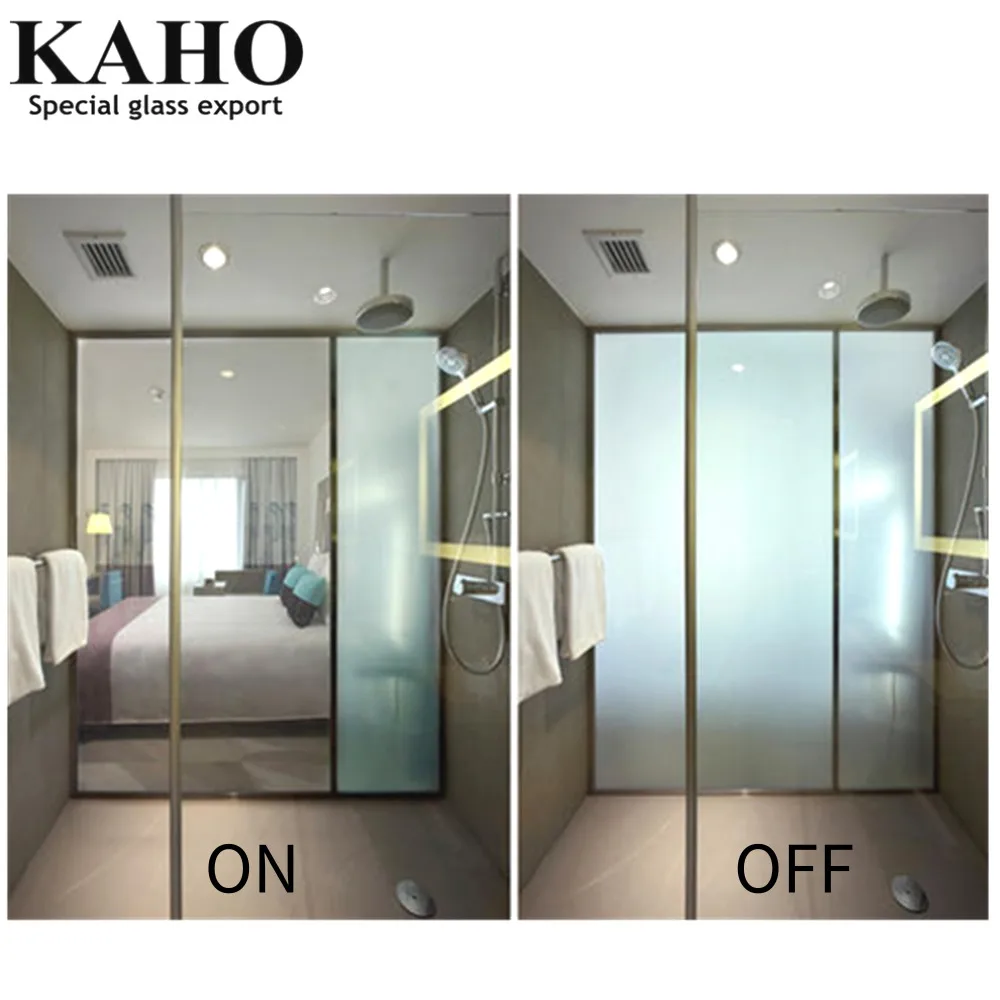

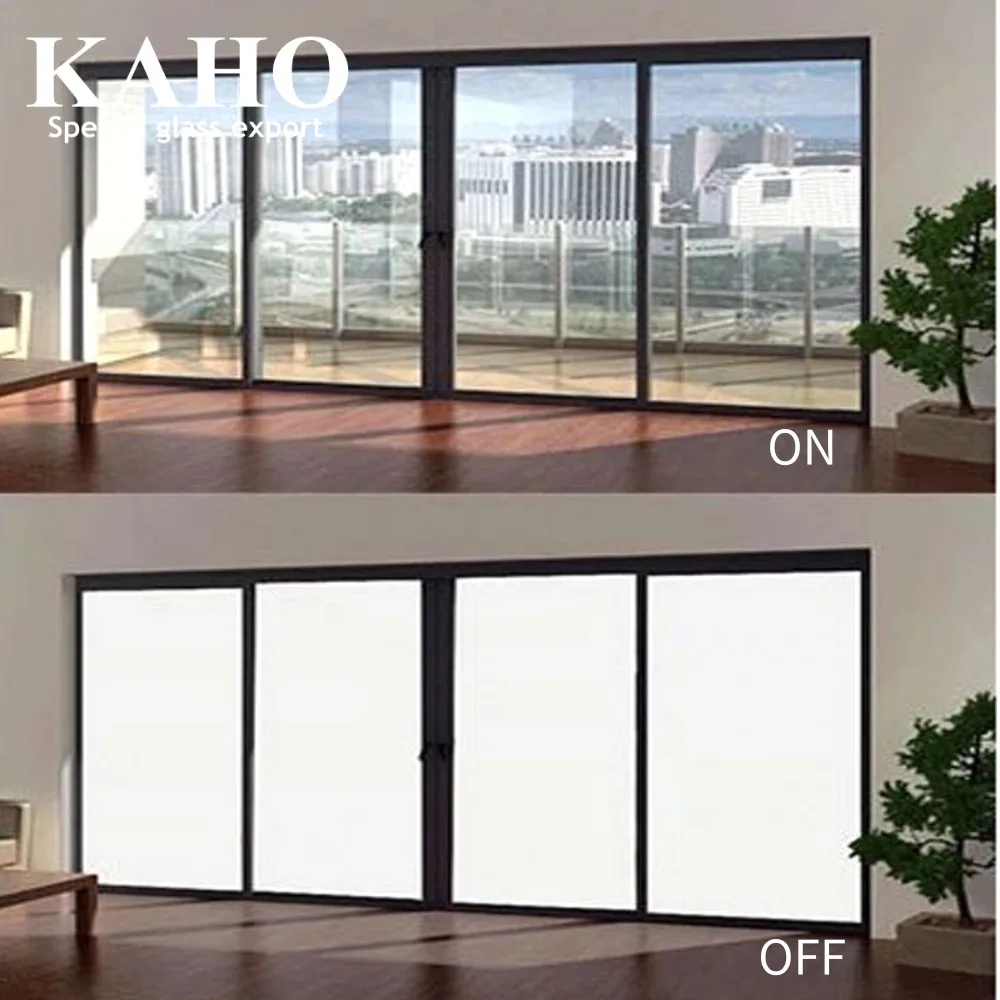

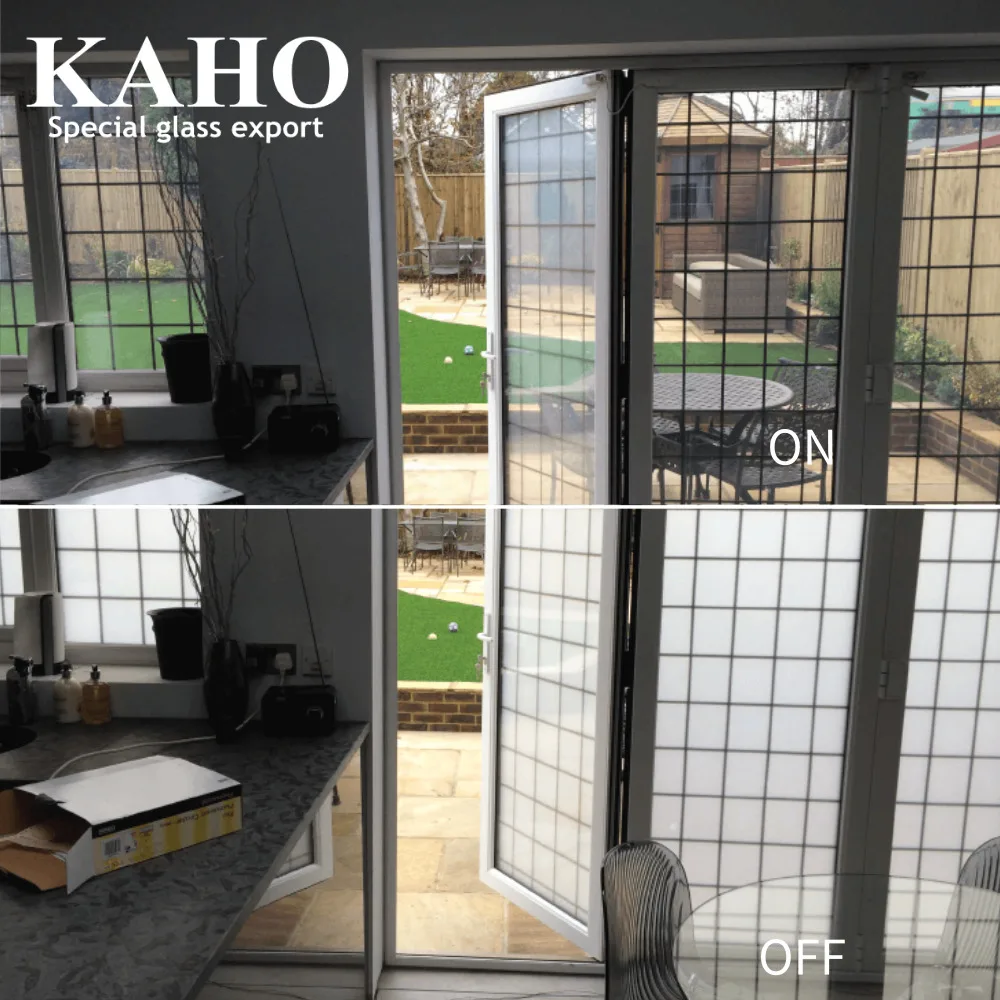

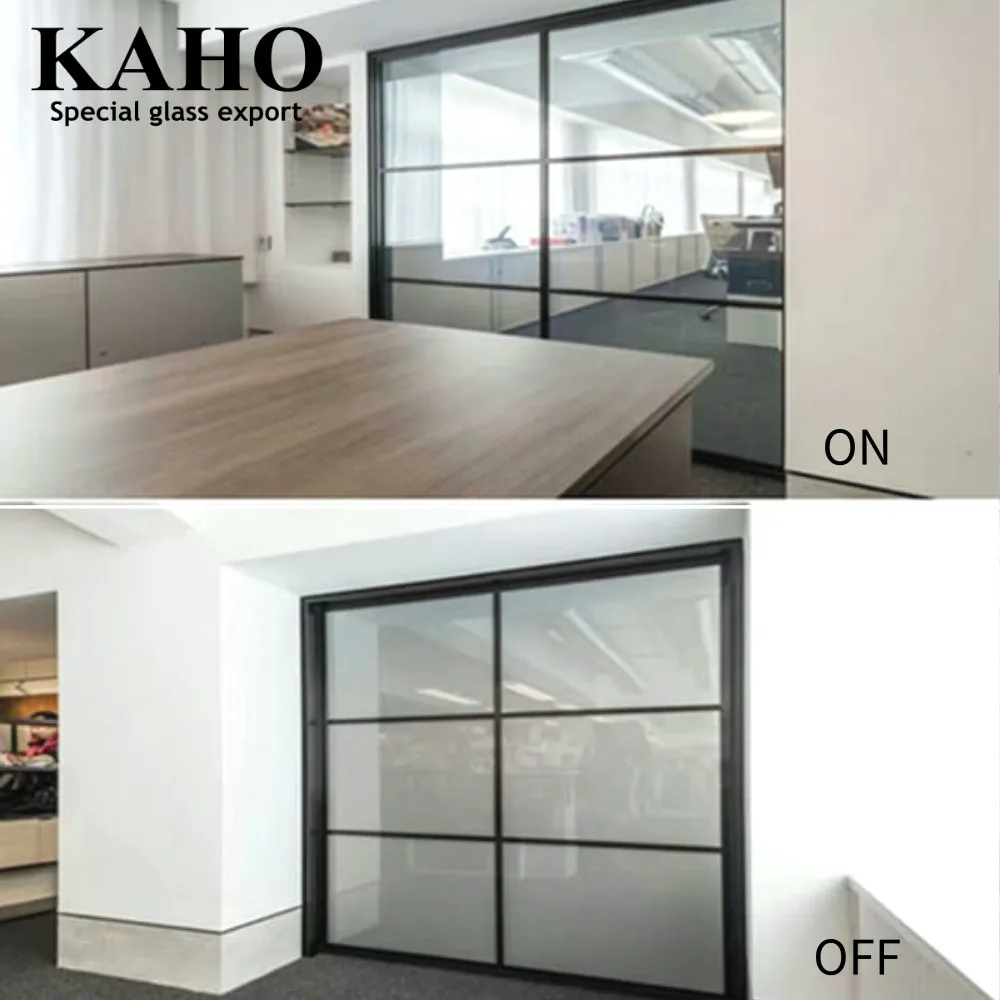

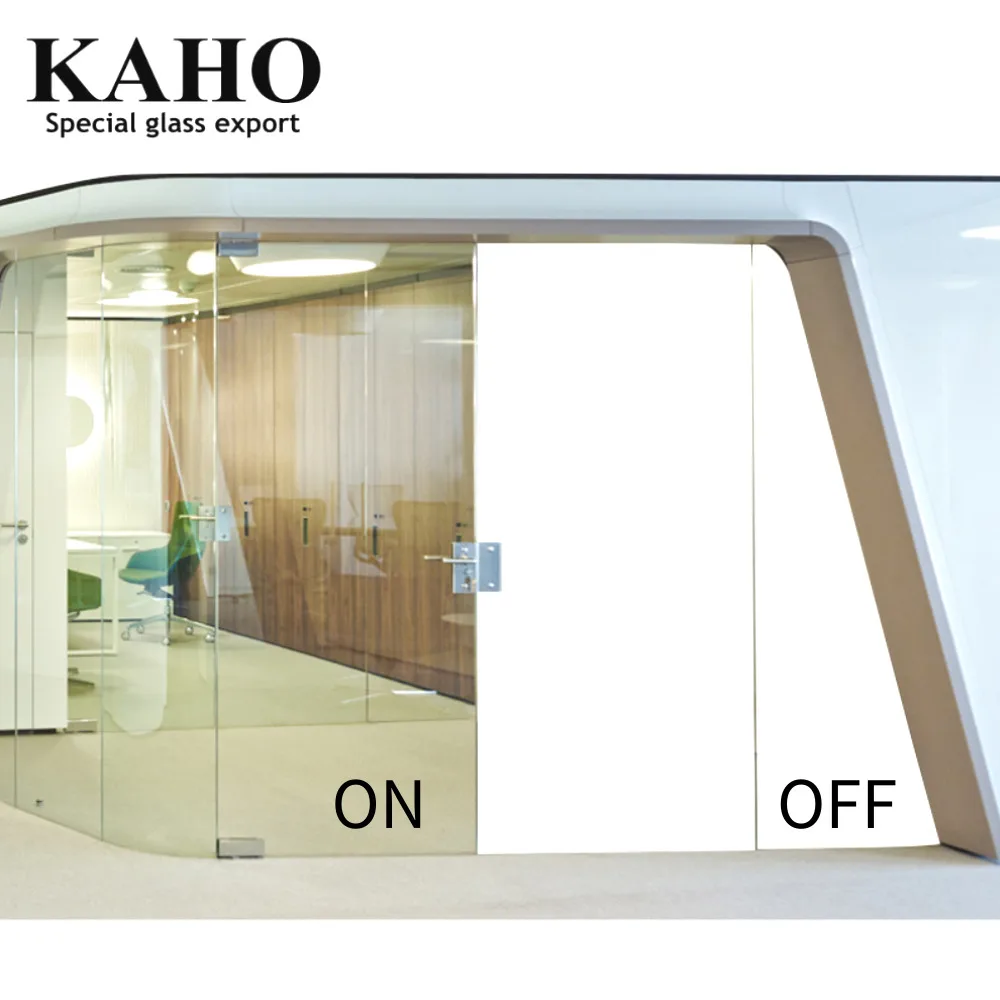

   When the power is off,the liquid crystal molecules are randomly oriented that scatters incident light and the glass becomes translucent.

   When electricity is applied, the liquid crystal molecules line up,the incident light passes through,and the glass looks clear.

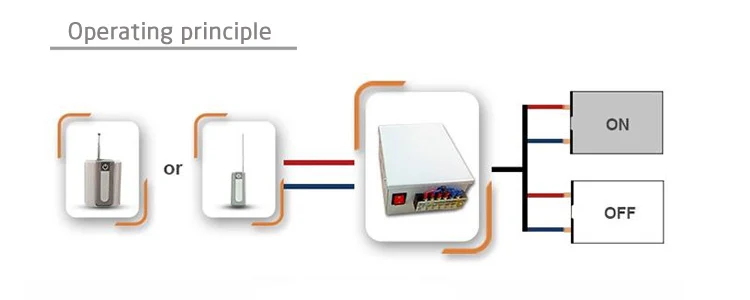

Product Wiring Instruction

1. Use a 2 pin 220V plug from the socket, and then connect its N and L cables to transformer terminal-Power outlet(Input AC 220V), and use screw to fix it.

2. Use to connect the transformer terminal (output AC 60V) to smart glass electric wire and use screw to fix it.

3. Use remote control to power on the smart glass (normally just leave it aside)



Optical Propertoes

Visible Light Transmission

ON

>83%

OFF

<5%

Haze

ON

<6%

OFF

>90%

Parallel light transmittance

ON

>75%

OFF

<2%

UV Blocking

ON/OFF

>99%

Infrared Blocking

ON/OFF

>60%

Haze

ON

5%

Electrical Properties

Operating Voltage

ON

45V/65V

Frequencies

ON

50 to 60Hz

Current

2mA/m²

2mA/m²

Response Time

ON-OFF

20ms

OFF-ON

200ms

Power Consumption

ON

5w/m²/hr

Specification

Durable Temperature

-20°C to 60°C

Life Time

>50000hours

Visual Angle

140°

Color

White,Gery,Yellow,Blue,Red,Green

Size

Thickness

0.4mm

Length and width

Customization to Customer Requirements

Sample size

200mm*300mm or others

Control mode

Manual switch, voice control, remote control, remote control, can be combined according to customer needs



Click here to ask more details

Comparison

>> Feature:

  • Privacy function
  • Projection function
  • Safety performance
  • Environmental performance
  • Sound insulation effect
  • Diversification of control

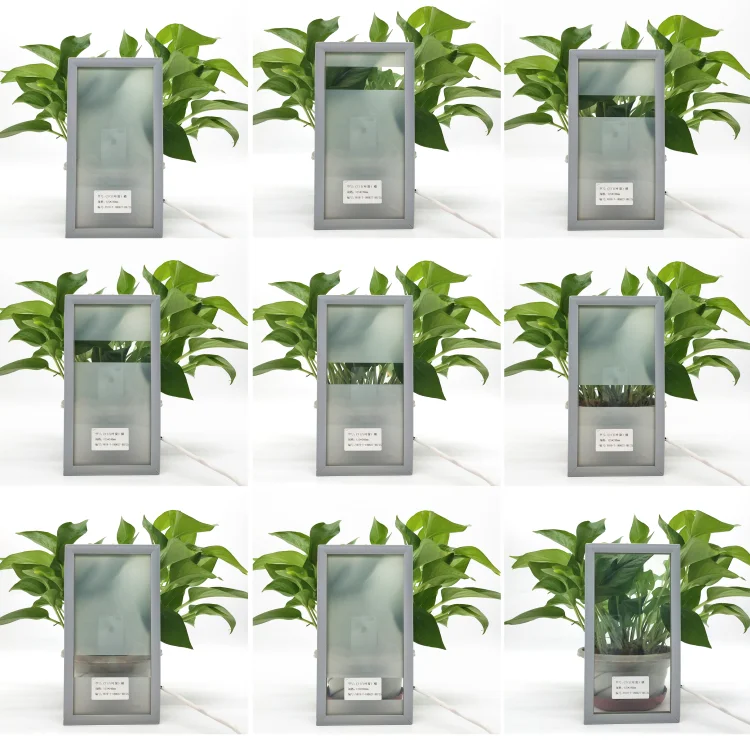

111.png>> Advantages:

.png

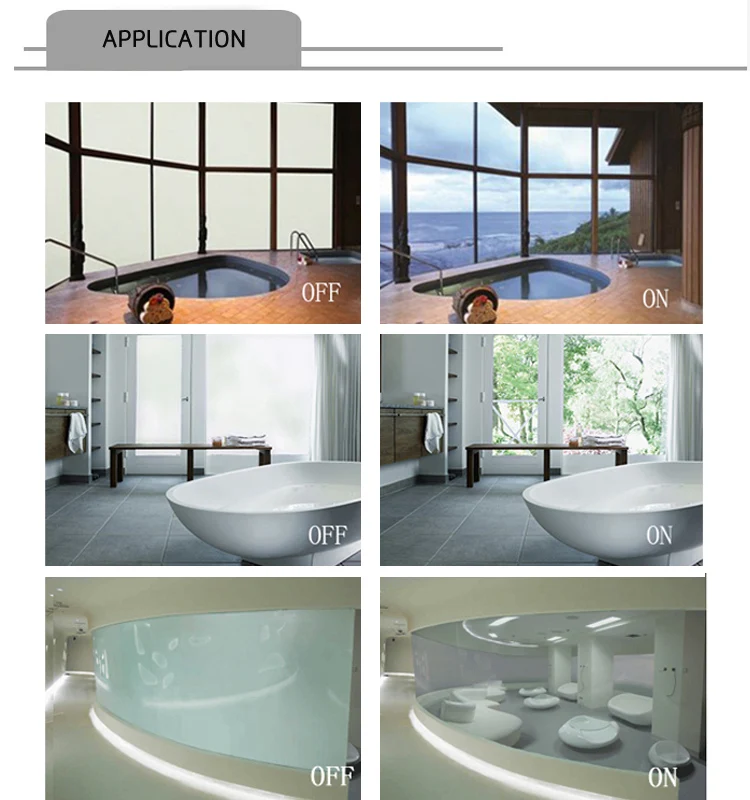

Applications

 >>  Main Applications:

                     · Bathrooms/Shower enclosures

        · Conference rooms

        · Clinics Hospital(nurseries,ICUs,emergency,operation rooms)

         · Hurricane resistant windows

         · Optical shutters

         · Projection displays(REAR PROJECTION ONLY)

         · Residential enclosures

         · Security windows

         · Skylights

         · Energy efficient enclosures

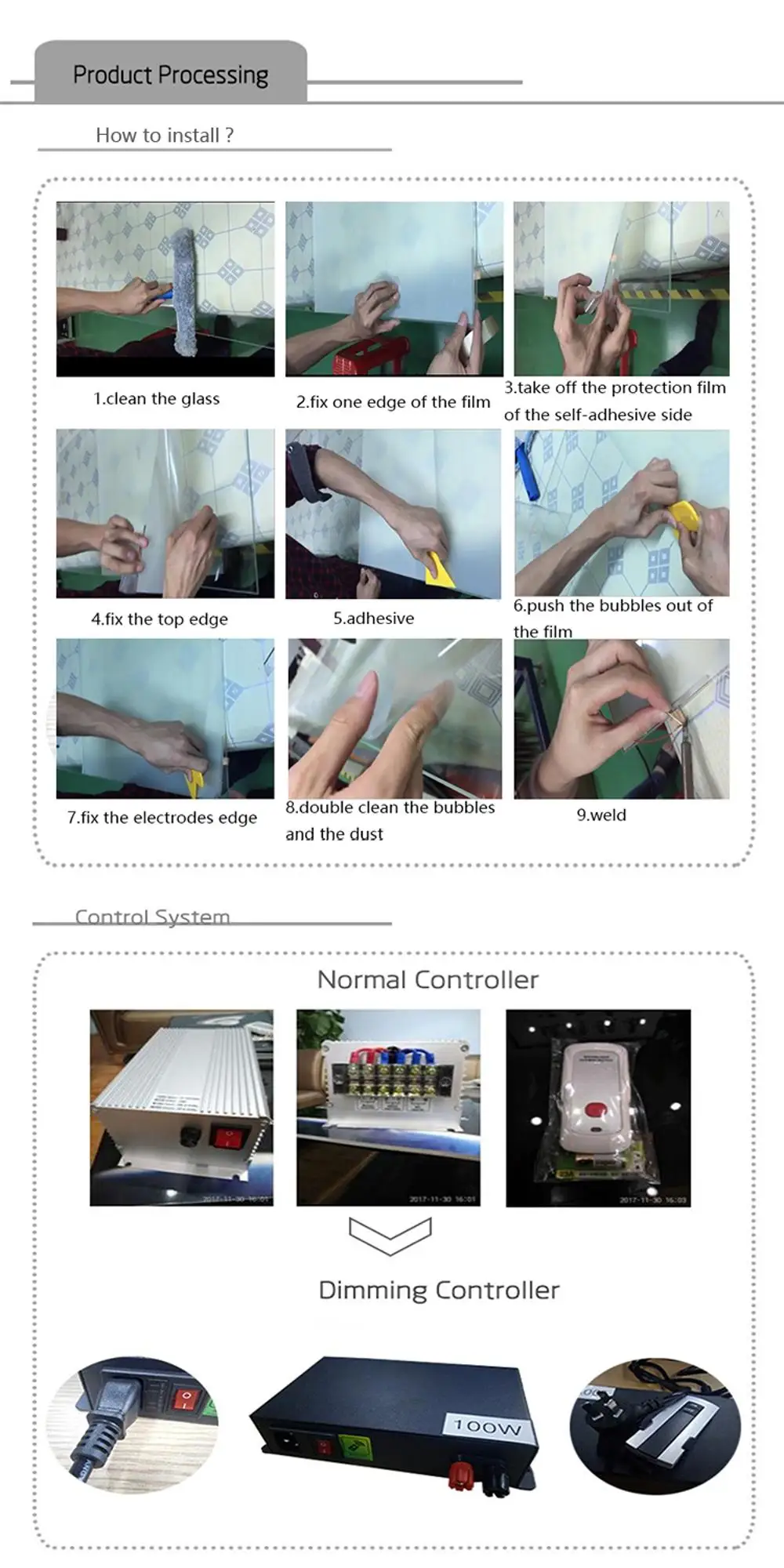

Product Process

Packaging & Shipping
packing

[Packing Details]

A: Paper corn inside

B: Bubble paper as smart film protection

C: Foams fix the two ends

D: Carton

E: Plywood case as the clients requirements

International standard, minimum cost

 [Delivery Detail]

3 days after receiving the payment

FAQ

QAre you factory?

AYes, since 2009, KAHO is a factory specialized in a variety of glass products for architectural, decorative and residential uses, the main products are TV mirror,one way mirror,bulletproof glass,smart glass, insulating glass, and other customized designed glass.

QHow can I get your glass quotation?

APlease tell me the thickness, size, color, quantities, whether need to further process and other detailed requirements etc.

QCan you do the production as customized?

AYes, we could produce the glass according to your requirements.

QCan the corresponding glass accessories be provided?

AYes, we can provide suitable accessories according to your needs, such as stainless steel, aluminum and so on.

QHow do you make our goods arrived safely?

A 1. Interlay powder or paper between two sheets.
   2. Seaworthy wooden crates.
   3. Iron or Plastic belt for consolidation.

QWhat is the transportation?

ASmall suggest to send by Courier, If large amount,by shipping. You can also use air freight.

QDo you provide sample? Is it free or extra ?

A Yes, we can provide the samples . All the sample cost will be returned after you have placed the appropriate order.

QWhat certification do you have?

A We have advanced production line, excellent production technology, rich experience in production management and strict ISO9001 quality management system, which ensures the quality of glass products to meet the international standards of CE certification and UL certification.



Remarks: We will provide the information as correct as possible. Product photos on this website may vary from the real products. Products information may vary from the product's manual available in the market. Please use the products subjected to the specific information on the user manual. For details, please contact the related persons.

HTB1DngMceSSB

Company Information

1.png    Guangzhou Kaho Special Glass Co., Ltd. Established in 2009,it is a building glass enterprise specializing in deep processing and fine processing.


    We have advanced production line, excellent production technology, rich experience in production management.Products range from silver mirror,one way mirror,bulletproof glass, tempered glass, insulating glass, laminated glass, patterned glass,etc. which are controlled under ISO9001 quality system and CE, FCC certifications. The products are suitable for decoration,construction, vehicles, banking,military and other places.


    We believe that the competitiveness comes from the high quality and best service.The experienced and professional team will surely offer the essential support andpre- and after- sales service to our customers, we ensure that all customer requirements are met promptly and efficiently.

Looking forward to establish long-term business relationships with you!
