50KG Payload Fixed wing and VTOL UAV Drone for muliple use Inspection monitoring patrolling surveillance
- Category: >>>
- Supplier: Honeycomb Aerospace Technologies (beijing) Co. Ltd.
Share on (62020993034):
Product Overview
Description
Product Description

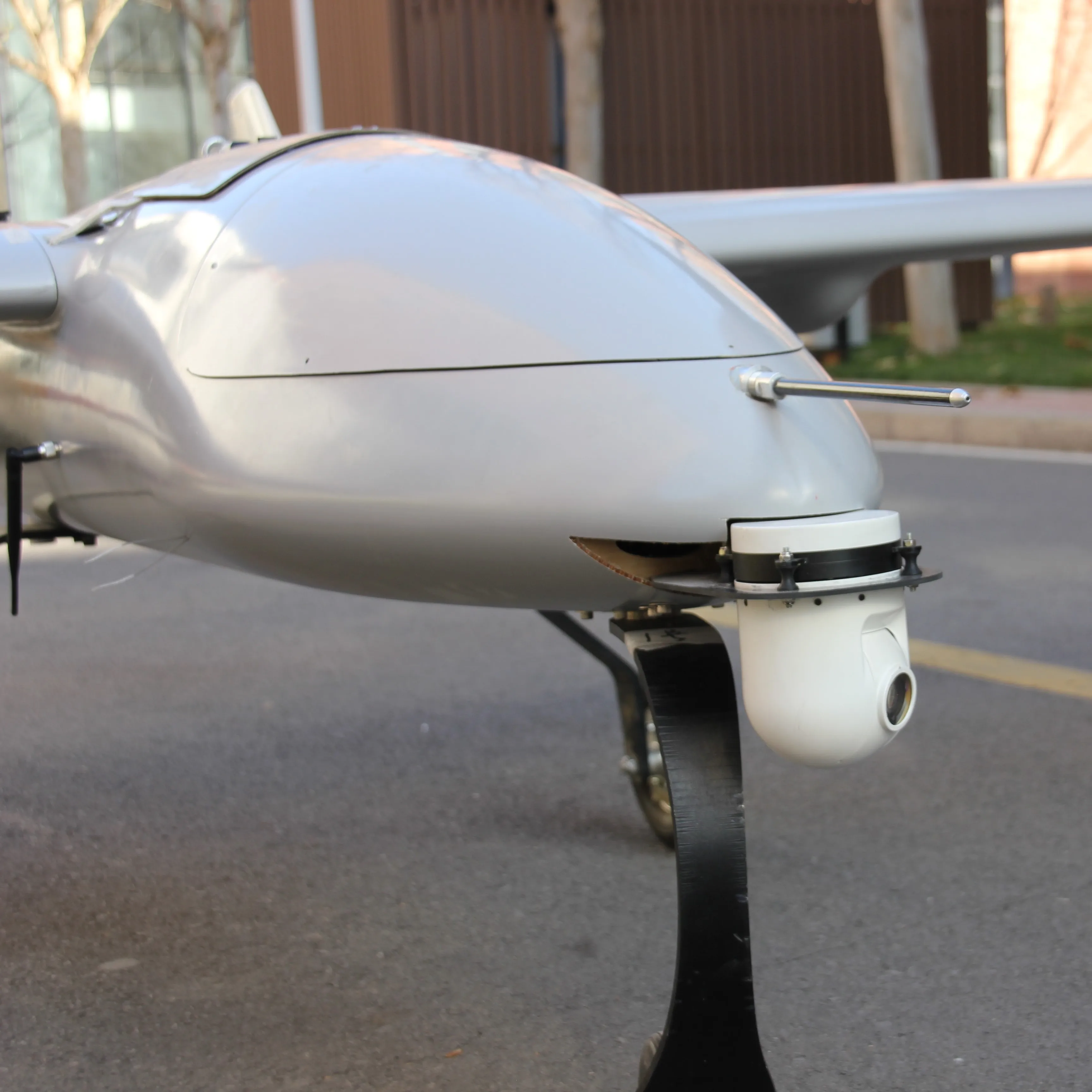

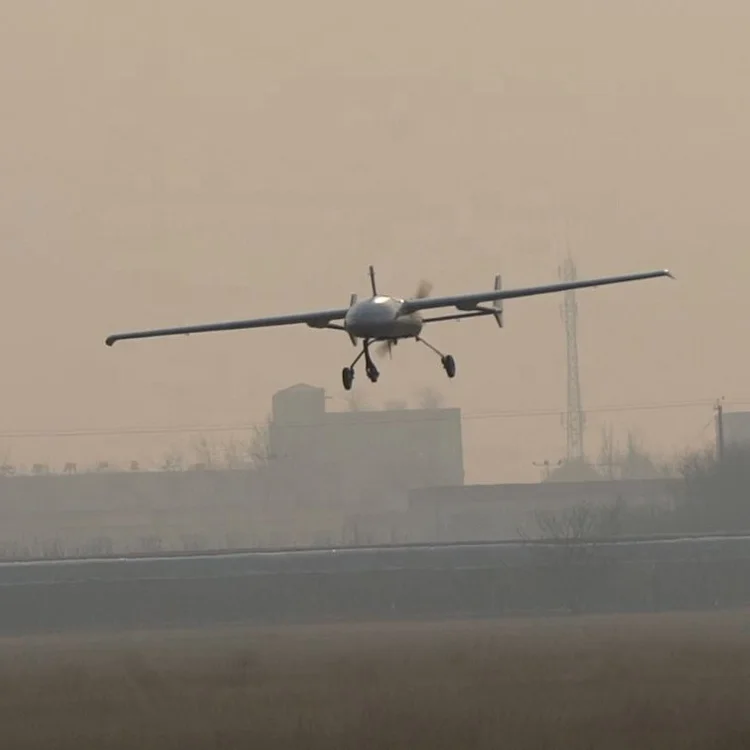

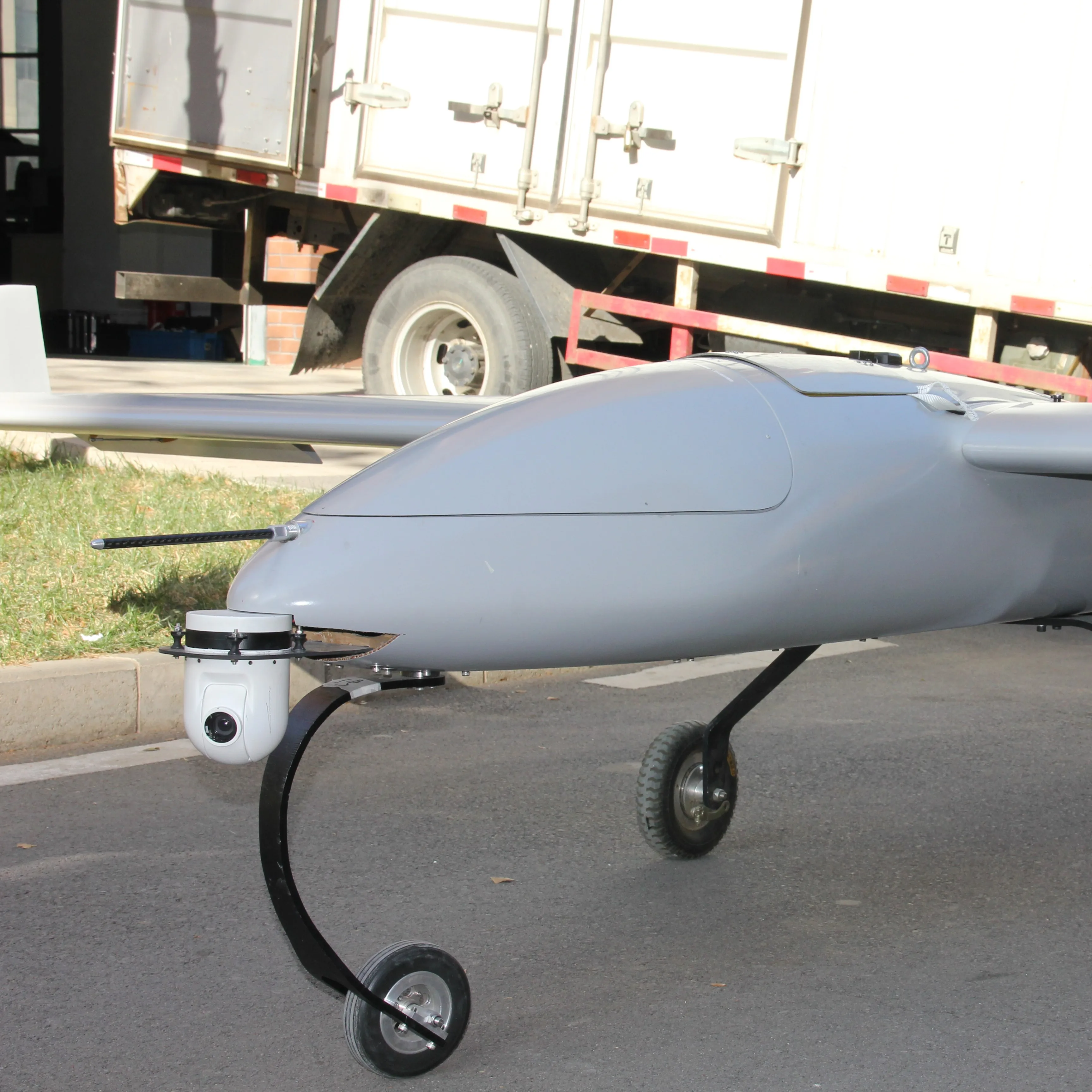

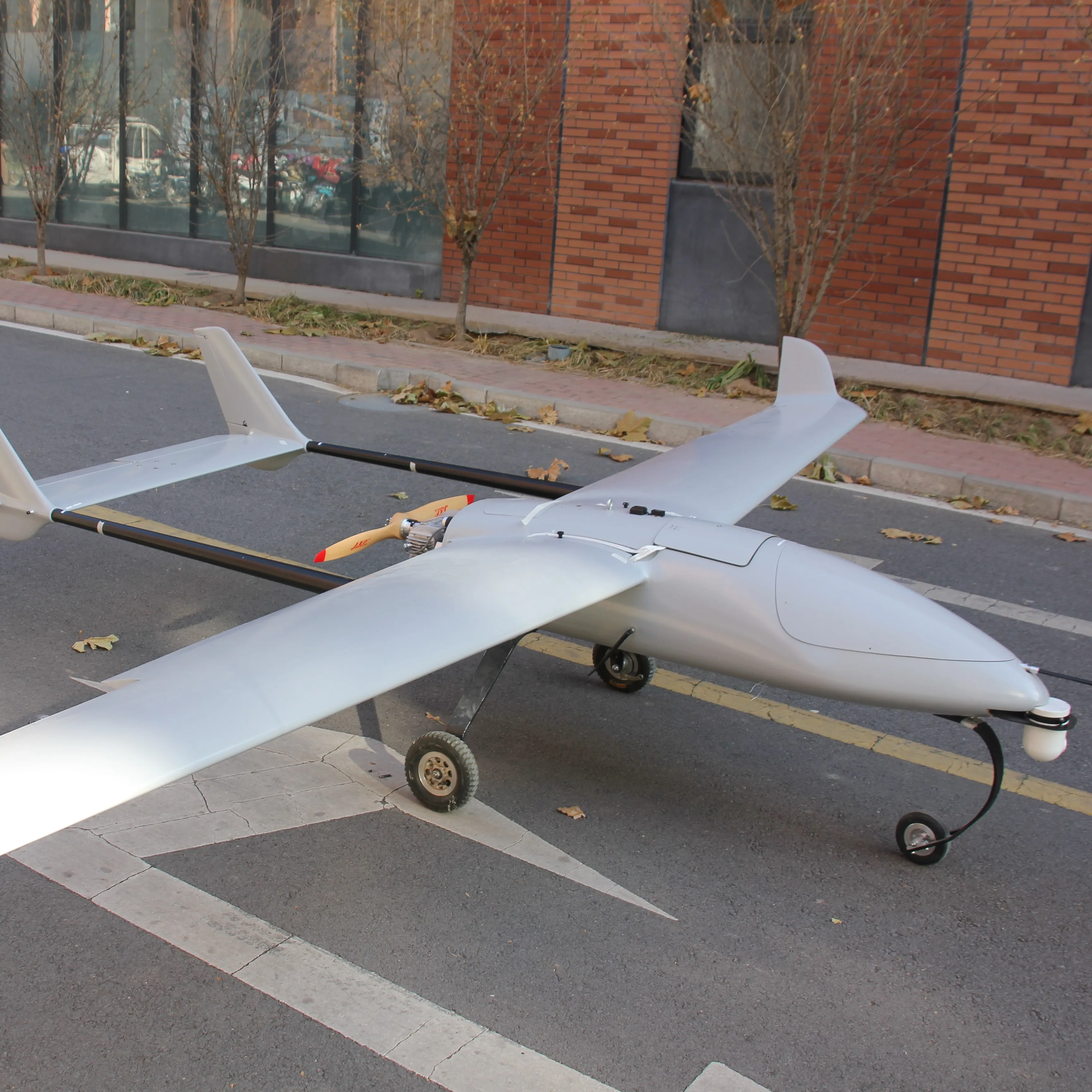

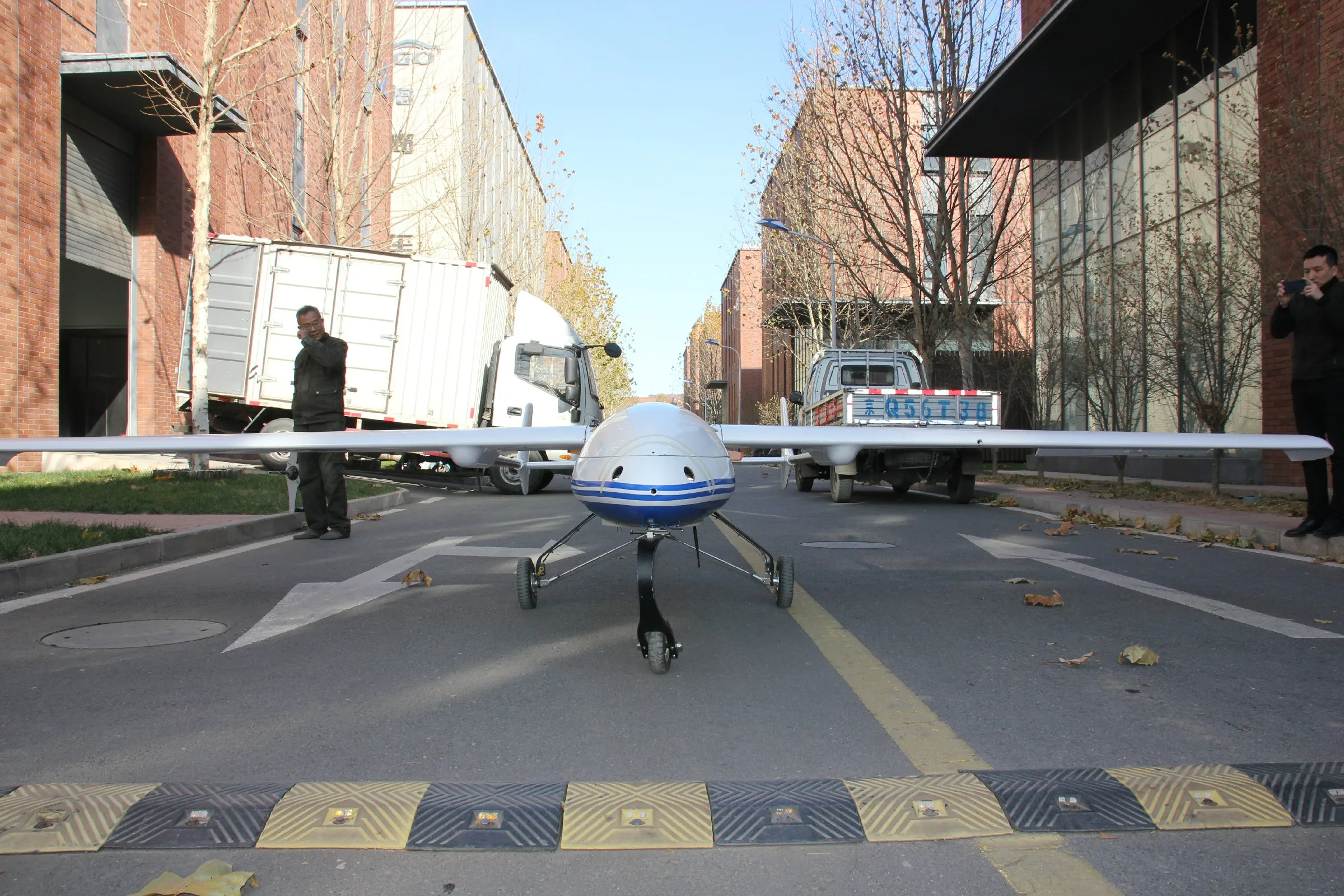

HC-140 Fixed-wing Gasoline-power UAV adopts engine push-back layout which provides high aerodynamic efficiency, up to 8 hours of flight time, convenient assembly, and transportation. The airframe of the whole aircraft adopts advanced manufacturing technology of aviation composite material, which has high structural strength, good fatigue resistance, long service life, and beautiful appearance. It can be used in emergency disaster reduction, border surveillance, maritime reconnaissance, pipeline inspection, aerial photography and aerial survey, land security rights and so on.
Specifications
Category | Specification | Parameter | |
Body length | 3251mm | ||
Wingspan | 5370mm | ||
Manufacture material | Carbon fiber Composites | ||
Empty weight | 55kg | ||
Max take-off weight (sea level) | 120kg | ||
Standard payload | 40kg | ||
Max payload | 50kg | ||
Cruising speed | 100 ~ 130km/h | ||
Max flight speed | 160km/h | ||
Standard propeller | 36×12inch | ||
Max Altitude | 5000m (Above sea level) | ||
Endurance | Up to 8h | ||
Powerplant | Gasoline engine | ||
Engine | 3W275 Gasoline engine | ||
Fuel tank capacity | 50L | ||
Flight Control System | Specific fuel consumption (SFC) | 5~10L/h | |
Assembly way | Detachable | ||
Flight Control System | Aircraft layout | Fixed-Wing | |
Attitude angle navigation accuracy | Static 0.5˚ / Dynamic 1˚ | ||
Positioning accuracy | 2.5m | ||
Attitude control accuracy | ±1˚ | ||
Direction control accuracy | ±2˚ | ||
Position control accuracy | ±0.2m | ||
Altitude control accuracy | ±0.5m | ||
Positioning algorithm | GPS+RTK, Selective (GPS/ Glonass/ BeiDou) | ||
Operating temperature range | -40˚C ~ 60˚C | ||
Flight mode | Manual / Auto | ||
Emergency measure | Out-of-control return, fault alarm | ||
Link system | Control radius | ≥120km (no obstacles) | |
Video Output resolution | 1080P@60fps | ||
Operational environment | Wind resistance level | Level 5 | |
Operating temperature | -20˚C ~ 60˚C | ||
Rain resistance level | Light rainfall | ||
Take-off and landing mode | Taxiing (autonomous taxiing) Glide (autonomous glide) | ||
Take-off distance | 200m | ||
Landing distance | 300m (20m wide runway) | ||
Aircraft Logistics | Preparation time | Take-off preparation ≤ 30min Landing ≤ 20min | |
Fuel | 95 Gasoline | ||
Remote Controller | Model | FUTABA T8FG | |
Work frequency | 2.4 GHz | ||
Max signal effective distance (no interference, no occlusion) | 2km | ||
Payload | Photoelectric optical zoom pod | ||
Infrared (30x zoom) pod | |||
Thermal imaging camera | |||
Multispectral camera | |||
Company Profile
Packaging & Delivery
We will offer the industrial level packaging for all the products.
Supply Ability
Supply Ability： 10 Set per Month
Supply Ability： 10 Set per Month
Technical Training
Training Objectives
In order to make our clients involved in the project, fully understand all the equipment provided by us and enhance the operational skills of the equipment, we will be responsible for organizing comprehensive and high-quality training for equipment operations and management maintenance personnel. In addition to providing the users with technical instructions, operation instructions and relevant documents of the whole equipment.
Click here to get details.
Warranty&After-sales
Maintenance support
The company provide One year of warranty for all Drone Products. Base maintenance is carried out by professional maintenance personnel. Our company will handle free of cost malfunction guidance, online support and on-site support during the warranty period. For on-site support the client will be responsible for (Air-ticket, Hotel reservation, Food, Daily expenses) of technicians and engineers.
Click here to get details.
FAQ
Q: How will you deliver the goods to me?
A: Alibaba platform will arrange the delivery, and we can negotiate about the transportation (by air, by sea or by express) together. And you can also arrange the delivery yourself if you have a reliable logistics company with which is cooperating steady for a long time.
Q: What are your terms of payment?
A: We support transfers both on Alibaba platform online and company account to company account offline. As for the payment method, we support all such as Visa, Mastercard, T&T.
Q: Can I get an invoice?
A: Alibaba will offer you a PI (Proforma Invoice).
Q. Do you test your aircrafts before delivery?
A: Yes, we have 100% test before delivery, and we will offer you a test report.
Q: What is your warranty and after-services?
A: Our warranty is 12 months after you received the goods. We will pay high attention to after-sales service. Click here to get the details.
Q: Can you provide OEM services?
A: We can negotiate for OEM services.
Q: What is the lead time? (How long will it take to prepare my order?)
A: The exact time will be based on quantity, your specific requirements and area of delivery. (normally 10 to 90 days). You can directly contact us and we will give you exact timing.
Q: Do you accept the order which requires some modifications on your drones or customized design?
A: Yes, we do
Q: Can you offer some other payloads meeting my requirements?
A: Yes, we can. We can offer solutions of the payloads based on your specific requirements. You can also buy our flight platform and integrate the payload by yourself.
Q: Is there any tracking number for my order?
A: Yes, we ship every order with unique Tracking number, and you can view the shipment status on corresponding website.
