Gigabit POE 802.3at PoE to USBC for Nest IQ Macbook Google Wifi Extend power for USB Type C device up to 100M with USBC Cable
- Category: Ethernet & Communication Modules >>>
- Supplier: Shenzhen Zhangqing Electronic Ltd.
Share on (62021031084):
Product Overview
Description

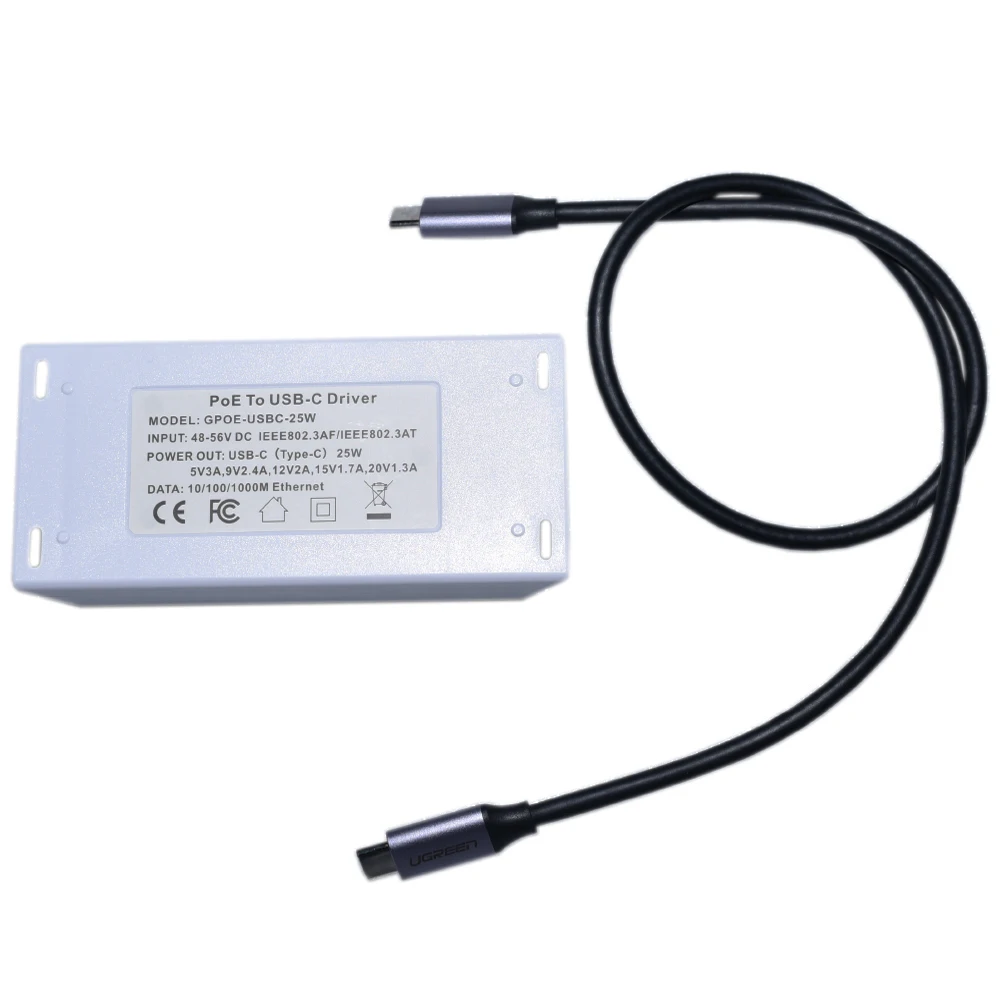

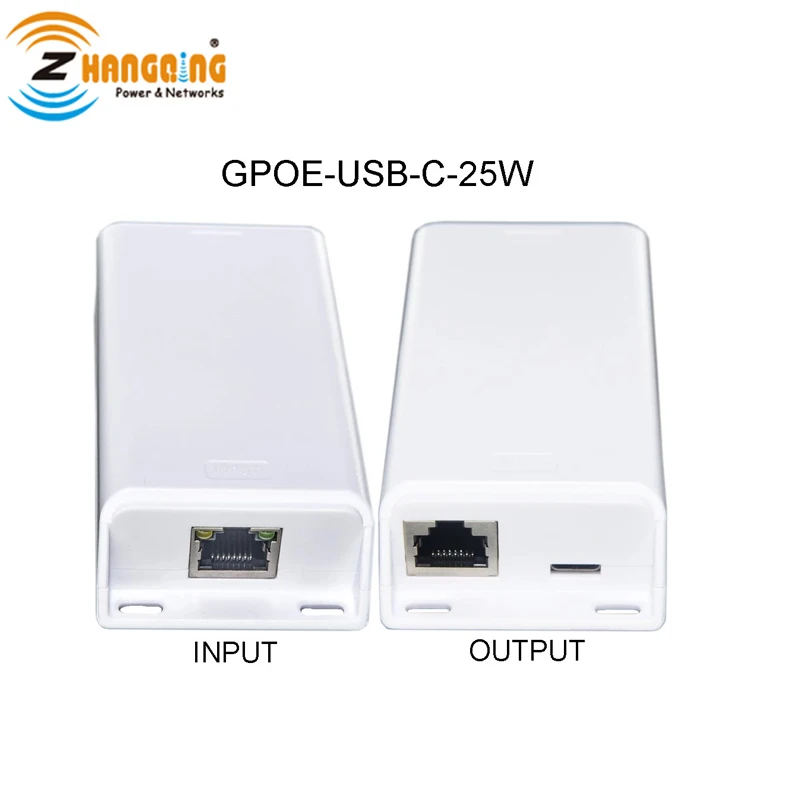

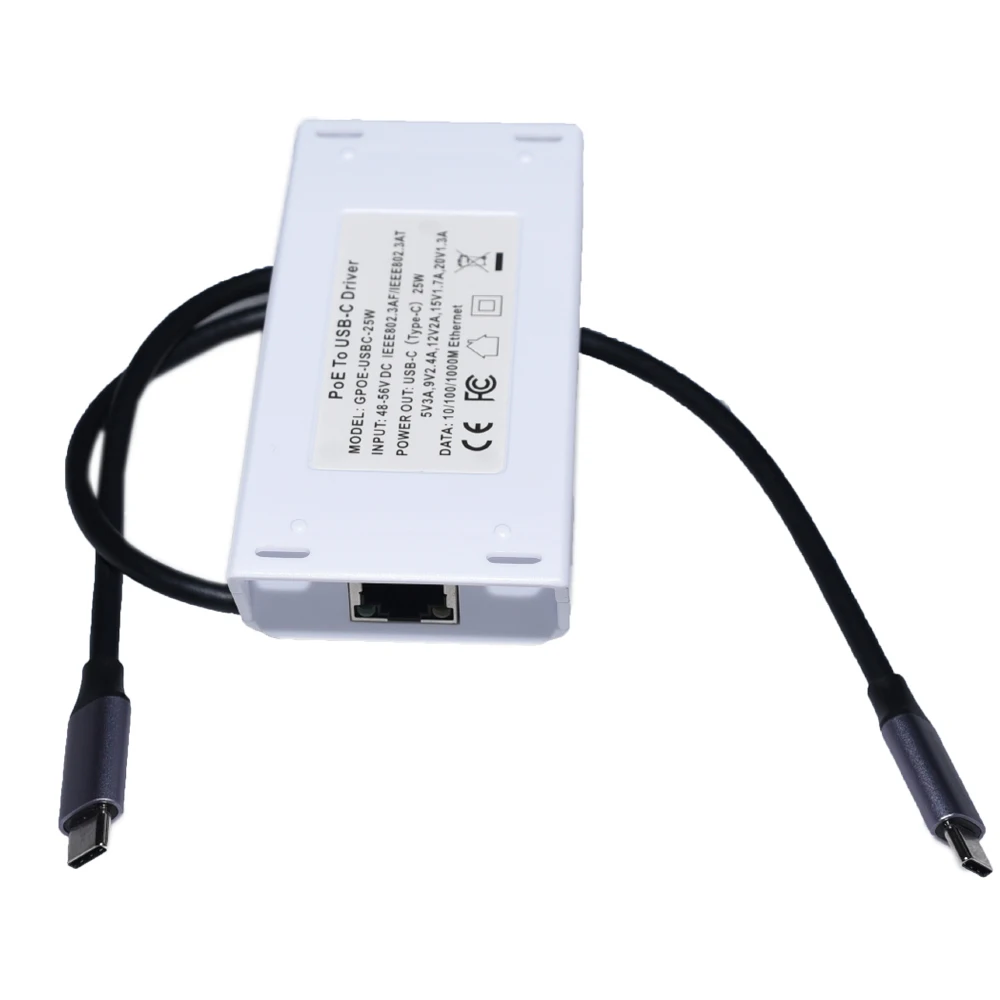

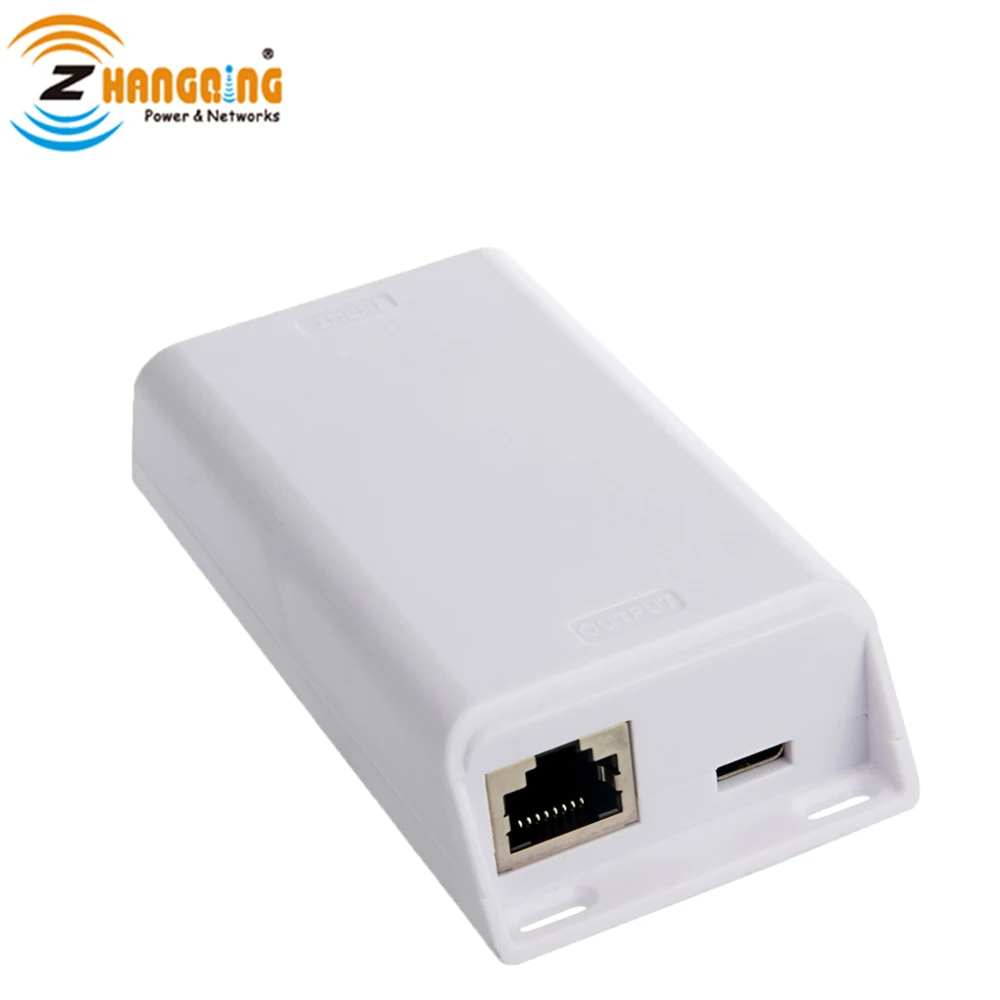

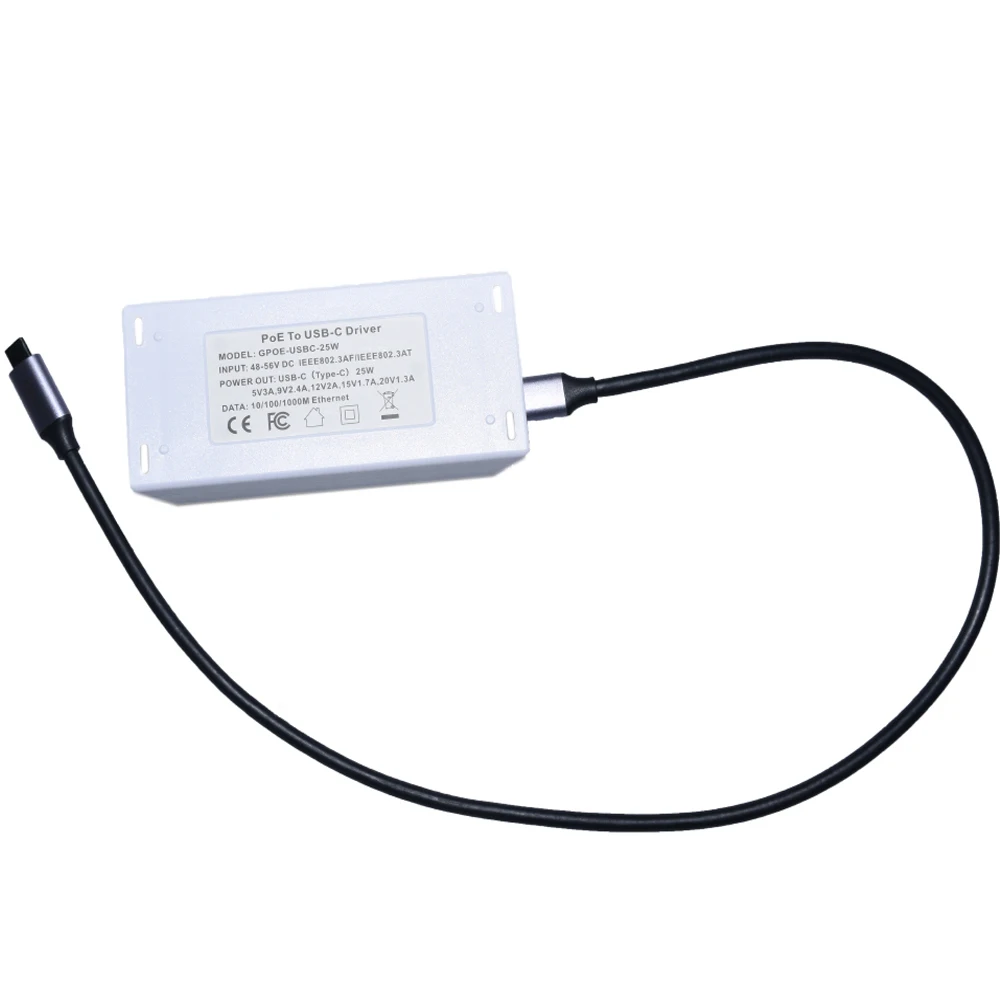

Gigabit POE 802.3at PoE+ to USBC for Nest IQ Macbook Google Wifi Extend power for USB Type C device up to 100M with USBC Cable
PoE to USB-C Driver Power delivery (5V, 12V, 15V, 20V,) with USBC Cable
This device works with any 802.3at switch, it takes the 44 to 56 volts from the PoE switch, and converts that voltage to USB-C standard voltages and removes power from the data - it works with gigabit data speeds.
Can also work with an 802.3af switch if the ouput is used below 13 watts.

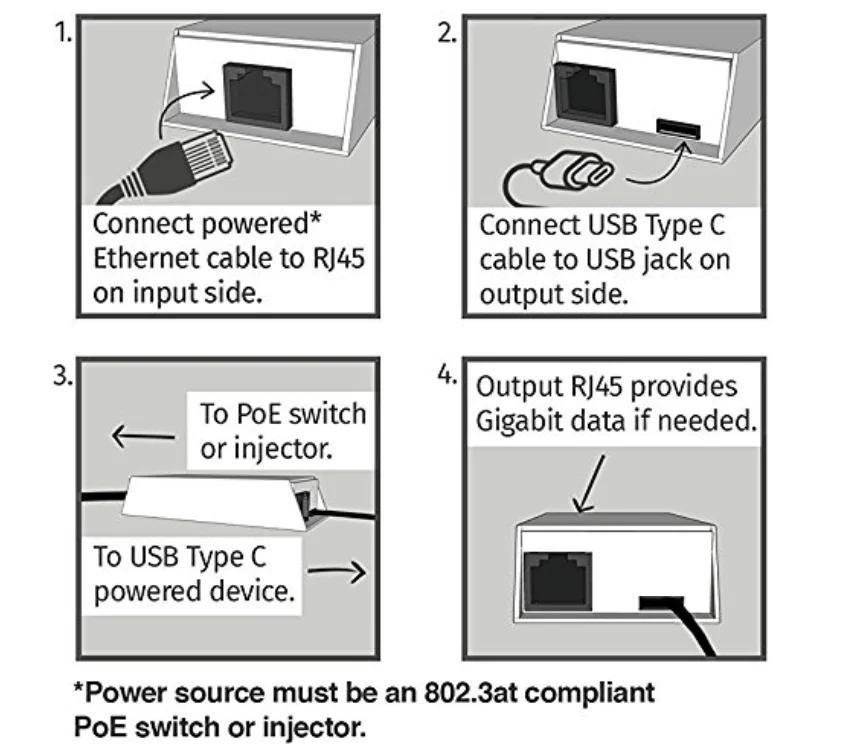

Intended for use with PoE switches – this PoE solution appears like a standard Class 4, 25 watt device. The PoE switch can send either polarity, and only 2 pairs are required for power, 4 pairs for gigabit data, 2 pairs for 10/100.
The ouput is fully isolated from the input voltage. Grounding is of no concern. The ouput power is on a USB-C connector. The voltage is defined by a negotiation between the attached device and the GAT-USB-C.

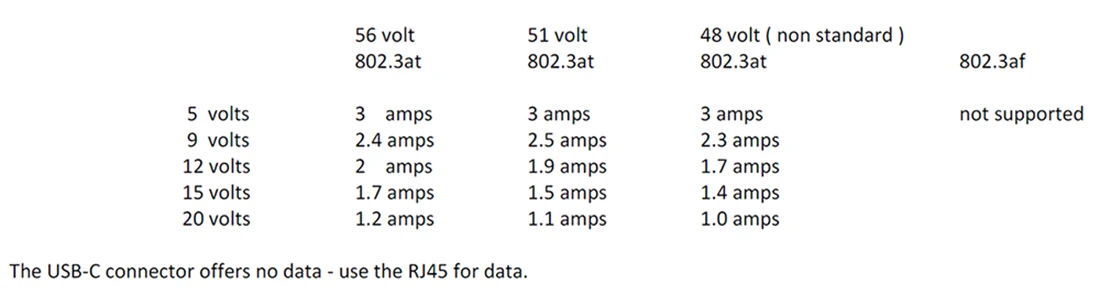

The supported voltages with copper AWG24 CAT-5e or better:
Specification:
Input
| 48-56V DC IEEE802.3at |
Output | USB-C (Type-C) 5V/3A, 9V/ 2.4A, 12V/2A,
15V/1.7A, 20V/ 1.3A
|
Date speed
| 10/100/1000Mbps |
Isolation
| 1500Volts |
Data In
| POE switch/injector |
Weight
| 100g USB-C Driver |
Type
| PoE to USB-C Driver |
Size
| 107 x 50 x 25 mm |
Data rate
| 10/100/1000Mbps Gigabit |
Connector
| RJ-45 |
Operating Temperature
| 0°C ~ 50°C |
Storage Temperature
| -40°C~+70°C |
Operating Humidity
| 10%~80%RH |
Storage Humidity
| 5%~90%RH |
Certification
| CE, FCC, RoHS |
Product Display
