8m3/h Landscaping Hydroseeder Diesel Driven High Pressure Seeds Planting Hydroseeder Grass Green Spray Seeding Machine

Product Overview

Description

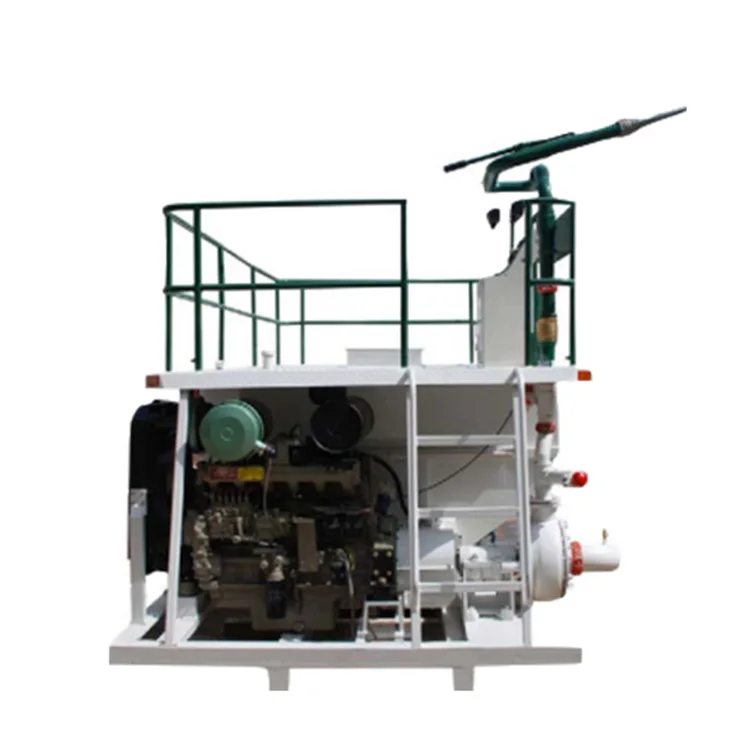

8m3/h Landscaping Hyrdroseeder Diesel Driven High Pressure Seeds Planting Hydroseeder Grass Green Spray Seeding Machine

8m3/h Landscaping Hyrdroseeder Diesel Driven High Pressure Seeds Planting Hydroseeder Grass Green Spray Seeding Machine

      Xuda PB-series spraying machine is a kind of efficient, multi-purpose spraying machine, spraying and sowing machinery at home and abroad the advantages of repeated research and improvement, constantly improve the contrast, hydraulic stepless centralized control panel and many other high-tech. Can be used for rock and soil, sand and other non soil organic matter soil surface or surface spraying. The spraying and sowing of mixture or similar materials, which is used for spraying the mixture of soil, water, fertilizer and other additives, is an ideal equipment for planting machine and ecological restoration.

       PB-series is suitable for all kinds of rock, hard soil, sandy soil, barren land, acid soil, arid zone, coastal dam and other places where plant growth is difficult. Widely used in highway slope greening, mine greening, ecological restoration and other projects. It can play an irreplaceable role in preventing soil erosion, landslides and other soil and water conservation and slope protection projects.

Product Description

       Large capacity hydroseeding machine is a spray-on water-based mixture of grass seed, wood fiber and fertilizer. It is often used to grow grass on steep slopes to help prevent soil erosion.

      The process of hydroseeding involves fiber mulch, fertilizer, water, seed and sometimes lime being mixed together inside a tank, and then applied directly over a prepared ground, using a spray hose. Once the lawn area is thoroughly sprayed, the moist fiber mulch then works to produce a bond with the soil, and also gives the seeds a water-retaining layer to defend them against the sunlight, erosion and wind. Once the seeds start to germinate, and the fiber mulch gradually decompose, providing the soil with nutrients.Hydroseeding machine for spraying seeds is drived by motor, and high-efficient special pump, high carrying ability of material.



Technical Data



Model	PB4040	PB6083	PB8083
Driven	Diese engine	Diese engine	Diese engine
Power	40kw	83kw	83kw
Tank capacity	4m3	6m3	8m3
Output	1000L/min	1350L/min
Output pressure	8kgf/cm2
Max. solid Content	Volume ratio 30%, weight ratio 60%
Max. aggregate	20mm
Mixing mode	Hydraulic infinitely variable, blades mixing and circular jet mixing
Rotating speed of mixer shaft	0-110rpm
Max. horizontal conveying distance	38-45m with gun 100-120m with hose
Max. vertical conveying distance	40m with gun 80m with hose
Spraying guns type	Fixed standing gun and pipe gun
Height of fence	800mm
Net weight	2000kg	2650kg	3200kg
Dimension	3300*2200*2500	4600*2200*2400mm	5500*2200*2500mm

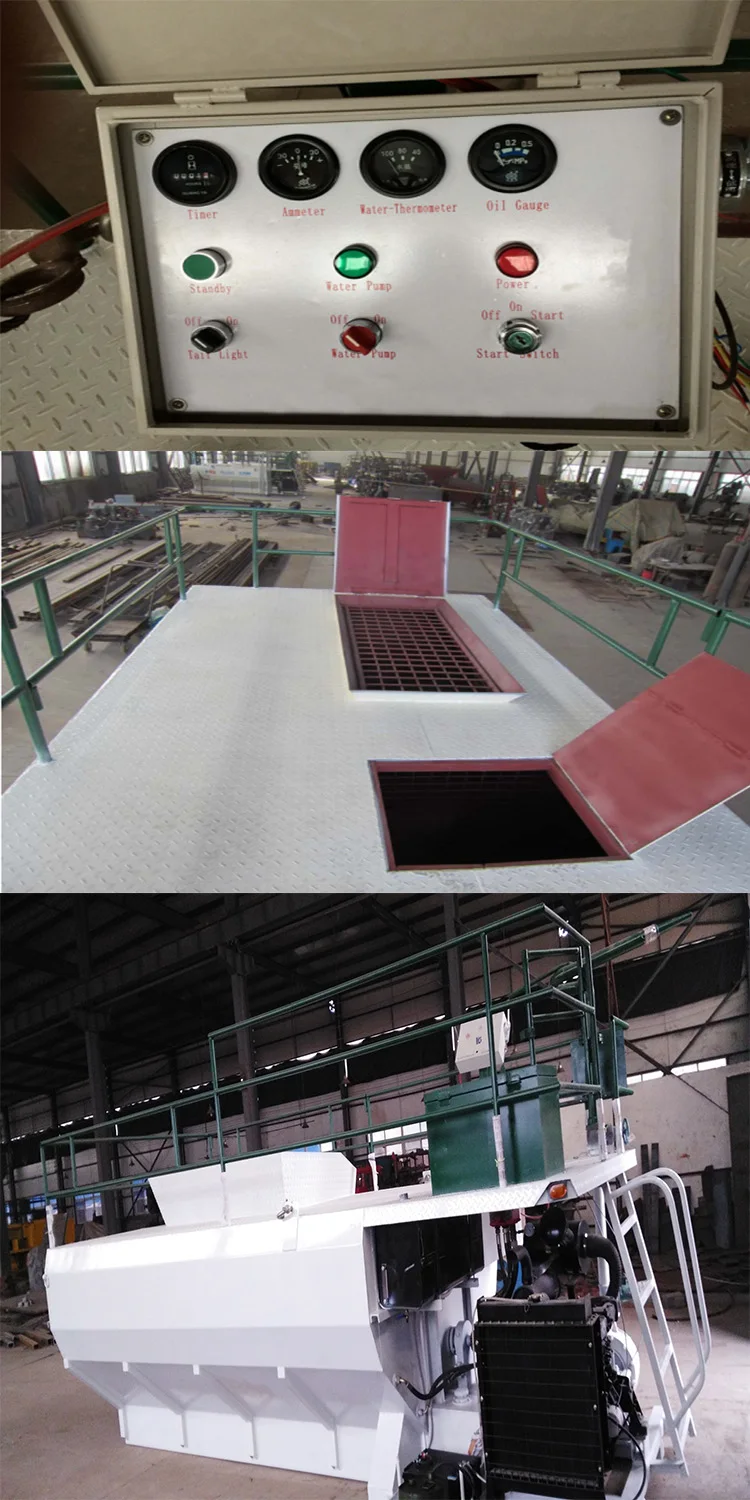

Detailed Images

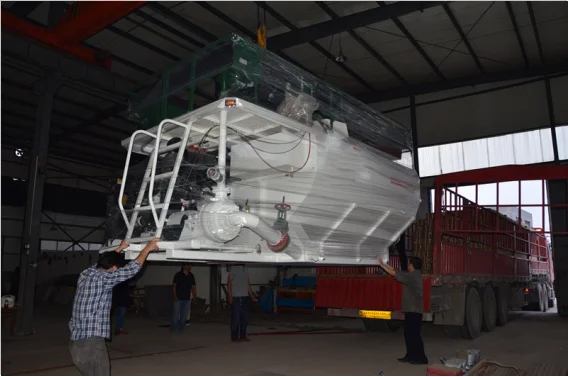

Packaging & Shipping





Company Information

1. Zhengzhou Xuda Machinery Co., Ltd is a comprehensive manufacturing factory with 20 years experience in Zhengzhou city of China.Our main product are Dry-mix and Wet-mix shotcrete machine,Mortar plastering machine, Hydraulic concrete pump,Mortar/Cement grouting pump,Hydroseeder,Mixer,Drilling rig ,etc.

2. With a shotcrete machine manufacturing factory which cover about 1000 square meters,we employ 3 high quality talents and 10 specialized workers.Lots of them have 10-20 years experiences.



Customer Show





FAQ
