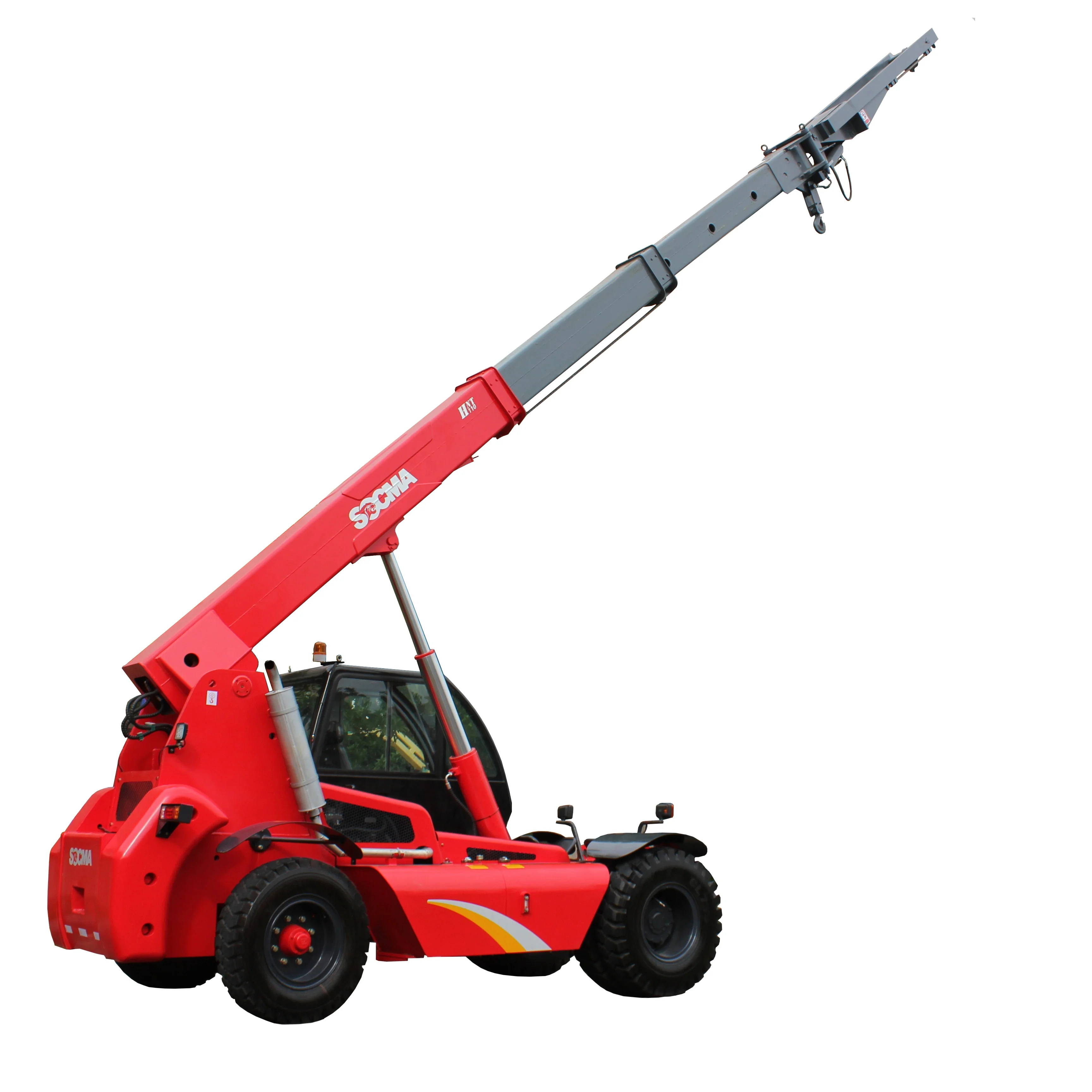

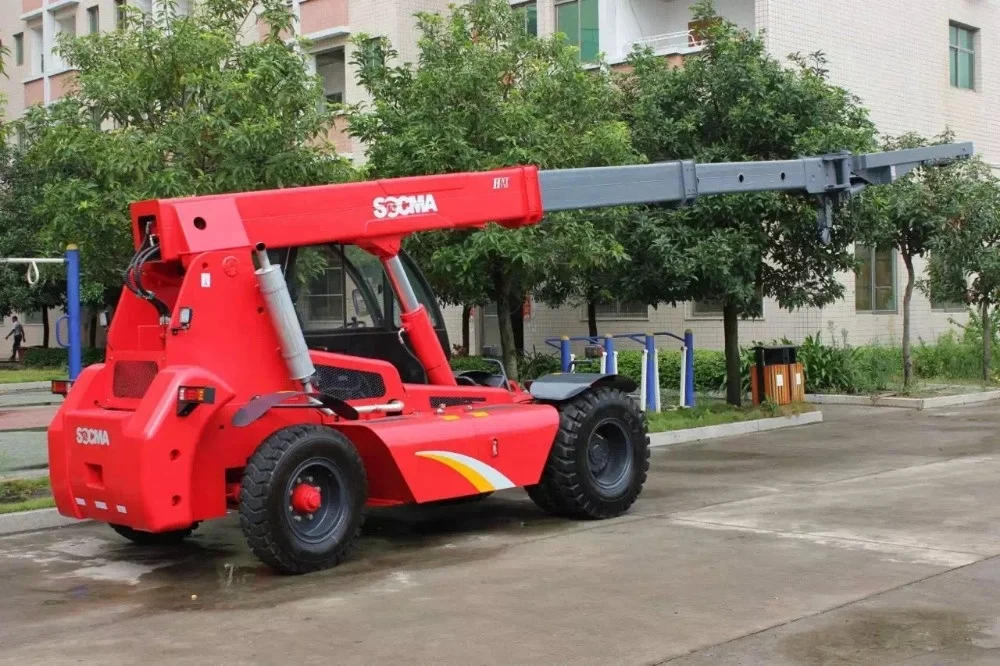

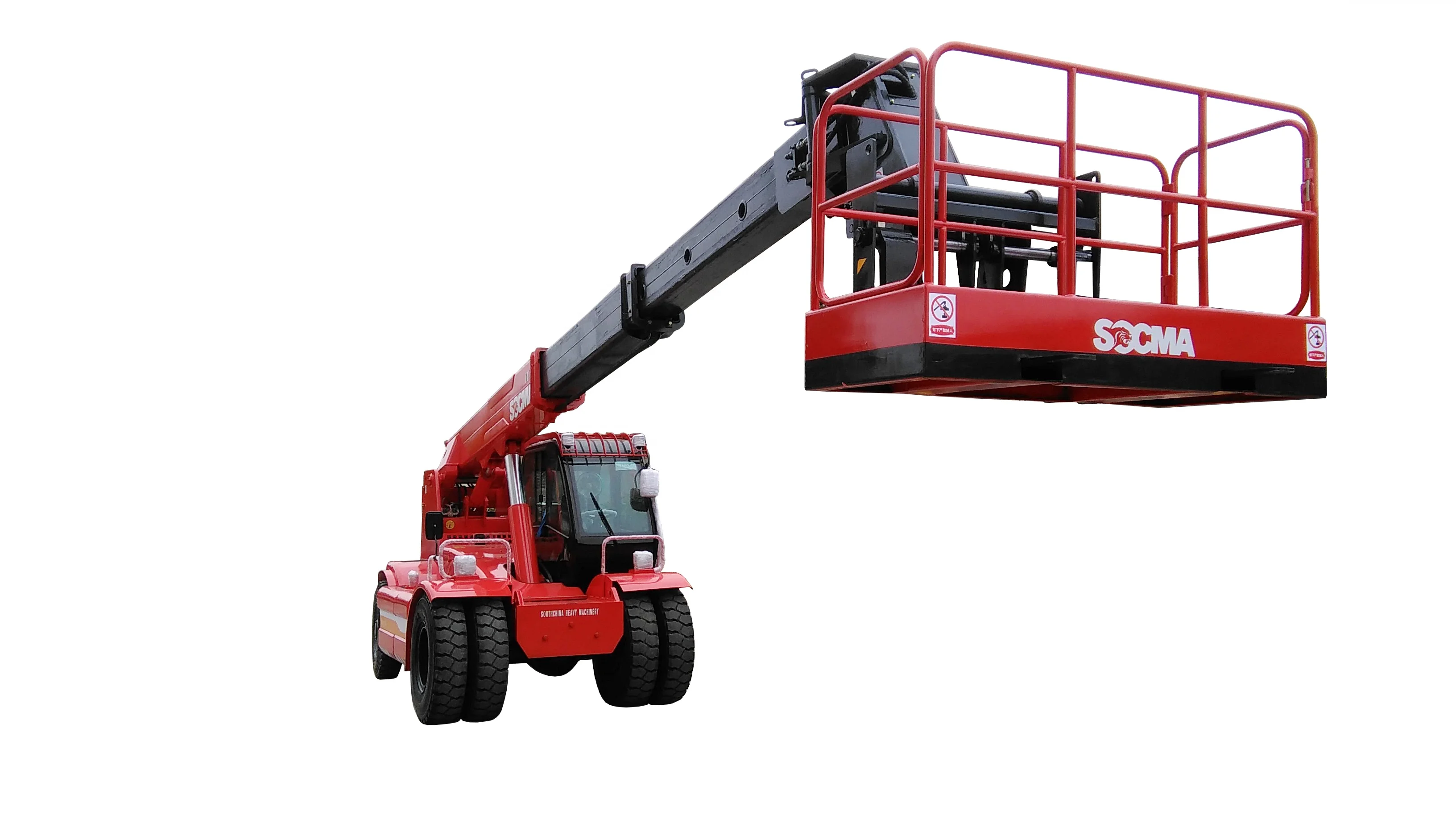

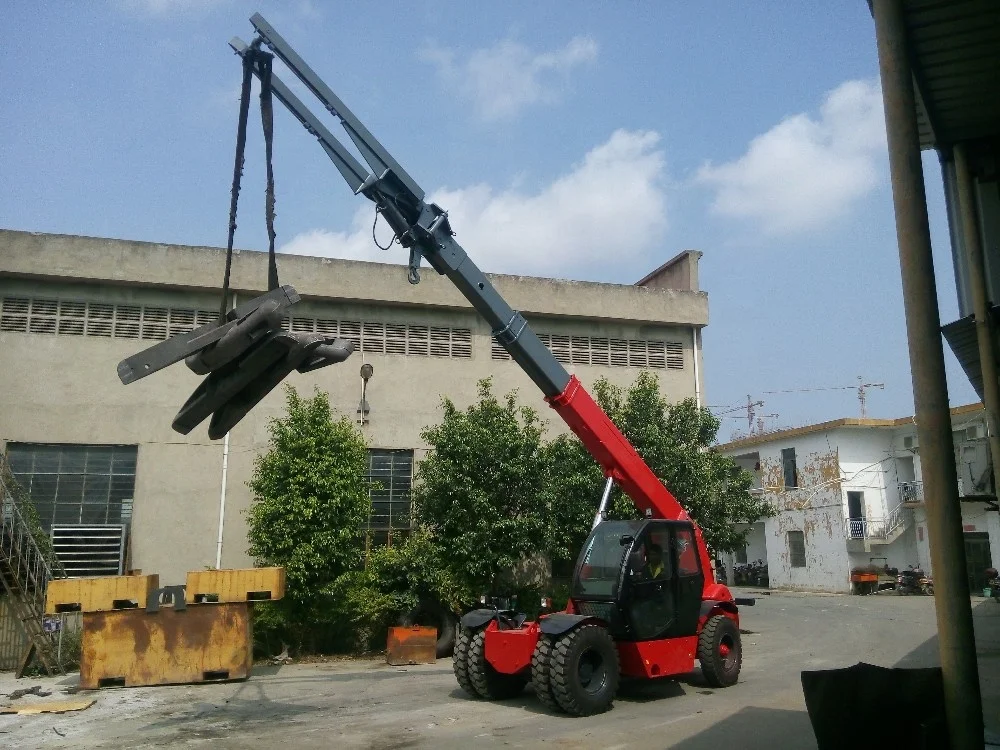

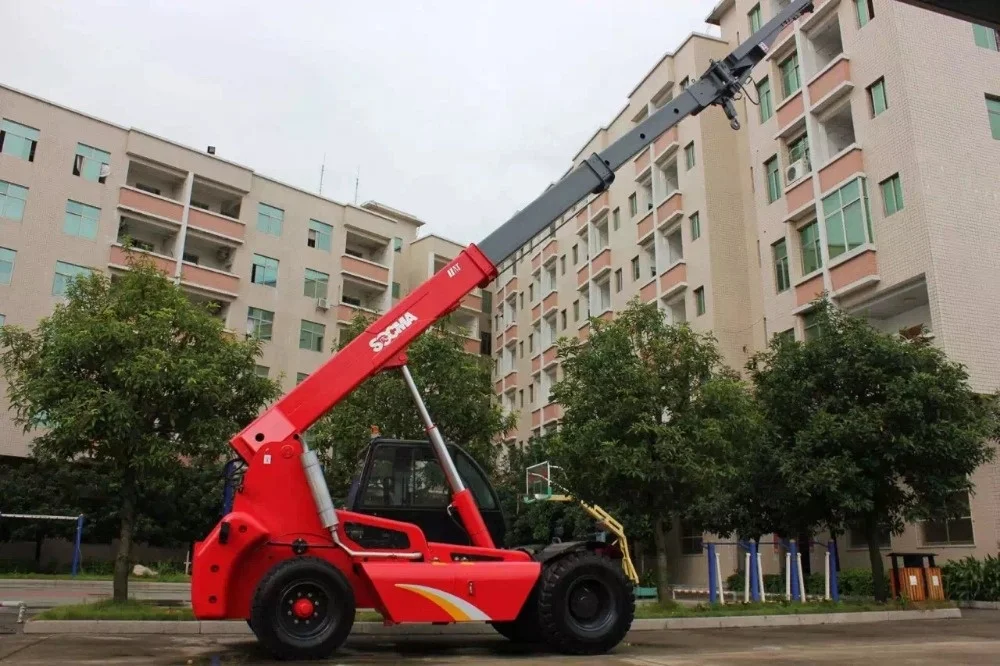

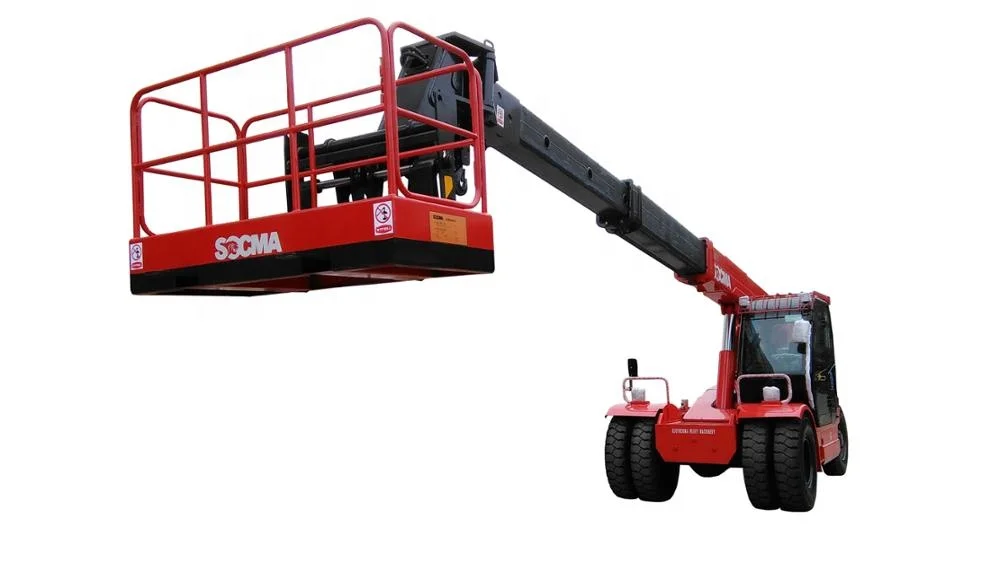

SOCMA telescopic handler 11ton for material handling in port and construction
- Category: >>>
- Supplier: Fujian Southchina Heavy Machinery Manufacture Co. Ltd.
Share on (62021081482):
Product Overview
Description
Photo | Description Of Goods |
Fob Xiamen Port,China | |
| Model:HNT110 1. Hydraulic transmission 2. Engine: Cummins 4BT3.9-C100 3. Load Capacity:11000kg 4. Operating weight 5. Load center:500mm 6. Triplex telescopic arm 6. Max. Lifting Height:10300mm 7. Fork Size:1220*150*60mm 8. Air Cab 9. Double front wheels
|
Item | Specification | Remarks |
Rated load,kg | ≤11000 |
|
Operating weight,kg | 13000 |
|
Mas. Lifting height of the main hook,mm | 7605 | (distance from the main hook to the ground) |
Max. lifting height of the complete arm,mm | 10300 | (front point hoist) |
Wheel base,mm | 2988 |
|
Front tread,mm | 1638 |
|
Rear tread,mm | 1785 |
|
Min. groud clearance,mm | 310 |
|
Overall length,mm | 5288 | Without hook |
Overall width, mm | 2310 |
|
Overall height,mm | 2715 |
|
Height of the cab,mm | 2400 |
|
Length of rear overhang,mm | 1055 |
|
Max. outreach of the main hook,mm | 4800 | (horizontal direction) |
Max. outreach of the complete arm,mm | 7900 | (horizontal direction) |
Tipping angle of hook, up/down,(°) | 22°/24° |
|
Tipping angle of big arm, up/down,(°) | 14°/43° |
|
Min. turning radius, mm | 6800 |
|
Max. gradeability,(°) | ≥20% |
|
Max. travelling speed,Km/h | 25 |
|
Front tyre | 11.00-20 |
|
Rear tyre | 9.00-20 | |
Engine | Cummins 4BT3.9-C100II |
