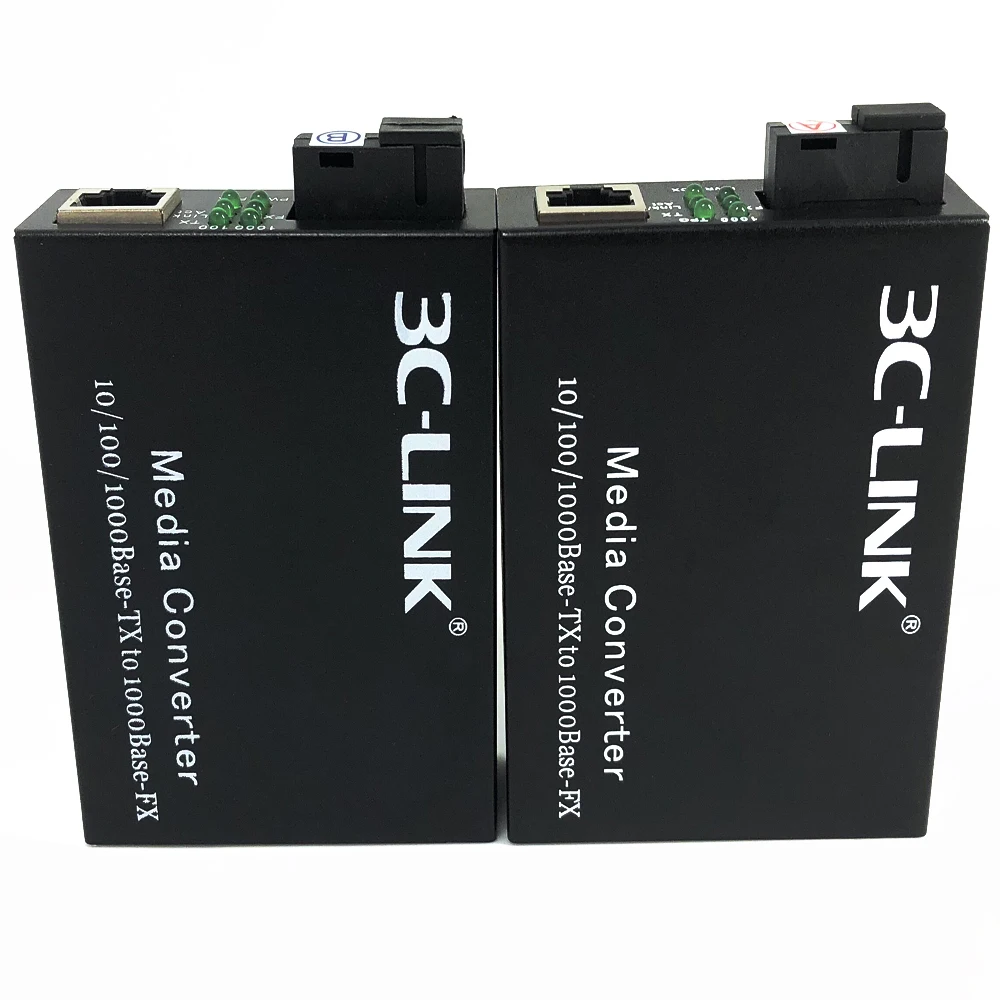

10/100/1000 Fiber Optic Ethernet 1 SC Media Converter rj45 to Single Fiber for Enterprise Switches
- Category: >>>
- Supplier: Shenzhen 3C-Link Opto Co. Ltd.
Share on (62021110364):
Product Overview
Description

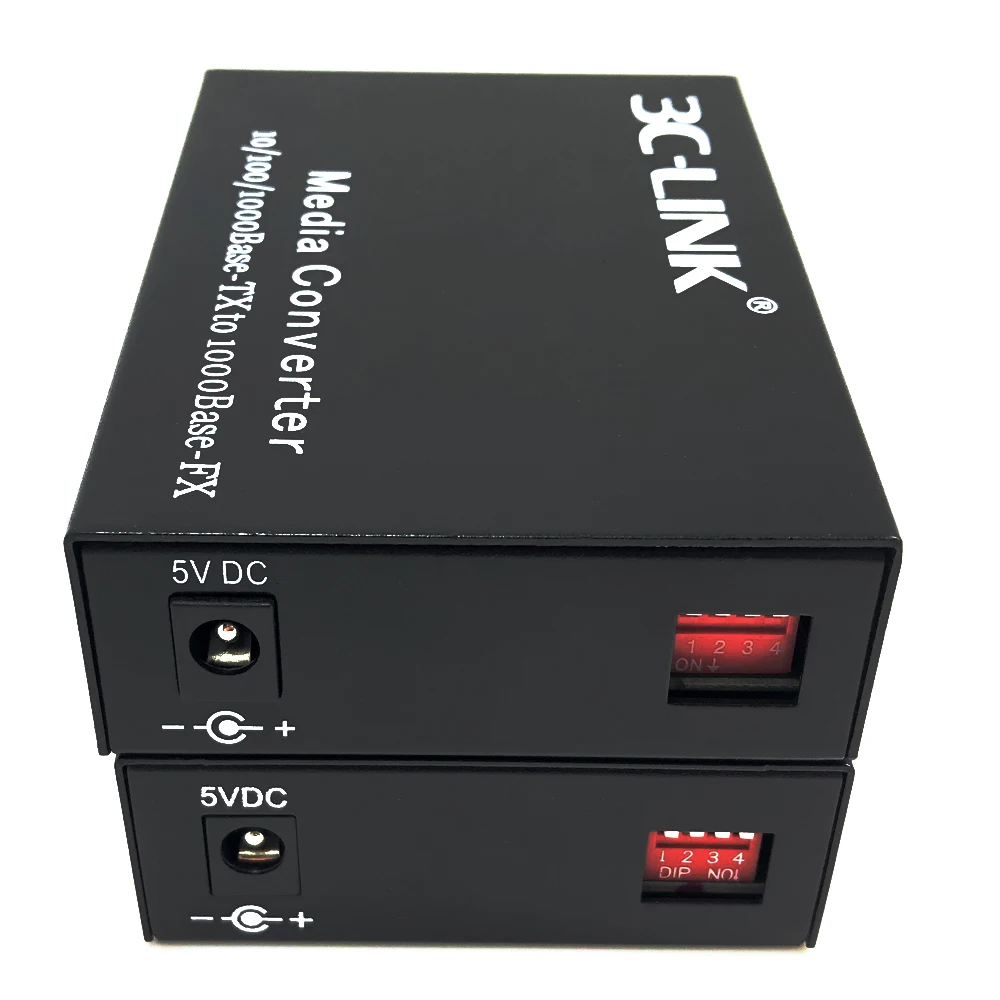

Single fiber wdm sc apc optical cable 10/100/1000M fiber media converter to utp 20-120km with DIP Switch
Product Description

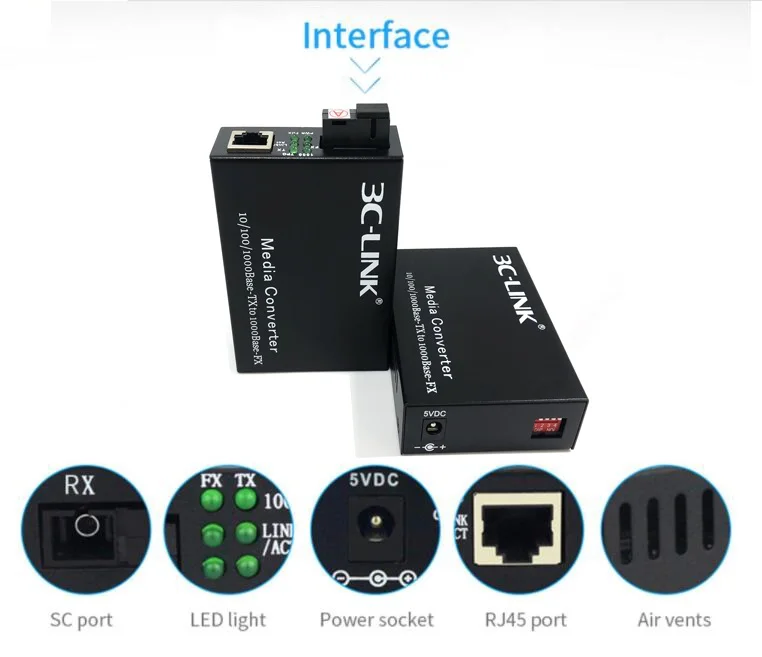

Optical Port
1310/1550nm Single mode
Connectors: SC Bi-Directional connector
Ethernet Port
Connectors: RJ-45 Connector

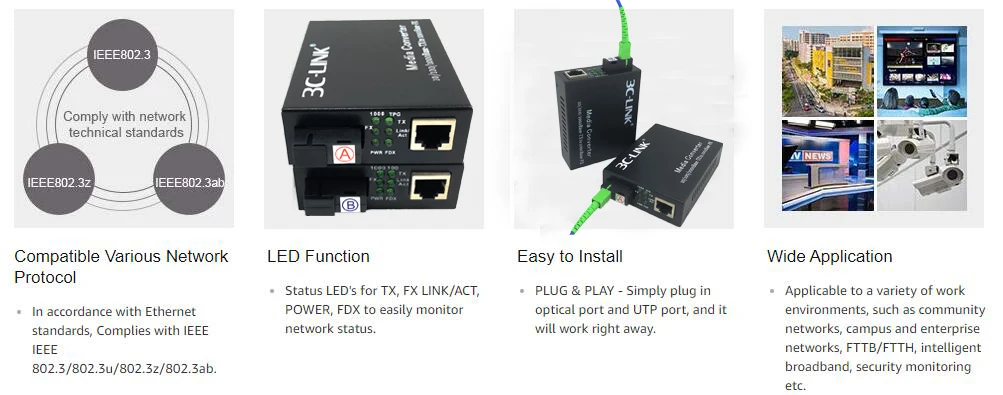

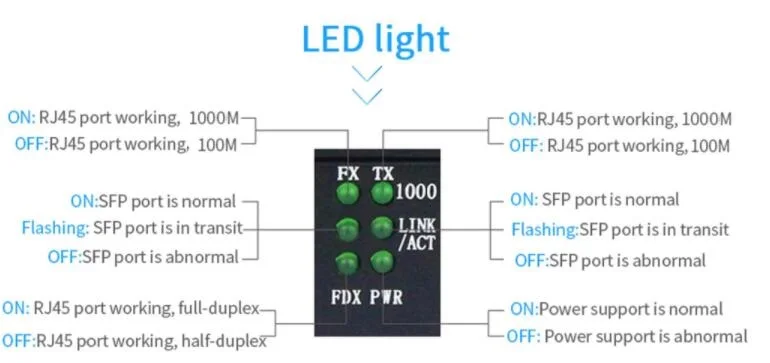

LED Indicators
FX, TX, Link/Act(Left/Right), FDX, PWR
FX: Light on when fiber speed is 1000Mbps, else light off
TX: Light on when TP speed is 1000Mbps,else light off
Link/ACT: Left side is indicate for fiber port link/act and right side for TP,light flashing when data transmitting and receiving
FDX: Light on when TP full-duplex mode is active,light off when TP half-duplex mode is active
PWR: Light on when DC power on, else light off
1310/1550nm Single mode
Connectors: SC Bi-Directional connector
Ethernet Port
Connectors: RJ-45 Connector
LED Indicators
FX, TX, Link/Act(Left/Right), FDX, PWR
FX: Light on when fiber speed is 1000Mbps, else light off
TX: Light on when TP speed is 1000Mbps,else light off
Link/ACT: Left side is indicate for fiber port link/act and right side for TP,light flashing when data transmitting and receiving
FDX: Light on when TP full-duplex mode is active,light off when TP half-duplex mode is active
PWR: Light on when DC power on, else light off
Specification
Output voltage: 5VDC 1.0A
Power dissipation: ≤3 watts
Housing: Metal enclosure
Dimensions: 93 x 71 x 27mm(D x W x H)
Weight: 0.5kg
Operating Temperature: 0°C to 60°C
Storage Temperature: -20°C to 70°C
Warranty
2-3 years

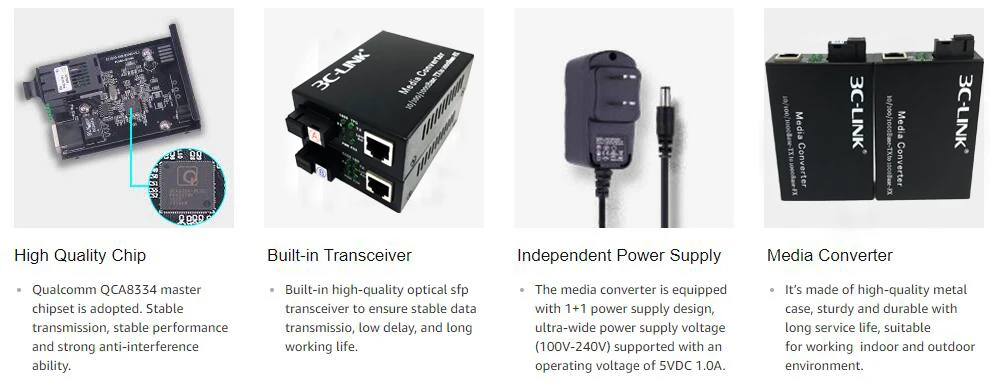

Gigabit Ethernet Media Converter

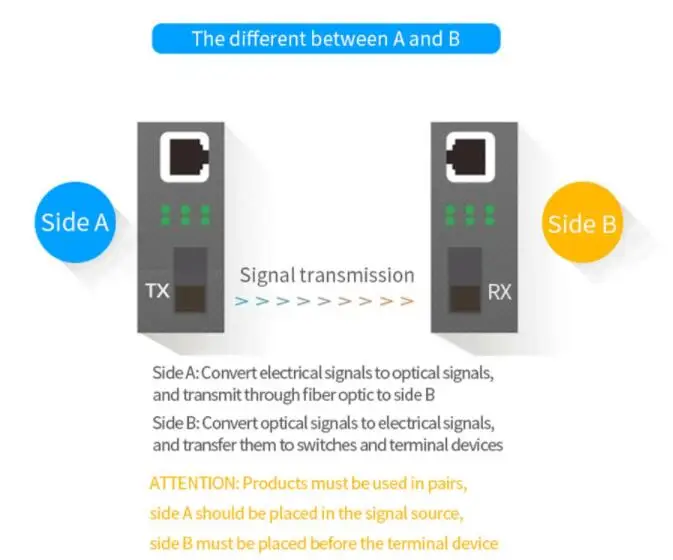

Work in pairs, Single sc port, Reach 20-120km
Low Power consumption
Three-level lightning protection
Dustproof and dampproof

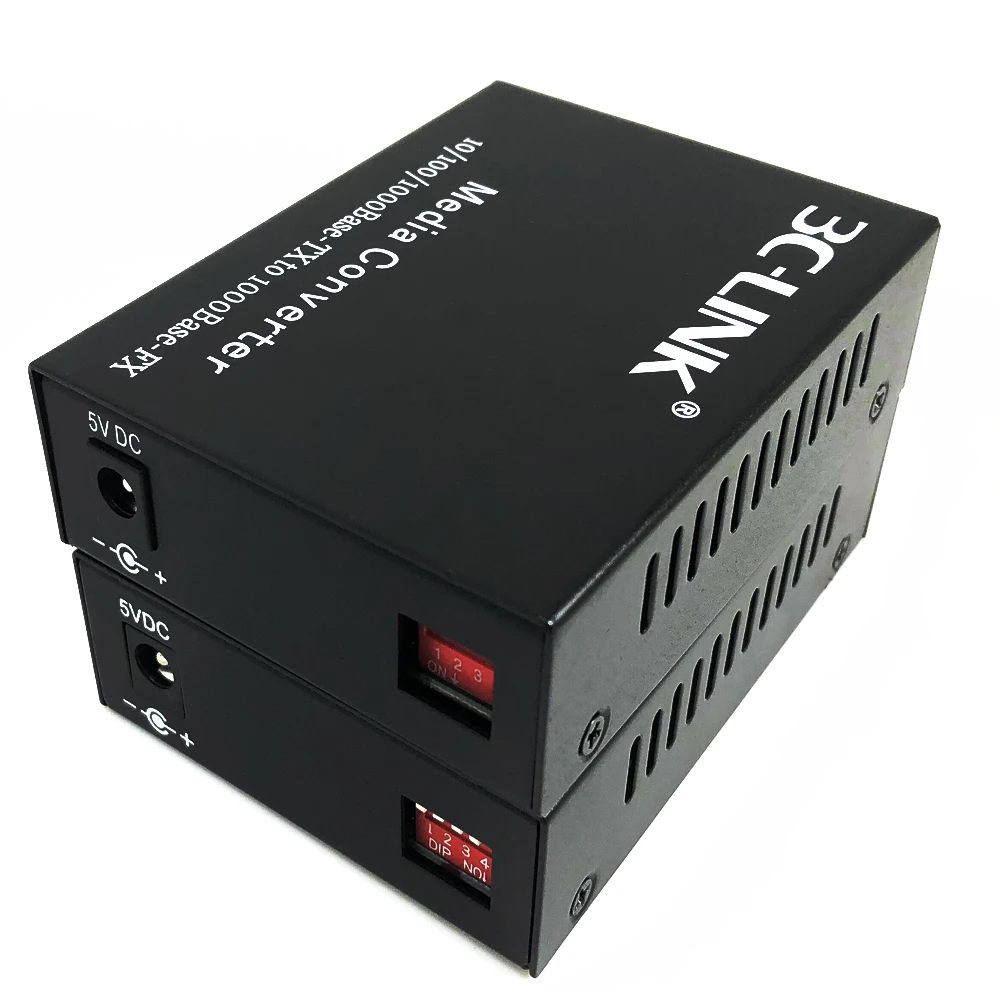

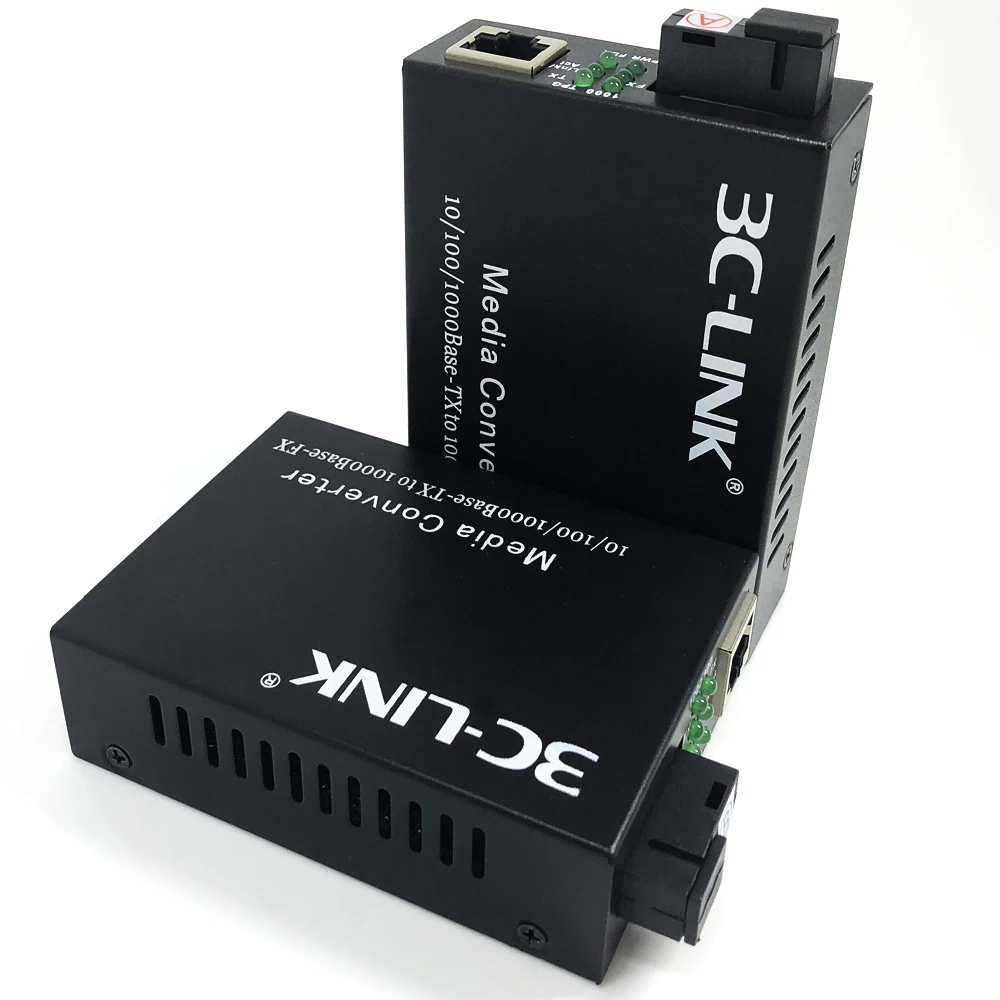

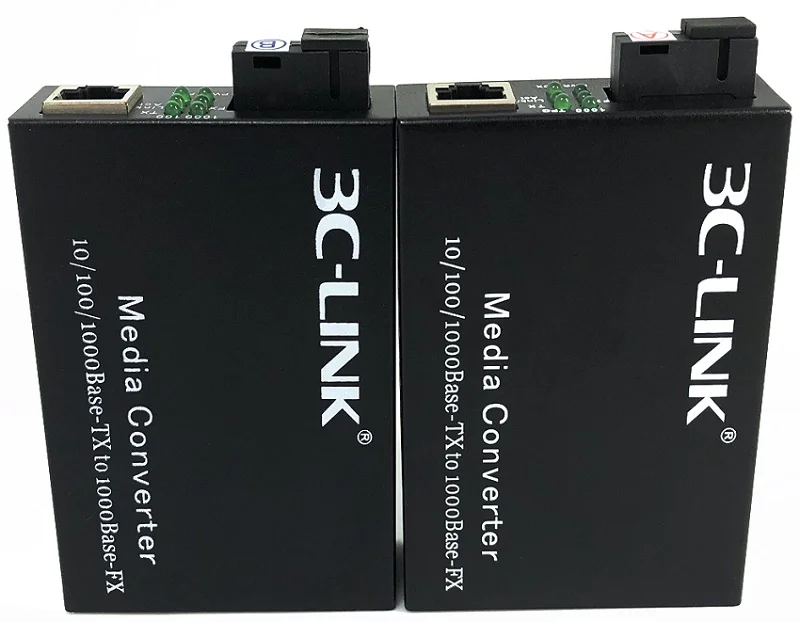

-------------------------------Media Converter Pictures----------------------
Packaging & Shipping
----------------------------Order Information--------------------------------
| Item | Model | Description | Interface |
| 1 | 3C-WDM-1000-35-3 | 10/100/1000M, SM, 3KM, WDM,1310T/1550R | SC |
| 2 | 3C-WDM-1000-53-3 | 10/100/1000M, SM, 3KM, WDM,1550T/1310R | SC |
| 3 | 3C-WDM-1000-35-20 | 10/100/1000M, SM, 20KM, WDM,1310T/1550R | SC |
| 4 | 3C-WDM-1000-53-20 | 10/100/1000M, SM, 20KM, WDM,1550T/1310R | SC |
| 5 | 3C-WDM-1000-35-40 | 10/100/1000M, SM, 40KM, WDM,1310T/1550R | SC |
| 6 | 3C-WDM-1000-53-40 | 10/100/1000M, SM, 40KM, WDM,1550T/1310R | SC |
| 7 | 3C-WDM-1000-35-60 | 10/100/1000M, SM, 60KM, WDM,1310T/1550R | SC |
| 8 | 3C-WDM-1000-53-60 | 10/100/1000M, SM, 60KM, WDM,1550T/1310R | SC |
| 9 | 3C-WDM-1000-35-80 | 10/100/1000M, SM, 80KM, WDM,1490T/1550R | SC |
| 10 | 3C-WDM-1000-53-80 | 10/100/1000M, SM, 80KM, WDM,1550T/1490R | SC |
| 11 | 3C-WDM-1000-35-120 | 10/100/1000M, SM, 120KM, WDM,1490T/1550R | SC |
| 12 | 3C-WDM-1000-53-120 | 10/100/1000M, SM, 120KM, WDM,1550T/1490R | SC |
Our Services
MOQ
Although we expect you to place bigger order to benefit a good discount, we undertand that you may like to test the quality and market first. Our MOQ for media converter is 1-10 pcs.
Lead Time
Normally our lead time is 5-7 days, but sometimes we can provide priority production for urgent case.
Payment
For samples: Paypal and western union are accepted, as they are fast to receive payment;
For bulk order: Below $5000, we accept full payment; Above $5000, we could accept 30% deposit in advance, the balance to arranged before shipment.
Warranty
2-3 Yeas starts from the date of delivery. The technical service is free of charge under warranty period.
Technical service: Includes E-mail support, phone support, on-site support and repairation / replacement service.
-------------------------------------------------------------------Related Products---------------------------------------------------------------

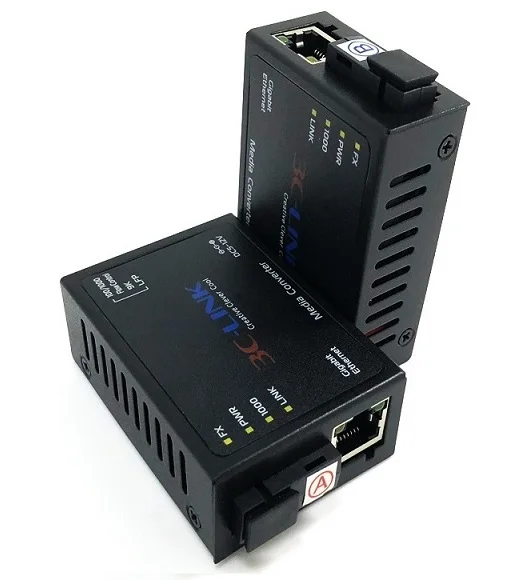

MINI 1000M BIDI WDM Media Converter,
please Click on the picture below

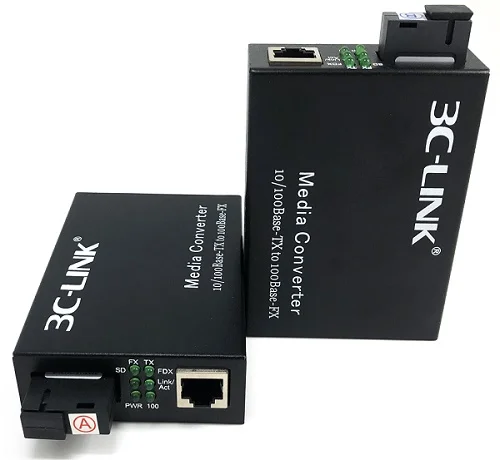

100M BIDI WDM Media Converter,
