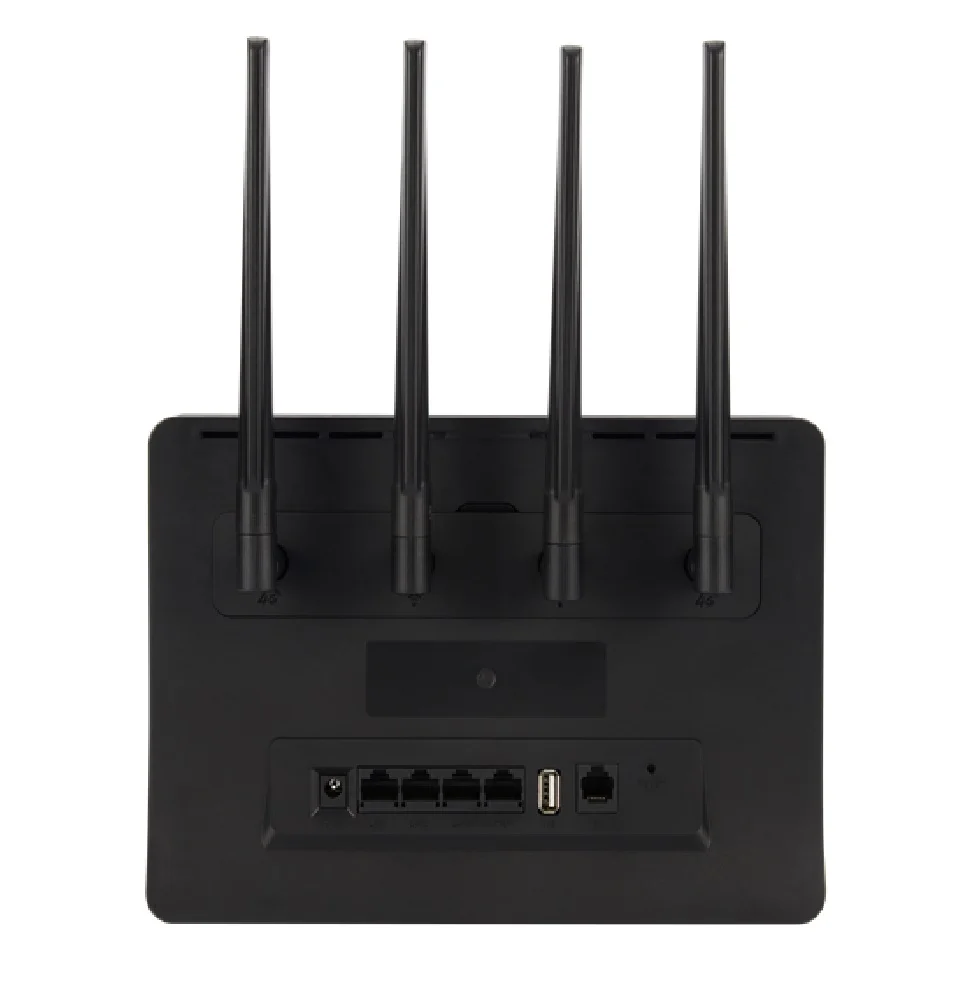

4G LTE Cat.6 CPE Router with external Antenna and RJ 11

Product Overview

Description

Air Interface	Technical Standard	Compatible with FDD/TDD-LTE/HSPA+/HSPA/UMTS/GSM/CDMA20001X 802.11 b/g/n/ac DBDC
	Frequency(SKU1)	Minum: LTE FDD:B2/B4/B5/B7/B12/B28/B66 WCDMA:B 1/2/5 GSM:B2/B5 Recommend:   LTE:B2/4/5/7/26/12/13/17/28/66      WCDMA:B1/2/5      GSM:850/1900      4X4 MIMO:B2/4/5/7/12/17/26/28 Support CA  :  1.AT&T CA :DL :CA_4A_5A, CA_7C   2.Telcel CA :DL CA: 4A - 7A,7C,66A - 66A,4A - 5A,5A - 7A
	WIFI	2.4&5 GHz, WIFI 2*2 MIMO,802.11 b/g/n/ac DBDC
Performance	Maximum Data Throughput	LTE CAT6 FDD-LTE 300Mbps/50Mbps LTE FDD(Category 4): DL 150Mb/s/UL 50Mb/s LTE TDD(Category 4): DL 110Mb/s/ UL 11Mb/s HSPA+/HSPA/UMTS: DL 42Mb/s/ DL 21.6Mb/s / DL 14.4Mb/s;UL 5.76Mb/s
Hardware	Receive Diversity	Support Receive Diversity
	MIMO	Support LTE DL 4x4 MIMO
	BB Chipset	Qualcomm MDM9x50
	AP+WIFI Chipset	MT7621A+MT7603E+MT7612EN
	Memory	Modem:256MB+256MB AP:256MB+16MB
	power consumption	<12W
	Power Voltage	DC12V/1A
	USIM/SIM	2FF SIM card support SIM/USIM/UIM,standard 6 PIN SIM card interface, support 3V SIM card and 1.8V SIM card;internal  push-push SIM slot
	LED	Power Indication LED(SYS),WAN Signal Strength(RF), WiFi/WPS Indication LED(WIFI), WAN/LAN Status LED(ETH),Internet Status LED(NET),	single / dual-color / tri-color
	USB	USB3.0 (between modems,not for end users)
	Antenna	4 x LTE 4x4 MiMo 2 x WIFI (2.4 + 5G)  2*2 MIMO	2*LTE  Internal,2*LTE+2*WIFI External
	Buttons	POWER,Reset,WPS Power: CPE should send the  information to network when the CPE is Powered off.
	Slic	SI32185
	Ethernet	1WAN+3LAN, 10BaseT/100Base/1000Base automatic adaptive port
	RJ11	RJ11x1
	Reset	Pinhole
	Fax	Support
	ESD	ESD Protection circuit;Contact±8KV,Air±10KV
Software	SW Update	TR069 & Local Update
	WIFI Mode	AP Only
	WIFI Security	OPEN & WPA-PSK& WPA2-PSK & WPA-PSK/WPA2-PSK;
	SMS	Support
	Voice	VoLTE & VOIP & CS Domain voice
	AGPS	Not Support
	IPv4	Support IPv4
	IPv6	Support IPv6
	Firewall	Mac/IP address filter, Port forwarding, WiFi Black/Whilte list ALG: SIP(must)/RSTP(optional)          FTP(optional)
	Data Statistics	Support
	VPN Pass Through	PPTP/L2TP/IPSec
	SIM Lock	Support
	TR069	Support;	Noet:Not Support STUN bu default. It can be customized. TR-143: support Partial. TR-111: It has just developped but have not joint-tested. It can support after some verification.
	Fota	Support;
	SNTP	Support
	DOS ATTACK	Support
	DMZ	Support
	HTTP	Support
	HTTPS	Support
Certification	Certification	Depends on customization, cost related
Environment	Operating Temperature	Normal:0°C to +45°C;
	Storage Temperature	-20° C  to +70° C
	Humidity	5%~ 95%
