LCD Display Digital Pressure Gauge Air Liquid Fuel Oil Hydraulic Pressure Gauge
- Category: >>>
- Supplier: Huaxin Instrument (Beijing) Co. Ltd.
Share on (62021226291):
Product Overview
Description
Product Description

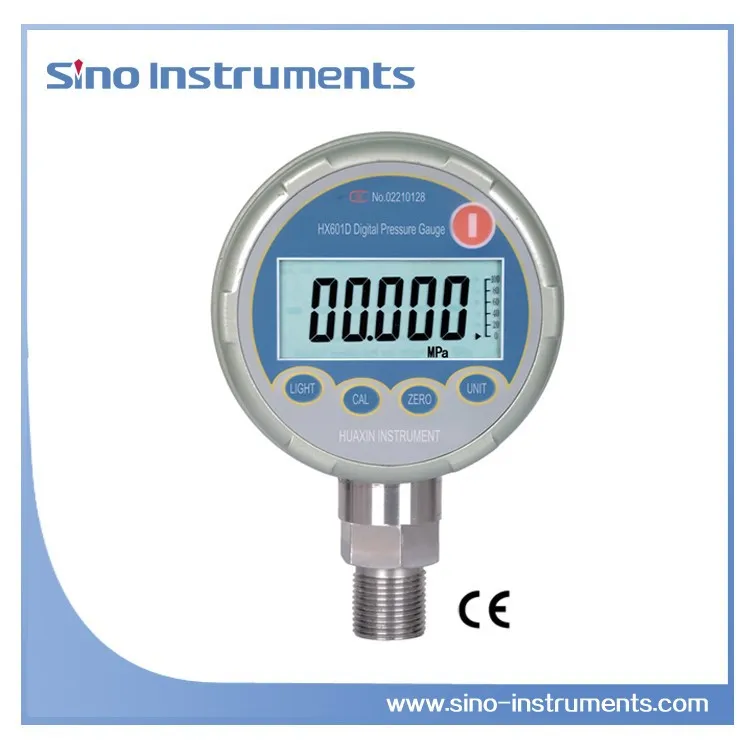

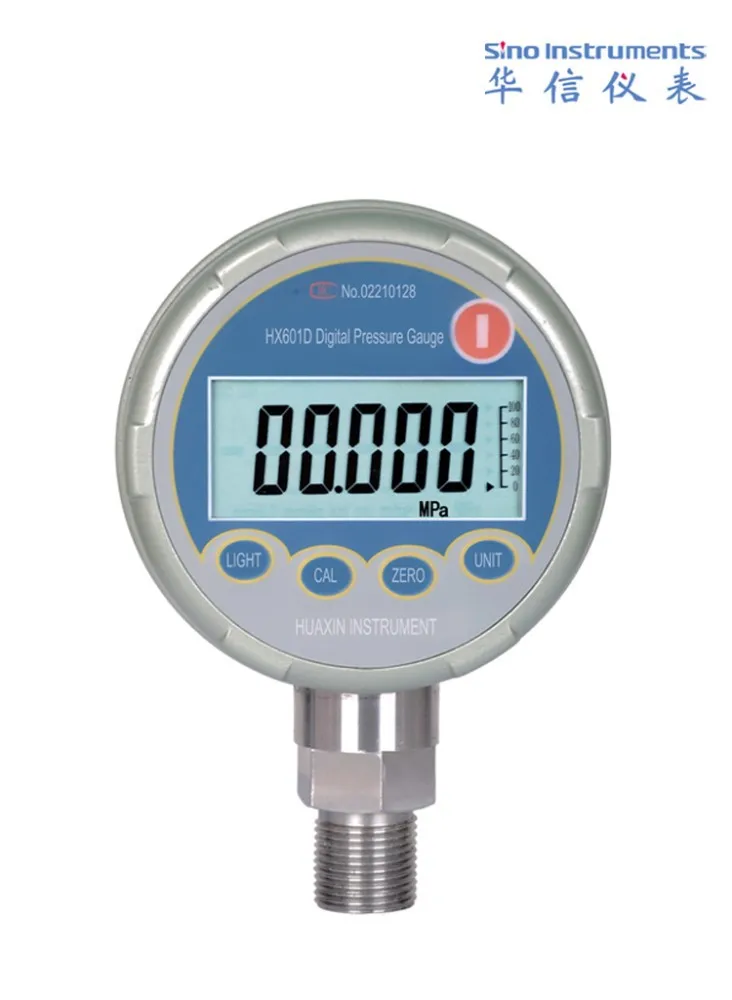

HX601 Digital Pressure Gauge adopts micro power components and unique software processing technology. Adopting Li-battery power, it could work 24 hours continuously for 2 years. With 5-digit large crystal screen, the data could be showed more clearly. Every HX601 has passed the high and lower temperature aging thus to ensure more reliable precision. The product has been used in the industries of power, chemical, petrol, metallurgy, metering, etc.
Product name | Digital Pressure Gauge |
Model | HX601 |
range | (-1-0)bar, (0-700)bar |
Accuracy | 0.02 0.05%FS; 0.2%FS |
standby Time | up to 24hours for 2years |
compensation | （0-50）℃ |
Thread type | M20*1.5, or 1/4''NPT male thread |
HART | No |
Factory reset | One-button Reset |
Unit | kPa Pa psi kgf/cm2 bar mba mmH2O |
medium | Gas,liquid,oil,water |
Certifacete | CE&RoHs |
temperature | （-10,50）℃ |
technical specification
◆ Accuracy:±0.05%F.S,±0.1%F.S,±0.2%F.S, ,±0.5%F.S.
◆ Units kPa, Pa, psi, kgf/cm²,bar,mbar,mmH2O,mmHg,MPa .
◆ Temperature compensating range(0-50)℃
◆ Range: (-1-0)bar, (0-700)bar,(any range within this two range).
◆ Display: 5 digits with 14mm character height.
◆ Connection:M20*1.5, or 1/4''NPT male thread(or customized)

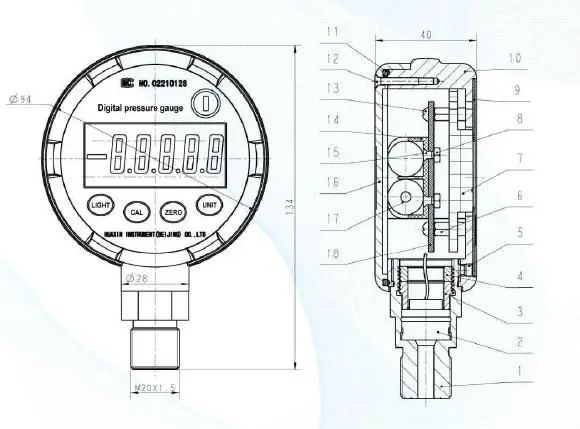

◆ Dimensions:Φ92.6mm×41mm.Weight:0.5kg.Height:133mm
◆ Units kPa, Pa, psi, kgf/cm²,bar,mbar,mmH2O,mmHg,MPa .
◆ Temperature compensating range(0-50)℃
◆ Range: (-1-0)bar, (0-700)bar,(any range within this two range).
◆ Display: 5 digits with 14mm character height.
◆ Connection:M20*1.5, or 1/4''NPT male thread(or customized)
◆ Dimensions:Φ92.6mm×41mm.Weight:0.5kg.Height:133mm
Description of application effect
Pressure Gauge is widely used in the industry and peoples‘daily life to ensure all kinds of instruments in use is Reliable,many
countries legislate to ask the relavent industries Practitioners must send the instruments to the agency Designated by Govenment Regularly，to ensure the instruments is working Normally.and nowdays Presure Gauge is becoming more and more impoartant while ensure the Safe Production activities Instrumentation, metrology petrolem, military industry, university laboratory, research institutes.
countries legislate to ask the relavent industries Practitioners must send the instruments to the agency Designated by Govenment Regularly，to ensure the instruments is working Normally.and nowdays Presure Gauge is becoming more and more impoartant while ensure the Safe Production activities Instrumentation, metrology petrolem, military industry, university laboratory, research institutes.

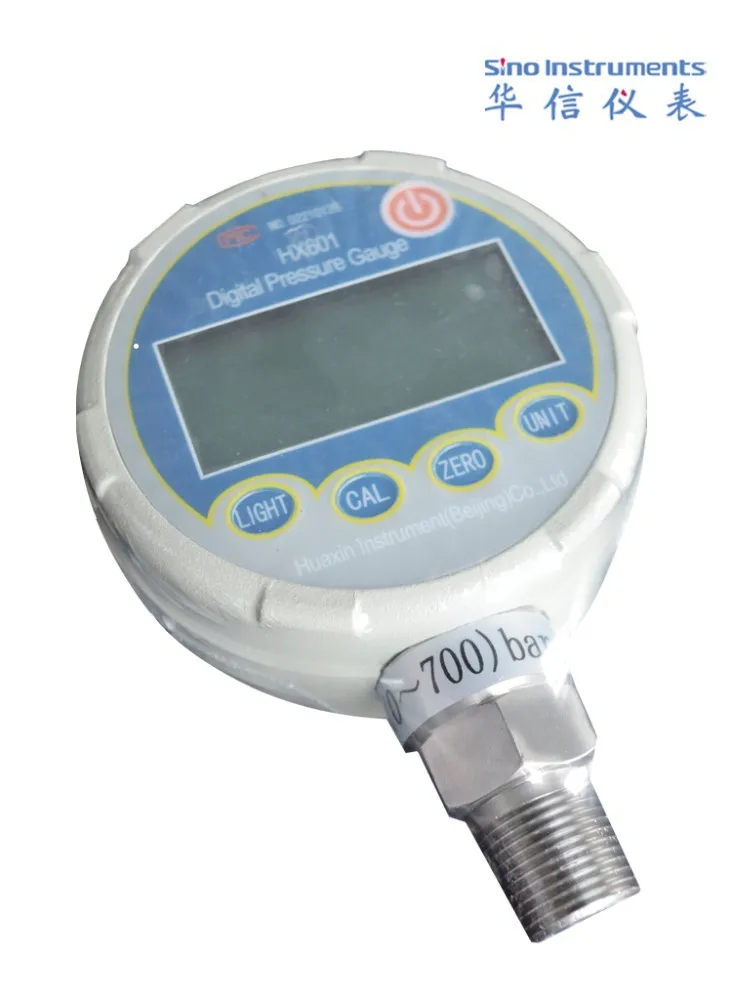

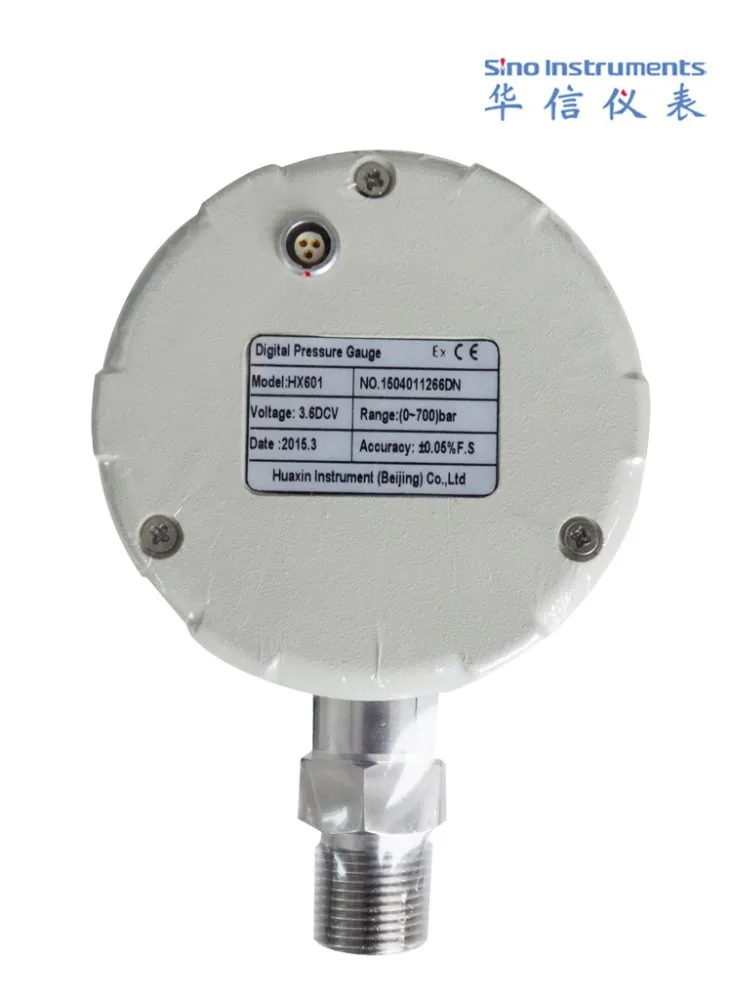

Detailed Images
After Sales Service
Our well-trained support Team is always avaible ,when you need support from manufacuturer side,please contact us ,we will be your assitant wihle you get the enquiry from client side.
While you come across a problem while you use our SiNO Instruments，Please let us know,all your questions will be answered within 24hours
We have manufacturing ablity,therefore we can offer products and service offer most at
best price.And Our Products are Certified By CE And Ex to Make our Instruments are Reliable making clients more convenient to develop the clients in Target Maket
While you come across a problem while you use our SiNO Instruments，Please let us know,all your questions will be answered within 24hours
We have manufacturing ablity,therefore we can offer products and service offer most at
best price.And Our Products are Certified By CE And Ex to Make our Instruments are Reliable making clients more convenient to develop the clients in Target Maket
Company Introduction
HUAXIN INSTRUMENT (BEIJING) CO., LTD. is a highly reputed organization dedicated to manufacturing high-quality pressure and temperature calibrator products. During considerable development, our products have already been widely used in the industries of power, chemical, petrol, metallurgy, metering, etc.
With the tenet of "Quality is Priority and The Customer is King", HUAXIN employs experienced technicians and professional sales engineers in calibration and metering field. Based on our excellent performance, we have joined in setting industry standard for product safety, operability, durability and reliability in China. Besides, our company has been accredited to ISO9001:2008 international quality management system certification since its standardized operation. Furthermore, CE approval is also smoothly passed.
HUAXIN has already achieved good accomplishment in China and has expanded to the world market depending on its constantly reliable performance. In addition, competitive price, swift delivery and good service play an important role in our company's success. Our worldwide representatives and sales network always help customers enjoy more professional calibration products and solutions.
We sincerely hope to work with worldwide customers and create a better future together!
With the tenet of "Quality is Priority and The Customer is King", HUAXIN employs experienced technicians and professional sales engineers in calibration and metering field. Based on our excellent performance, we have joined in setting industry standard for product safety, operability, durability and reliability in China. Besides, our company has been accredited to ISO9001:2008 international quality management system certification since its standardized operation. Furthermore, CE approval is also smoothly passed.
HUAXIN has already achieved good accomplishment in China and has expanded to the world market depending on its constantly reliable performance. In addition, competitive price, swift delivery and good service play an important role in our company's success. Our worldwide representatives and sales network always help customers enjoy more professional calibration products and solutions.
We sincerely hope to work with worldwide customers and create a better future together!
