Waterproof LED indication No Touch infrared sensor DC12 24V, Touchless Door Release Button

Product Overview

Description

Features

•Built-in micro controller for decoding infrared signal to avoid interference from the noise.

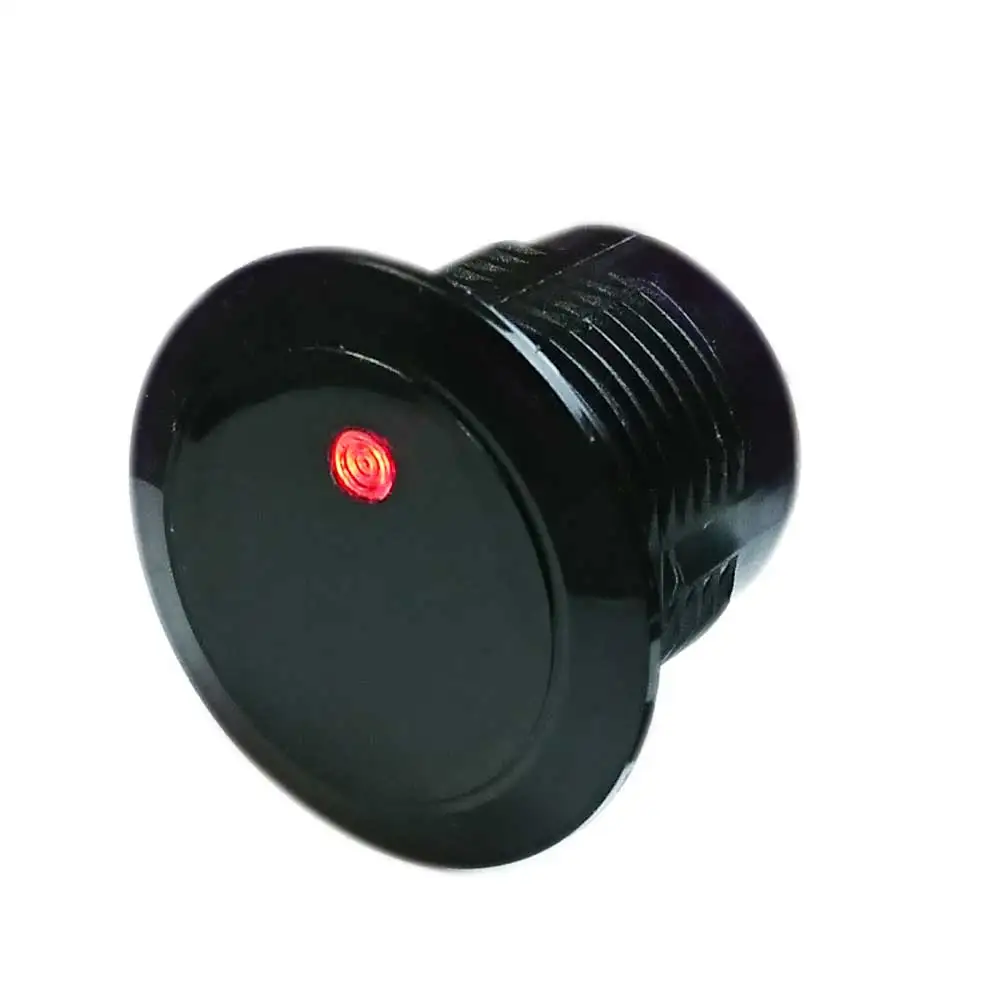

•With bi-color status LED (Power on: Red/ Proximity: Blue) / Optional: ( Blue/ Green).

•Adjustable proximity range: 3~15cm, depending on the reflection rate of different object.

•Support adjustable opening time 0.5~20 Sec. or latched ON or OFF output.

•With N.C. and N.O. output.

Specifications

•Material : Polycarbonate fire & UV proof material

•Protection Level : IP65

•Power supply : DC 12V 1A

•Relay contact rating : 1A@ 30 VDC

•Current : DC 12V

  Standby Current: 25mA±5%

  Operating Current: 37mA±5%

•Operating temperature: -20℃ ~ 75℃

•Life : 100,000 cycles (1A 30VDC, 0.3A 125VDC) / 50,000,000 cycles (Dry Contact)

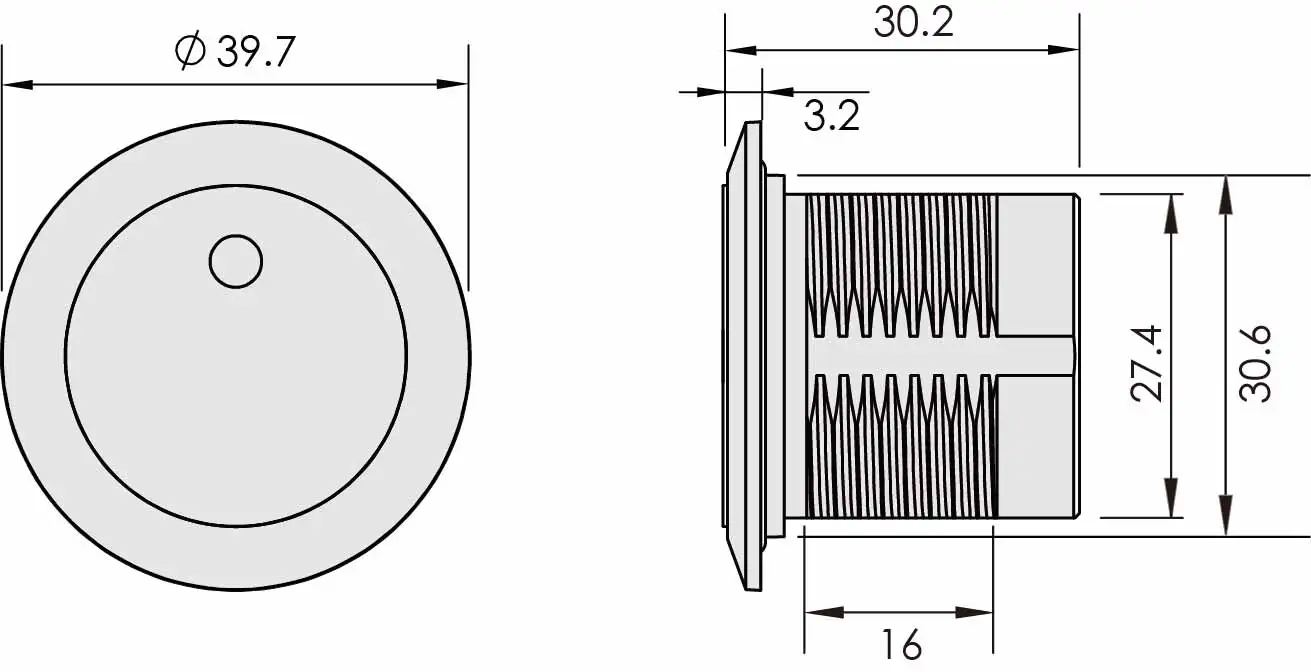

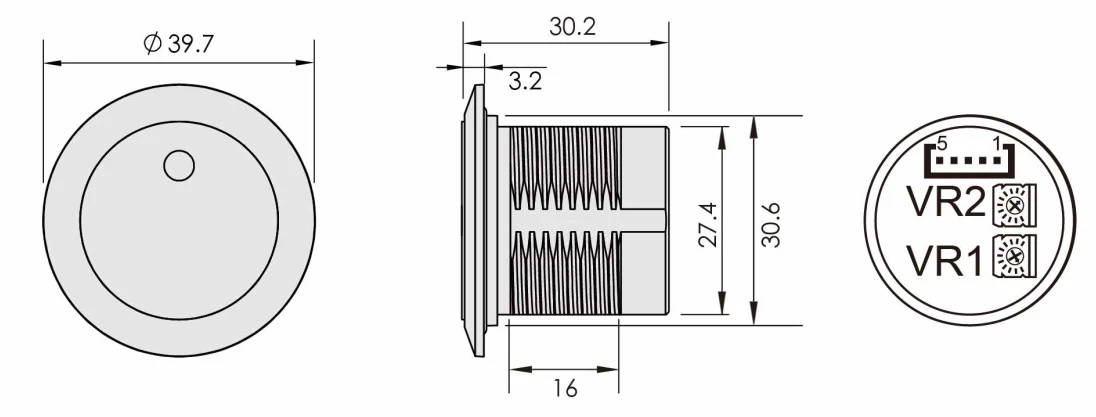

Dimension: Unit(mm/inch)

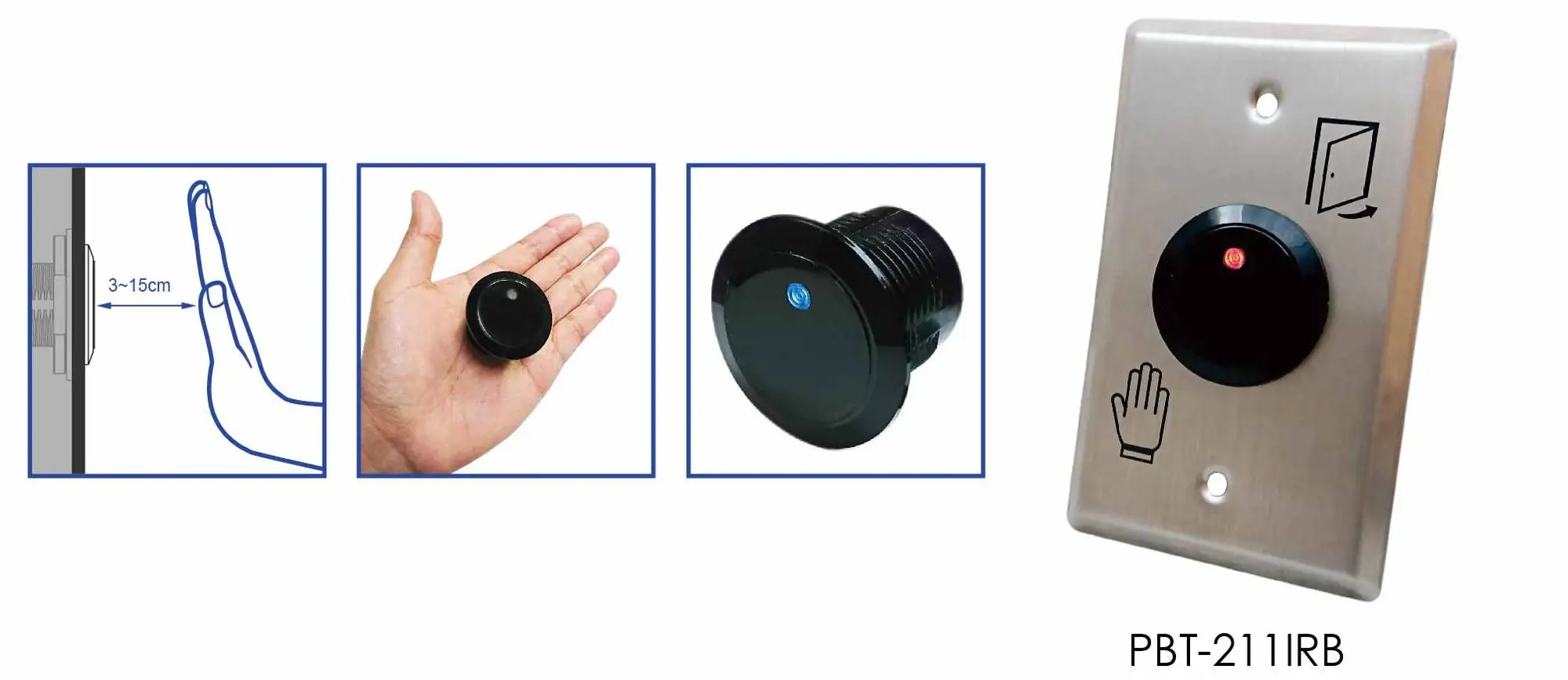

Example Applications


Odering information

PBT-30IR:DC 12V Contactless Infrared Sensor Exit Button

PBT-30IR-24V:DC 24V Contactless Infrared Sensor Exit Button
