Product Overview

Description

Product Description

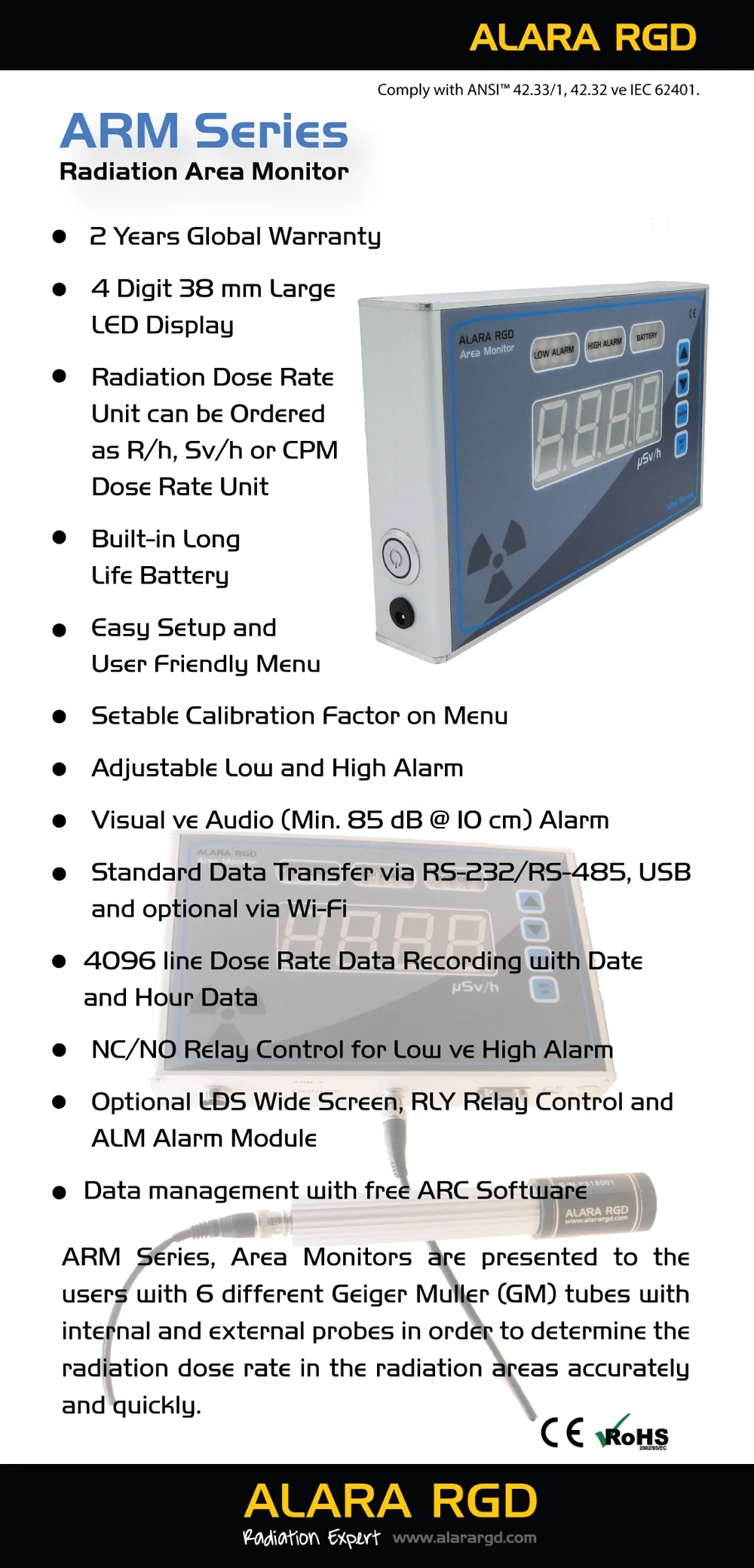

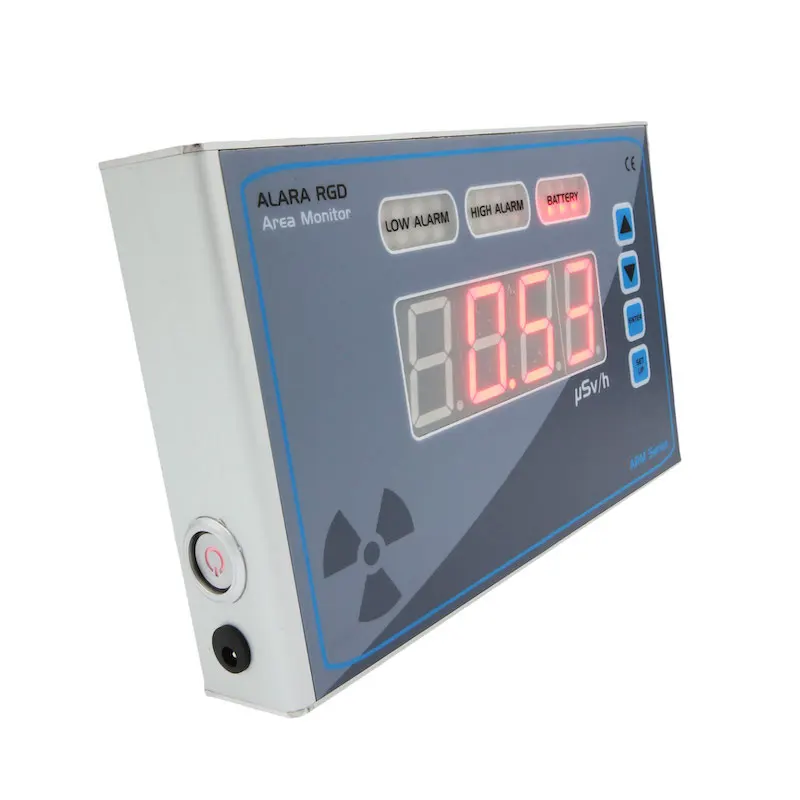

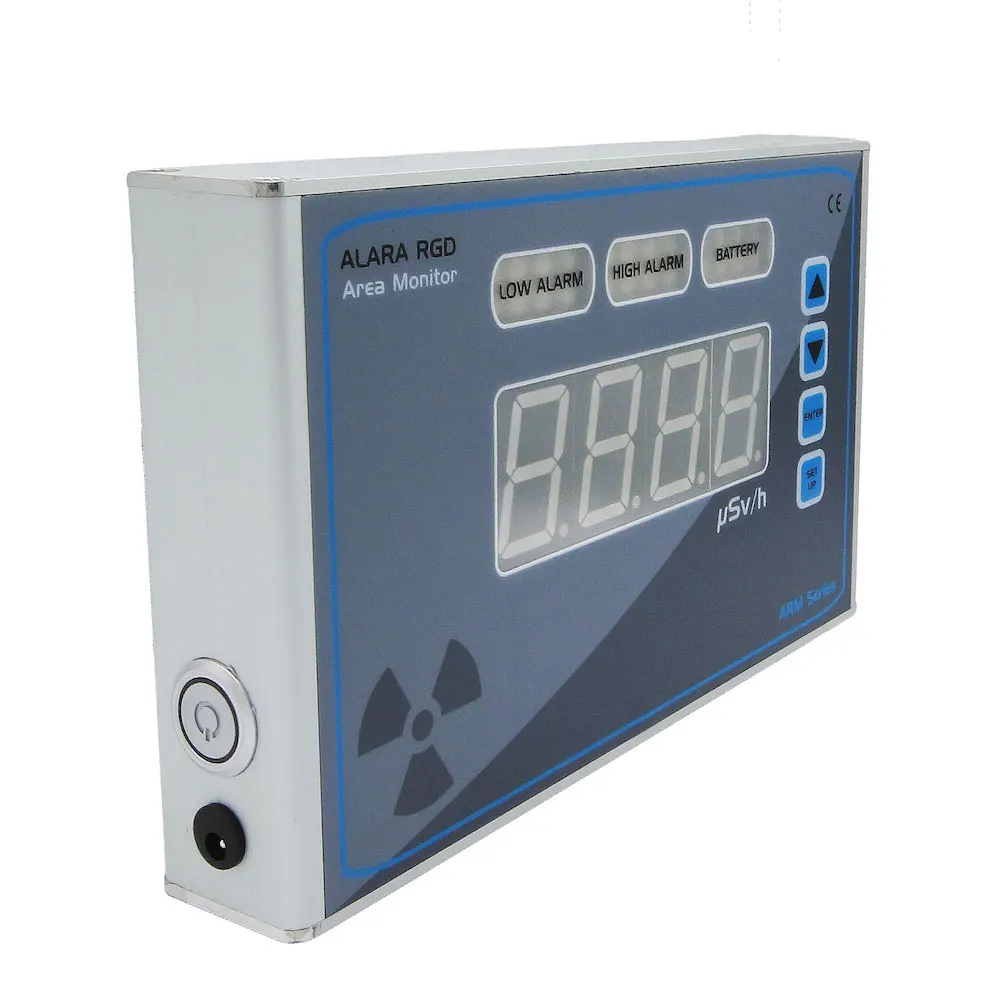

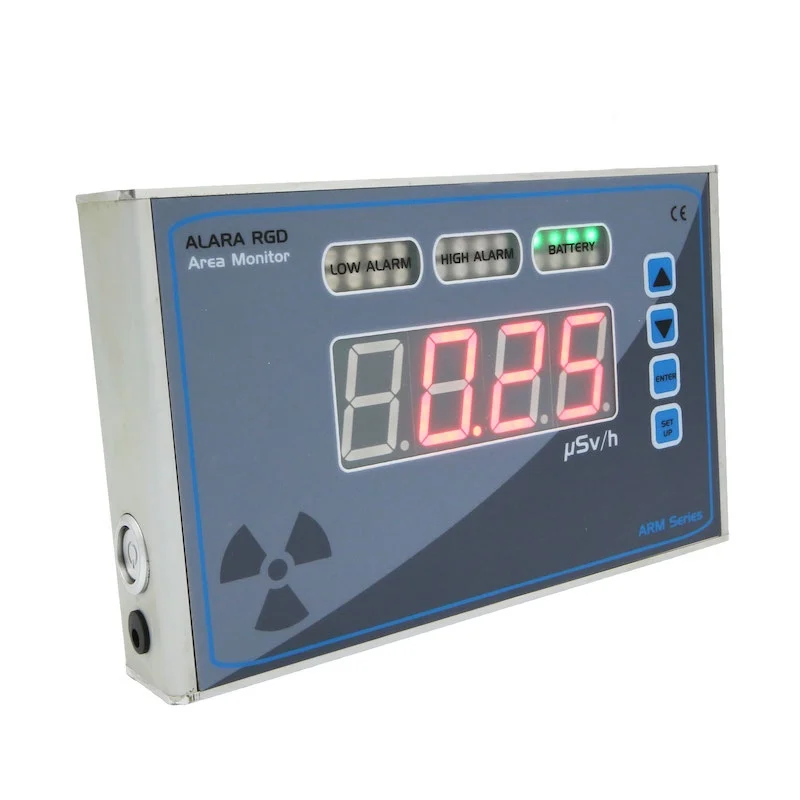

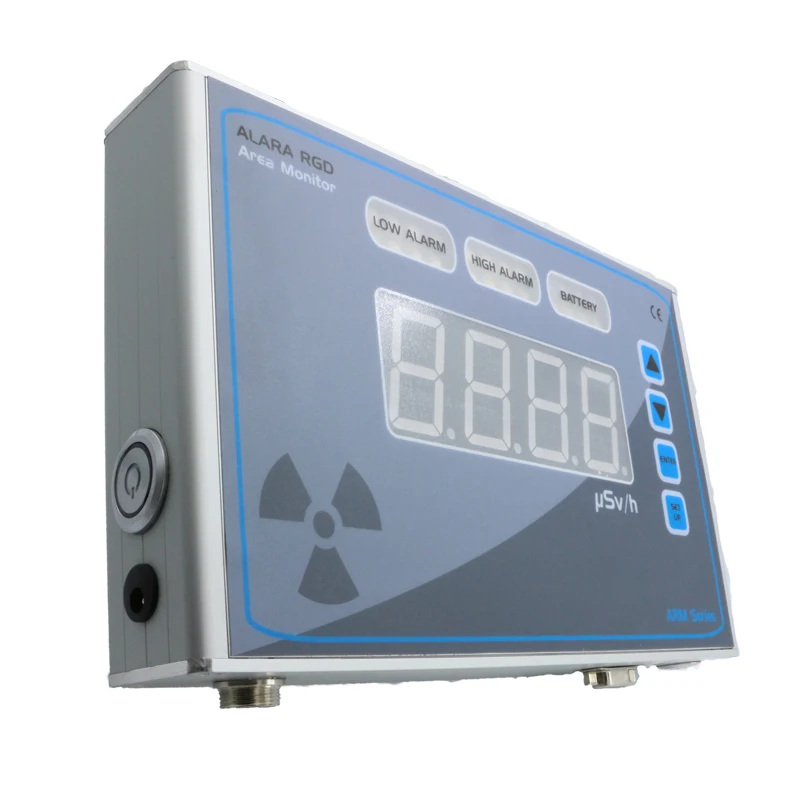

ARM Series, Area Monitors are presented to the users with 6 different Geiger Muller (GM) tubes with internal and external probes in order to determine the radiation dose rate in the radiation areas accurately and quickly.


* 2 Years Global Warranty
* 4 Digit 38 mm Wide LED Display
* Radiation Dose Rate Unit Can Be Ordered as R/h, Sv/h or CPM
* Built-in Long Life Battery

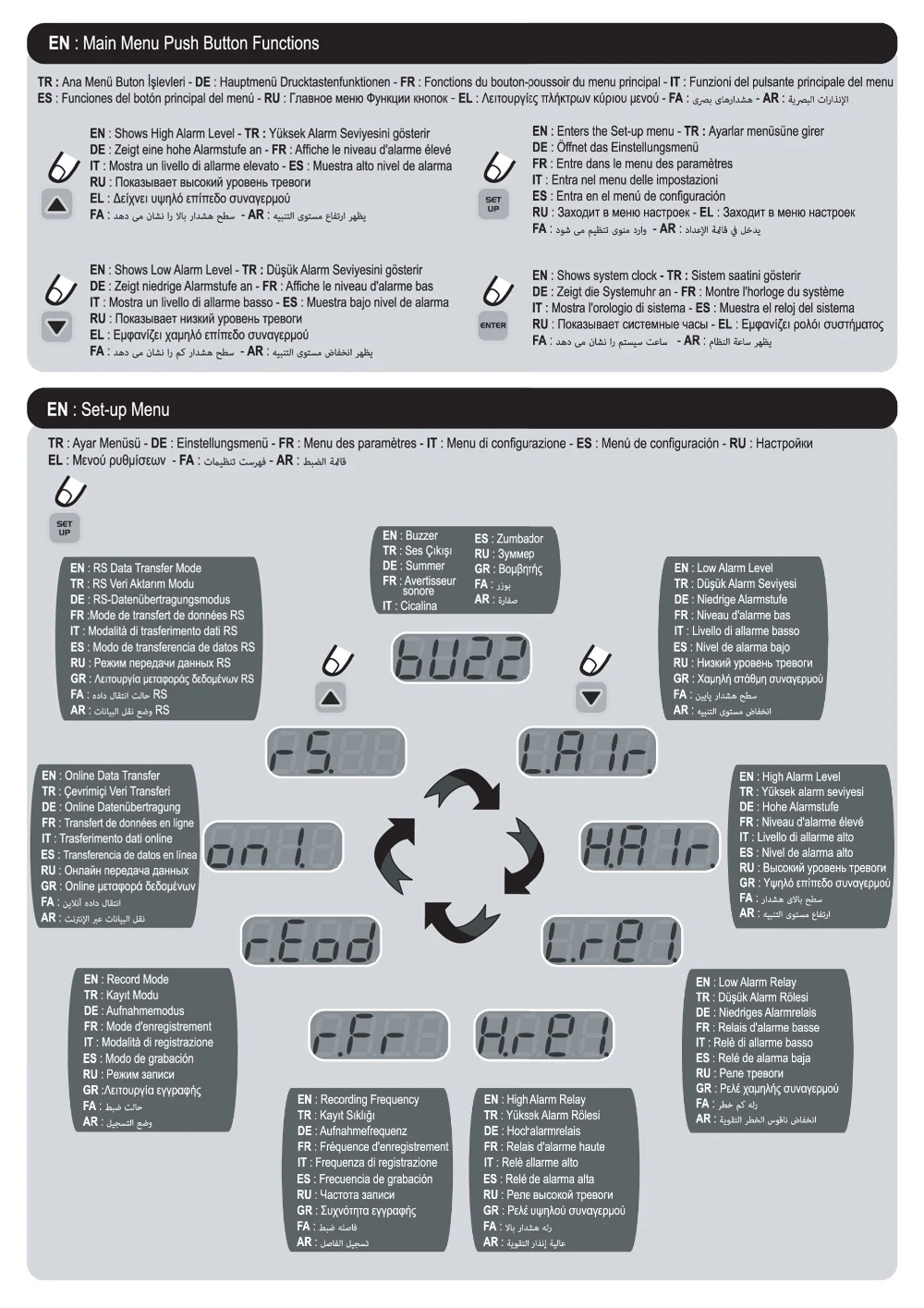

* Easy Setup and User Friendly Menu
* Easy Calibration on Device Menu
* Adjustable Low and High Alarm
* Visual and Audio (Min. 85 dB @ 1 m) Alarm

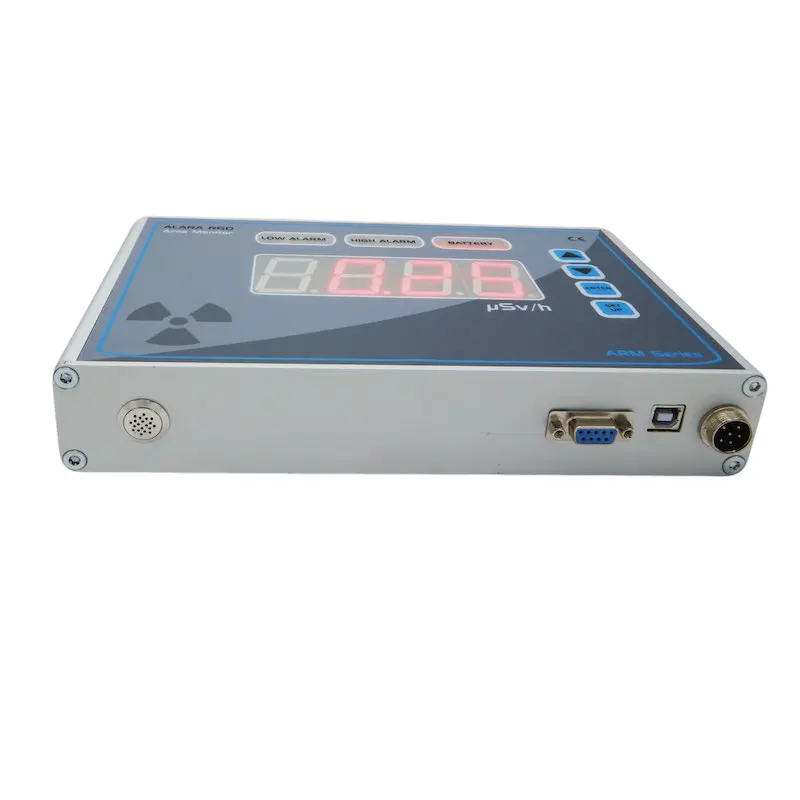

* Data Transfer via RS-232/RS-485 and USB
* 4096 Row Dose Rate Recording with Time and Date Data
* Relay Control for Low and High Alarm (optional with RLY unit)
* Optional LDS Widescreen Display, RLY Relay Control and ALM Alarm Module
* Data Management with Free ARC Radiation Monitoring and Recording Software

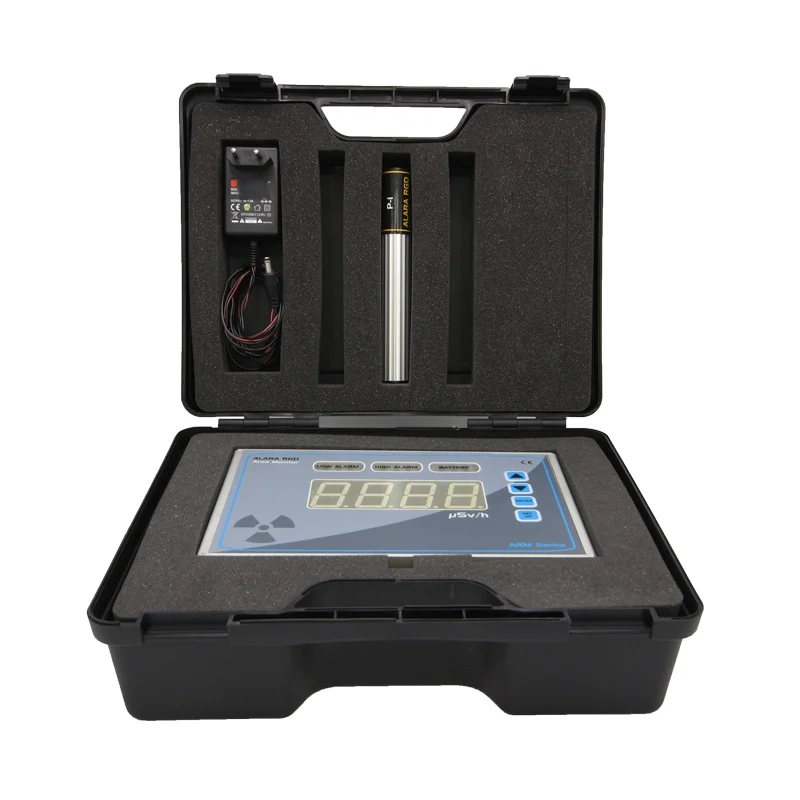

Package Content: ARM Series Radiation Area Monitor, Power Adaptor, Mini USB Data Transfer Cable, User Manual, Manufacturer Calibration Certificate, Warranty Card, Montage Brackets, Probe (for external probe models).


 All detector types come with LND/USA or Centronix/UK Geiger Muller Tubes (Except ARM-1 and ARM-1P).


Please consult our experts to select the appropriate device for your work areas .

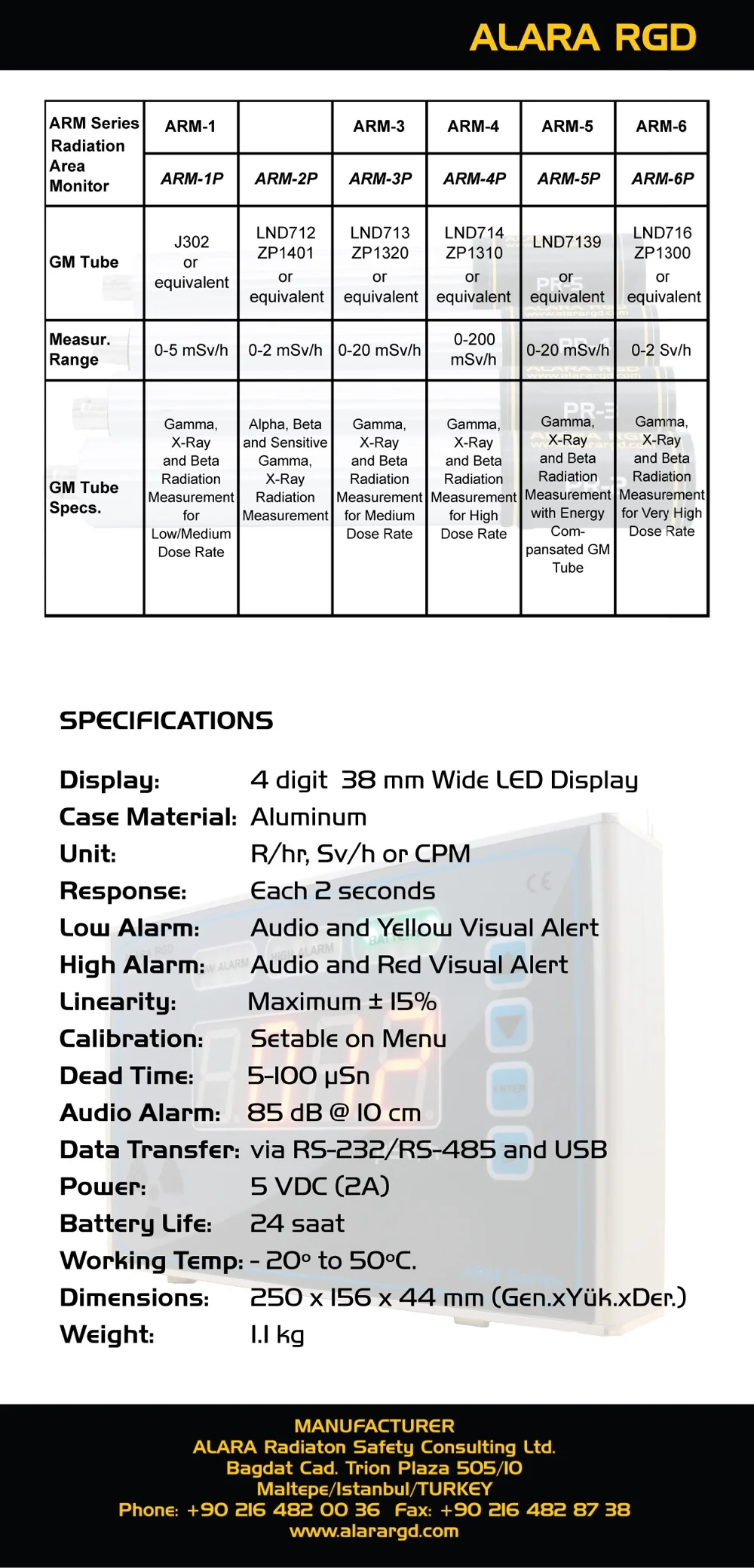

ARM Series
ARM-1
ARM-1P*
ARM-2
ARM-2P*
ARM-3
ARM-3P*
ARM-4
ARM-4P*
ARM-5
ARM-5P*
ARM-6
ARM-6P*
GM Tube
J302
or equivalent
LND712
ZP1401
or equivalent
LND713 ZP1320
or equivalent
LND714 ZP1310
or equivalent
LND7139
or equivalent
LND716 ZP1300
or equivalent

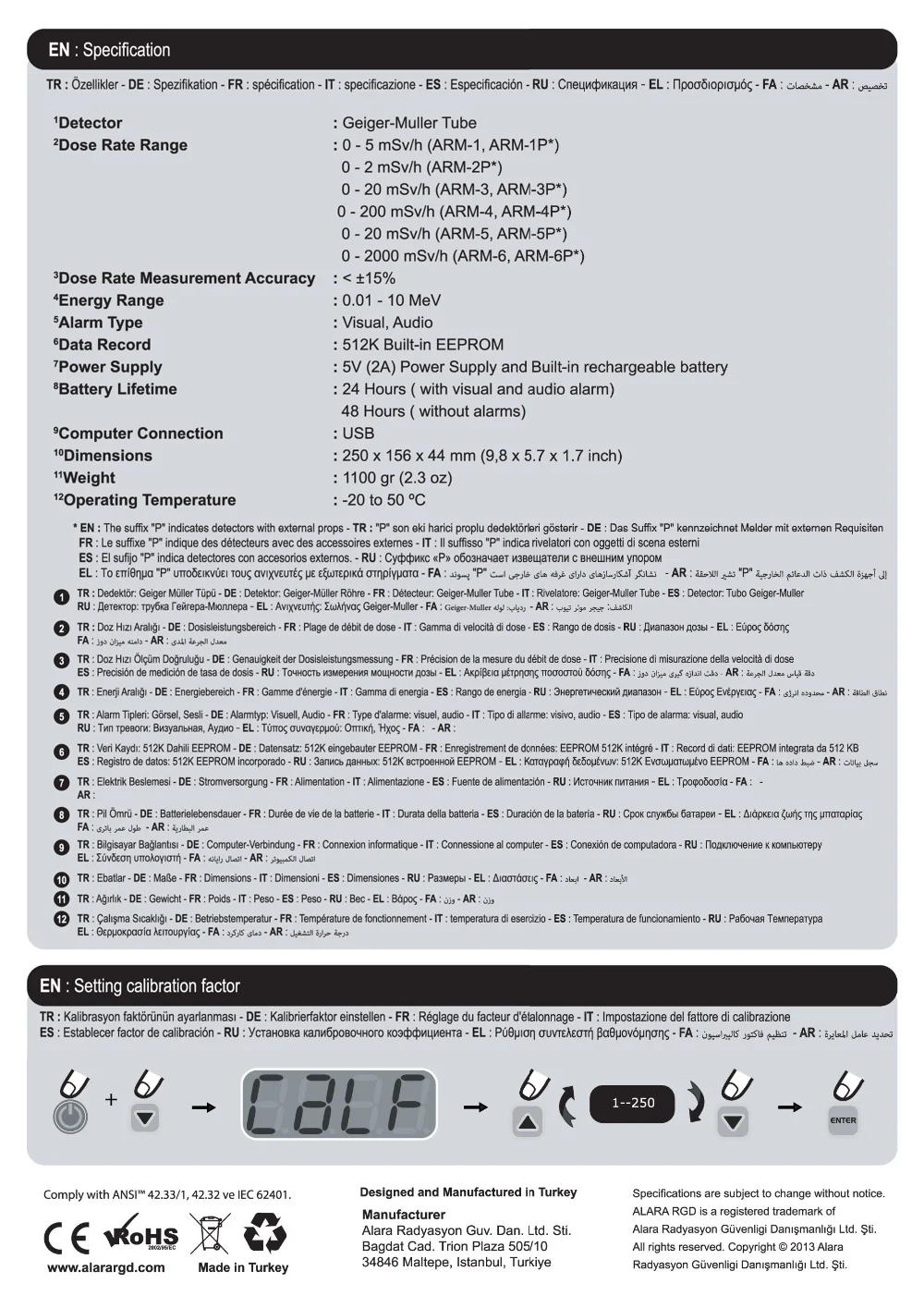

Range
0.01 uSv/ - 5 mSv/h
(1 uR/h -
0.5 R/h)
0.01 uSv/h - 2 mSv/h
(1 uR/h -
0.2 R/h)
0.01 uSv/h - 20 mSv/h
(1 uR/h -
2 R/h)
0.1 uSv/h - 200 mSv/h
(10 uR/h -
20 R/h)
0.01 uSv/h - 20 mSv/h
(1 uR/h -
2 R/h)
1 uSv/h - 2000 mSv/h
(100 uR/h -
200 R/h)
Tube Specifications
For Low/
Medium level Gamma,
X-Ray
and Beta radiation measure-
ment.
For Alpha, Beta and low level Gamma radiation measure-
ment.
For medium level Gamma,
X-Ray and Beta radiation measure-
ment.
For high level Gamma,
X-Ray and Beta radiation measure-
ment.
For medium level Gamma and X-ray measure-
ment with energy compan-
sated
GM tube.
For higher level Gamma,
X-Ray and Beta measure-
ment
Price
550 USD
630 USD*
720 USD*
620 USD
700 USD*
620 USD
700 USD*
720 USD
800 USD*
640 USD
720 USD*

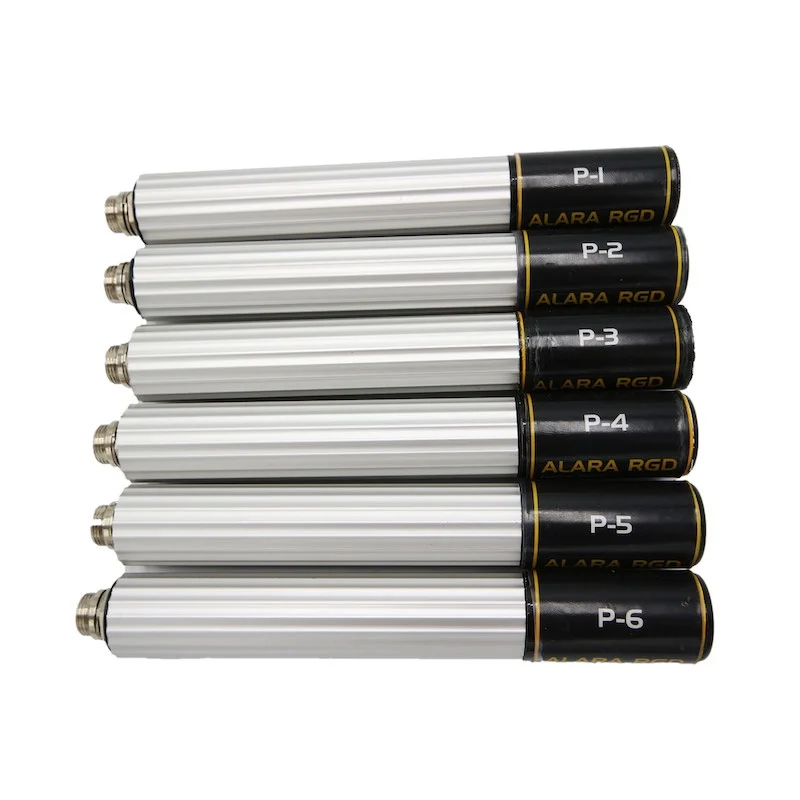

* P suffix indicates detectors which have external probe

ARC Software

You can monitor and manage all stored data in ARM Series, EKE Series and ADA Series with free ARC Radiation Management Software.

Brochure
User Manual
Related Products

Today, ionizing radiation measurement devices;
* In medical applications such as Nuclear Medicine, Radiology, Radiotherapy;
* In various fields of industry such as Irradiation Plants, Industrial Radiography, Level Meters, Thickness Gauges, Food Controls;
* In areas such as Iron and Steel Industry, Scrap, Waste Plants, Critical Buildings and Regions;
* In the determination of Naturally Occurring Radioactive Materials (NORM) and Technologically Enriched Naturally

* Occurring Radioactive Materials (TENORM);
* Emergency Response such as Civil Defense, Fire Fighting Cases,
* In the dismantling of consumer products with end-of-life or prohibited radioactive substances such as radioactive lightning rods;

* Radioactive and Nuclear Waste Control;
* Radioisotope Production Facilities;
* In Nuclear Plants;
* In Radioactive and Nuclear Material Transportation;
* In R&D Activities;
* In Customs Controls;
and many more are used in the professional field. In addition, various radiation measurement devices are preferred by non-professional users for a variety of purposes such as being prepared for emergencies, detection of natural radioactive substances in rocks.


ALARA RGD, offers its users preferences, with different prop and Geiger Muller (GM) tube options to meet this wide range of ionizing radiation measurement needs


ADA Series Ionizing Radiation Detectors for Ambient Radiation Controls,
EKE Series Personal Electronic Dosimeters for personal dose monitoring
ARM Series Radiation Area Monitors for Radiation Controls in Radiation Areas


Please consult our experts to select the appropriate device for your work areas .
