HONGRUN Model FCA100*125 ps foam disposable lunch box making machine fast food packing machine

Product Model FCA100*125 ps foam disposable lunch box making machine fast food packing machine

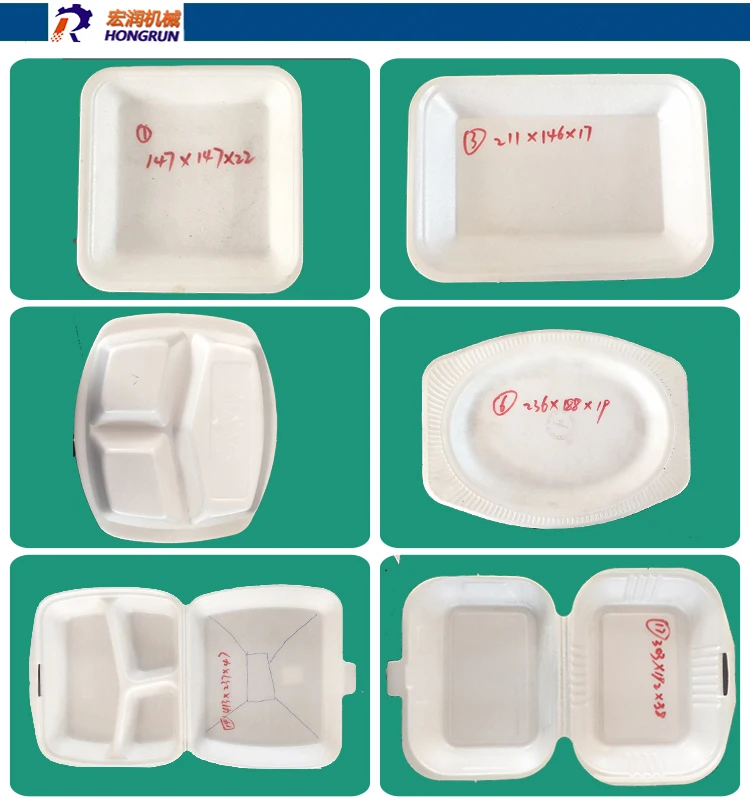

PS Foam Fast Food Container/Plate Vacuum Forming Machine makes different kinds type of fast food box, foam tray, foam plate, foam container and so on. If so, you need many moulds.

This type of developed by combining the domestic equipment and advantages, is a set of hydraulic pneumatic servo drive for an automatic forming cutting seek. Mainly by electrical components, Japan and Germany pump, ensure the reliability of the equipment operation, and can be used for hot forming process many kinds of plastic material, it can produce ps foam sheet, materials used in food, medical supplies, electrical components, tourism products, toys, textile, etc.

Main Features of Model FCA100*125 ps foam disposable lunch box making machine fast food packing machine

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) This device is an integrated type forming, cutting, stacking in one. It is with not only energy saving but also space saving, time saving and labor saving.

Machine Parts-1

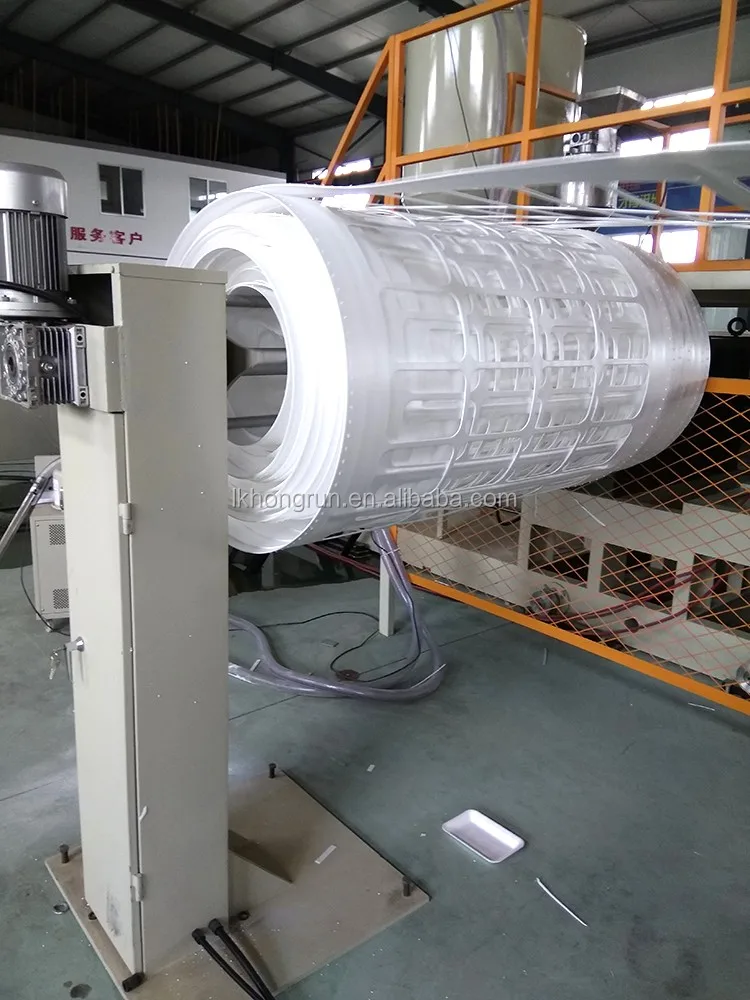

Name: Unwinding unit

Brand: HR

Original: CHINA

1. Photoelectric switch control auto feeding
2. Unwinding mode:0.75kw turbine decelerating motors
3. Unformed PS placing unit, the feeding of PS foam sheet is automatically driven by cylinder, rubber covered roller is used to unroll the PS foam sheet. Photoelectric switch control, and contain two PS foam sheet rollers. Taking turns utilization.

Machine Parts-2

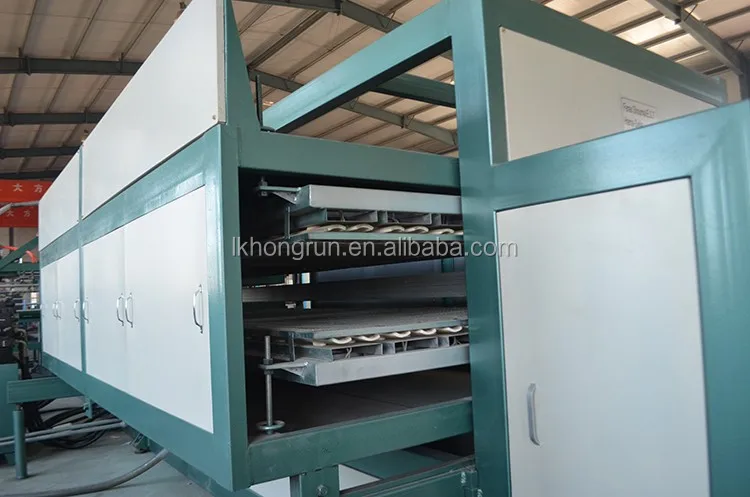

Name: Heating Unit
Brand: HR
Original: CHINA

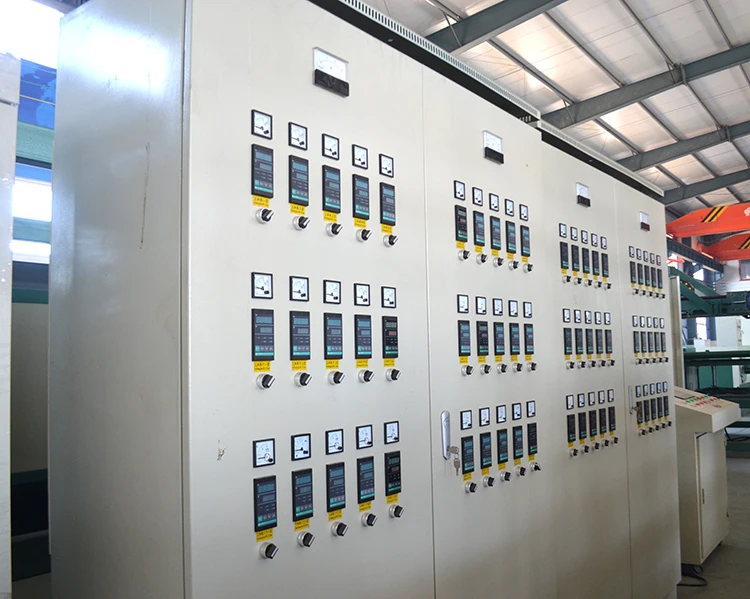

1. Temperature control
Intelligent temperature controller and temperature control module, to control temperature and adjust the both sides voltage of heater, keeping heater constant temperature heating status.

2. Maintenance design: Heating box can be moved back and forth. Heating area: 1100*2400mm

           Heating size: 240mm*60mm

           Heating zone: 52pcs

           Heating power: 150kw

Machine Parts-3

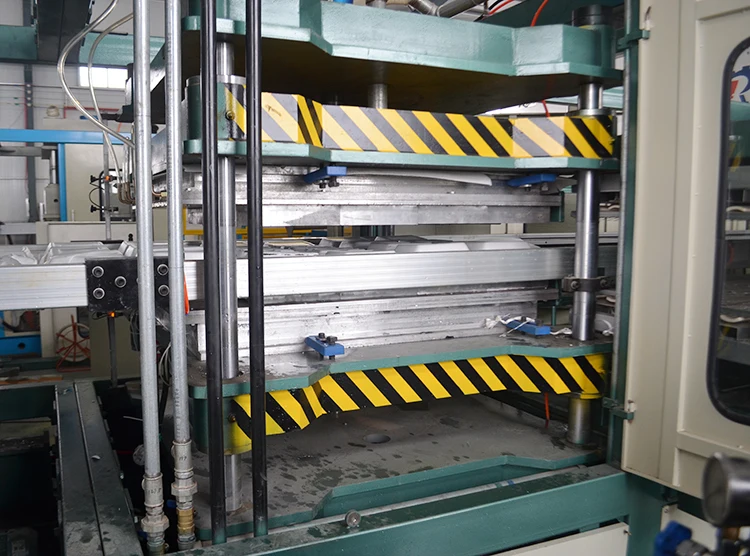

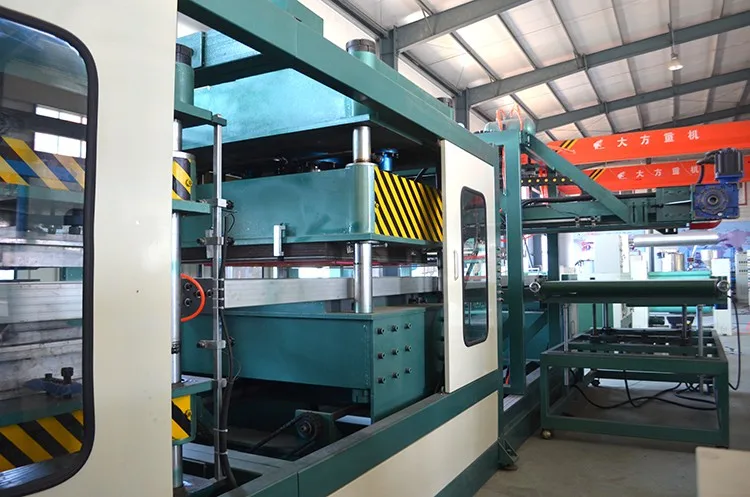

Name: Vacuum forming unit
Brand: HR
Original: CHINA

- Forming area\t750mm×1000mm\t
- Forming pressure\t15T\t
- Hydraulic oil pump motor\t5.5KW X 2sets\t
- Forming depth\t80mm(Maximum)\t
- Vacuum tank\t50L*2pc\t
- Vacuum pump\tWater-ring type 7.5kw

Machine Parts-4

Name: Truncation unit
Brand: HR
Original: CHINA
- Cutting pressure\t120T Maximum
- Cutting type: Hydraulic cutting system
- Cutting oil pump motor: 11KW
- Cutting area\t1000*1250mm

1. Punching plate: High quality stainless steel
2. Working table stroke: Photoelectric switch automatic control

Machine Parts-5

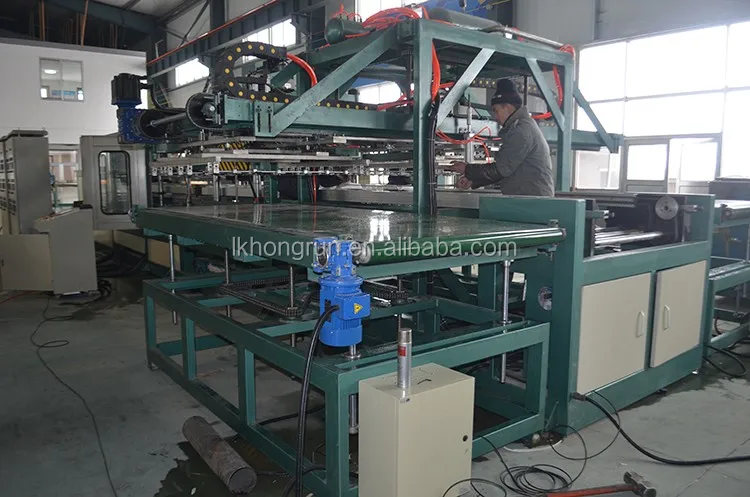

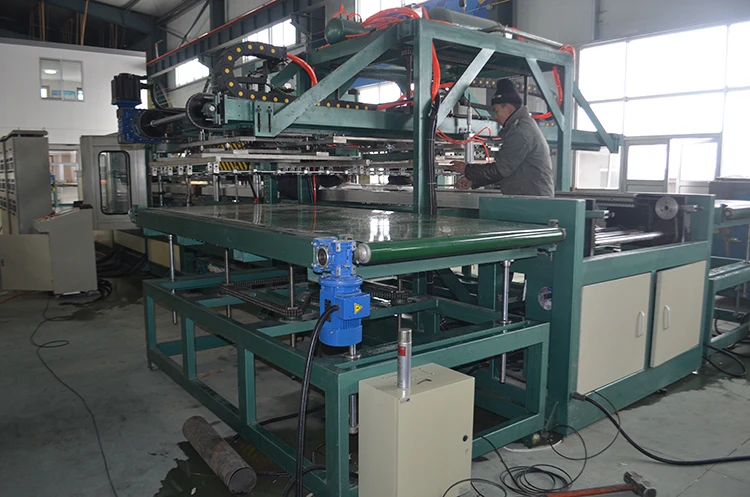

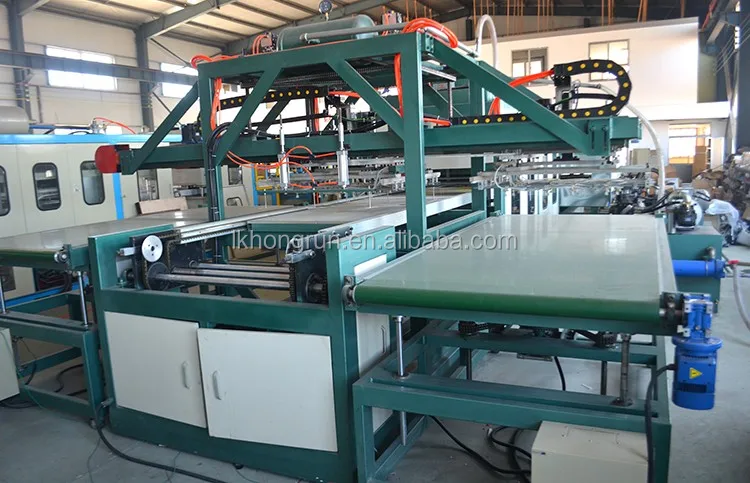

Name: Mechanical arm collection unit
Brand: HR
Original: CHINA

1) Stacking method: The servo motor control the mechanical arms reciprocating motion, the mechanical arms catch the plate by vacuum sucker, it uses conveyor belt to collect the plate from both sides.
2) Control method: PLC control

Serve motor: 1.5kw*2set/3kw*1
