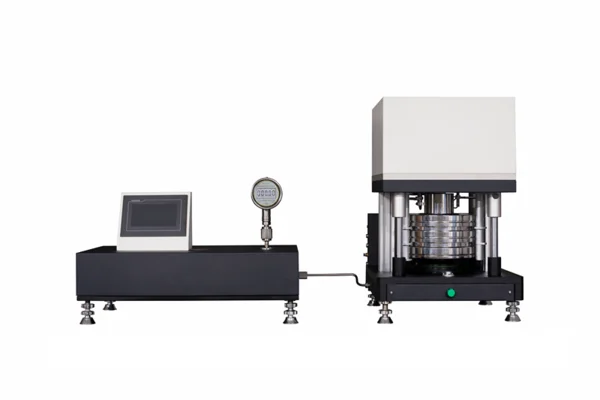

Our automatic dead weight tester is revolutionary innovation for machanical pressure calibration.
From pressure generating to masses loading, it is automatic conducting after setting on the operating screen,which keep reading accuracy and easy operation.
Application:
Automatic dead weight tester is same function and accuracy with hand type DWT.
1. For calibration lab to do pressure calibration;
2. For factory to check instruments;
3. For manufacturing companies as pressure reference in production.
Special features:
1. Pressure system and weights system are automatic operation

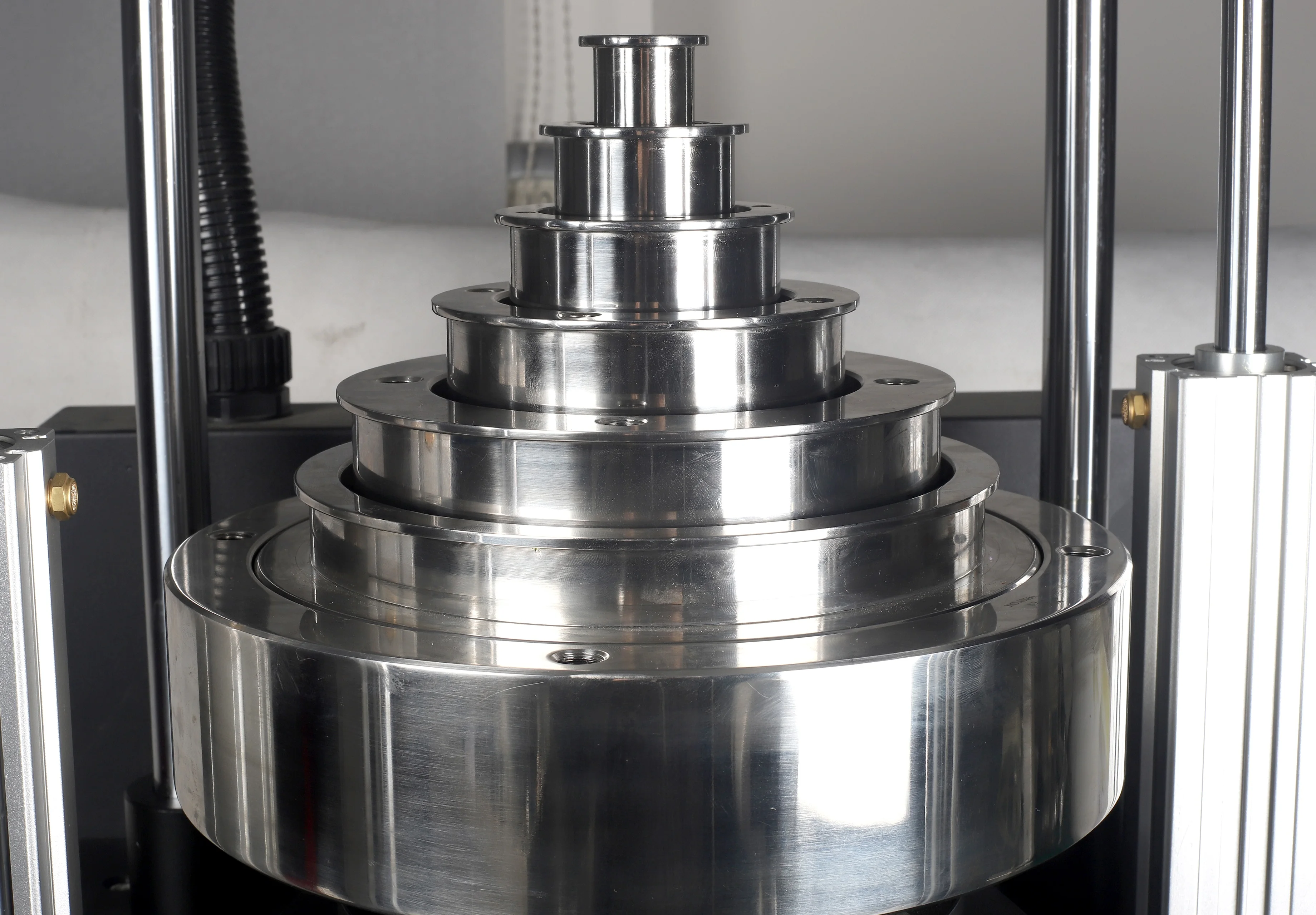

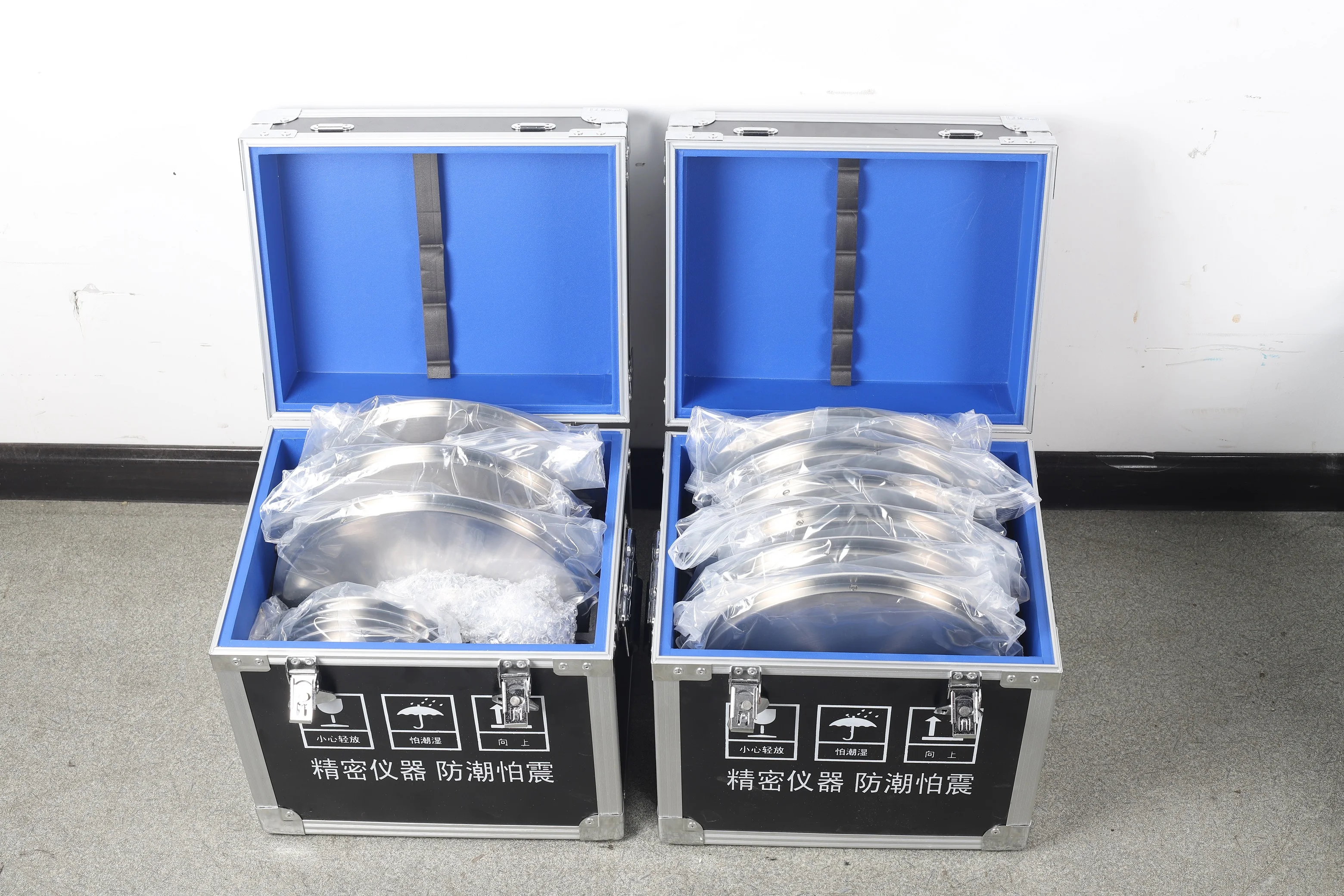

2. Weights is mirror weights, which is anti-dust and keep long term stability. The weights monitoring system real time report the weights condition; weights is pneumatic drive without hand touching.
3. Anti-broke piston system, control system wrong doings protection, and ambient condition monitoring.
Connection:
Power supply: 220V, 50Hz

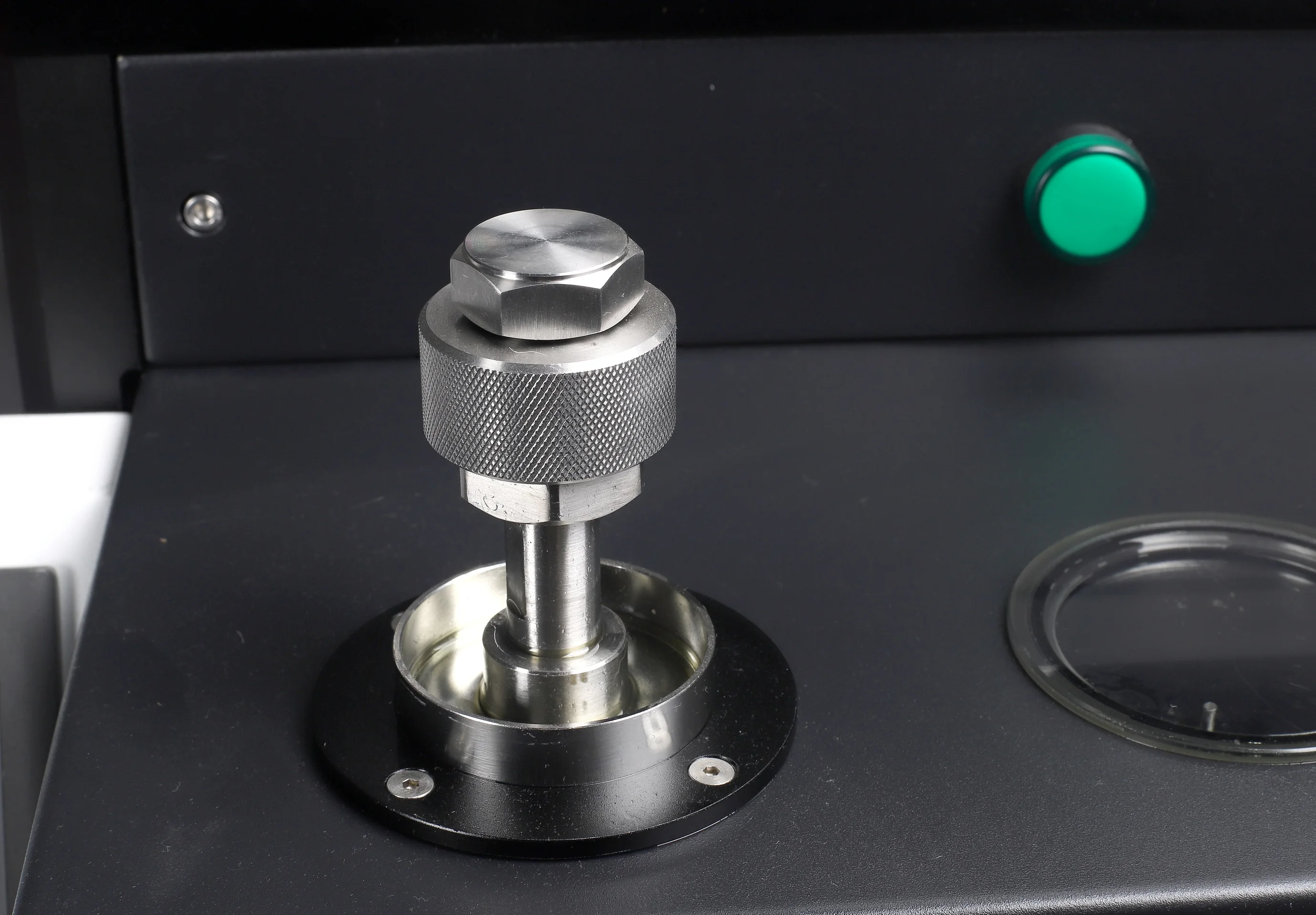

Connection: M20*1.5 or other adapters
Ambient condition: 20±2 ℃, RH: ≤95%
Control screen: 7" TFT touch screen.
Technical specification:
Pressure range (PR60): 10~600bar, each calibration will be set automatically as your range or user defined points.
