WC67Y Hydraulic Press Brake , Plate Bending Machine
- Category: >>>
- Supplier: Zaozhuang Tok Machinery Co. Ltd.
Share on (62021637865):
Product Overview
Description
Product Description

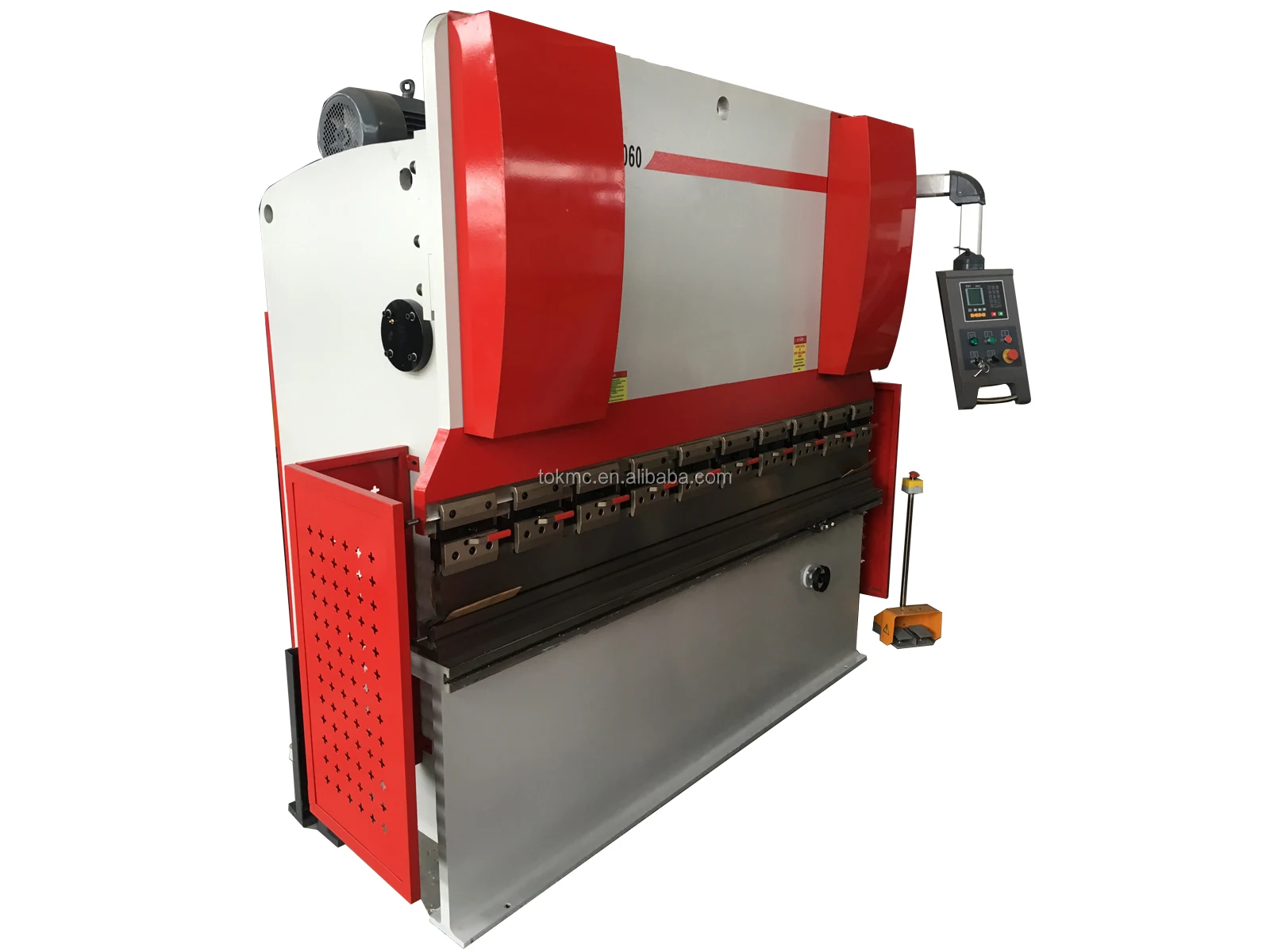

WC67Y Hydraulic Press Brake , Plate Bending Machine press brake mould
Press brake 800T
- All-steel welded structure, vibration relief stress, high machine strength and good rigidity.

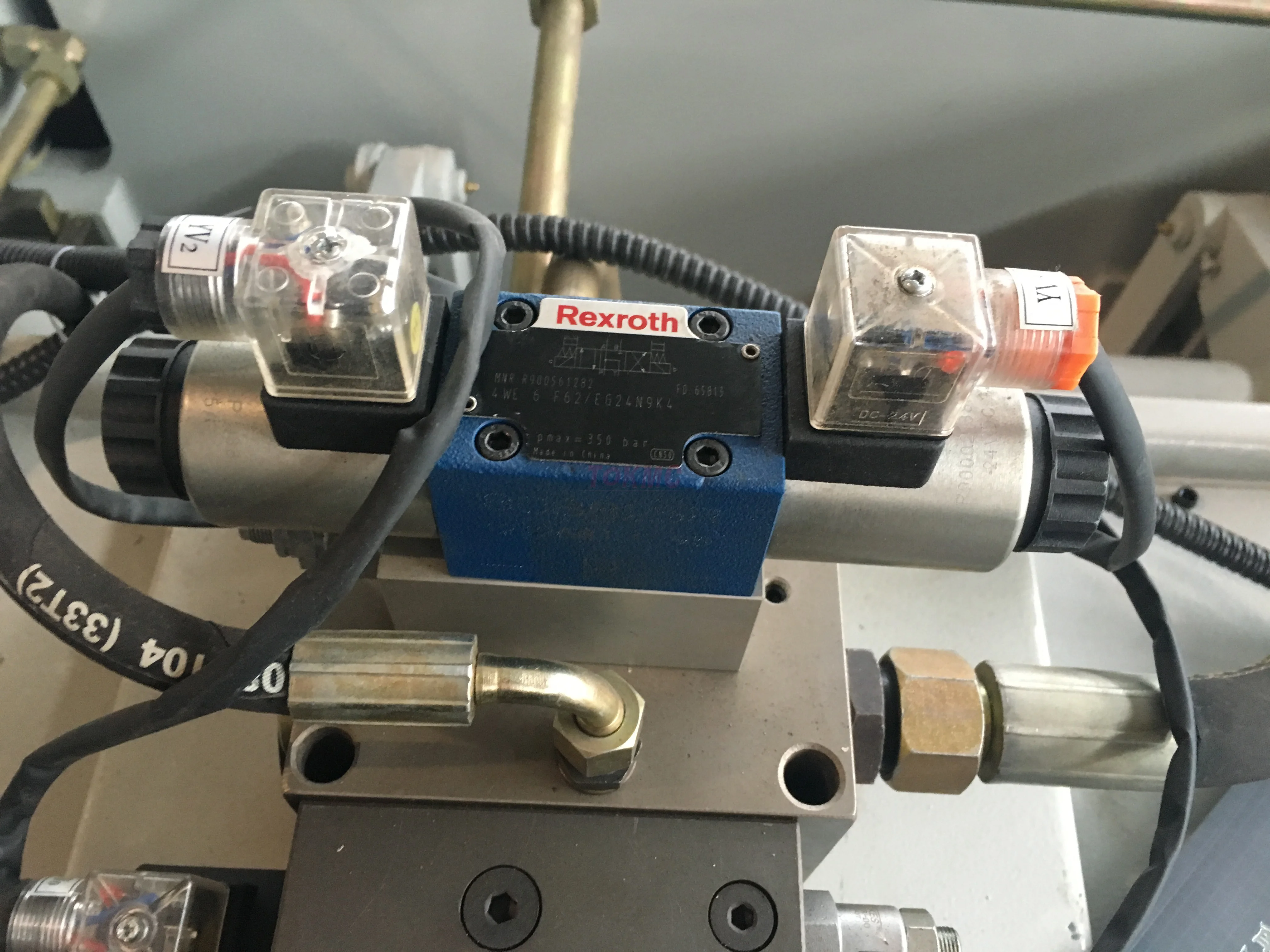

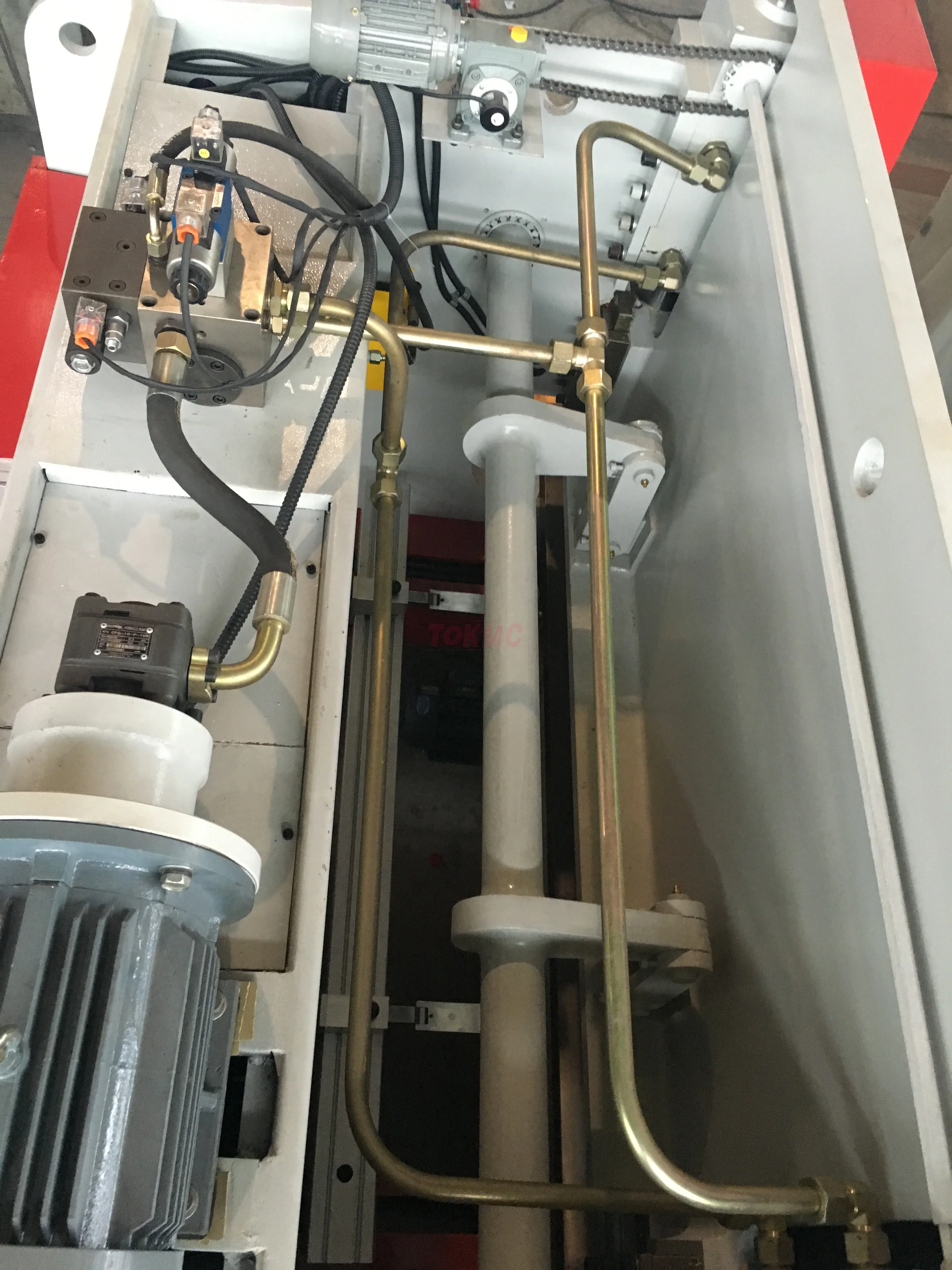

-Hydraulic transmission, stepless pressure regulation, high quality imported sealing ring, stable and reliable
- Mechanical stop, torsion axis synchronization, high precision
- Back gauge positioning and slider stroke adjustment, with electric quick adjustment and manual fine adjustment, digital display

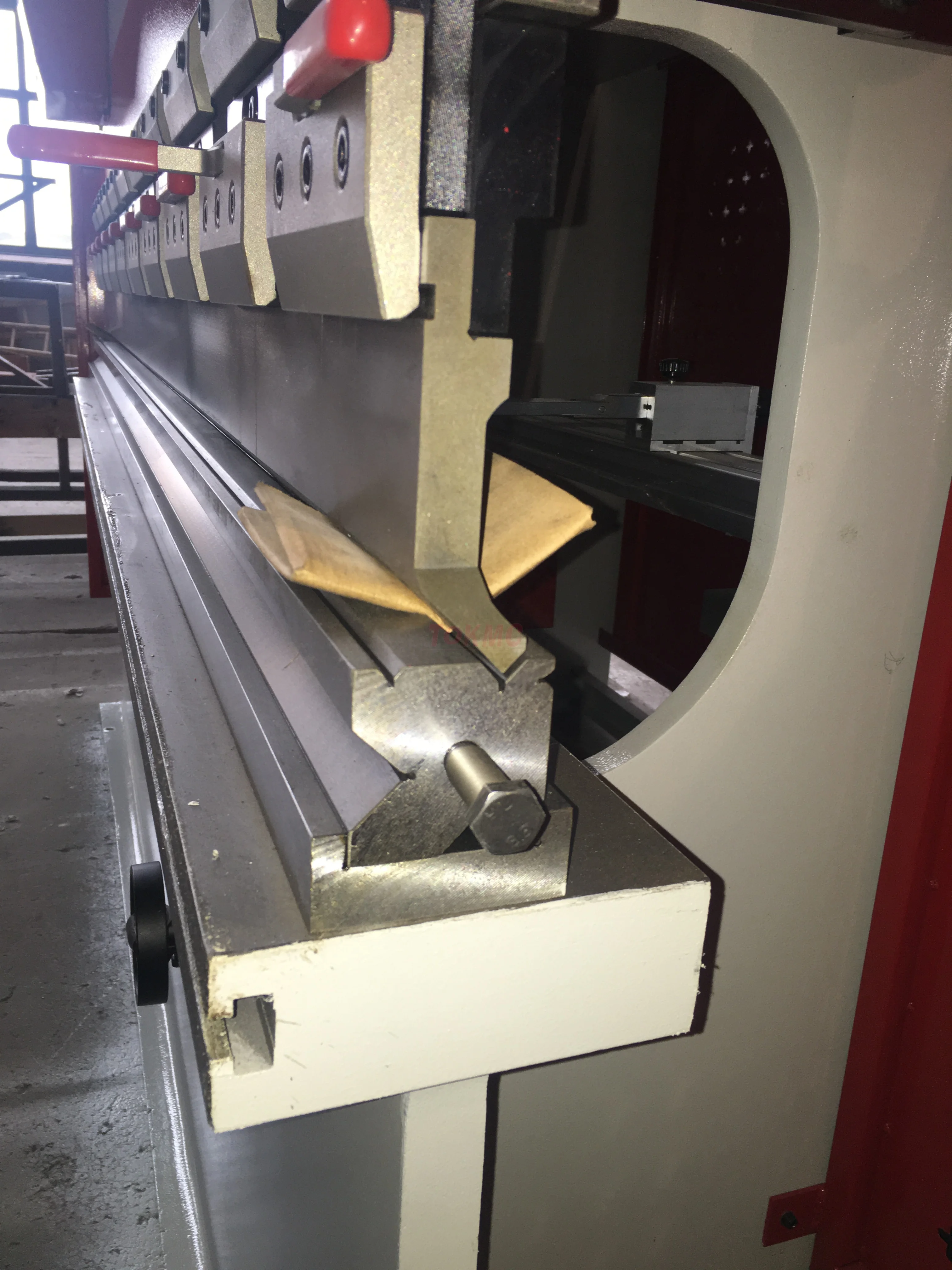

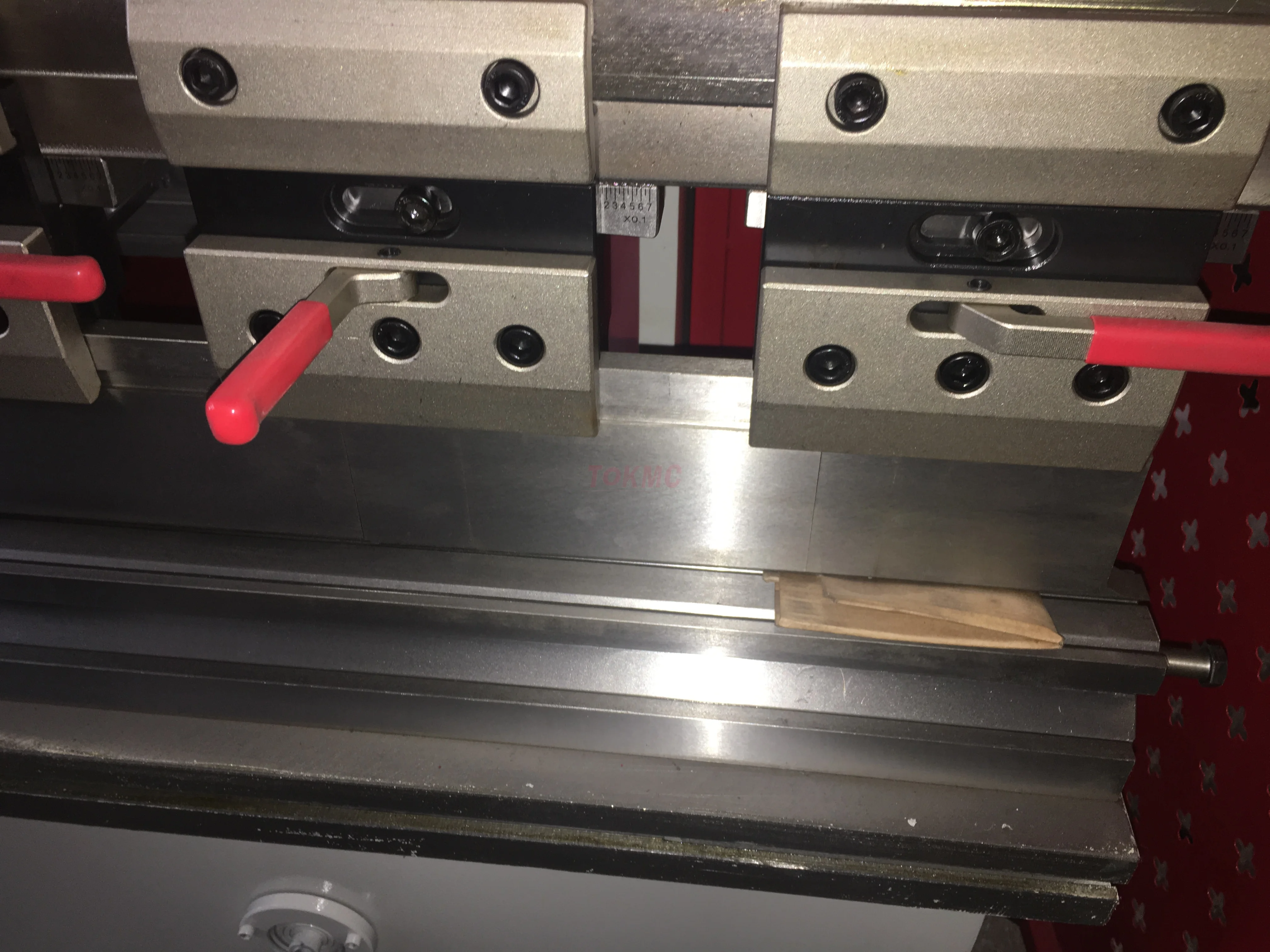

- The upper mold is equipped with a winding compensation mechanism. More than 250 tons is the compensation mechanism under the workbench
-The machine is equipped with a safety fence and a door-opening device to improve the safety of the operation.

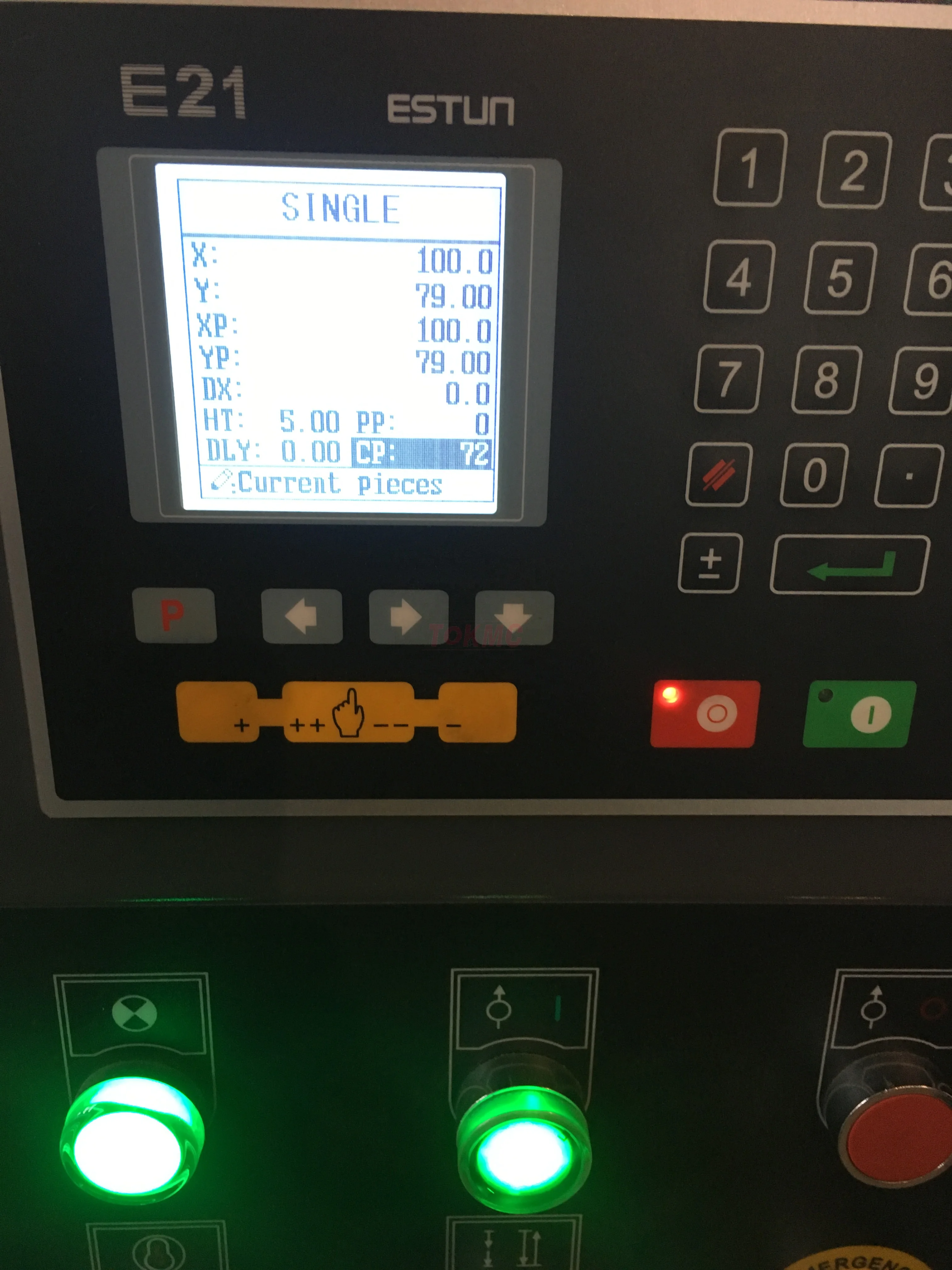

- equipped with special CNC system for bending machine produced by Delem
-The back gauge X and the slider stroke Y are automatically controlled by the computer.
-The back gauge is made of ordinary screw and precision ball screw.
Specification | Nominal | Length of | Throat dephts | Ram Stroke | Number of | Motor power |
| KN | mm | mm | mm | m/min-1 | KW |
WC67Y/K-40/2200 | 400 | 2200 | 200 | 100 | 11 | 4 |
WC67Y/K-40/2500 | 400 | 2500 | 200 | 100 | 11 | 4 |
WC67Y/K-50/2500 | 500 | 2500 | 200 | 100 | 11 | 5.5 |
WC67Y/K-63/2500 | 630 | 2500 | 250 | 100 | 10 | 5.5 |
WC67Y/K-63/3200 | 630 | 3200 | 250 | 100 | 10 | 5.5 |
