DC FUSE 1500VDC SOLAR PV FUSE feeo dc fuse
US $2.50-$6.80
Polymer Dropout Fuse cutout
- Category: >>>
- Supplier: RongZhao (Fuzhou) Imp & Exp Co. Ltd.
Share on (62021719376):
Product Overview
Description

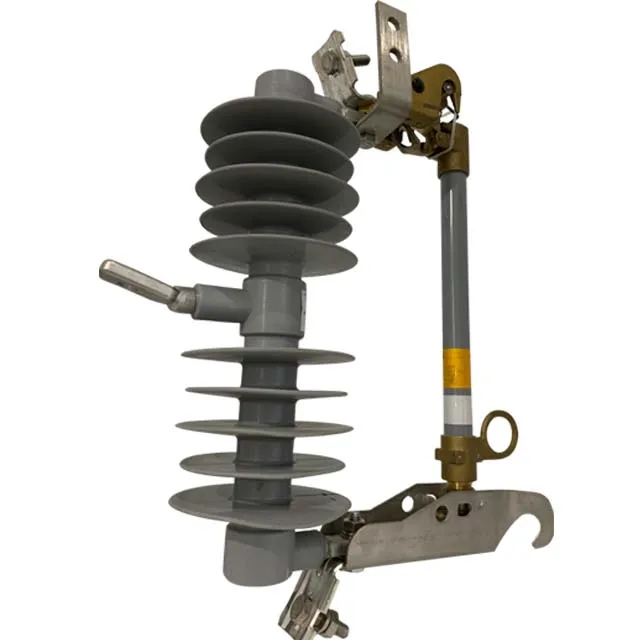

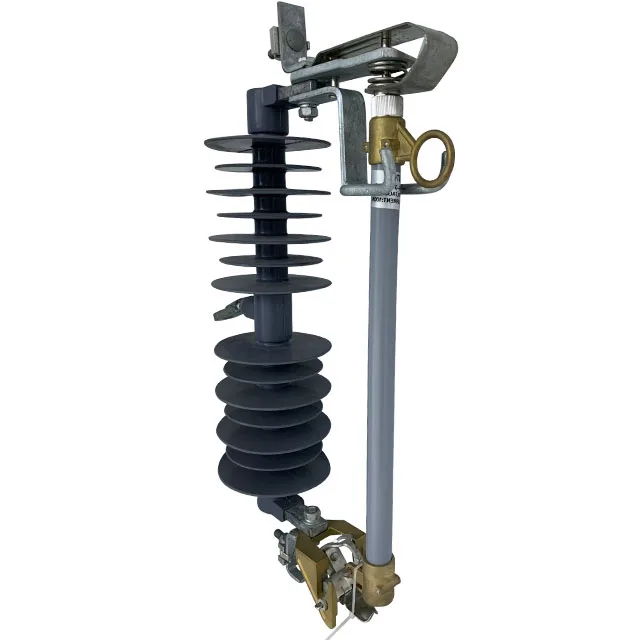

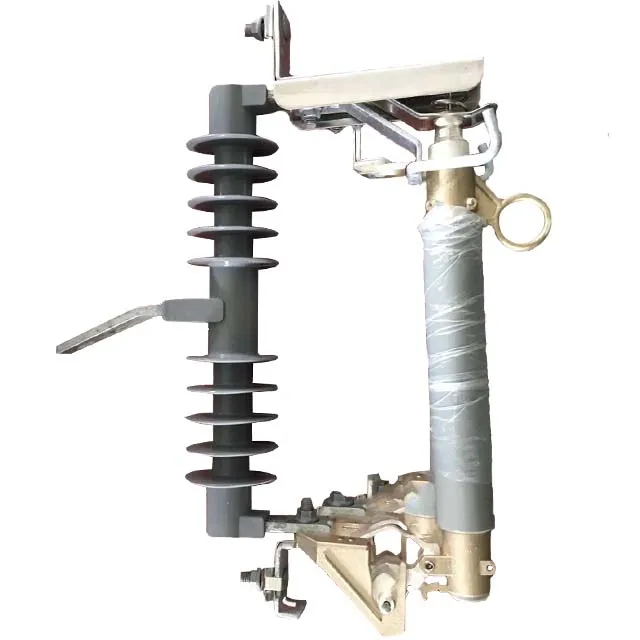

Polymer Dropout Fuse cutout
| Type | RZF-11 | RZF-12 | RZF-14 | RZF-16 |
| Rated voltage,KV | 24 | 15 | 36 | 36 |
| Rated current,A | 100 / 200 | 100 / 200 | 100 / 200 | 100 / 200 |
| Breaking current,A | 10000 / 120000 | 10000 / 120000 | 10000 / 120000 | 10000 / 120000 |
| Impulse voltage (BIL) | 150 | 110 | 170 | 170 |
| Power frequency withstand voltage,KV | 65 | 45 | 70 | 70 |
| Creepage distance,mm | 570 | 360 | 720 | 720 |
| Dimension,CM | 51*34*11.5 | 45*34*11.5 | 63*38*14.5 | 61*34*11.5 |
