Product Overview
Description

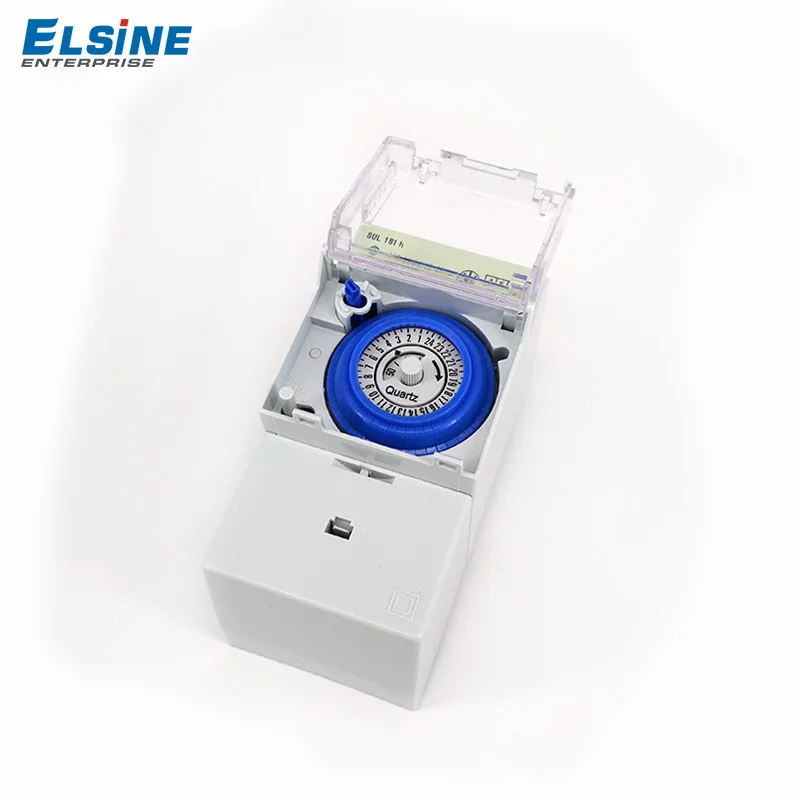

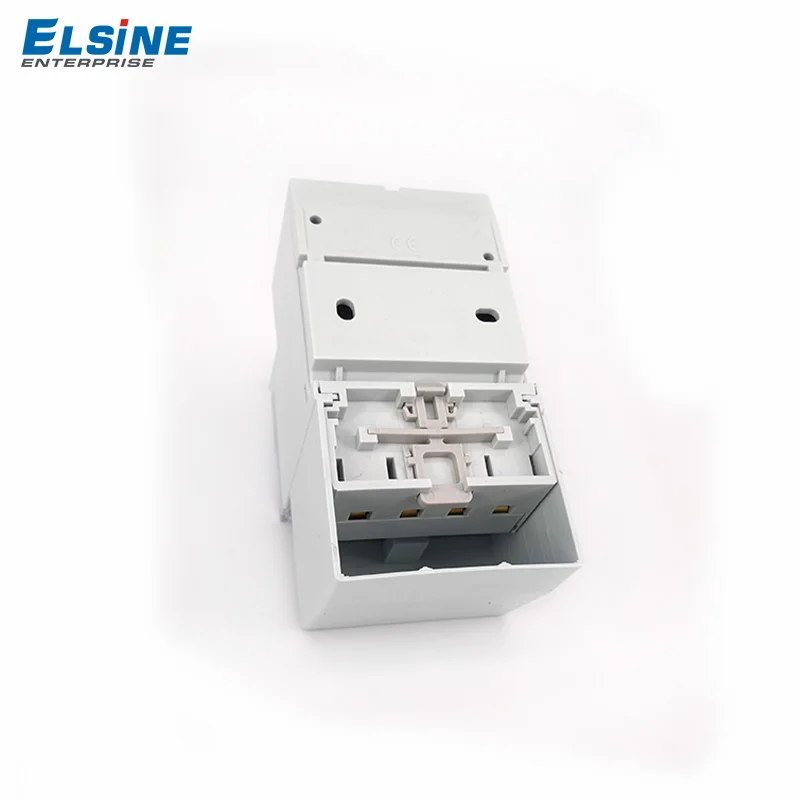

SUL181h/SYN161h industrial timer switch online countdown mechanical timer switch
The SUL181h/SYN161h daily program analog time switches are programmed using switching segments, it's quickly read and easy to change. The shortest switching time is 30 minutes and it can switching with continuous ON/AUTO/continuous OFF.
General
This timer is a kinds of module for DIN guide rail, it is easy to installation in distribute box, and its so compact size with pretty form. Its time base component is adopt synch pulse motor and it is strong anti-jamming with performance stabilization. It can setting 8 programs to control ON and OFF of electric appliance in 24 hours or setting 48 programs in one week. It can be programmed to avoid the peak of power, and it can distribute power in time limit to saving energy.
BASIC FEATURES
Analogue time switch
1 channel
Daily program
Quartz controlled
Shortest switching time: 30 minutes
Fine adjustment for time setting accurate to the minute
Simple summer/winter time correction
48 switching segments
Screw terminals
Switching preselection
Manual switching with continuous ON/AUTO/continuous OFF
Permanent ON/OFF switch
Switching status display
Operating indication
SUL181h
- With power reserve (NiMH rechargeable battery)
SYN161h
- Without power reserve
Technical data
TECHNICAL DATA
| Type | SUL181h | SYN161h |
| Operating voltage | 230-240 VAC / 110VAC / 24VDC / 12VDC | |
| Frequency | 50-60Hz | |
| Number of channels | 1 | |
| Width | 3 modules | |
| Installation type | DIN-rail | |
| Type of connection | Screw terminals | |
| Drive | Quartz-controlled stepper motor | |
| Program | Daily program | |
| Power reserve | 7 days | – |
| Max. switching capacity at 250 V AC, cos φ = 1 | 16 A | |
| Max. switching capacity at 250 V AC, cos φ = 0.6 | 4 A | |
| Incandescent/halogen lamp load | 1100W | |
| LED lamp < 2 W | 20W | |
| LED lamp > 2 W | 180W | |
| Shortest switching time | 30 min | |
| Programmable every | 30 min | |
| Number of switching segments | 48 | |
| Time accuracy at 25 °C | ≤ ± 2 s/day(Quartz) | |
| Type of contact | Changeover contact | |
| Switching output | Potential-free and phase-independent | |
| Power consumption | 1.5VA | |
| Test approvals | CE | |
| Housing and insulation material | High-temperature resistant, self-extinguishing thermoplastic | |
| Type of protection | IP 20 | |
| Protection class | II in accordance with EN 60730-1 | |
| Ambient temperature | –10 °C … +50 °C | |
Product details

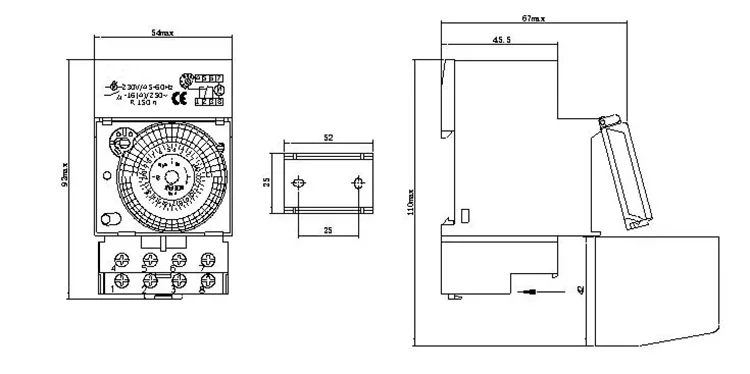

DIMENSIONS SIZE
CONNECTION & INSTALLATION

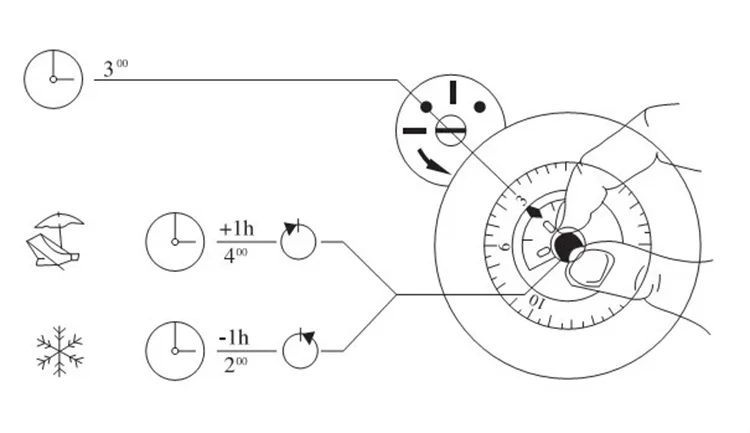

TIMER PROGRAMMING
