UCPH204 Pedestal Base Pillow Block Bearing Cast Iron Housing, Wider Inner Ring Bearing Insert, Set Screw Locking
- Category: >>>
- Supplier: Shanghai Chenghui Bearing Co. Ltd.
Share on (62021818174):
Product Overview
Description

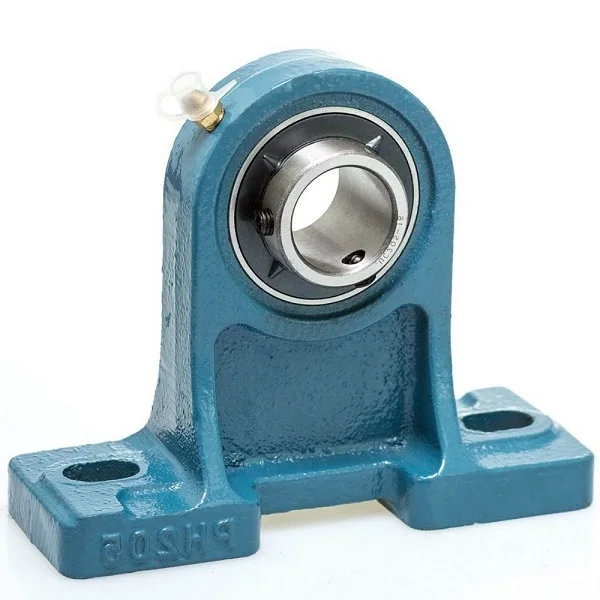

UCPH204 Pedestal Base Pillow Block Bearing
Cast Iron Housing, Wider Inner Ring Bearing Insert, Set Screw Locking
Product Features
- Housing: Gray Cast Iron HT200
- Bearing Insert: Chrome Steel
- Bearing Seal: Standard Nitrile Rubber protected with Slinger
- Slinger: Sheet Steel
- Grease Nipple: Carbon Steel - Clear Zinc Plated
- Set Screw: Carbon Steel - Oxided Black
- Grease: Chevron SRI-2
- Working Temperature range: -20°C to +90°C ( -4°F to + 248°F )

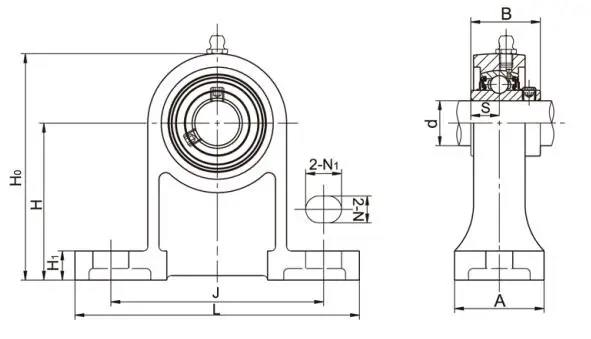

Specifications
| d (mm) | 20 |
| H (mm) | 70 |
| L (mm) | 127 |
| J (mm) | 95 |
| A (mm) | 40 |
N (mm) | 13 |
| N1 (mm) | 19 |
| H1 (mm) | 15 |
| H0 (mm) | 101 |
| B (mm) | 31 |
| S(mm) | 12.7 |
| Bolt Size | M10 (3/8") |
| Bearing Insert | UC204 |
| Housing No | PH204 |
| Weight (kg) | 0.96 |
Packing & Delivery
Pedestal Base Pillow Block bearing - blue & Green Color
About C&H
C&H is a hgih quality bearings suppliers. We have skillful and training team. Most of them have over 20 years experience.The quality control covers pre-sales aduit, process control, final product re-inspect and after-sales service. The strict and complete process ability and quality control can guarantee to supply top-class products and service.The skillful engineer team can supply great support in technical and help customers to develop all kinds of new products.
