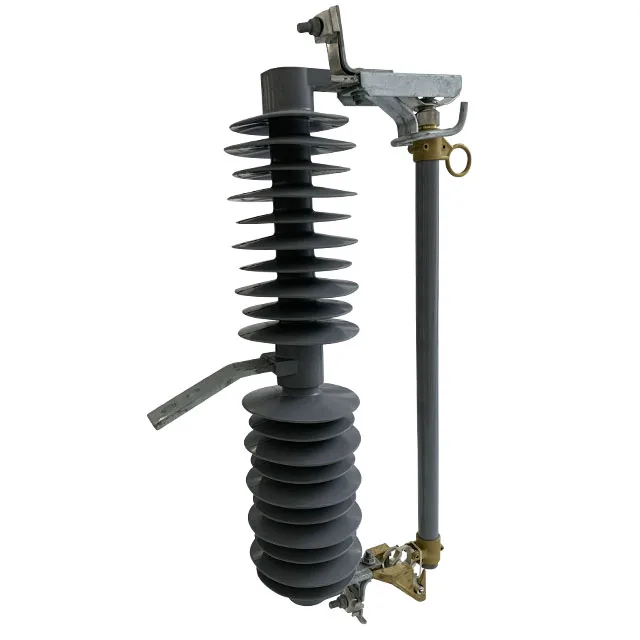

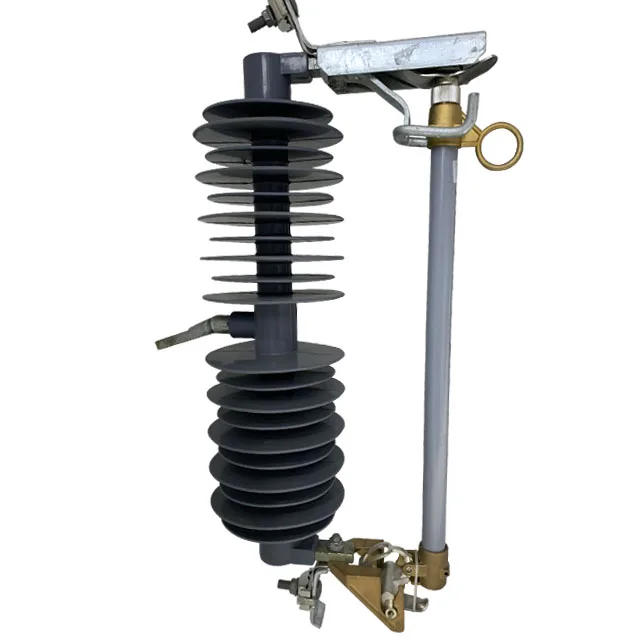

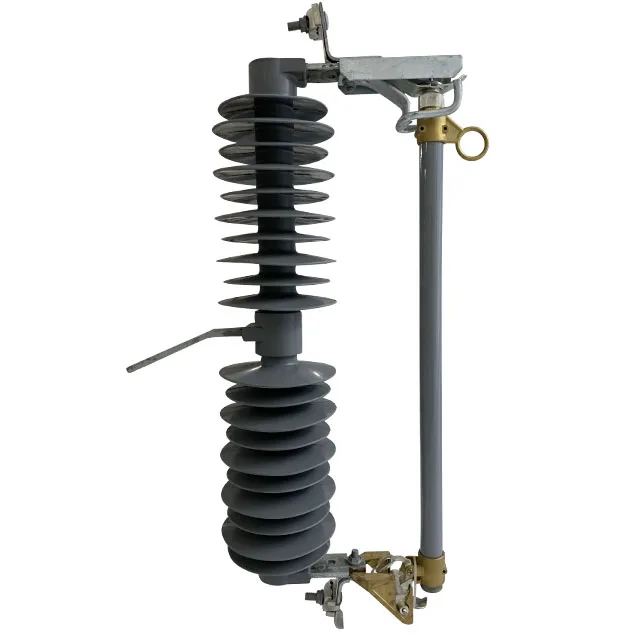

IEC Standard 33kv Polymer fuse cutout
| Type | RZF-11 | RZF-12 | RZF-14 | RZF-16 |
| Rated voltage,KV | 24 | 15 | 36 | 36 |
| Rated current,A | 100 / 200 | 100 / 200 | 100 / 200 | 100 / 200 |
| Breaking current,A | 10000 / 120000 | 10000 / 120000 | 10000 / 120000 | 10000 / 120000 |
| Impulse voltage (BIL) | 150 | 110 | 170 | 170 |
| Power frequency withstand voltage,KV | 65 | 45 | 70 | 70 |
| Creepage distance,mm | 570 | 360 | 720 | 720 |
| Dimension,CM | 51*34*11.5 | 45*34*11.5 | 63*38*14.5 | 61*34*11.5 |
