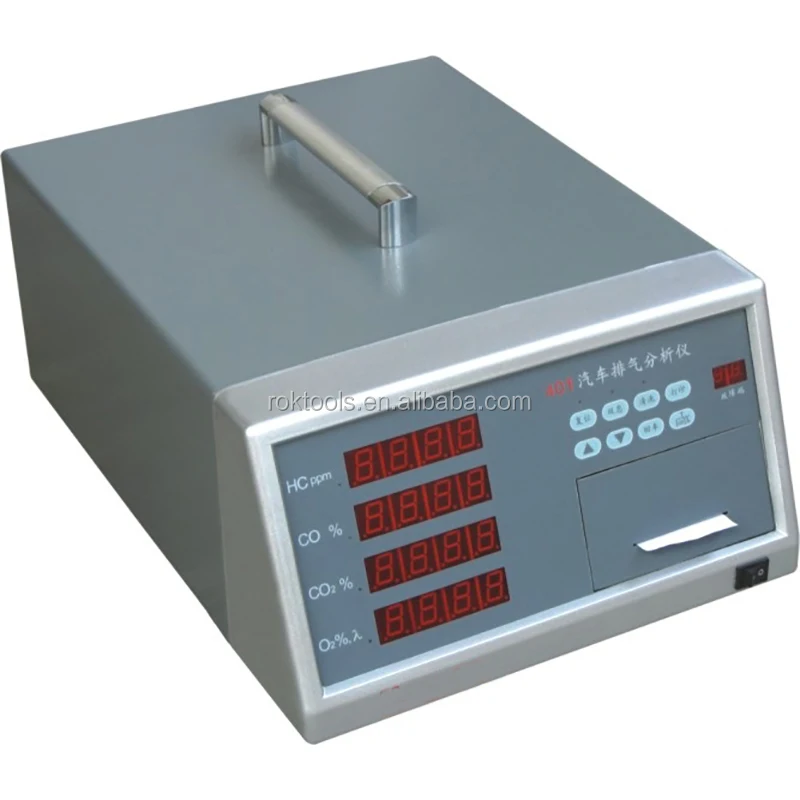

ROKTOOLS Vehicle Exhaust Gas Analyzer Emissions Analyzers HC CO2 CO O2

Product Overview

Description

ROKTOOLS Vehicle Exhaust Gas Analyzer Emissions Analyzers HC CO2 CO O2



manufacturer: ROK International Industry Co., limited



CO2: 0~20×10-2(%)vol, O2: 0~25×10-2(%)vol
R.M.P: 0~9999r.m.p   OIL TEMP:0~150℃
Lambda: 0.50~3.00    COcor:0~10×10-2(%)vol
Indicating error:HC±12×10-6(ppm)vol ( absolute error ) or±5% ( relative error )
CO±0.06×10-2(%)vol ( absolute error ) or±5% ( relative error )
CO2±0.5×10-2(%)vol ( absolute error ) or±5% ( relative error )
O2±0.1×10-2(%)vol ( absolute error ) or±5% ( relative error )
Stability:moment drift≤±3%
Repeatability ≤±2%
Resolution: HC:1×10-6(ppm)vol, CO: 0.01×10-2(%)vol
CO2: 0.1×10-2(%)vol, O2: 0.01×10-2(%)vol,     Lambda: 0.01
R.P.M:10r.p.m,  OIL TEMP:0.1℃
Response time: 95% response is not more than 10 seconds
Preheating time: 8min ( preheating 3min emergency detection )
Output mode: digital direct reading, gases can be attached printer name, in accordance with national standards and the average concentration of the maximum value, test time, date. Can interface with computer
networking.
And-use temperature: -5~50°C,  Relative humidity: ≤90%
Power:     AC100~240V 50/60Hz or DC12V( Add power inverter)
