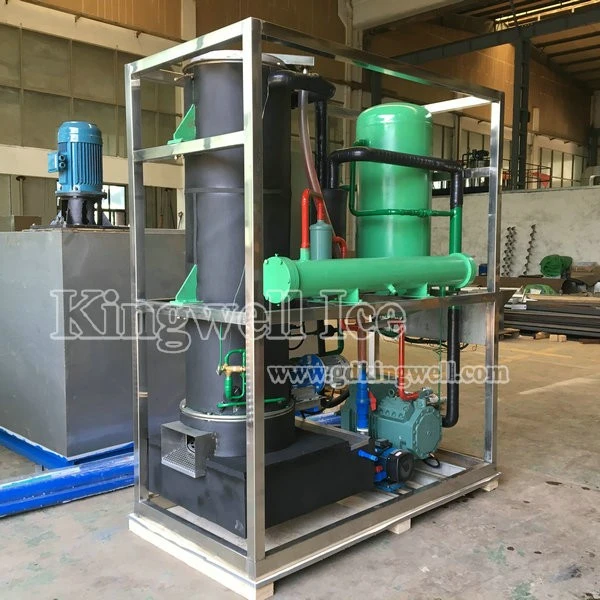

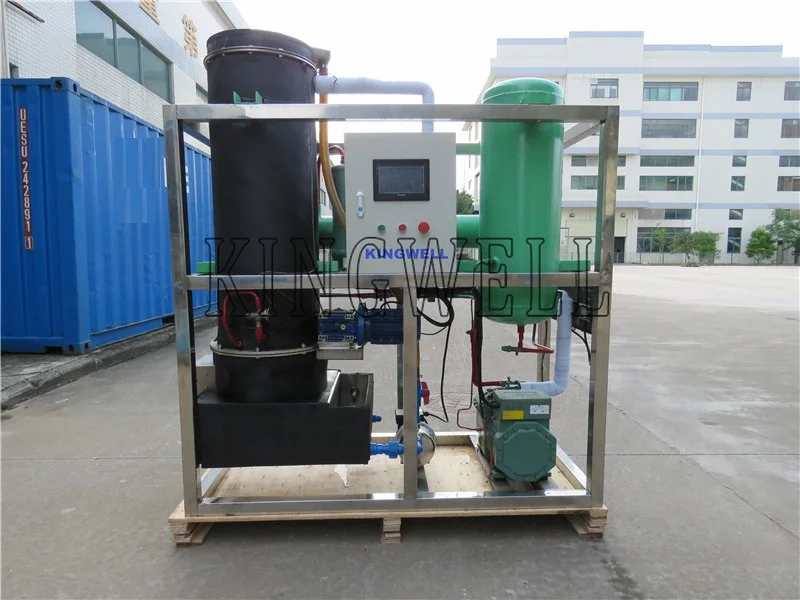

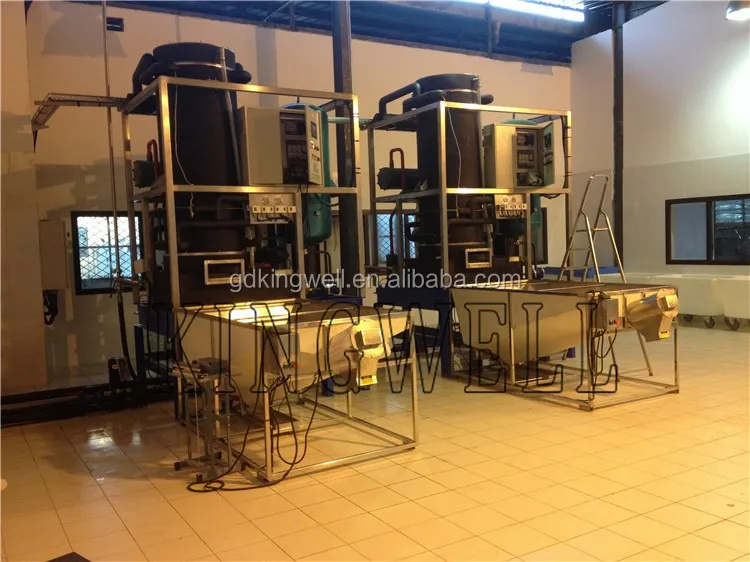

3ton 5ton 10tons Industrial ice making machines cube tube ice makers

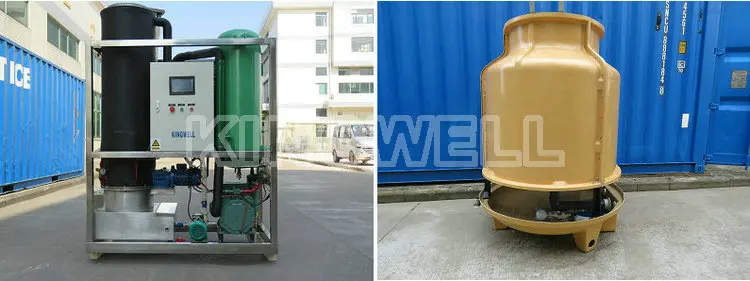

(Cooling by Water)

\t
SPECIFICATIONS OF 1 TONS ICE TUBE MACHINE
\t

Compressor
\t
Brand
\t
Bitzer
\t
Origin
\t
Germany
\t
Power(HP)
\t
4
\t
Ice Cutter Motor(KW)
\t
0.37
\t
Circulating Water Pump(KW)
\t
0.75
\t
Cooling Water Pump(KW)
\t
1.1
\t
Cooling Tower Motor(KW)
\t
0.25
\t
Capacity per Day
\t
1Tons/24Hours
\t
Inlet Water Temp.
\t
5℃~35℃
\t
Ambient Temp.
\t
5℃~40℃
\t

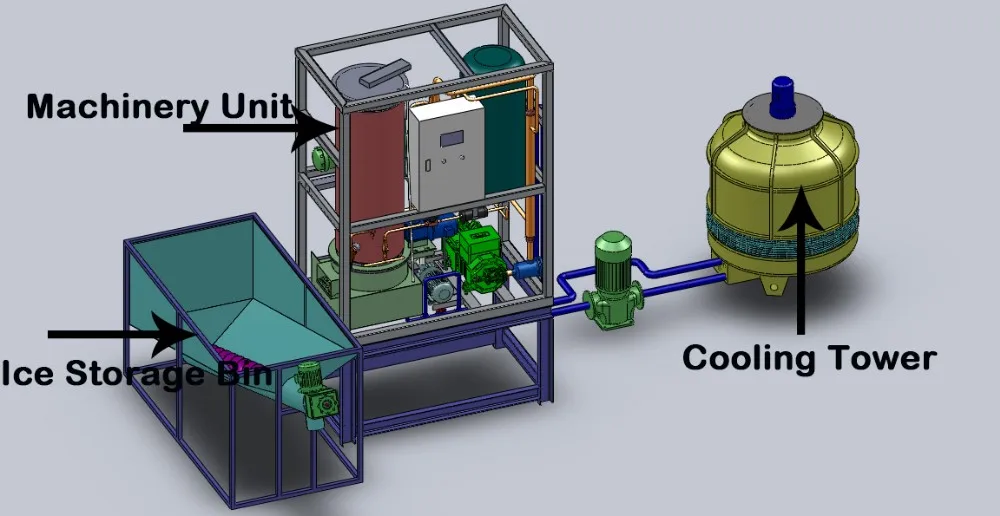

Machinery Unit Dimension(L*W*H,MM)
\t
1650*1090*2300
\t
Machinery Unit Weight (Kg)
\t
900

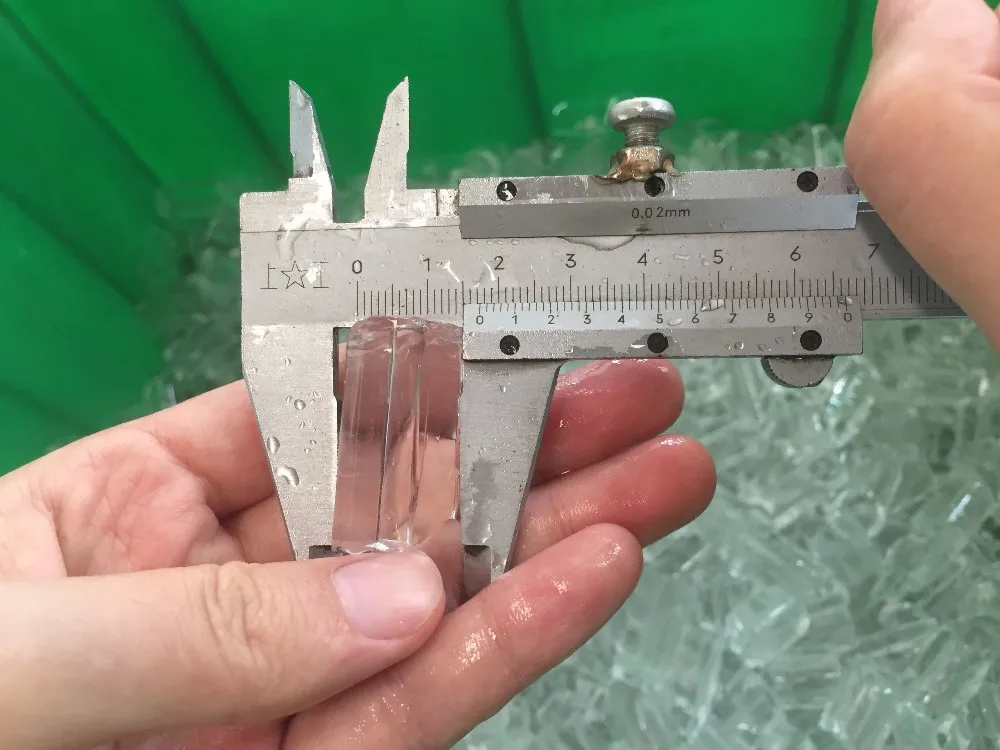

Ice tube Size as option:

Tube ice outer diameter is 16mm,22mm, 28mm, 34mm, 40mm; The inner diameter can be adjusted according to the ice making time. Usually it's between 5~10mm.

\t
External diameter
\t
Standard length
\t
Freezing time/circle
\t
16mm
\t
25mm
\t
14minutes
\t
22mm
\t
30mm
\t
16minutes
\t
28mm
\t
35mm
\t
18minutes
\t
34mm
\t
45mm
\t
22minutes
\t
40mm
\t
55mm
\t
25minutes

Features of Kingwell tube ice machine:

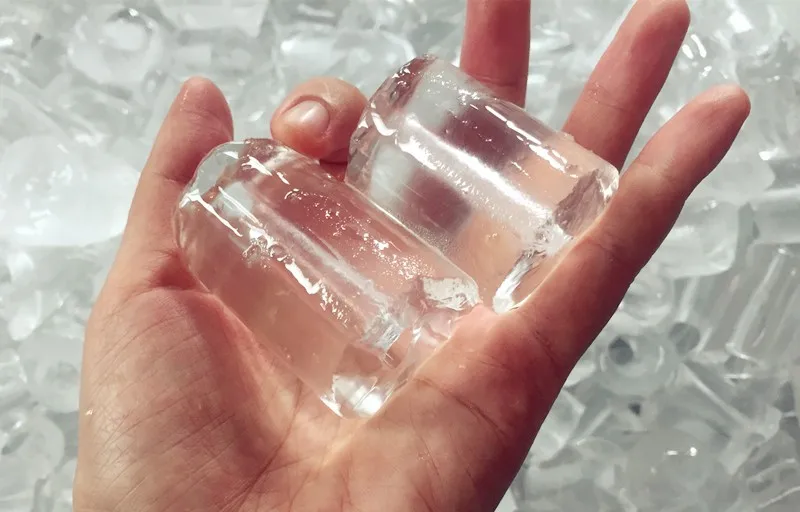

1) The tube ice is thick and transparent.

2) Under the control of PLC system,ice discharge automatically:hygienic and labor-saving

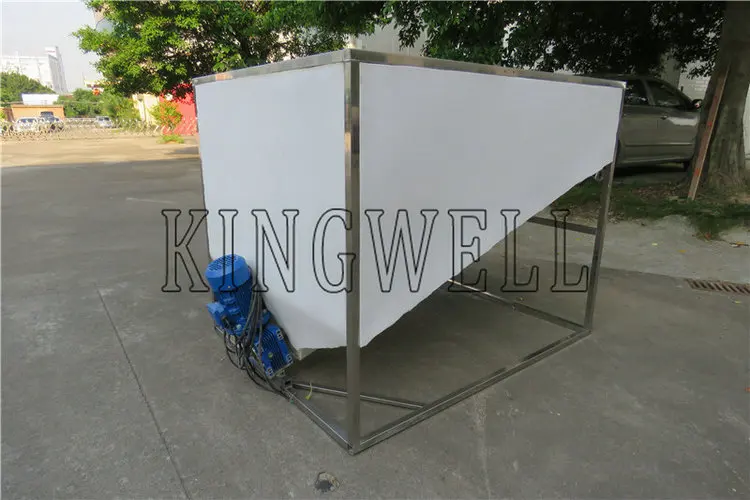

3) Semi-automatic packaging: When you step on the pedal switch, the ice will come out by screw conveyor on the bottom of ice storage bin, jump into the plastic bags directly. Then you can complete the packing process.

Kingwell Tube Ice Machine Technical Parameter:


\t
Item
\t
Capacity(tons/day)
\t
Refrigerant
\t
Compressor Brand
\t
Compressor(HP)
\t
Cooling
Way
\t
Dimension
(L*W*H, mm)
\t
KW-T1
\t
1
\t
R22/R404A
\t
Bitzer
\t
4
\t
Water/Air
\t
1600*1350*2010
\t
KW-T2
\t
2
\t
R22/R404A
\t
Bitzer
\t
9
\t
Water/Air
\t
1650*1090*2300
\t
KW-T3
\t
3
\t
R22/R404A
\t
Bitzer
\t
14
\t
Water/Air
\t
1700*1400*2430
\t
KW-T5
\t
5
\t
R22/R404A
\t
Bitzer
\t
25
\t
Water
\t
1790*1080*2270
\t
KW-T10
\t
10
\t
R22/R404A
\t
Bitzer/Bock
\t
2*25
\t
Water
\t
2200*1900*2550
\t
KW-T20
\t
20
\t
R22/R404A
\t
Bitzer/Bock
\t
2*50
\t
Water
\t
4530*1800*3000
\t
KW-T30
\t
30
\t
R22/R404A
\t
Bitzer/Bock
\t
3*50
\t
Water
\t
2200*1900*6200
\t
KW-T50
\t
50
\t
R22/R404A
\t
Bitzer/Bock/Hanbell
\t
200
\t
Water
\t
2000*1800*6800
Detailed Images

Compressor

Brand: Bitzer

Original: Germany

The compressor is the most important part of the ice machine,like the heart of the human,it can work with high efficiency and stable performance.

PLC System

Brand Name:Simens
Original: Germany
The Simens PLC control system: Ice discharge automatically  hygienic and labor-saving

Like the brain of the human being to control the machine do the  proper work in the right time.

Touch Display Screen

Brand: Wecon

Orginal: Taiwan

(1) The ice thickness can be adjusted.

(2) Record the history of machine work

(3) Set the operating parameters of the machine

(4) Easy to find fault causes in the event of a machine failure

Electrical Box

Switch Brand: LS (South Korea)
PLC Brand: Simens (Germany)
Contactor Brand: LS (South Korea)
Overload Brand: LS (South Korea)

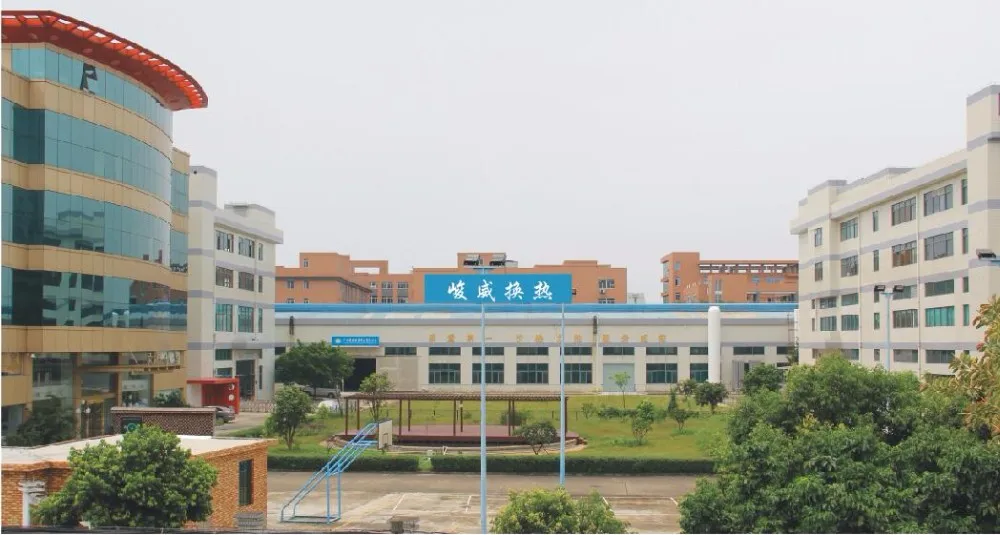

About KINGWELL

Guangzhou KINGWELL Heat Transfer Technology Co., Ltd.

    A professional manufacturer which specialized in researching, designing, producing and selling various refrigeration equipments, such as ice making machines, cold storage rooms and heat transfer equipments etc.

   We have a professional Research & Development team, works in refrgeration area for more than 12 years.  The professional engineers can provide the tailored and scientific refregeration technical projicts to our clients.



Good Quality Attracts Customers!!!!

1) Superior Supplier

     Quality is the first life of our products

2) Customer-centric,Innovative Design

3) One Package Service

     A Package of services:Design-Production-Installation-After-sale Service.

OUR SERVICES

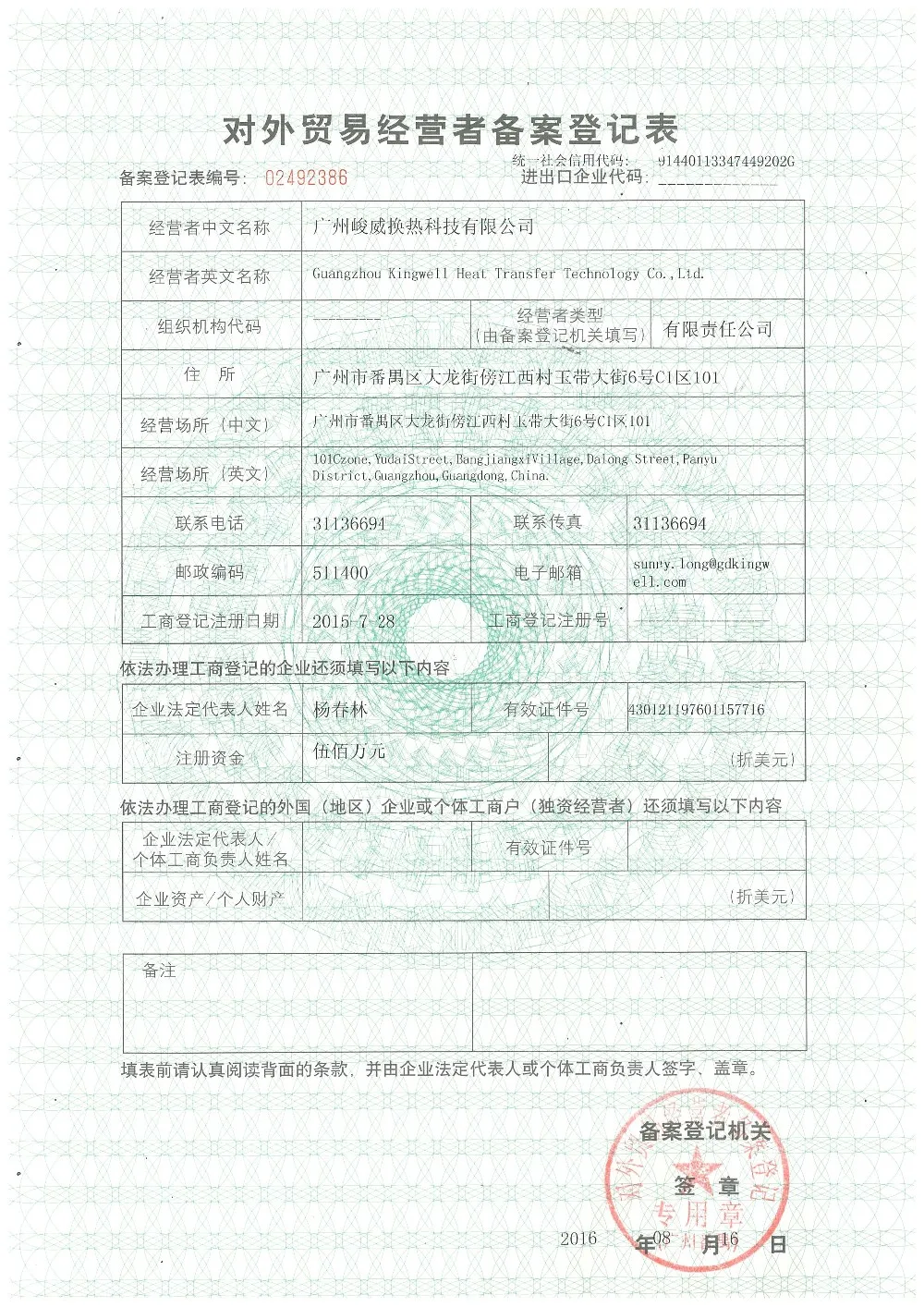

Certifications
CONTACT US

Please contact us for more detail

Guangzhou KINGWELL Heat Transfer Technology Co,. Ltd

Add: No.102 Yongshan Village South Road,Shiqi Town,Panyu District,Guangzhou,China

FAX:+86-2031136694

Website: www.gdkingwell.com
