Simple water table new style cnc plasma cutter

Name

SIMPLE WATER TABLE CNC PLASMA CUTTING MACHINE

Model No.

ZZ-1325W-BT

ZZ-1530W-BT

Customized Information

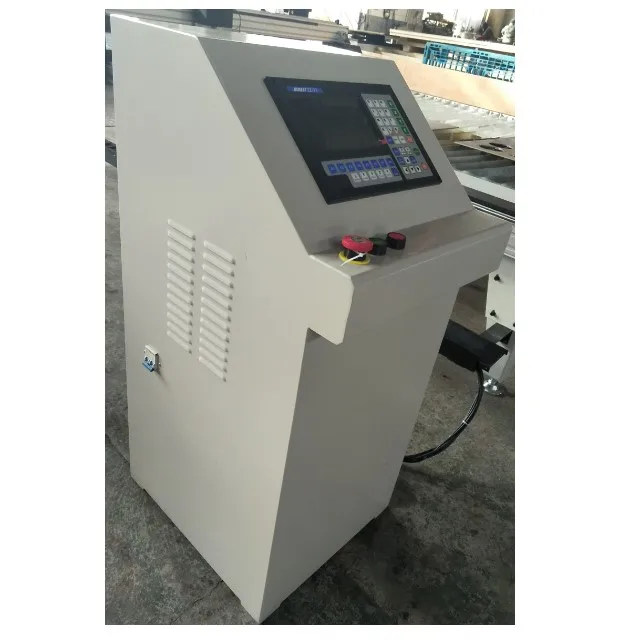

Torch height control can be modified to air cylinder control up and down. The control cabinet, system and PTHC as shown in the picture are optional for adding KING series control cabinet, but not standard

Effective Cutting Rangge X*Y

1300*2500mm

1500*3000mm

Driving Configuration

Dual drive 86 series step motors with dual synchronous belts

Tool And Torch Quantity

Single tool with plasma torch

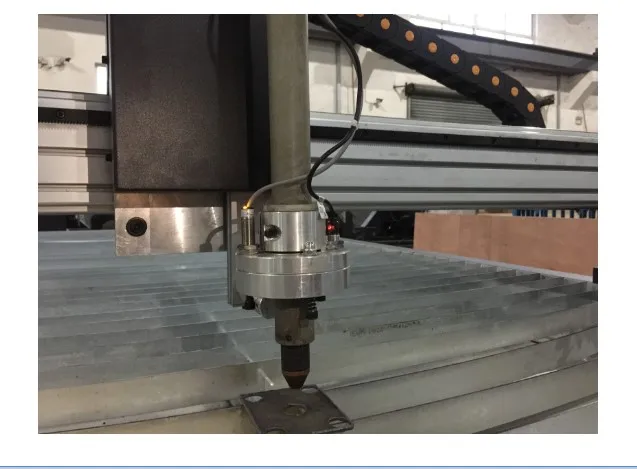

Torch Height Control

Plasma arc voltage auto torch height control

Max. Working Speed

12000mm/min

Input Power

Single phase AC 220V 1200W

Torch Lifting Distance(Z)

≤100mm

Working precision

± 0.15 mm / m

Flame (Gas) Cutting Capacity

Cannot work with flame cutting

Plasma Cutting Capacity

Depends on the plasma source's cutting capacity

Controller, Software And Torch Height Control

ZZ-7B 7inch controller,FASTCAM mini pro.software, ZZ-PTHC plasma THC

Cutting Table and Base

Standard water cutting table,which can carry under 1 ton weight

Needed Installation Area

W 2.2m * L 3.2m * H 1.4m

W 2.4m * L 3.7m * H 1.4m

Packing Size

3680*1100*940mm

3760*2210*940mm
