Product Overview
Description

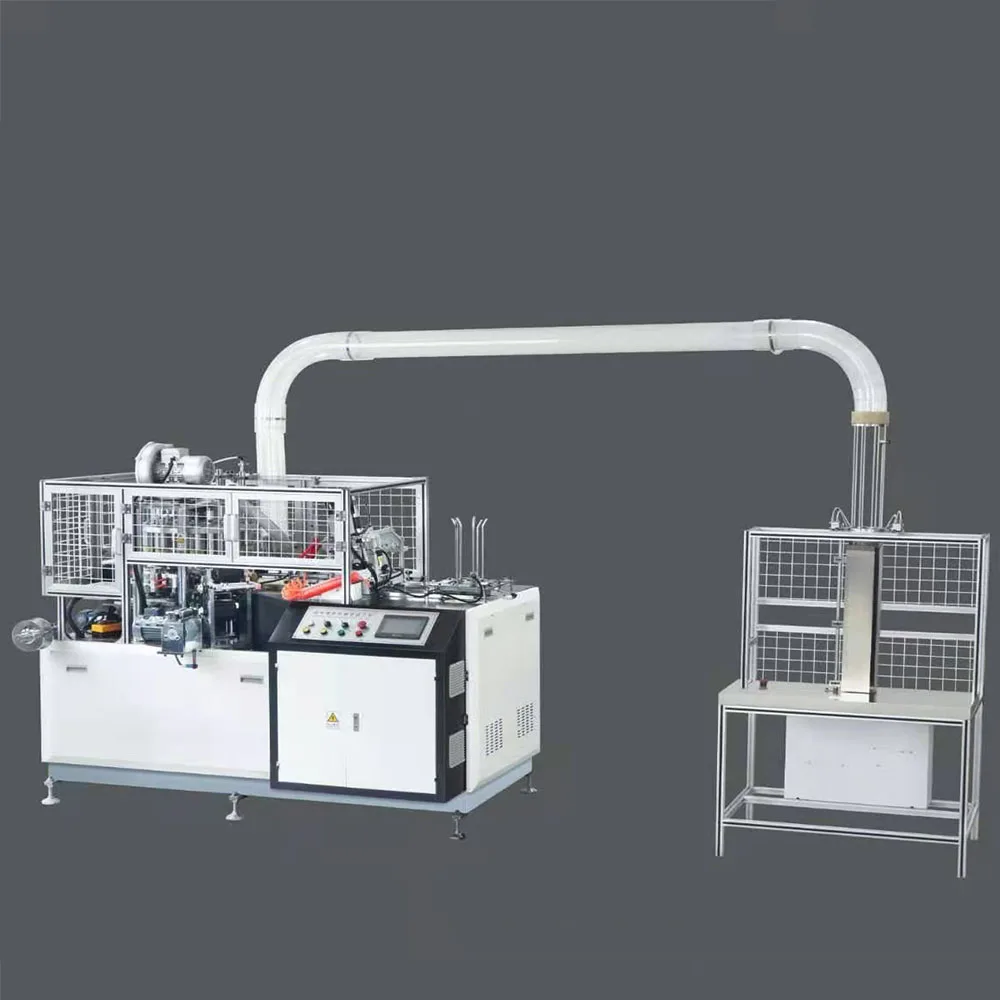

BH-S800 Middle speed paper cup machine
Model | BH-S800 (with cup collection and safe shell,PLC,UItrasonic) | |
FOB price | 14500USD | |
Paper Cup Size | 3-16 OZ | |
Raw Material | One-side or two-side PE/PLA coated paper(Singe PE /PLA or Double PE /PLA coated paper) | |
Speed | 75-85 pcs/min | |
Suitable paper weight | 160-300g/square meter;±20g/square meter | |
Voltage supply | 380V,50HZ | |
cup size | bottom35-70mm,top45-90mm,high32-135mm | |
Working Air Source | 0.6-0.8Mpa; 0.4m³/min | |
General power | 9.5 kw | |
Net weight | 2000kg | |
Measurement (mm) | MACHINE
| L:2150mm;W:1300mm;H:1700mm
|
collecting tube and cup Stacker. 100kgs | L:900mm;W:600mm;H:1500mm | |
Cup Side Sealing | EVERGREEN Ultrasonic | |
Bottom Knurling | HOT AIR SYETEM | |
We can customize machine and mold according to customer’s requirement. Delivery time:50days | ||
Product parameters
STANDARD () Optional(can) | ||||
NO | NAME OF SPARE PARTS | BRAND AND MODEL OF SPARE PARTS | ORIGIN | Optional |
MAIN MOTOR
| Shanghai |
| ||
2 | Knurled motor
| ZHI BAO | Shanghai |
|
3 | Bottom feeding motor | HUI CHUAN | SHENGZHEN |
|
4 | BOTTOM PROGRESSIVE MACHIN | HUI CHUAN | SHENGZHEN | FUSHI(JANPAN) (y) |
5 | Lubricate the motor | TROCHOLD PUMP | SHENGZHEN |
|
6 | TOUCH SCREEN | WEINVIEW | TAIWAN |
|
main switch | CHNT | ZHEJIANG | Schneider(FRANCE)(y) | |
8 | Convert | HUI CHUAN | SHENGZHEN | Mitsubishi (JANPAN) |
9 | PLC | HUI CHUAN | SHENGZHEN | Mitsubishi (JANPAN) |
10 | Contactor (Switch) | CHNT | ZHEJIANG | Schneider(FRANCE)(y) |
12 | Sensor | OMRON | JAPAN | (y) |
13 | Ultrasound | KEJIAN | ZHEJIANG | CHANGRONG (TAIWAN)(y) |
| Transmission | TAIZHONG | ZHEJIANG |
|
14 | PRESS BUTTON |
AUTONI | KOREAN |
|
15 | Temperature module | AUTONI | KOREAN |
|
16 | Pneumatic | PNEULEAD | SHANGHAI | AirTAC(taiwan) |
|
|
|
| |

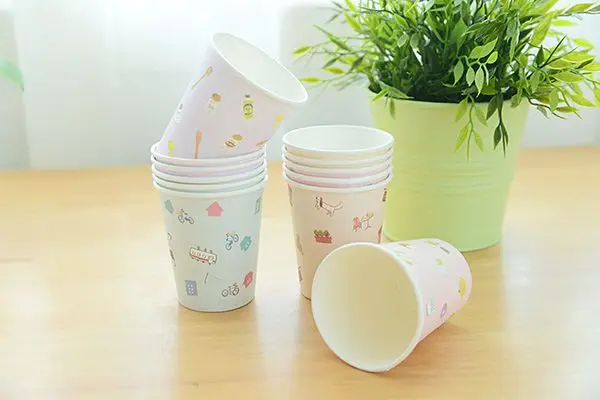

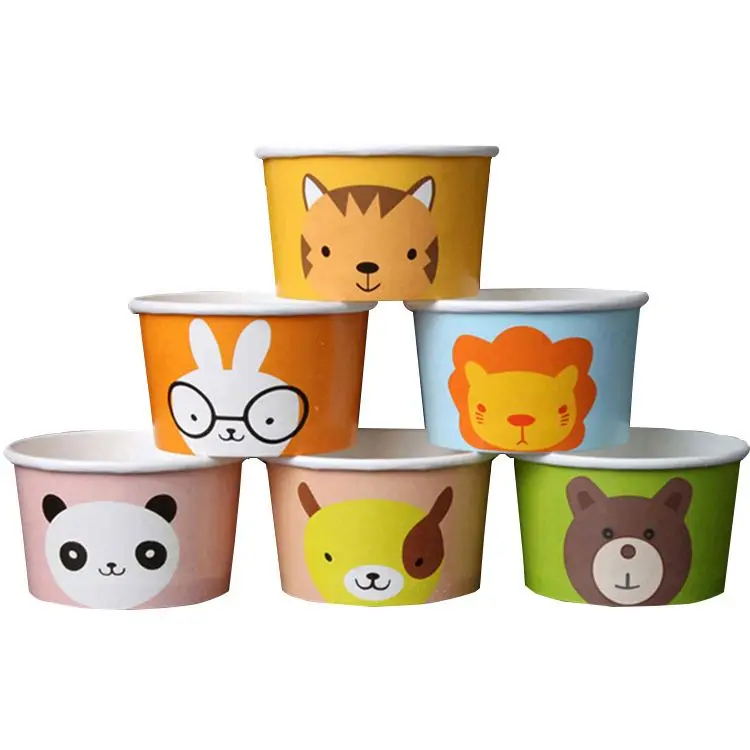

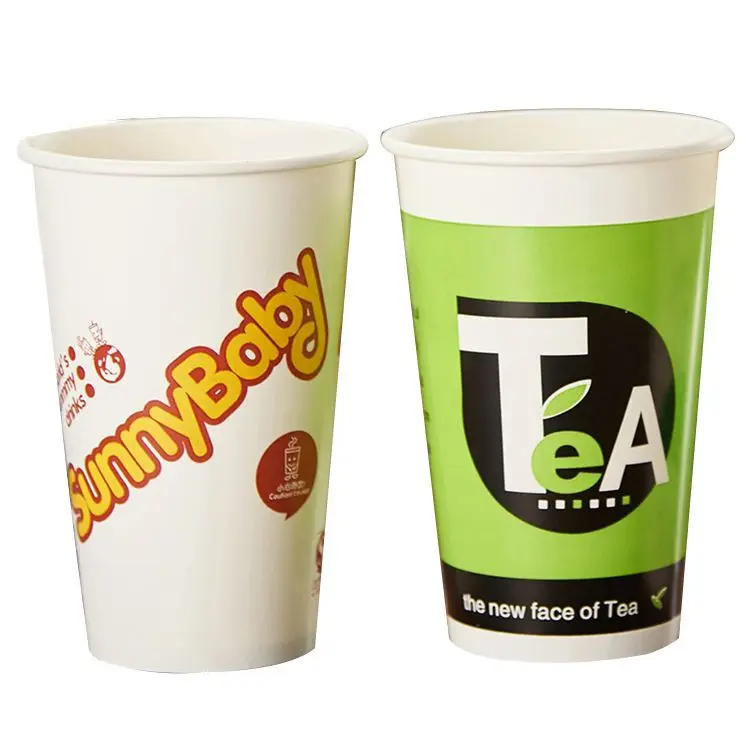

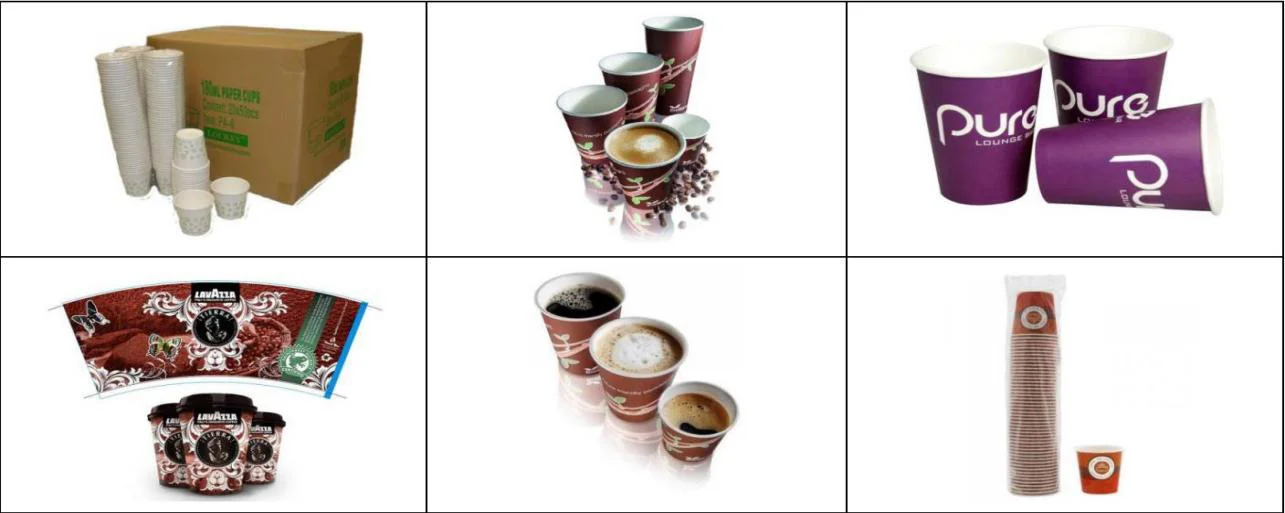

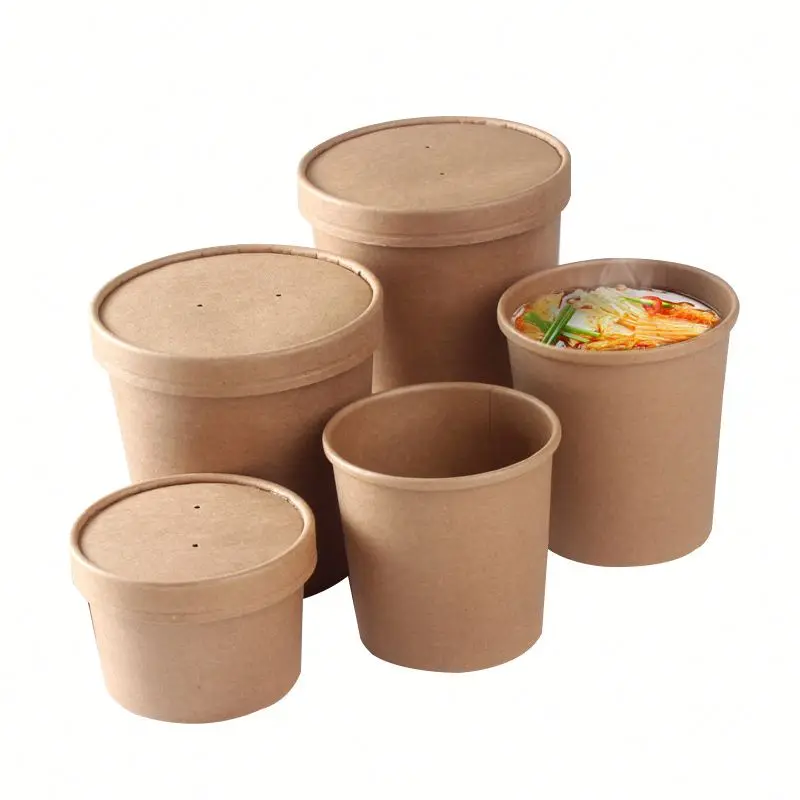

Paper Cup Sample:

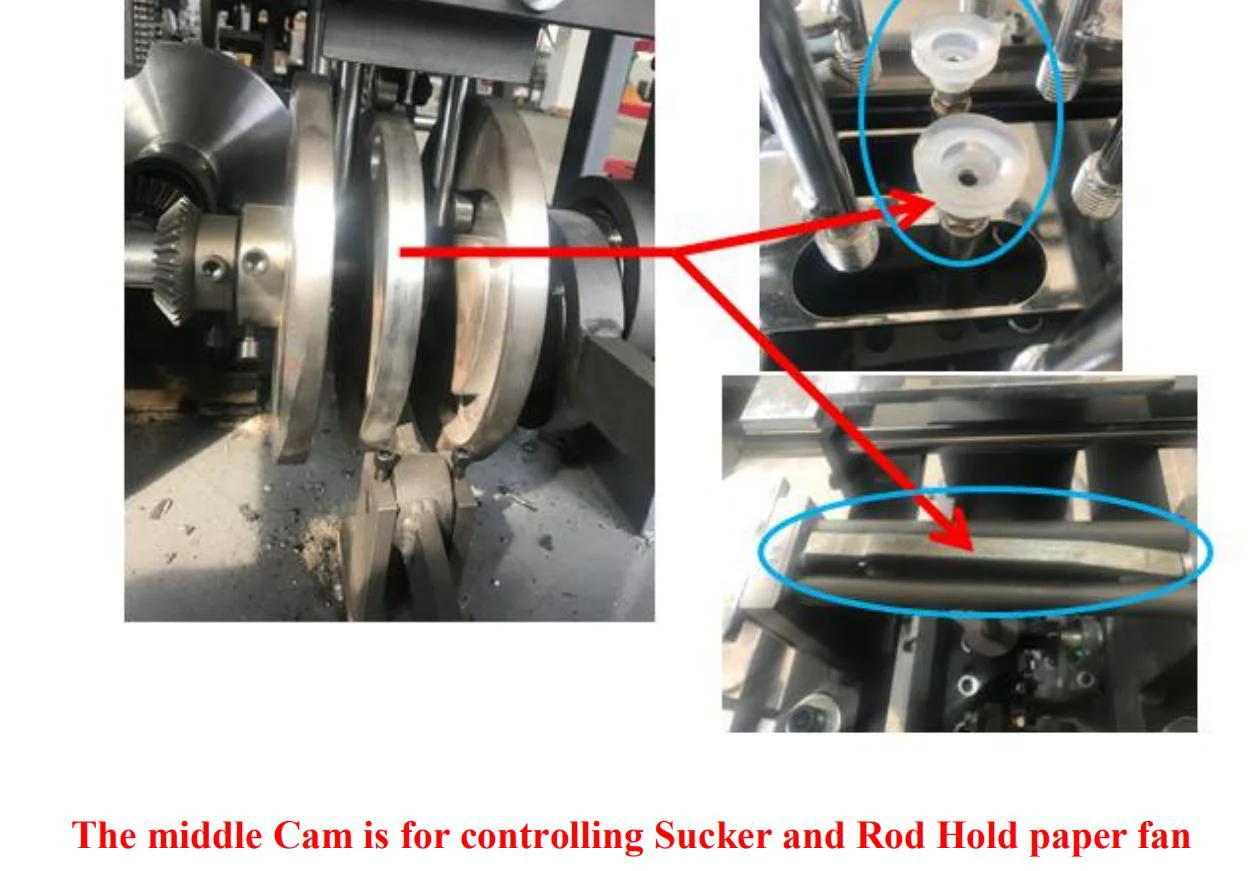

Adopt Open Cam for the dividing moving, compare with index gear box,
easy maintenance, stable and reliable, easy replace broken parts.

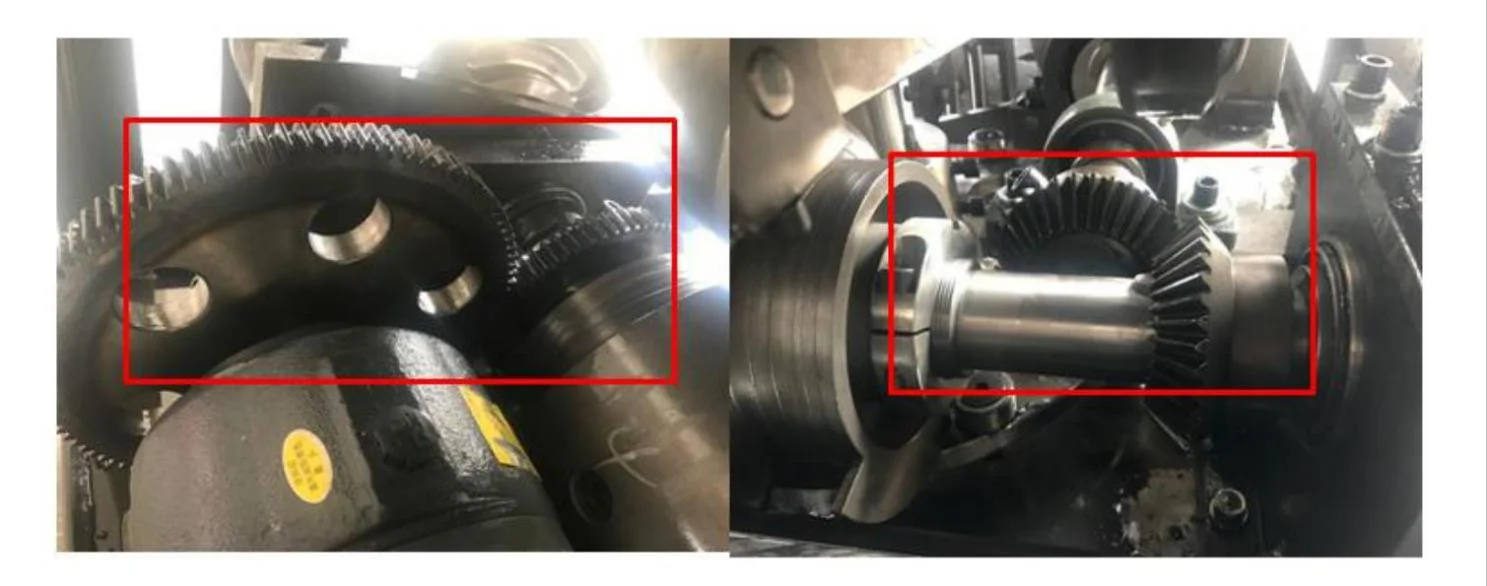

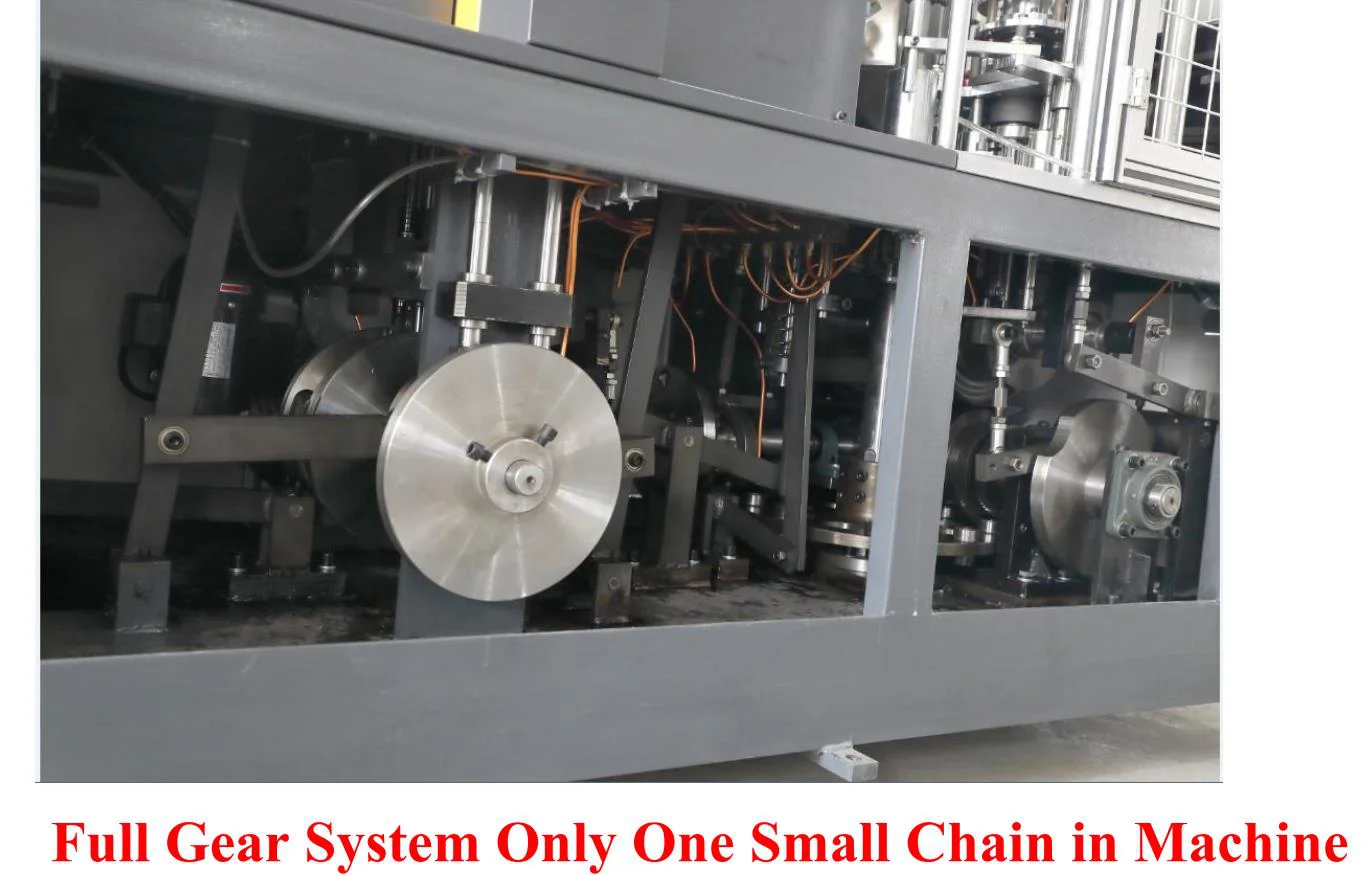

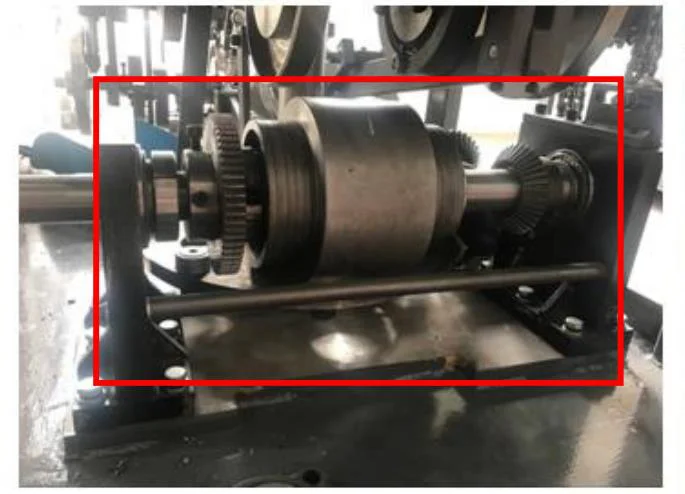

Main mechanism and moving parts are controlled by quality gears, which is
more efficient and more stronger than chain and axis.
Machine inner with Single Shaft from Start to End for control whole
machine Running which difficult broken and easy control Whole machine running
Packaging & Shipping

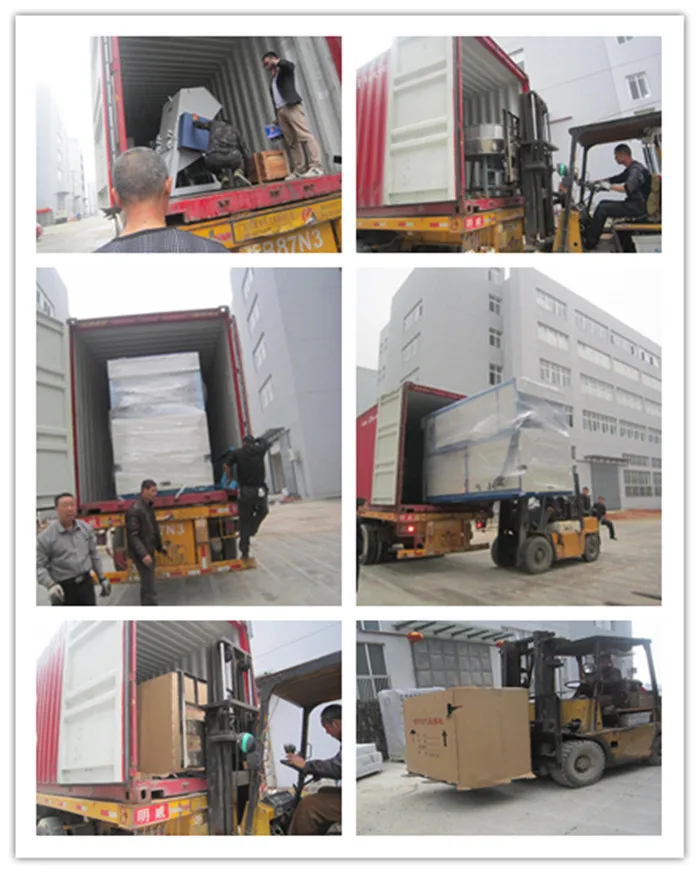

MACHINE LOADING
FAQ
QUESTIONS YOU MAY ASK
Q1: Do you have different models for each machine?
Reply: Yes, we have different models and we can make the machine according to your requirements.
Q2: What is the production time?
Reply: Normally we need around 45 days.
Q3: What service you can offer after we buy the machine?
Reply: We have a few experienced technicians who can help to install and test running the machine anytime overseas. Moreover, our own export personel will give you the service support after buying the machine. As long as you have any questions, we will try our best to help you.
Q4: Should the customer send the sample cups?
Reply: Yes, if there is. If the customer has no samples, please send a drawing or a photo of the sample, and let us know the size. Then we will send the drawing for your confirmation.
Q5: What about the payment terms?
Reply: We accept T/T. 30% as deposit and 70% balance should be paid before delivery. We can also accept 100% confirmed irrevocable L/C at sight.
