High flotation efficiency flotation cell equipment copper ore flotation cell

Product Application

It is an inflatable and mechanical agitation type flotation cell,the. it can be applied to rougher, scavenger stage in the large or medium sized dressing plant, and can pick out non-ferrous metal, ferrous metal and nonmetallic minerals. According to the pulp volume, the capacity is 1.2-plan 4 m3 / min. The feed particle size usually is 0.01- 0.3 mm, -200 mesh accounts for 50-90%. During the operation it need to be equipped with the blower and the wind pressure≥19.8 Kpa, KYF type flotation cell having no slurry absorption function, JPF type flotation cell having the slurry absorption function. So that when KYF type flotation machine is used alone it should come with the ladder configuration, the middling products return through foam pump.

Main Features

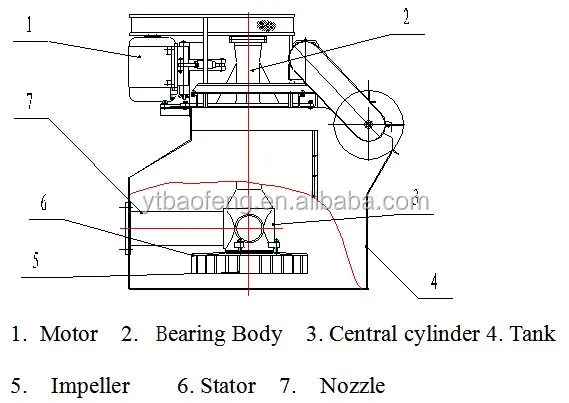

1. This machine belongs to deep tank type flotation cell, equipped with blower for air supply.

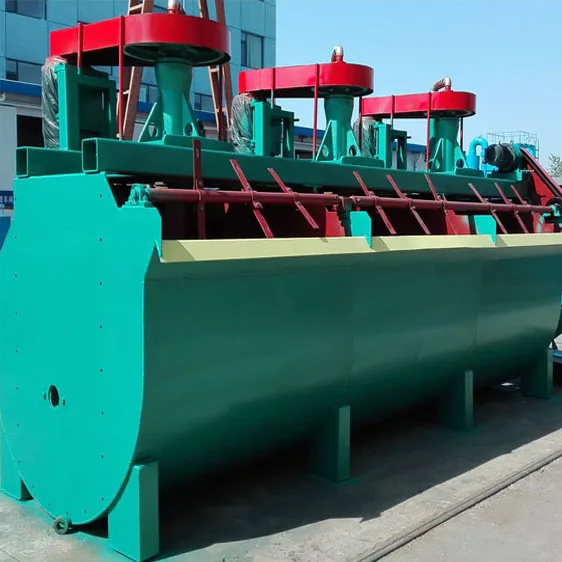

2. The flotation cell has U-shaped tank, reducing the slurry sediment to the least, reasonable support structure of the tank, large space between the support, even air dispersion, stable foam in good suspension.

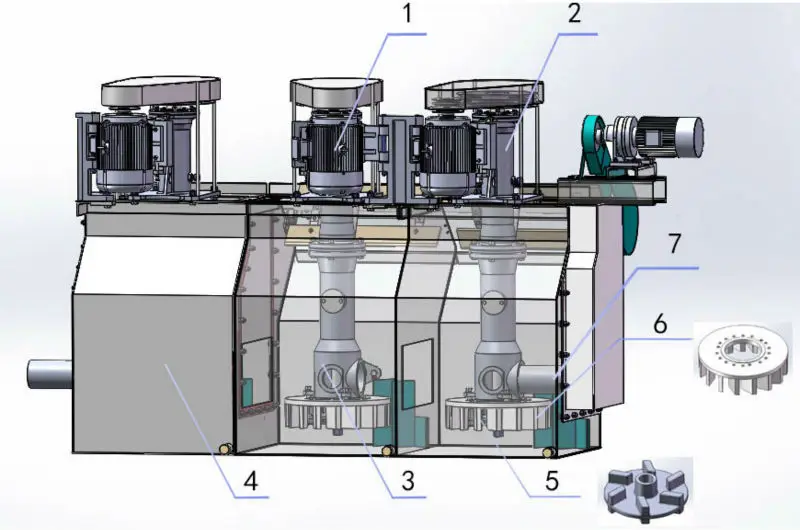

3. The design of impeller structure and the flow channel between impeller blades is reasonable, so that the impellers can be even wore and stator has long service life.

4. XCF is equipped with simple air distributor, easy installation, good air distribution.
